Amass MR30 Connector Pair

by Amass
5.00 out of 5
(2 customer reviews)

The Amass MR30 is the perfect connector for FPV Racers, Fixed Wing, or pilots looking for a solder free field fix!

$5.99

Out of stock

Buy in Bulk and Save!

Quantity 1 - 4 5 - 9 10+
Price $5.99 $5.39 $4.49
SKU: E1243 Categories: , Tag:

Description

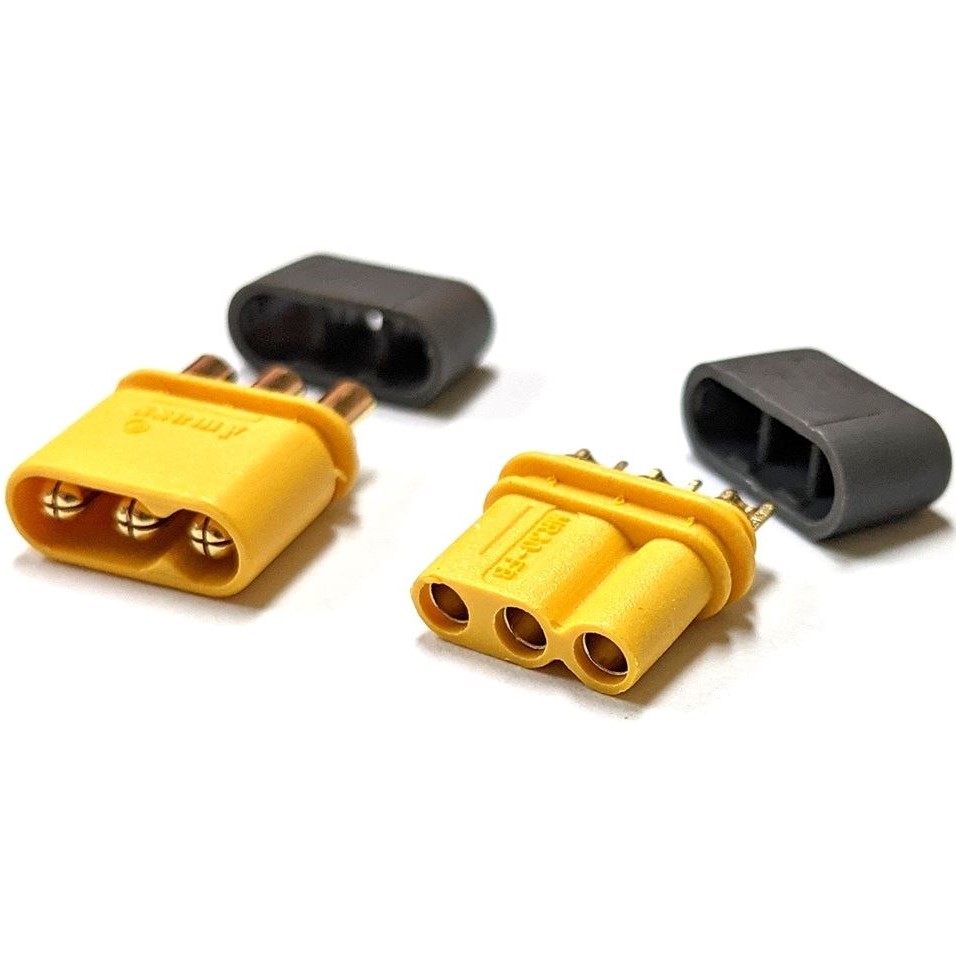

The Amass MR30 Connector Male Female Pair is a classic connector that any FPV Racer should consider!

Made from high-temp Nylon and gold plated spring connectors, both are included in the same injection mold at the time when forming the connector. The MR30 allows you to quickly swap motors due to its 3 connector design.

Specifications

  • Body Material and Surface Plating: Brass and gold plated
  • Insulation Material: PA66
  • Original Internal Resistance: 0.8MΩ
  • 500 Times Internal Resistance: 0.85MΩ
  • Max. Continuous Current: 30A (within 30 minitues)
  • Max. Instantaneous Current: 40A (within 1 minitues)
  • Recommended Cable Spec: 18AWG 2.8mm diameter
  • Recommended Soldering Spec: 400° C/3S
  • Weight: 1.2g/pcs
  • Insulation Degree: UL94V-0
  • Machine Life: 3000 Times

Includes

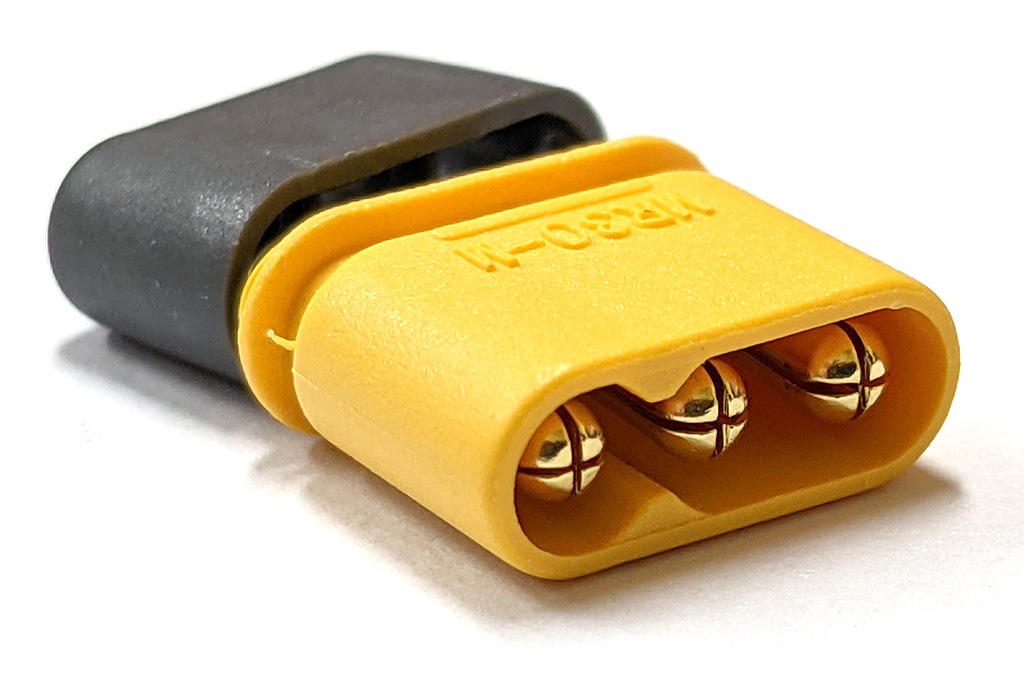

  • 1x Male MR30

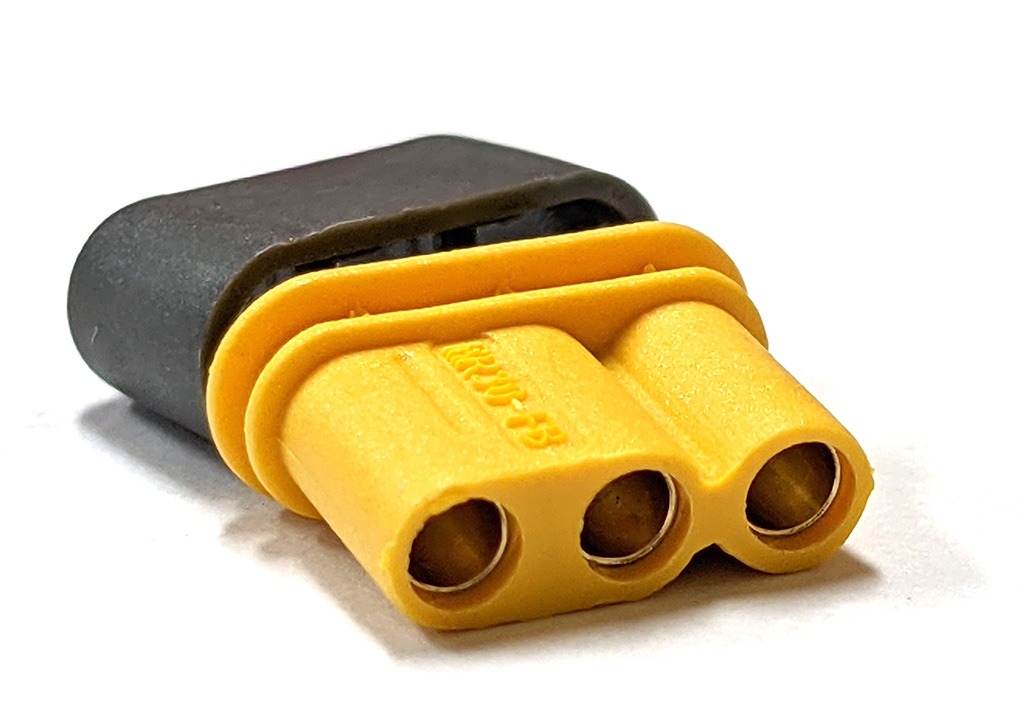

  • 1x Female MR30

Additional information

Brand

2 reviews for Amass MR30 Connector Pair

  1. 5 out of 5

    Rex Ashwell (verified owner) –

    These are perfect motor to esc connectors, very small and secure. Best feature is the shaped solder tabs which make good solder joints simple to achieve without melting the plastic housing. Finally the press on caps isolate each wire and give a professional look to the finished plug.

  2. 5 out of 5

    Alan B. (verified owner) –

    Great for small brushless motors in combat robots.
