Description

Features:

• Supports four standard micro UAV battery interfaces, plug and play

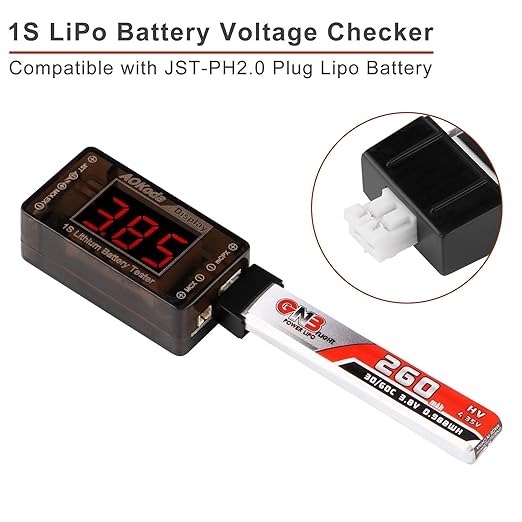

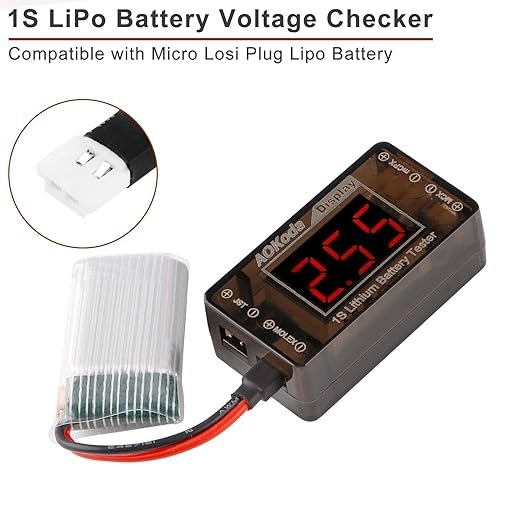

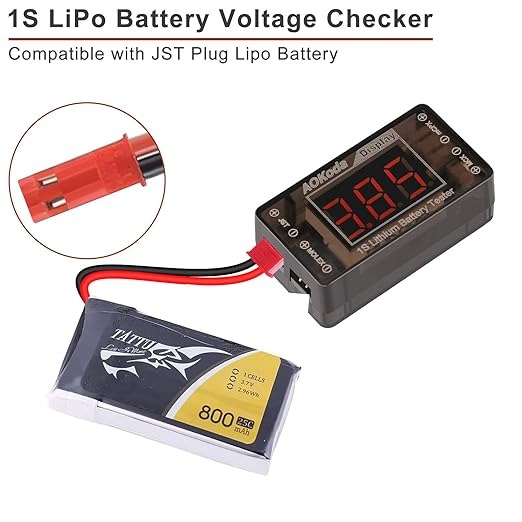

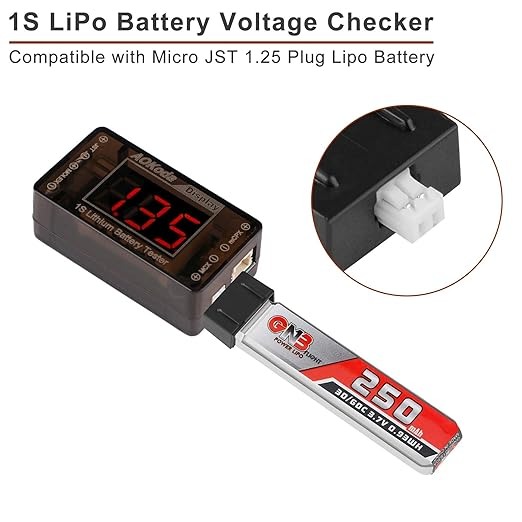

• Supports JST(2.54mm), MOLEX(2.0mm), mCPX(2.0mm), MCX(1.25mm) interfaces.
• Support LiFe(3.3/3.65V), LiPo(3.7/4.20V), Li-Hv(3.8/4.35V)
• Four battery interfaces support reverse battery polarity protection.
• 0.36 inch r1ed digital tube display, show battery voltage ,battery voltage detection accuracy is accurate to 10mV

Specifications:

• Support battery part:1 section(package does not include battery)
• Voltage detector power:0.05W
• Support battery type:LiFe 3.3V/LiPo 3.7V/Li-Hv 3.8V
• Voltage detection accuracy:3.65V±0.01V,4.20V±0.01V,4.35V±0.01V
• Voltage display:0.36 inch red digital tube display,static display, unit V
• Battery connector:JST(2.54mm),MOLEX(2.0mm),mCPX(2.0mm),MCX(1.25mm)

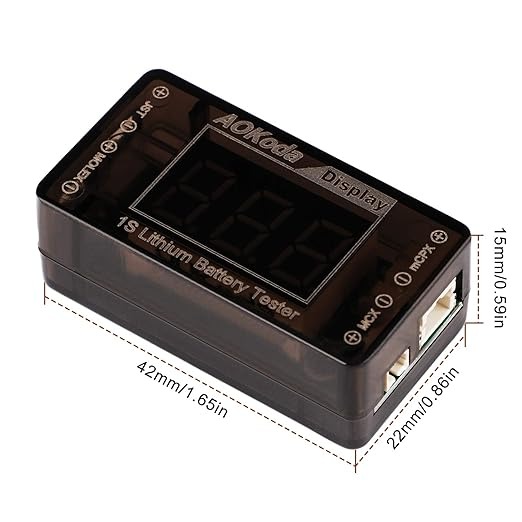

• Product size:43*23*15mm
• Product weight:10g
