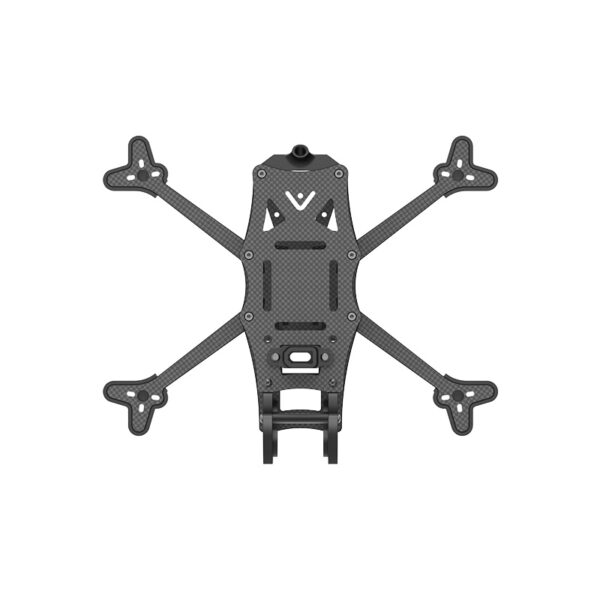

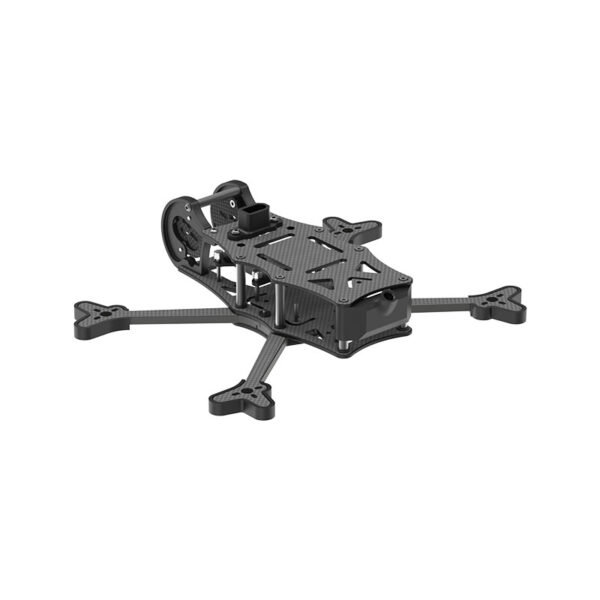

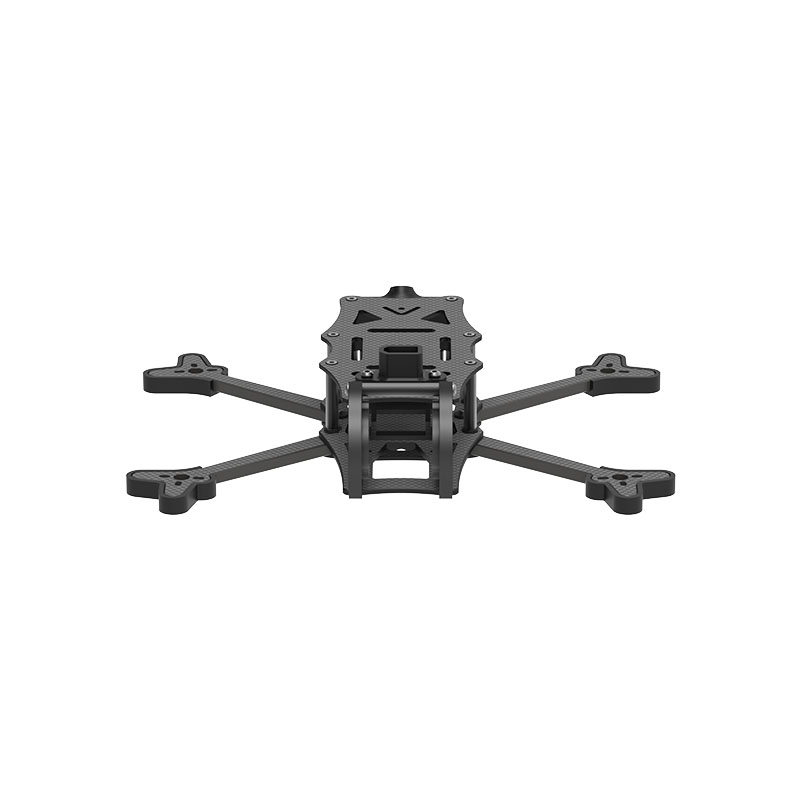

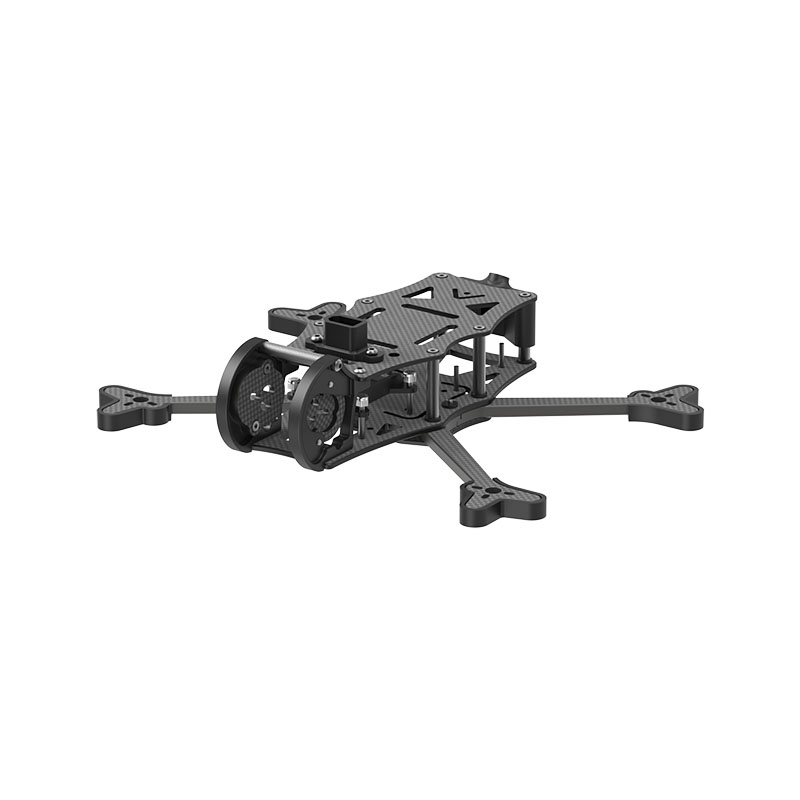

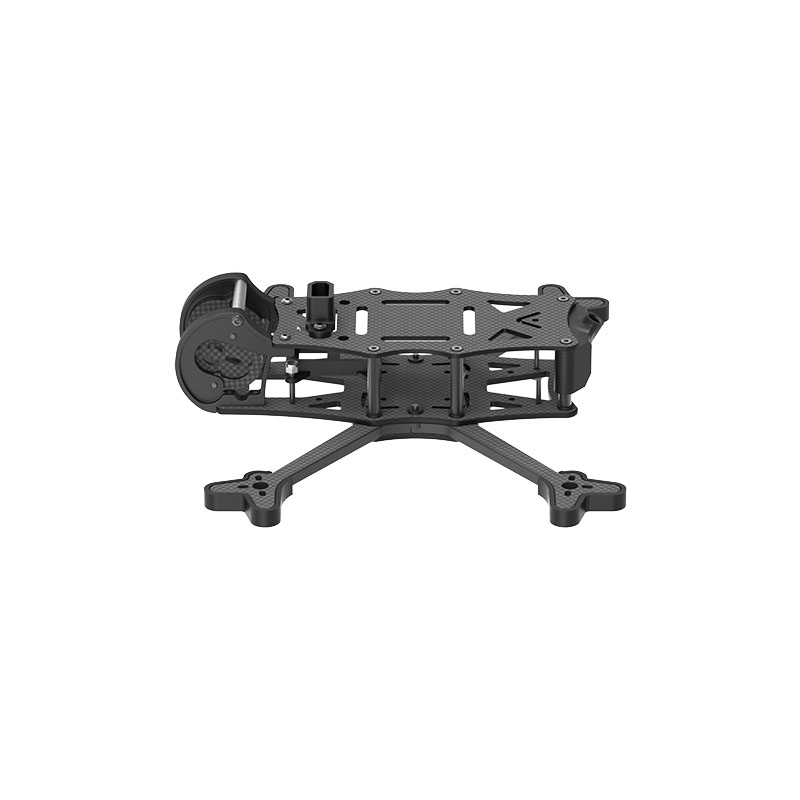

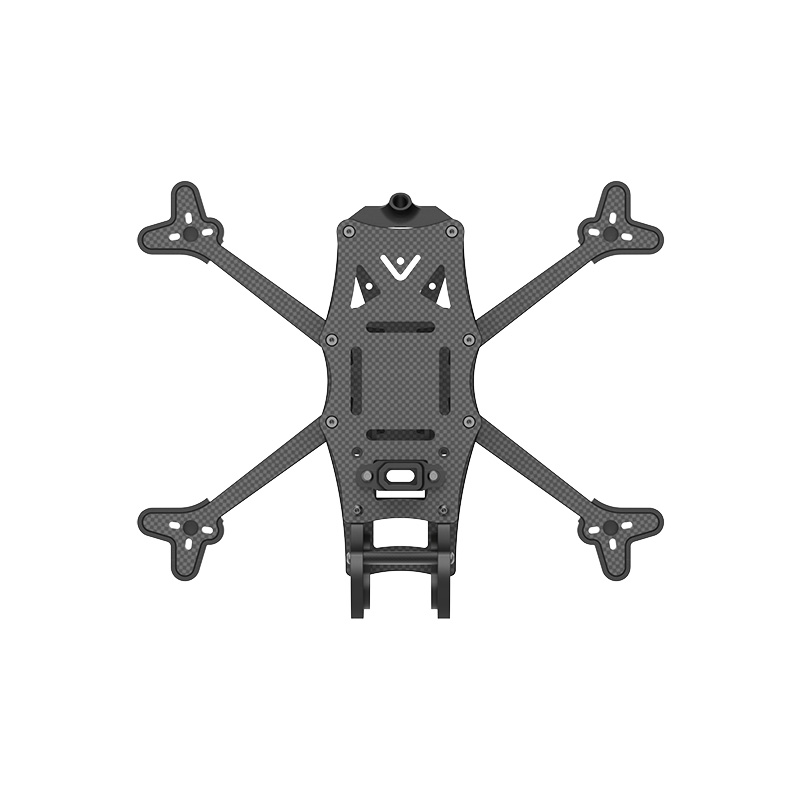

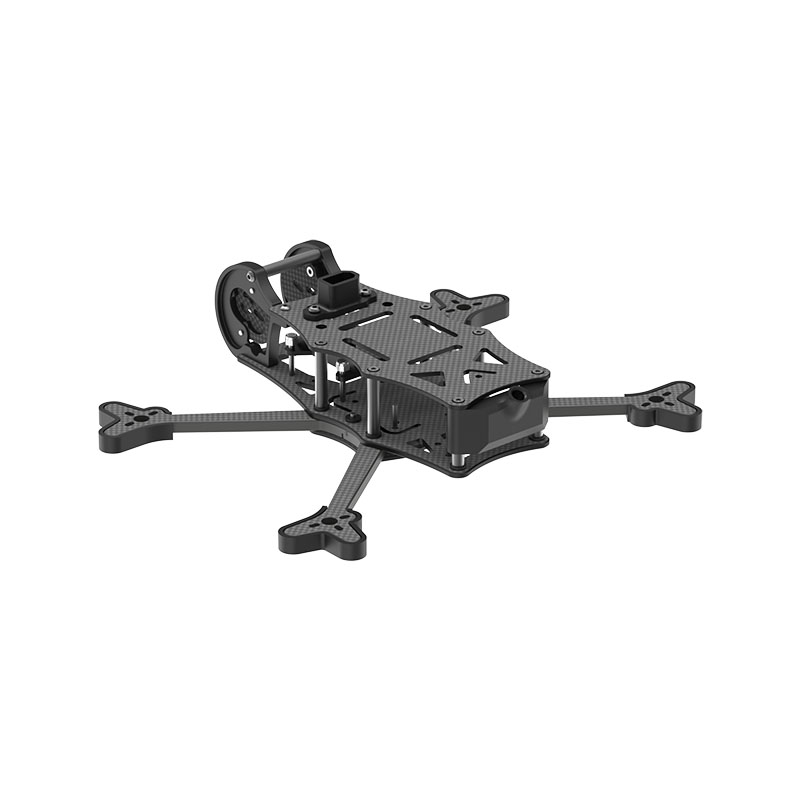

AOS 3.5 V5 Frame Kit 3.5″ with X-Cell

Description

Discover the future of sub 250g FPV with the AOS 3.5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology by Chris Rosser and premium materials, here’s why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Features

• Supports up to 3.5″ Props
• AOS X-Cell Anti-Vibration Technology
• Up to two 25.5×25.5, or 20×20 mm stacks
• 155° FOV no props in view
• Fully DJI O3 compatible (soft mount + ND filters)
• Supports 19-20mm cameras (hard or soft mounted)
• Reinforced 7075 Aluminium Camera Cage
• Supports Lengthwise or Toilet Tank battery mounting
• ⌀9 – ⌀12mm motor mounting (supports all standard 3 – 4″ motors)
• 27x21mm M2 GoPro Mounting Pattern
• 32mm Rear Standoff Spacing (compatible with all AOS 3.5 antenna mounts)

Specifications:

• Product Name: AOS 3.5 V5 Frame Kit
• Frame wheelbase: 162mm
• Frame Dimension: L133*W93*H30 mm
• Arm Thickness: 4mm
• Top Plate Thickness: 1.5mm
• Bottom Plate Thickness: 1.5mm
• Upper Plate Thickness: 2mm
• Max Flight Stack Height: 20mm
• Max VTX Height: 20mm
• Motor Mounting: 9×9-φ2mm/12×12-φ2mm
• Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm
• VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
• Weight: 68g

Package Includes:

• 1 x AOS 3.5 V5 Frame Kit
• 1 x TPU Parts
• 1 x Screw Bag
• 2 x Battery Strap
• 2 x Battery pads
