AOS 3.5 V5 Freestyle Drone 4S w/O3 BNF ExpressLRS

Description

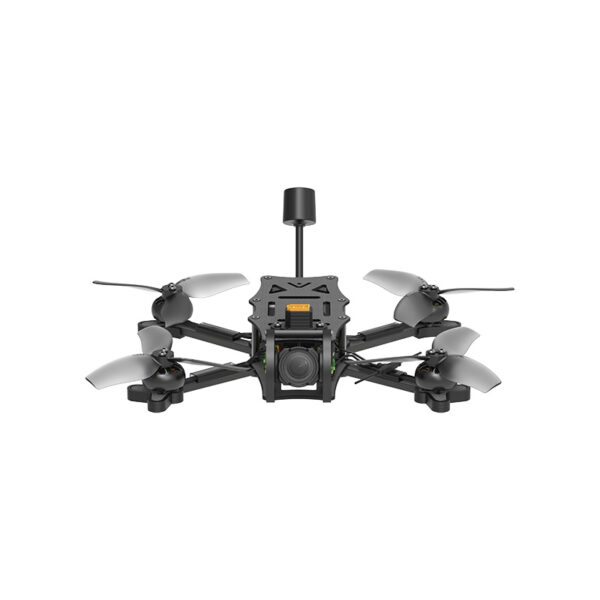

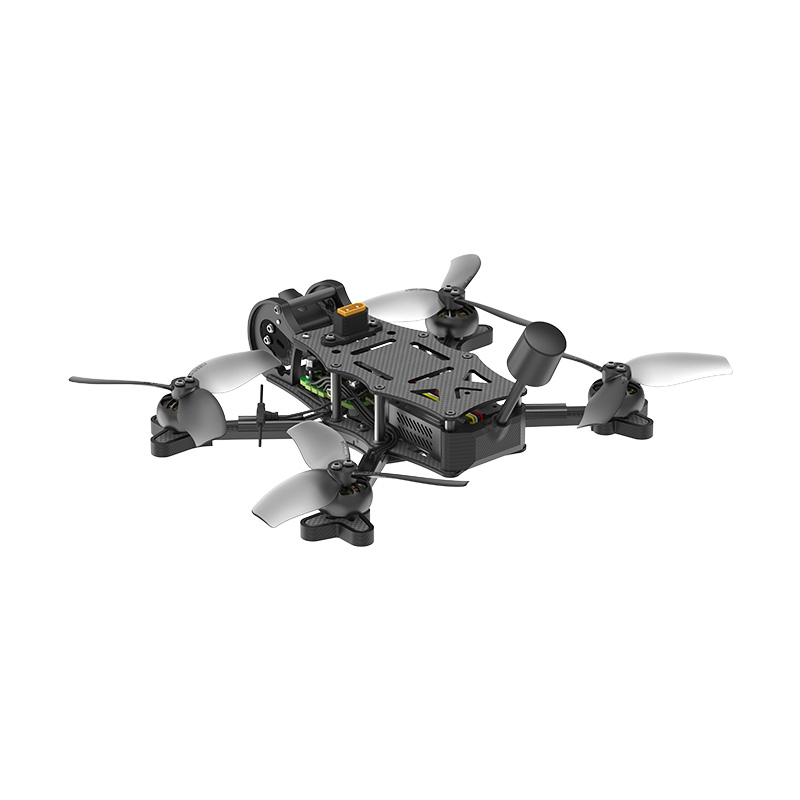

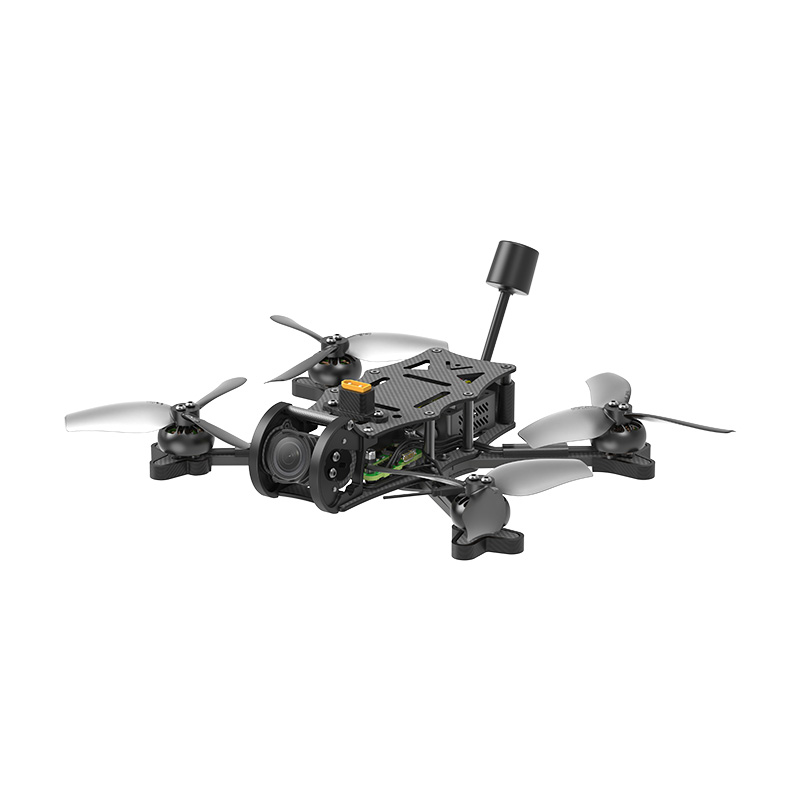

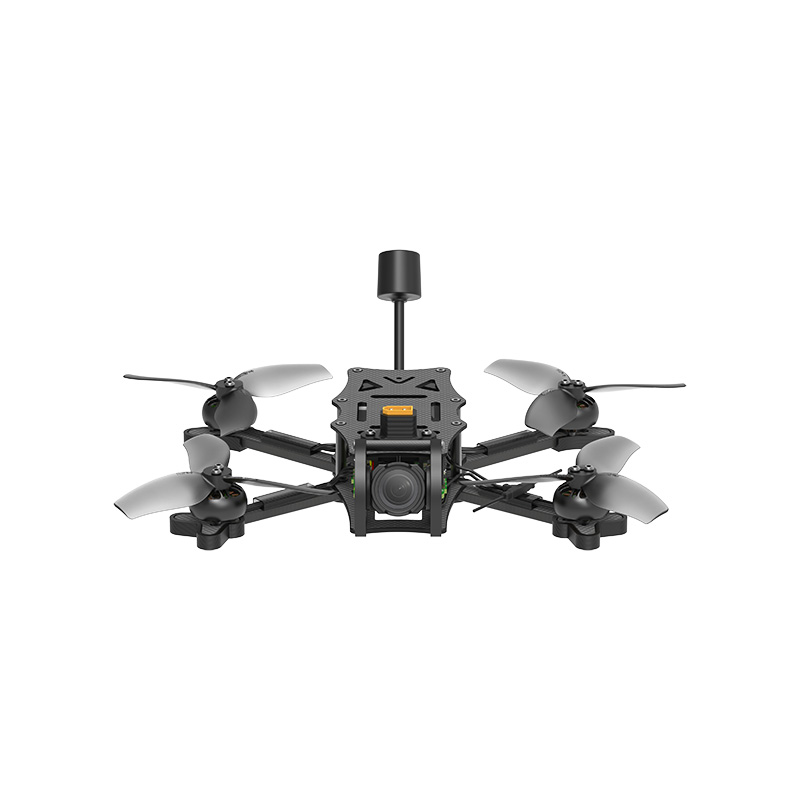

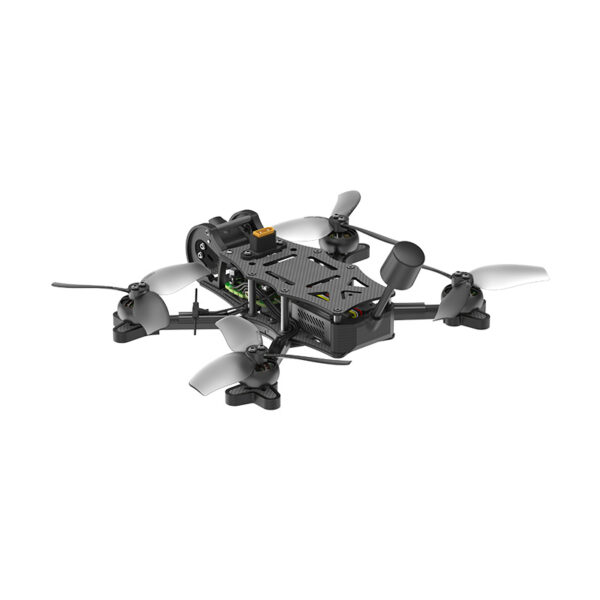

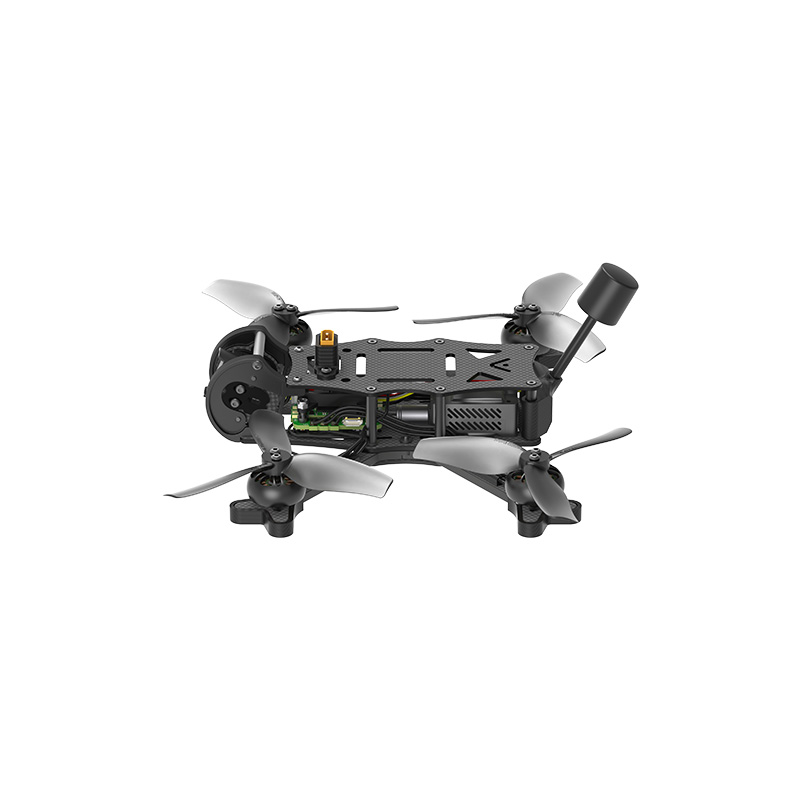

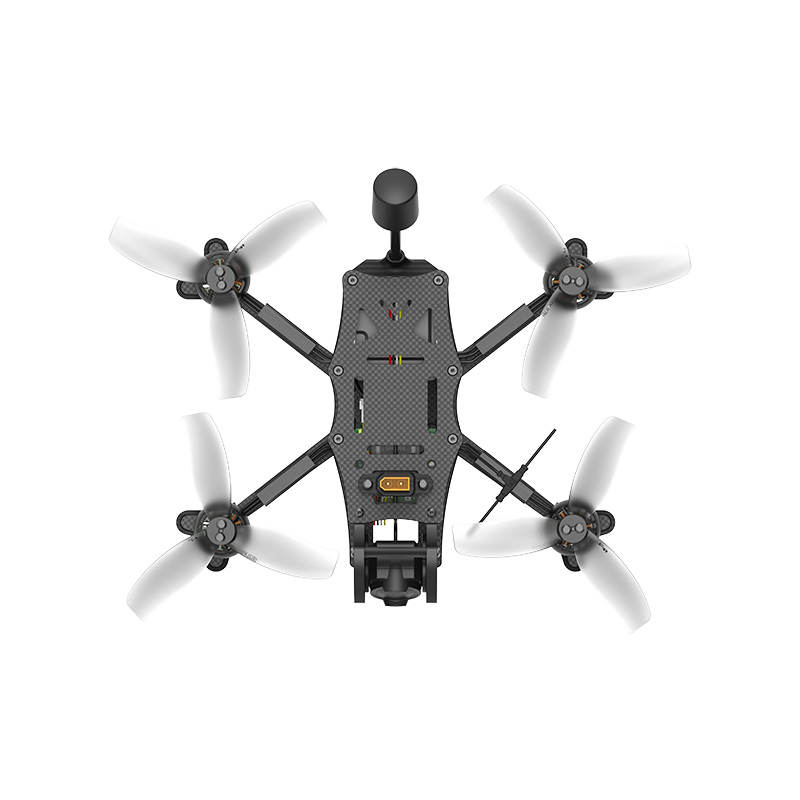

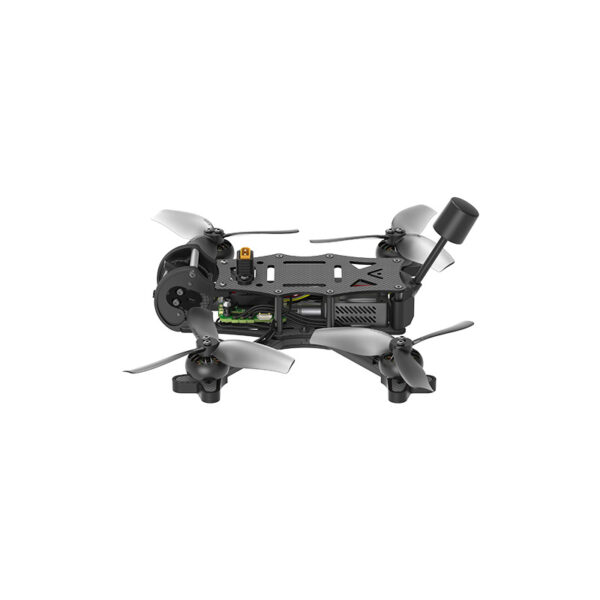

Discover the future of sub 250g FPV with the AOS 3.5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here’s why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Elevate your sub 250g FPV game with the AOS 3.5 V5. Designed to deliver the ultimate in performance, durability, and customization in a smaller form factor, it’s the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what’s possible in the world of freestyle flying.

Features

• Advanced Patent Pending Anti-Vibration Technology Say goodbye to unwanted vibrations that can hinder your drone’s performance. The AOS 3.5 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 3.5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
• Durable and Versatile 7075 Aluminium Camera Cage The AOS 3.5 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters.
• Immersive 155° FPV Experience Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.
• Flexible Battery Mounting Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone’s balance and performance based on your flying style and preferences.

Specificaitons

• Product Name: AOS 3.5 V5 BNF
• Flight Electronics: BLITZ Whoop F7 AIO
• Video Transmission: DJI O3 Air Unit
• Frame: 162±2mm wheelbase
• Motor: XING 1504 3100KV motors
• Prop: HQ 3.5*2.5*3 propellers
• Takeoff Weight: Approx. 197g (Without Battery)
• Dimensions (L×W×H)：133×93×30 mm
• Max Speed: 110 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 3000 m
• Max Hover Time: Approx. 12 mins with 4S 850mAh no load
• Max Flight Distance: 2-3 km
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: 1 Antenna(DJI O3 Air Unit Antenna)
• GNSS: N/A

Includes

• 1 x AOS 3.5 V5 4S HD BNF
• 2 x Battery pads
• 2 x Prop(Pairs)

Spares and Accesories

• Frame: AOS 3.5 Frame Kit 3.5″ with X-Cell
• Motors: iFlight XING 1504 FPV NextGen Motor 3100Kv for iH3

Batteries 850-930mah:

• Popular affordable: GNB Battery 14.8V 80C 850mAh 4S XT30
• Premium: GNB Battery 15.2V 120C 850mAh 4S HV
• Premium: GNB Battery 14.8V 120C 930mAh 4S

Props:

• New Option: Gemfan Hurricane 3630 Tri-Blade Propellers (3 Colours)
• Stock: HQProp T3.5×2.5×3 Propellers (Set of 4 – Grey)
• HQProp T3.5x2x3 Propeller (Set of 4 – Grey)
• Gemfan D90 3-Blade Ducted 90mm (3.5″) Propellers (Set of 4)

Notes:

• Don’t worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
• Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
