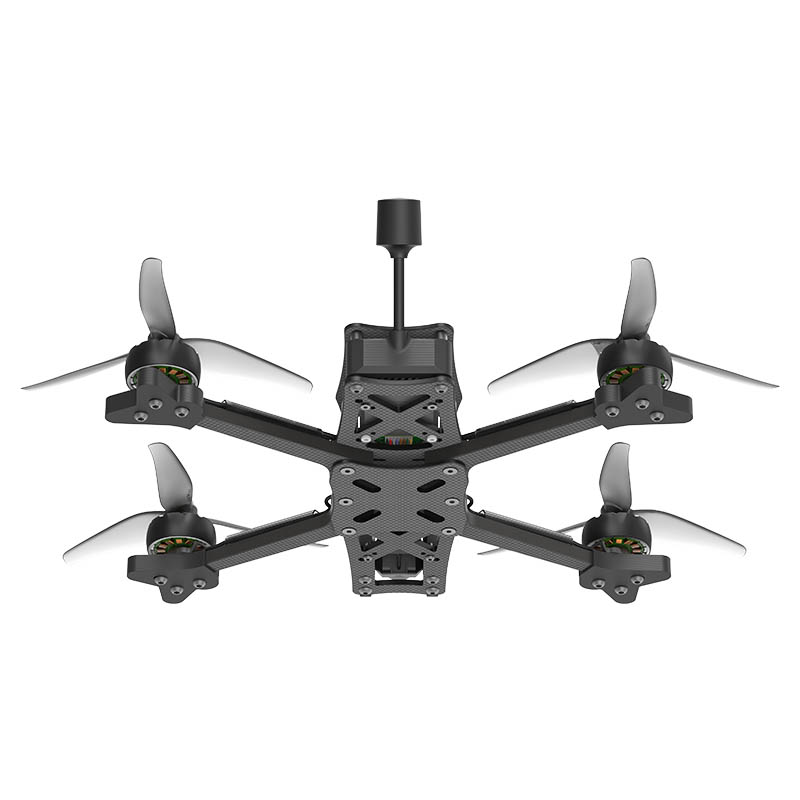

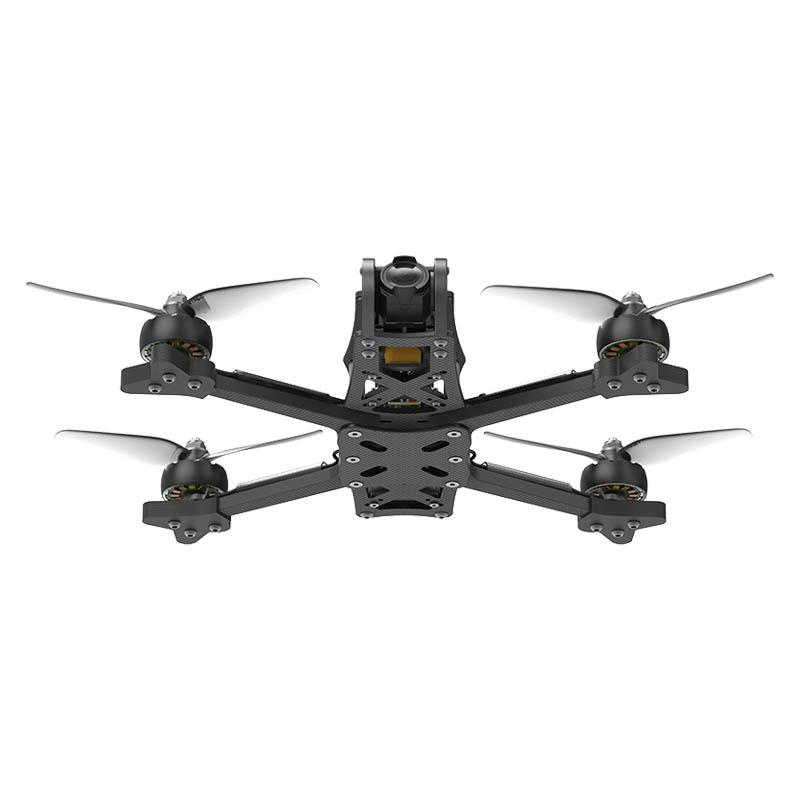

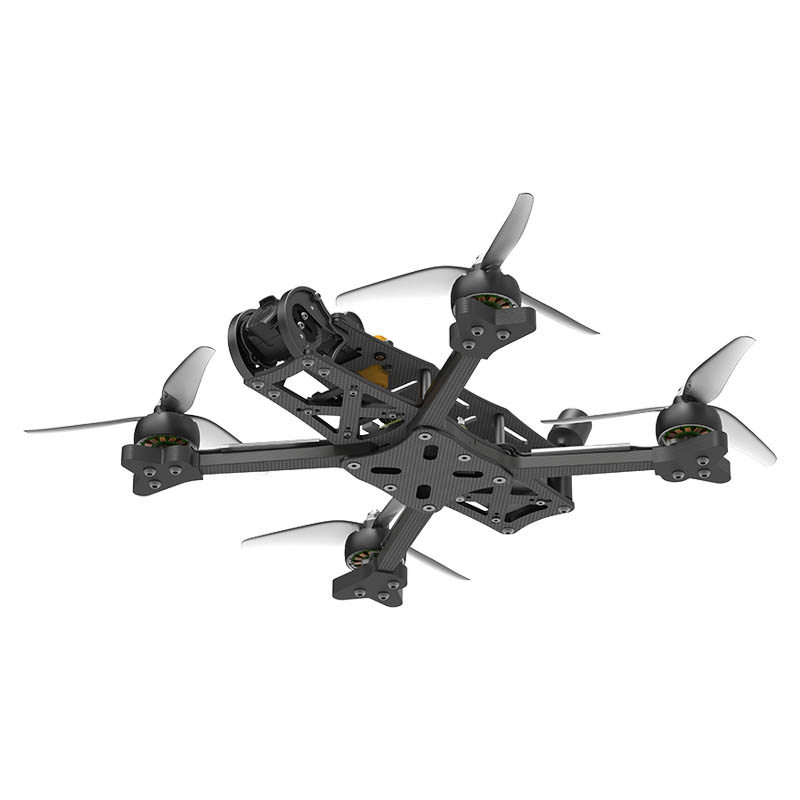

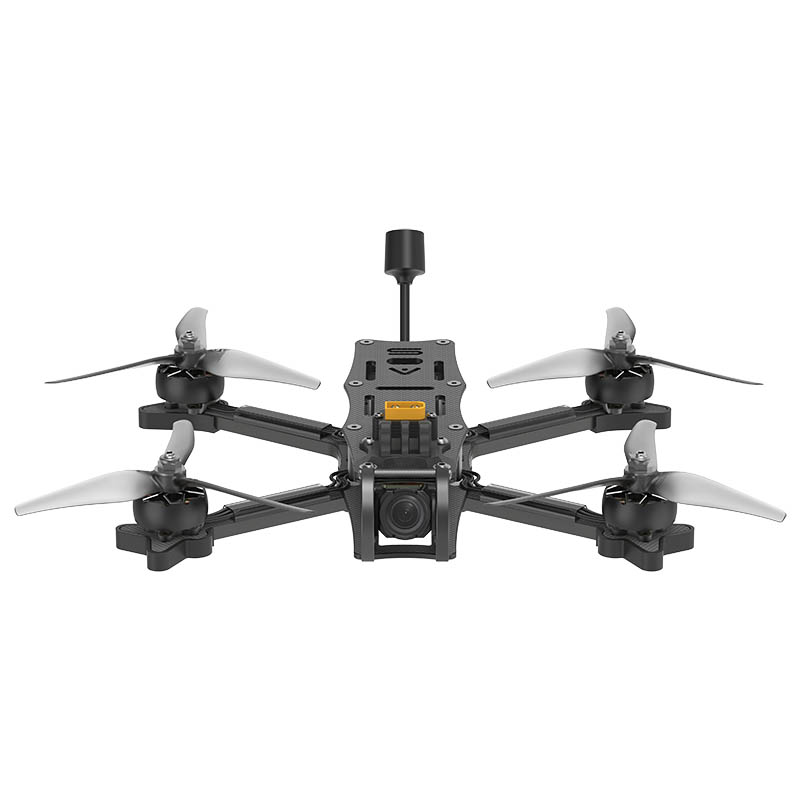

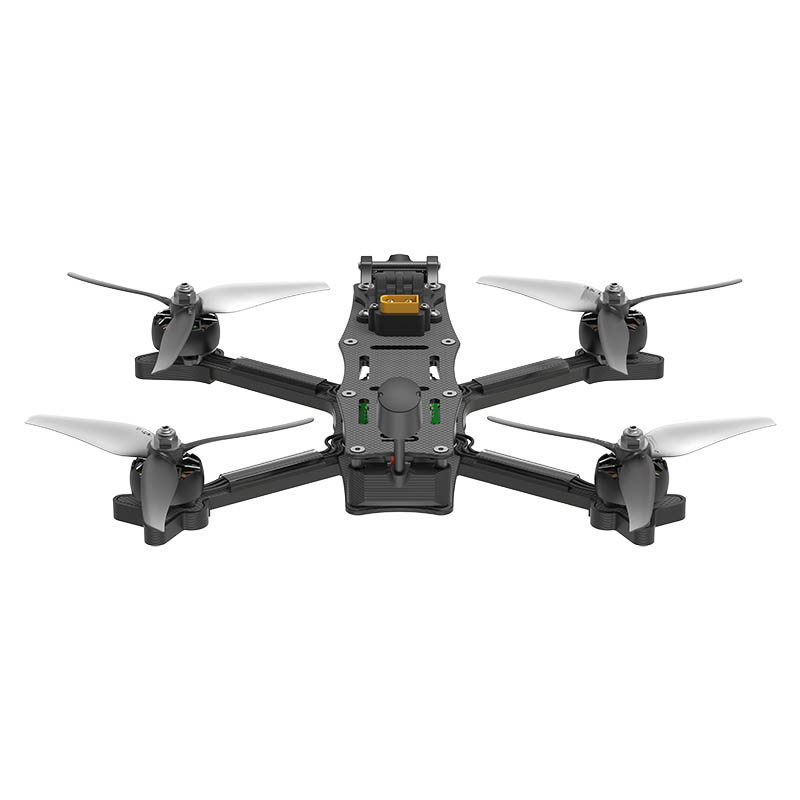

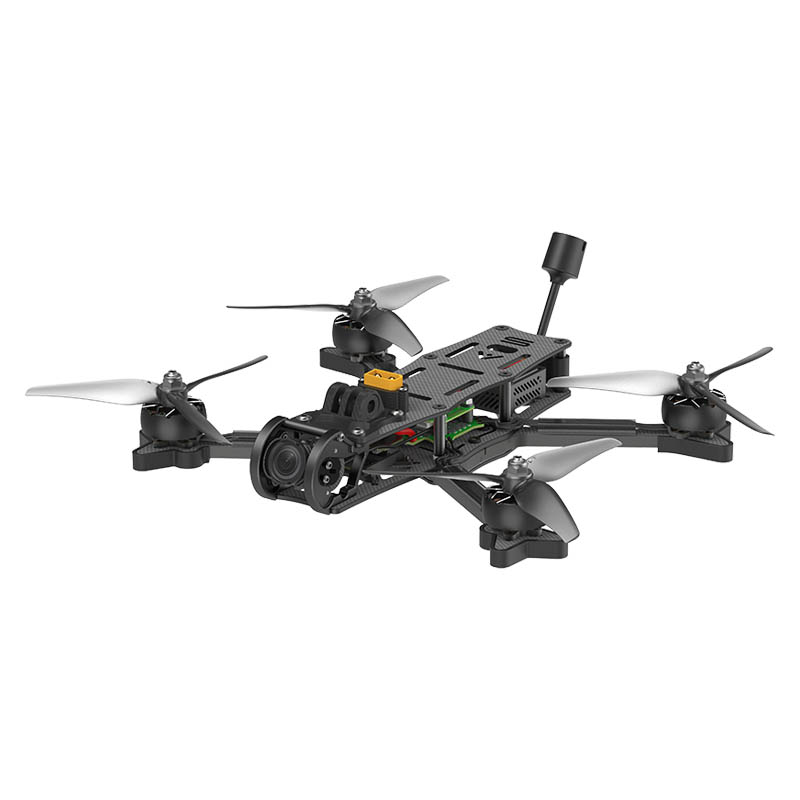

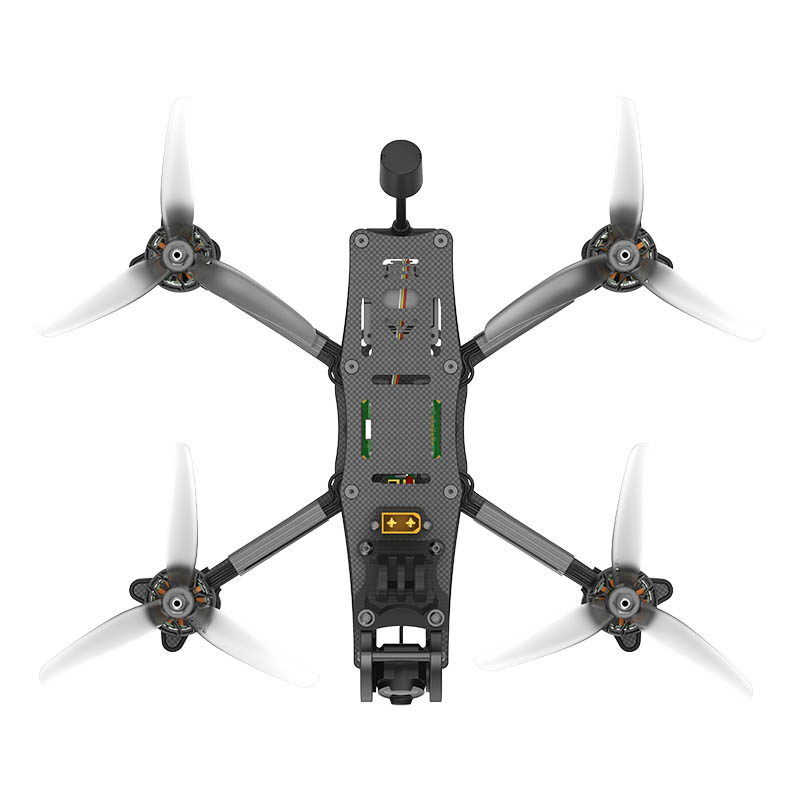

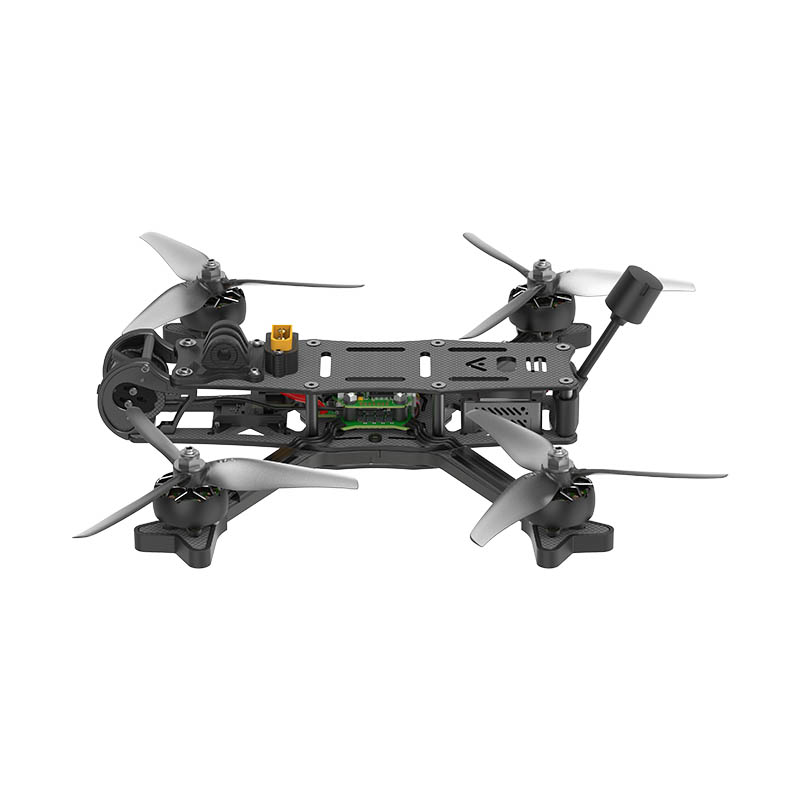

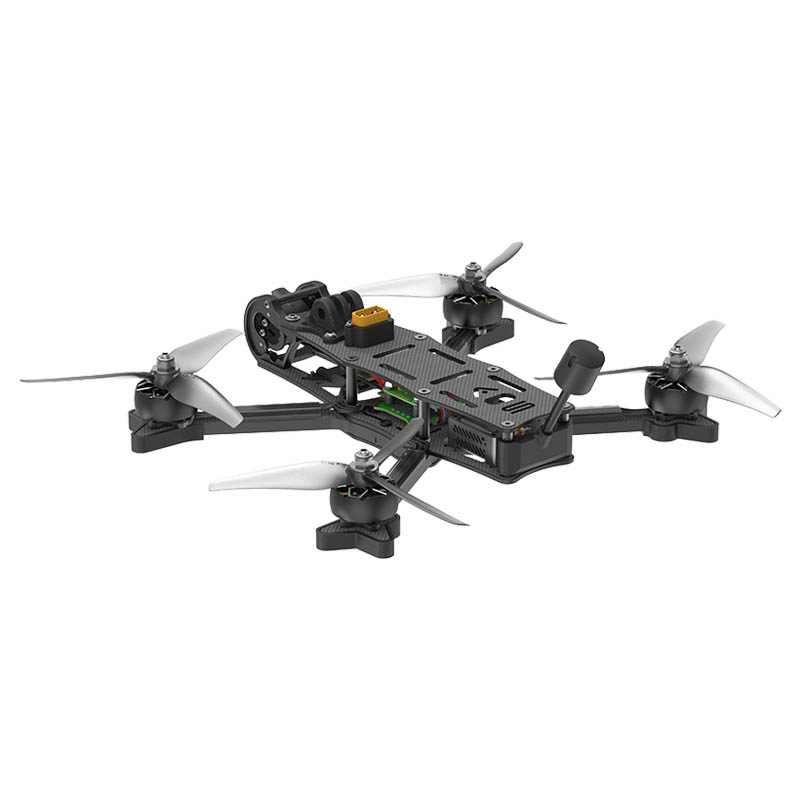

AOS 5 V5 Freestyle Drone 6S DJI O3 BNF ExpressLRS

Description

Discover the future of 5″ FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Elevate your FPV game with the AOS 5 V5. Designed to deliver the ultimate in 5″ performance, durability, and customization, it’s the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what’s possible in your freestyle flying.

Key features:

• Advanced Patent Pending Anti-Vibration TechnologySay goodbye to unwanted vibrations that can hinder your drone’s performance. The AOS 5 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
• Durable and Versatile 7075 Aluminium Camera CageThe AOS 5 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters.
• Immersive 155° FPV ExperienceImmerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.
• Reinforced arm and stack mountingSay goodbye to stripping threads! The arm and stack mounts on the AOS 5 V5 are reinforced with steel press-nuts for easy assembly, rock solid mounting, and enhanced durability.
• Flexible Battery MountingExperiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone’s balance and performance based on your flying style and preferences.

Specifications:

• Product Name: AOS 5 V5 HD BNF
• FC: BLITZ Mini F7 FC
• ESC: BLITZ Mini E55 4-in-1 ESC
• Video Transmission: DJI O3 Air Unit
• Frame: 228mm wheelbase
• Motor: XING 2207 1750KV motors
• Prop: Nazgul F5 propellers
• Takeoff Weight: Approx. 407g (Without Battery)
• Dimensions (L×W×H)：180×140×34 mm
• Max Speed: 190 Km/h (Manual Mode)
• Maximum Takeoff Altitude: 6000 m
• Max Hover Time: Approx. 7.5 mins with 1400mAh no load
• Max Flight Distance: 5 km
• Max Wind Speed Resistance: Level 7
• Operating Temperature Range：-10° to 40° C (14° to 104° F)
• Antennas: 1 Antenna(DJI O3 Air Unit Antenna)
• GNSS: N/A

AOS 5 V5 Included Components and Parts:

• 1 x AOS 5 V5 6S O3 HD BNF
• 2 x Battery pads
• 2 x Prop(Pairs)

Excludes gopro and lipo pictured.

Recommended Batteries and Spares (Not Included)

• Frame: AOS 5 V5 Frame Kit 5″ w X-Cell
• Frame Spares: AOS 5 and 5.5 V5 X-Cell Frame Parts
• Motors: iFlight XING2 2207 Black Evoque FPV Motor 1750kv
• Stack: iFlight BLITZ Mini F7 Stack E55A for Evoque
• OEM Propeller: iFlight Nazgul F5 Propellers (4 Colours)
• Propellor alternative: HQProp Ethix P3.5 RAD Berry 5.1×3.5×3 Propeller (Set of 4)
• Value Battery: CNHL Black Series 1300mAh 22.2V 6S 100C Lipo Battery
• Performance Battery: GNB Battery 22.2V 120C 1300mAh 6S
• Lightweight HV Battery: GNB Battery 22.8V 120C 1300mAh 6S HV
• Premium Battery:
  • Tattu R-Line Version 5.0 22.2V 150C 1200mAh 6S Battery
  • Tattu R-Line Version 5.0 22.2V 150C 1400mAh 6S Battery

Note this video is of the V2/Evo style, but explains the BNF/Components well:

This video highlights the benefits of the V5 Frame!

Note:

• All iFlight BNFs are tested before shipment to guarantee the highest quality.
• If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
• iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc)
