AtomRC Seal Glider 1500mm RC FPV Airplane (Kit/PNP)

by AtomRC
4.50 out of 5
(2 customer reviews)

The ATOMRC Seal is a configurable Glider with 1100mm or 1500mm wingspan, offering easy flying, long flight times, and flexible FPV platform.

$139.99 – $229.99

Heads up! This is a large item. Delivery to South Island may take an extra day.

SKU: 9935 Categories: , Tag:

Description

The ATOMRC Seal is a configurable Glider offering easy flying, long flight times, and flexible FPV platform, it can be setup as 1100mm or 1500mm Wingspan using the included components.

Features

  • Classic glider (bixler style), Good gliding ability easy for beginners.
  • Detachable wing design, user can choose 1100mm wing span or use extend wing to 1500mm wingspan.

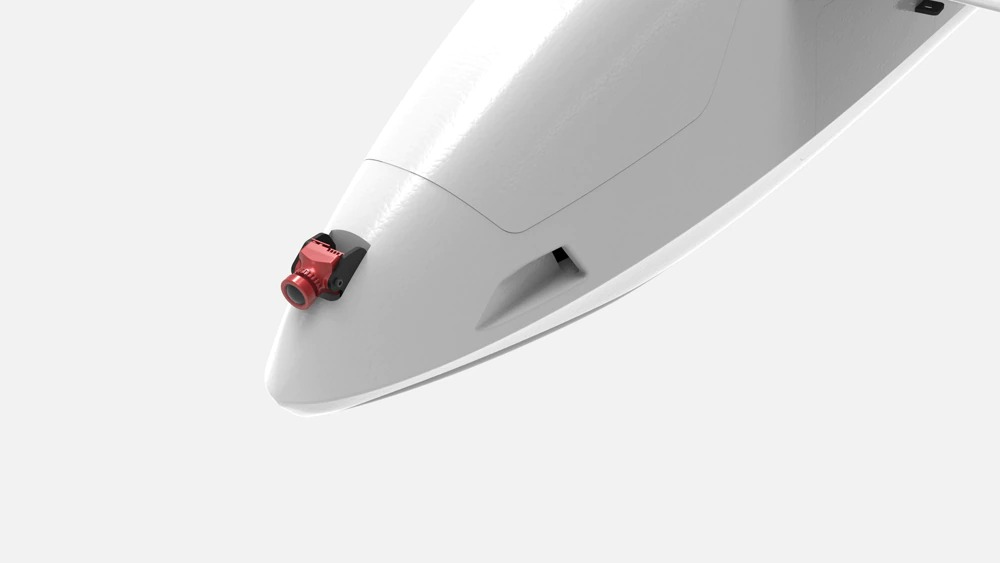

  • Design for FPV, ESC, FC VTX and Camera all have installation area. Easy to build and maintain.

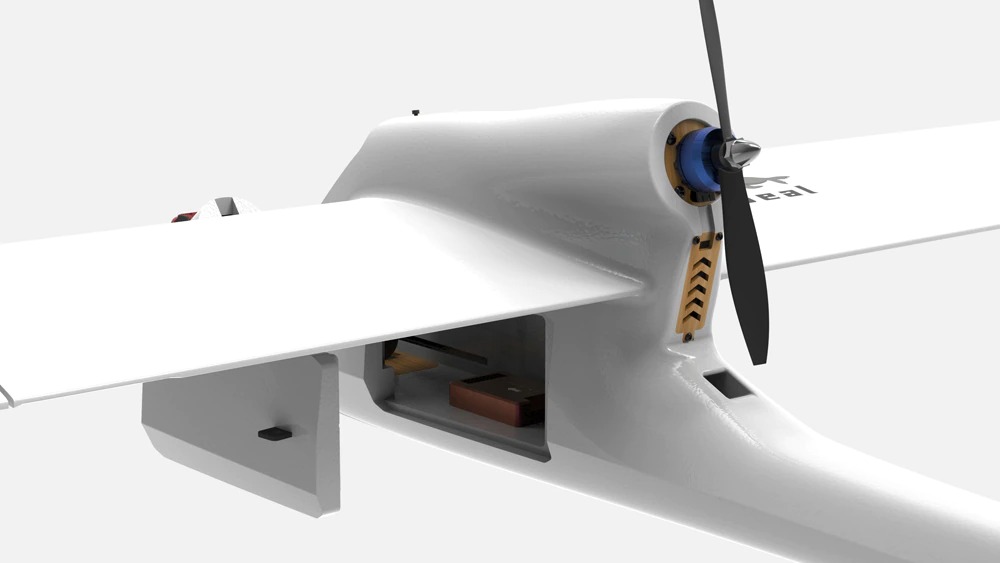

  • Side door for install Flight controller, easy to wiring and maintain.
  • Two hatch, flat hatch for gimbal or DJI Air uint.
  • Air cooling duct design, reduce the heat inside the fuselage.

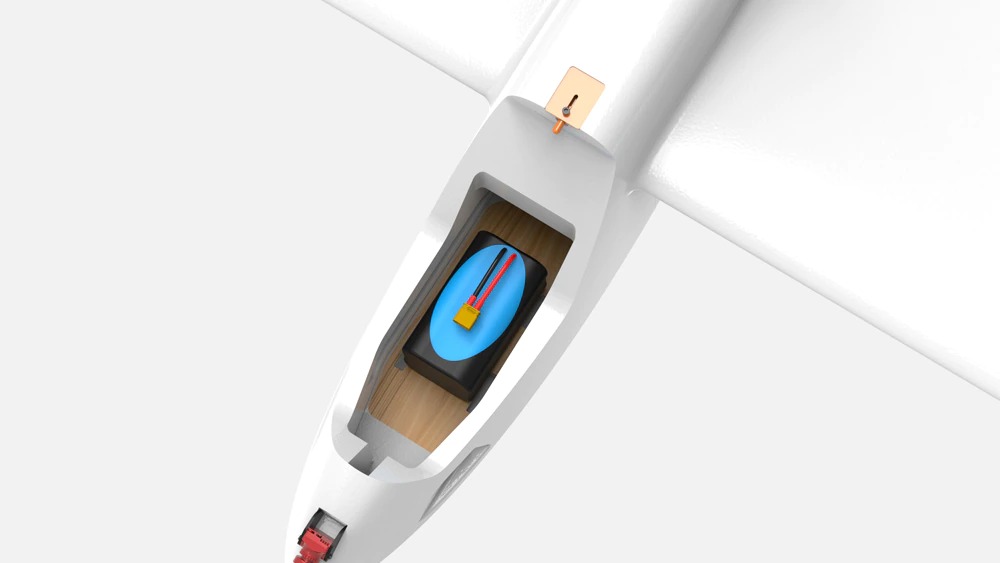

  • Huge battery bay, recommend 3000~5000mAH 4s1P battery, battery support up to 4S2P 21700 lion.

Specifications

  • Wingspan:1500mm/1100mm
  • Length:950mm
  • Material: EPO
  • WingArea:25.7d㎡/17.8 d㎡
  • Package size:560*290*210mm
  • Recommend motor: 2212 1400KV
  • Recommend prop: 8040
  • Recommend battery:
  • 21700 4S1P /3000~5000mAH 4s1P
  • Servo: 4* 9g servo
  • PNP version：（2212/1400KV 8040 prop 21700/4s1p 4500mAh）
    • Recommend take off weight: 1100g（1500mm）
    • Max. take off weight:1400g（1500mm）
    • Cruise speed：50km
    • Cruise current：4.1A
    • Flight time: up to 60min
    • Travel：50km

Batteries

1100mm wingspan use the smaller packs listed, 1500mm use larger packs or expect to use weights to achieve CG)

This is a large shipping item

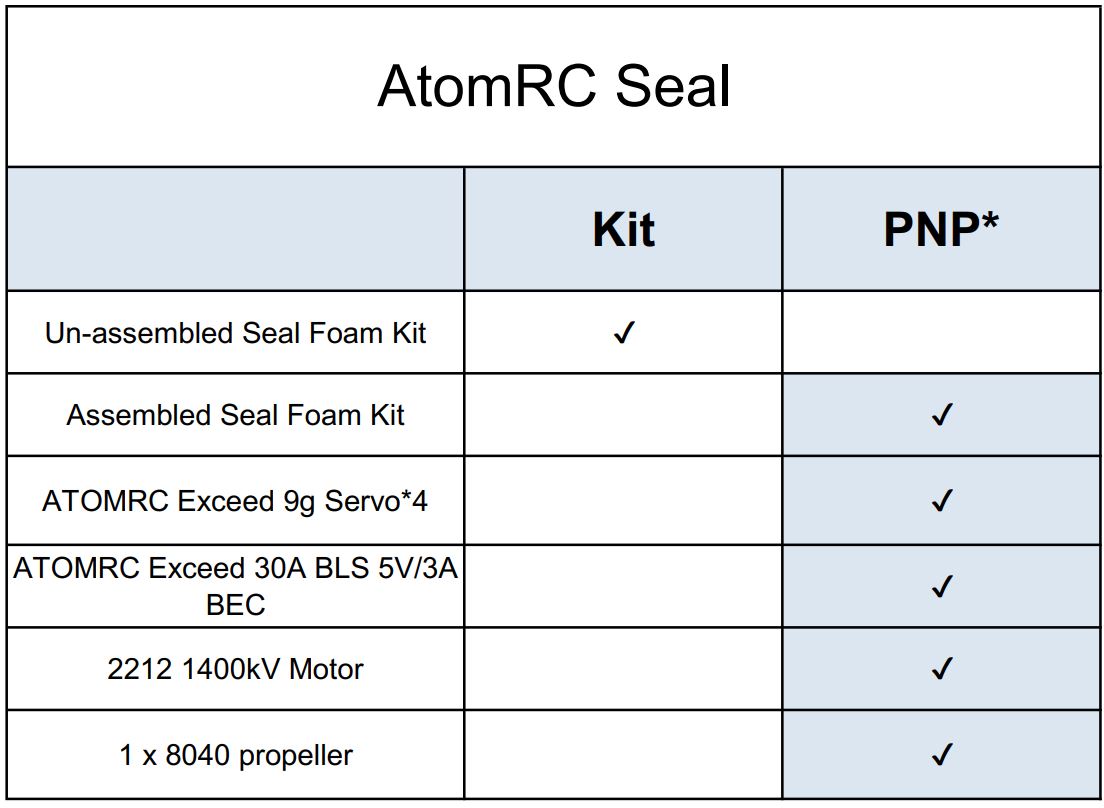

* Note the PNP version the air frame/foam parts are assembled but the electronics are NOT assembled.

Additional information

Brand

Version

Kit, PNP
Wingspan

1100mm, 1500mm

2 reviews for AtomRC Seal Glider 1500mm RC FPV Airplane (Kit/PNP)

  1. 5 out of 5

    Shelley (verified owner) –

    Great product.

  2. 4 out of 5

    John Whitfield (verified owner) –

    I would say it appears to be good. Some things I’ll point out. The instructions are a bit hard to read. The top hatch lever is not good. Mine broke in assembly. Make sure you feed through the carbon rods before you join the fuse halves together otherwise it’s difficult to push them through. I will be doing a youtube review video in due course. @blackterminal
