Description

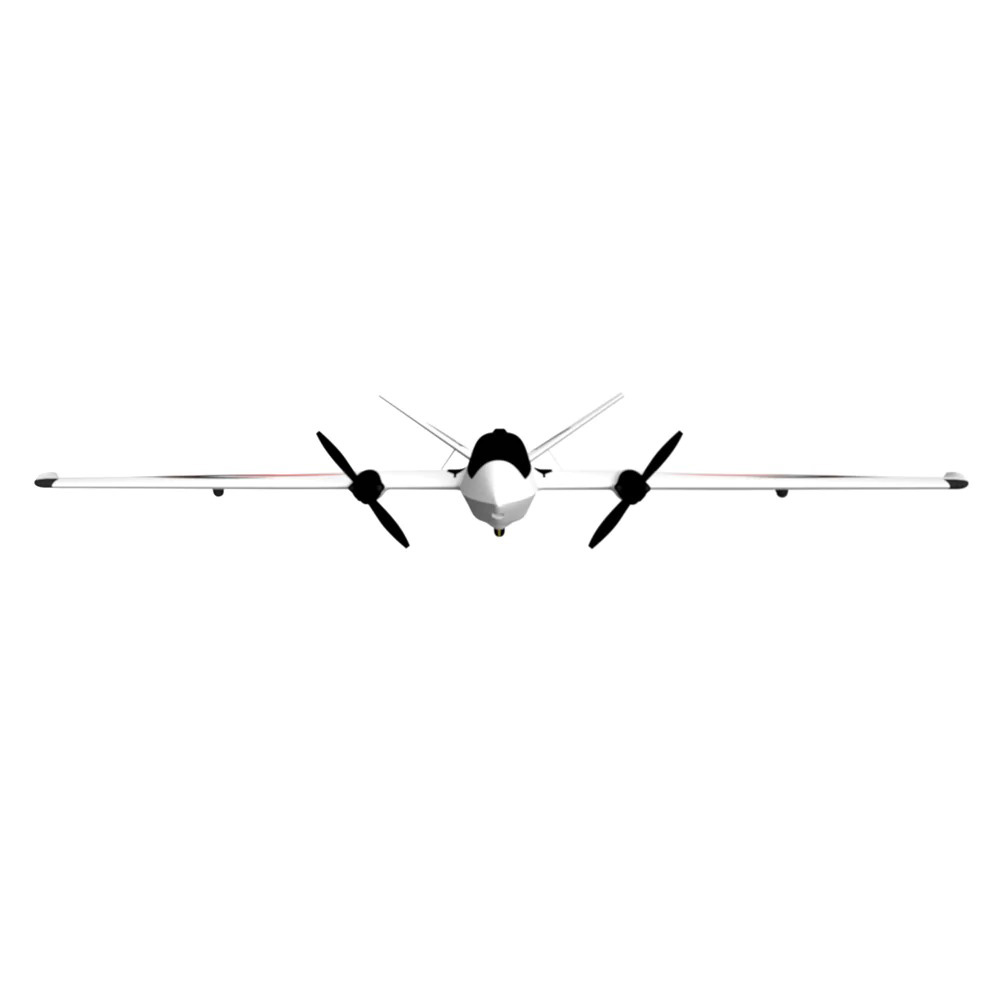

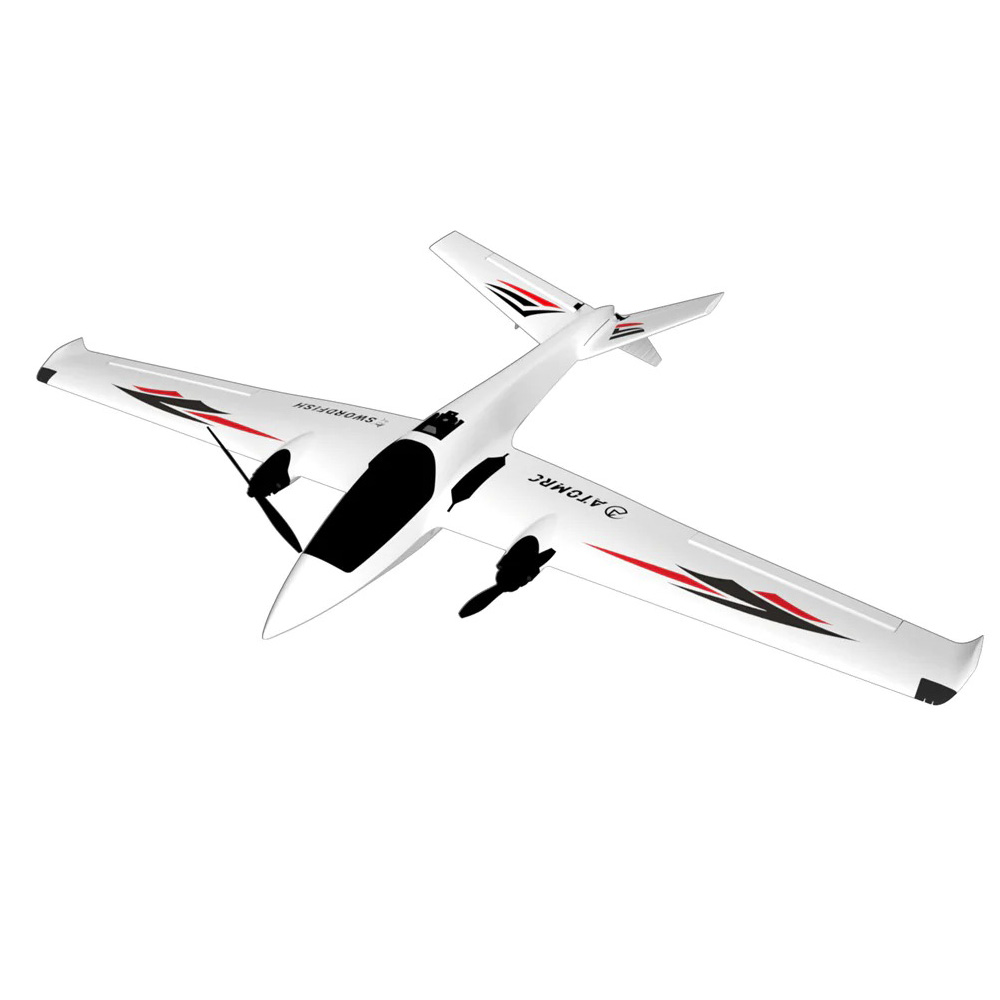

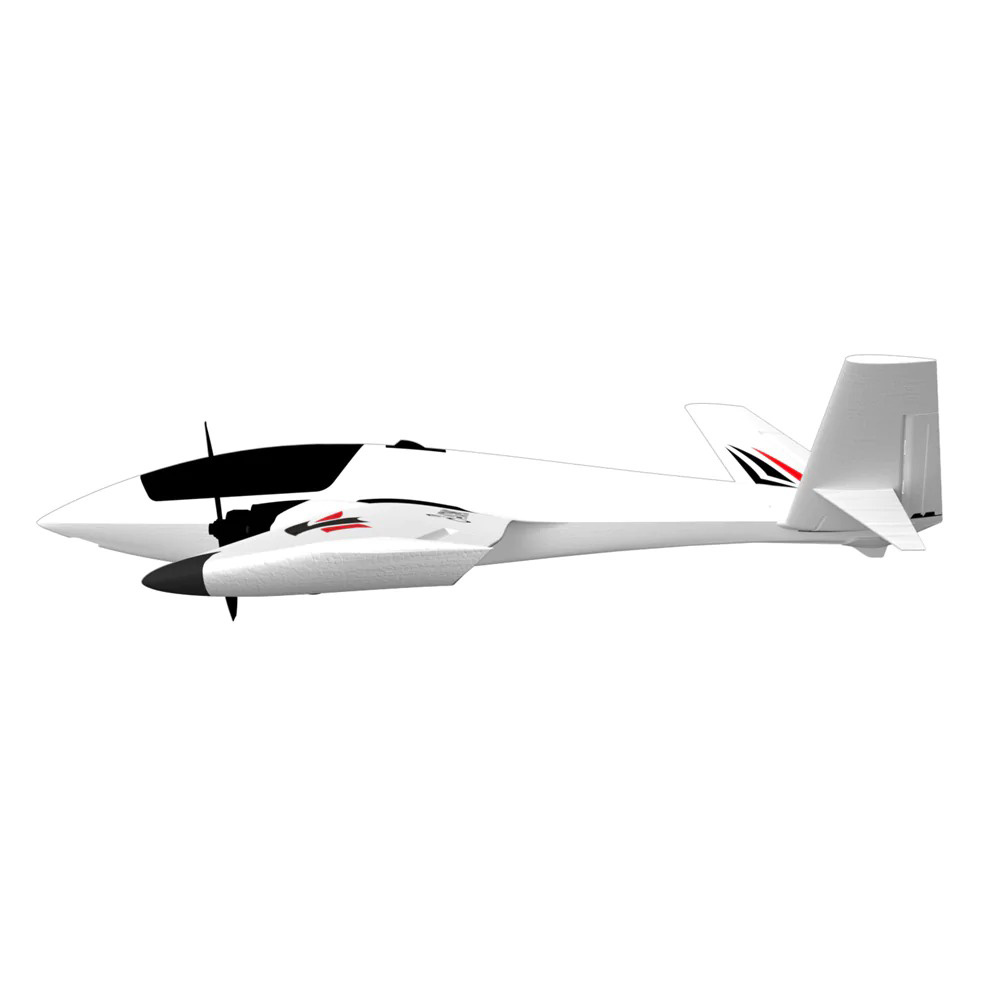

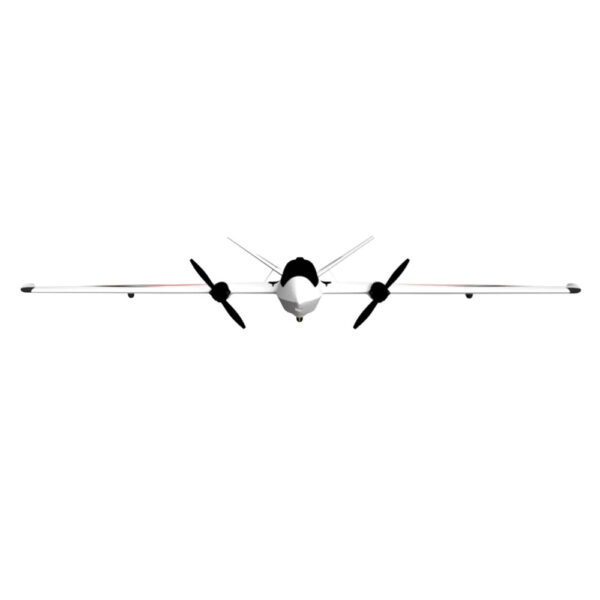

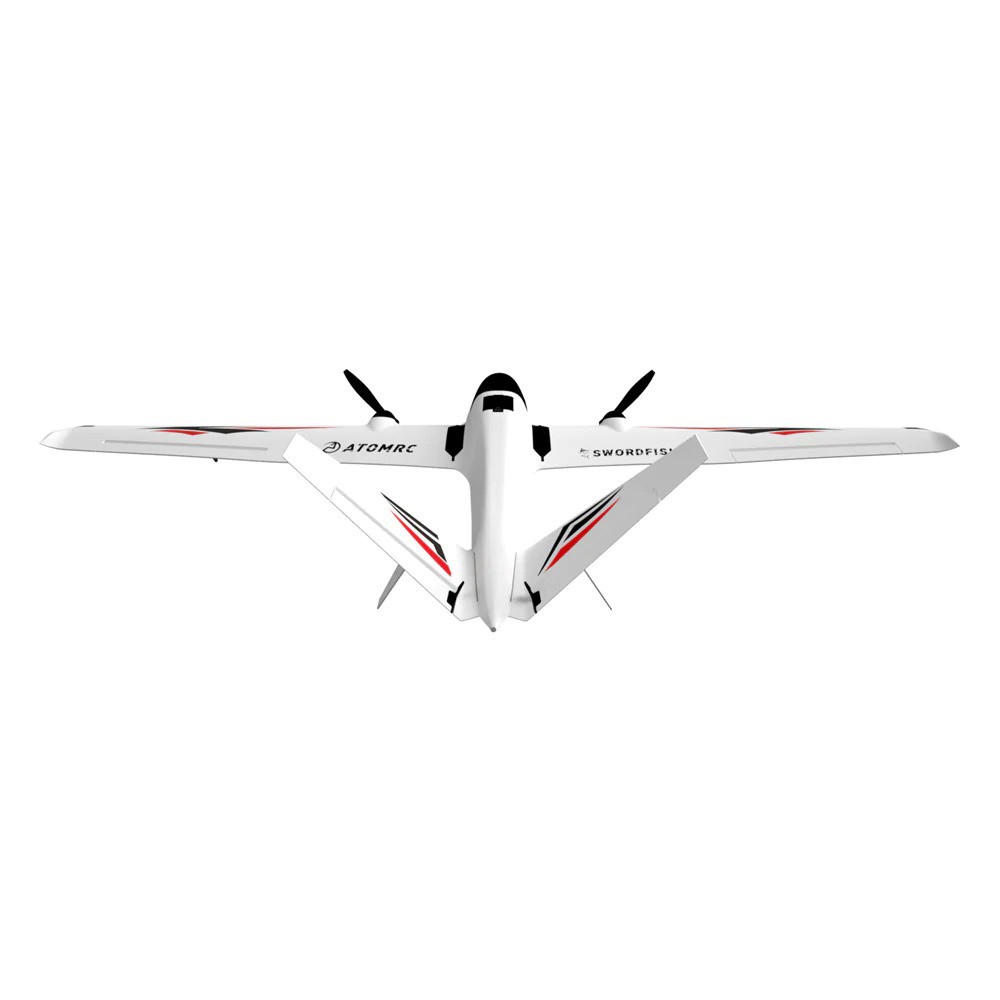

The AtomRC Swordfish is designed and built for FPV, it comes available as a barebones kit, a PNP (add FC and RX of your choice) as well as a first in class Return-to-Home (RTH) version that includes a pre installed and configured flight controller  this is the first time we see an INav ready plane, just plug in your receiver and battery, plane is ready to go just like racing drones, no need glue or installed the electronics.

Features:

• Easy for beginners, pre turned and pre-installed electronics.
• Auto launch mode, return to home, circle mode – Need install the ATOMRC F405 NAVI flight controller, the RTH have intelligence flight mode already installed.
• Quick Release connector – The quick release connector using soft connection, solved the disconnection from vibration or crash. Easy to install the wing and detach the wing.
• Hatch Lock – The screw and nuts are more durable and reliable than magnet, the hatch will never fall off in the air.
• Carbon fiber reinforcement and plastic injection mount for tail, more rigid for high speed and landing
• Precise Plastic injection parts – The wing connector, motor mount, VTX mount, V tail base and flight light cover are using precise Plastic injection parts, more durable and light weight.

Note: Arduplane version is also available, we can upload arduplane parameter setting on our web, you just need flash the arduplane firmware, load the settings.

Specifications:

• Wingspan:1200mm
• Length:810mm
• Material: EPP
• WingArea:15.35 dm²
• Package size:815*220*185mm
• Recommend motor: 2004~2306
• Recommend prop: 7045
• Recommend battery: 4s 5000mAh/21700 1P4s
• Servo: 4Pcs 9g servo
• Item weight: 1.2kg

Atomrc Swordfish versions:

• KIT Version: pre-glued fixed wing
• PNP Version: KIT+Motor+ESC+Servo
• RTH Version: PNP+Pre-turned FC+GPS, all electronics are installed

Swordfish manual: TBA

Accessories (Not Included):

• AtomRC QR55 Battery Quick Release Board
• AtomRC High Resolution Gimbal Black (2 Options)

Reccomended Parts and Spares:

• Swordfish Spare Parts: AtomRC Swordfish Wing Parts (14 Options)
• Batteries:
  • GNB Battery 14.8V 100C 1850mAh 4S
  • Most Popular: GNB Battery 14.8V 100C 2200mAh 4S
  • GNB Battery 14.8V 100C 2800mAh 4S
  • Long Range Li-Ion: Auline Li-Ion Battery 4S 14.8V 3000mAh VTC6
• Props: TBA
