Description

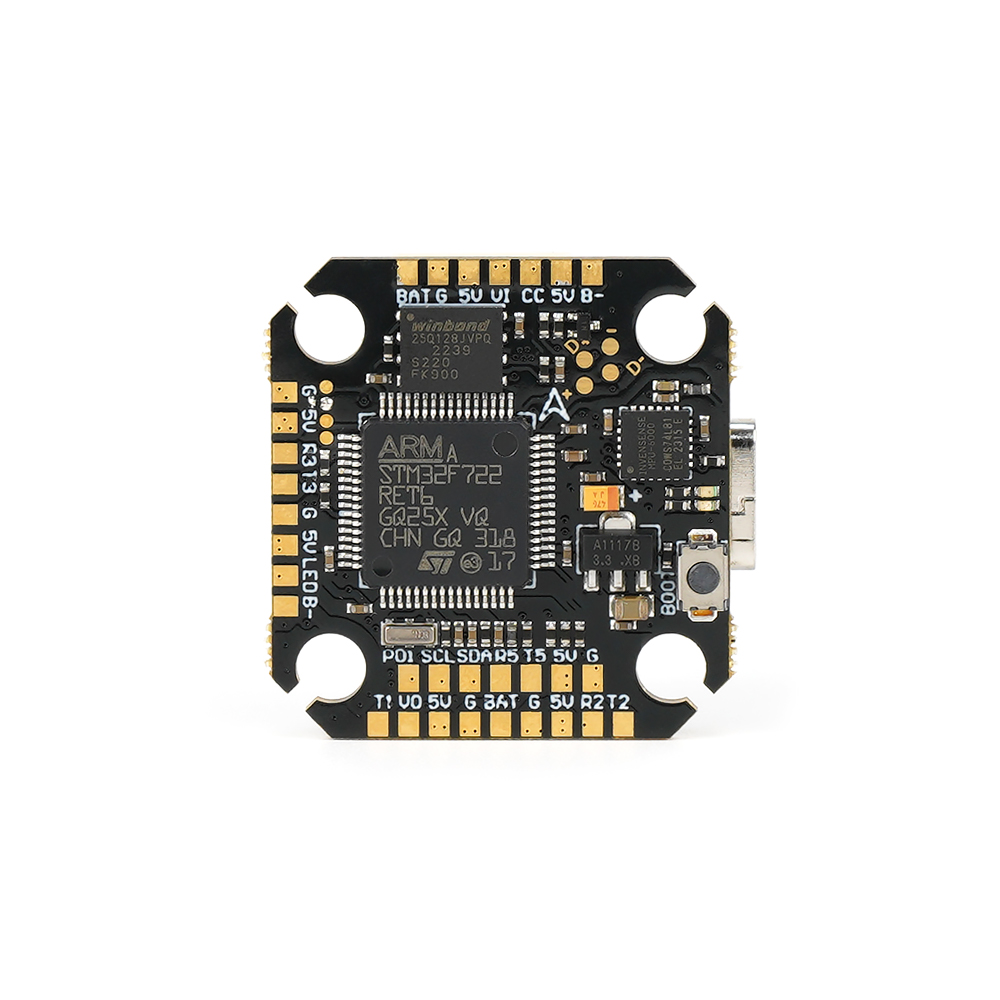

The Axisflying Argus Mini FC delivers elite flight control performance in a compact, lightweight design, combining an STM32F722 processor, reliable ICM42688 gyro options, and clean power handling for 4–6S builds, ensuring smooth, responsive handling for freestyle and racing pilots. Featuring multiple UART ports, built-in OSD, barometer support, and 5V BEC output, it simplifies wiring for GPS, receivers, and VTX systems while maintaining stable, noise-free operation in extreme demanding flight conditions.

Note: This is the FC ONLY with the ICM42688 gyro

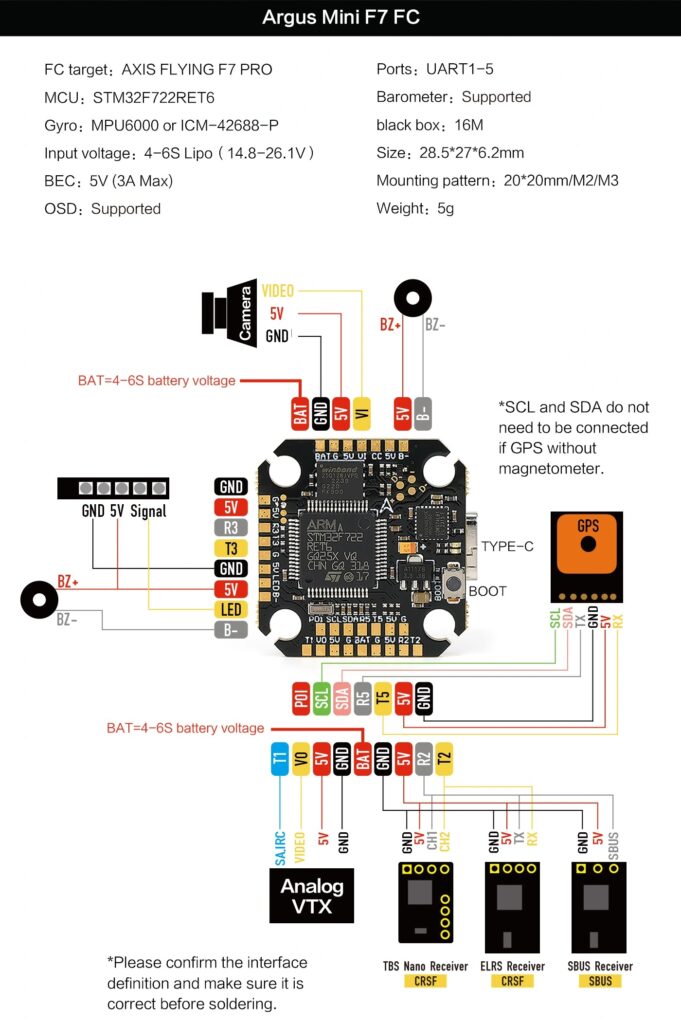

Specifications

• FC Target: AXIS FLYING F7 PRO
• MCU: STM32F722RET6
• Gyro: ICM42688-P
• Input Voltage: 4–6S LiPo (14.8V–26.1V)
• BEC: 5V / 3A Max
• OSD: Supported
• UART Ports: 1–5
• Barometer: Supported
• Blackbox: 16MB
• Mounting Pattern: 20×20mm (M2/M3)
• Dimensions: 28.5 × 27 × 6.2 mm
• Weight: 5g

Package Includes

• 1 x Axisflying Argus Mini FC
