Description

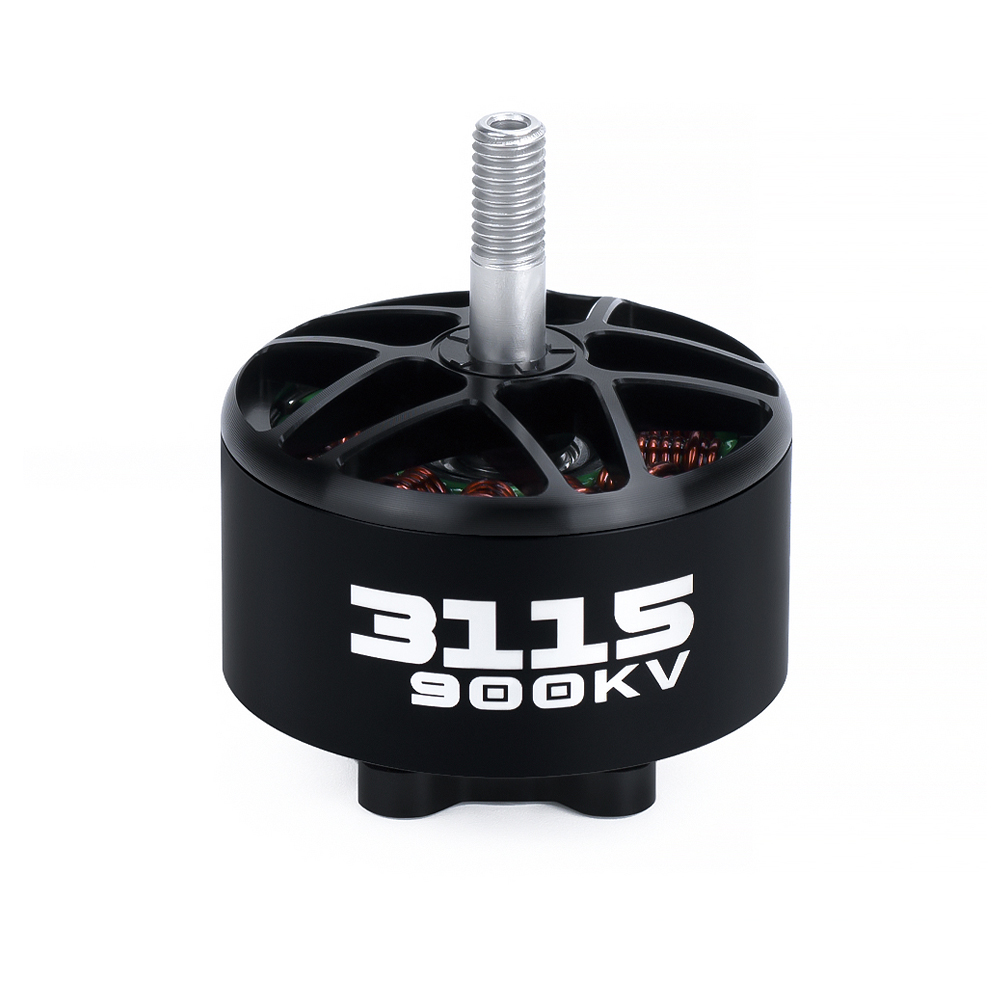

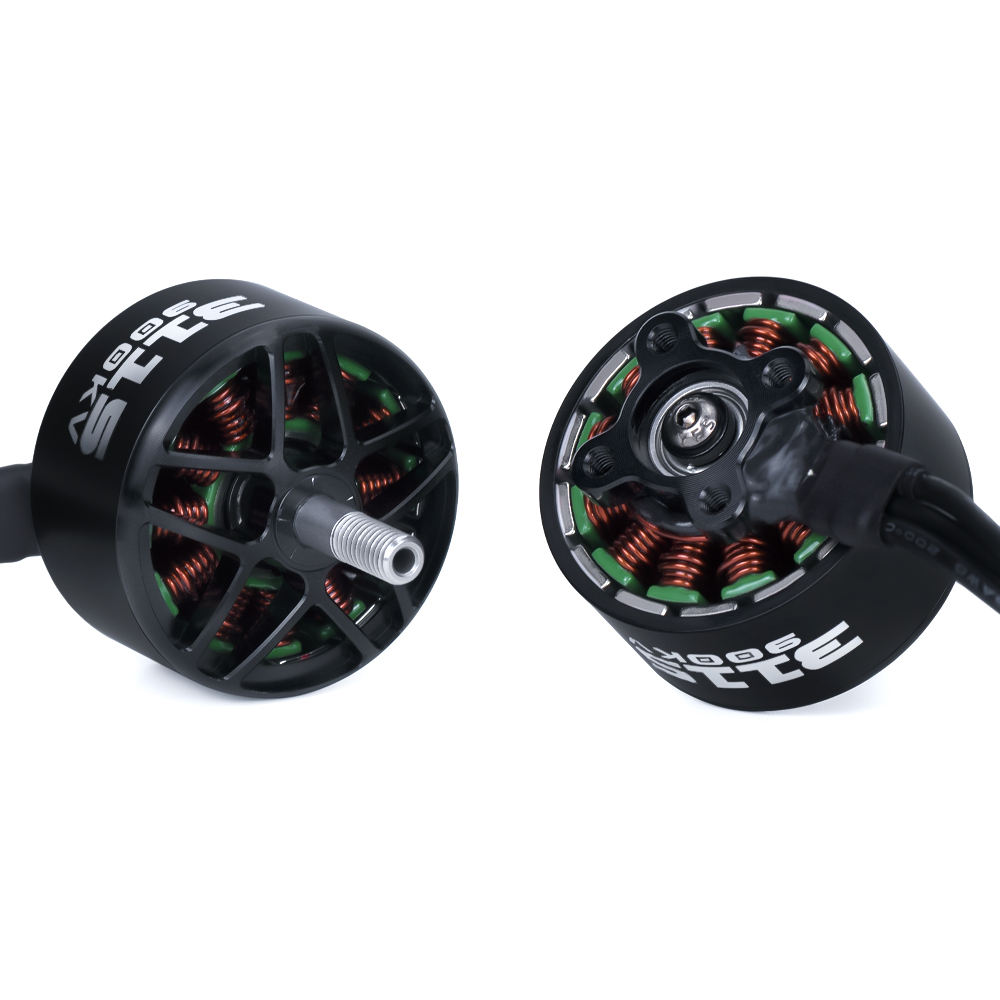

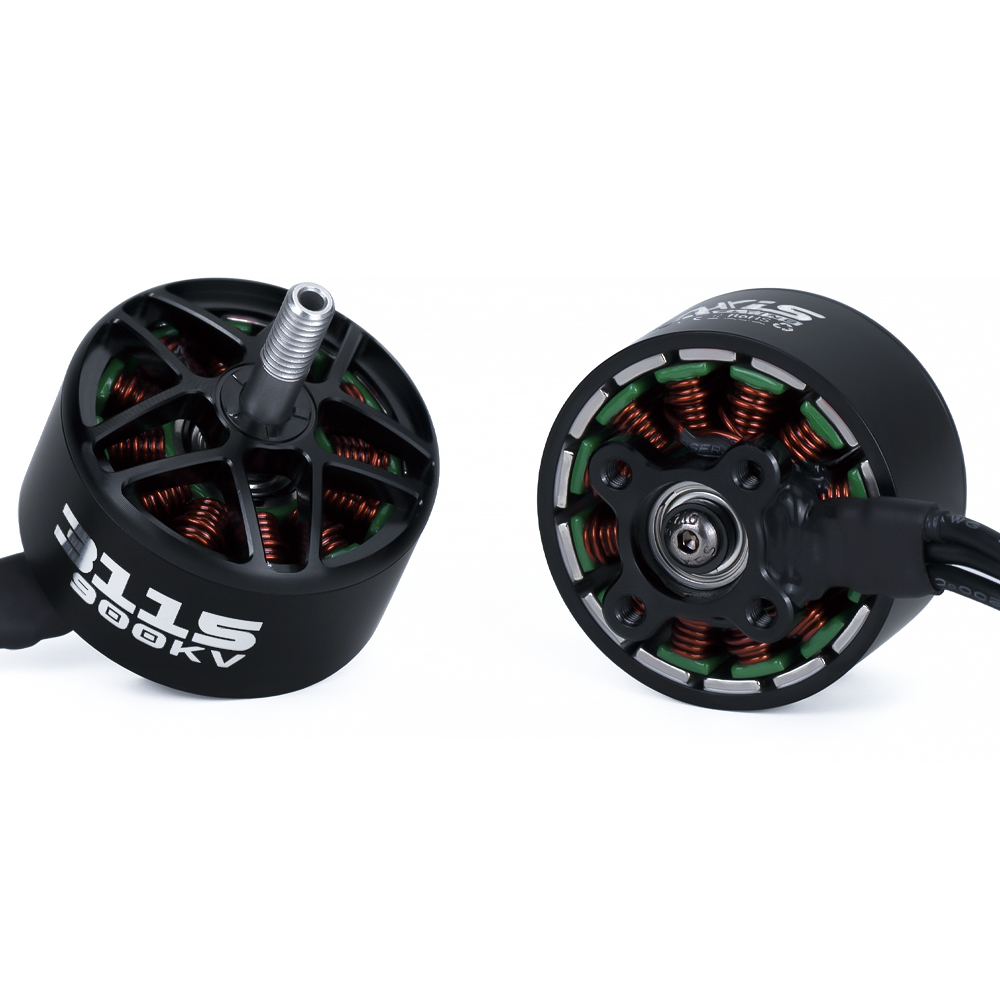

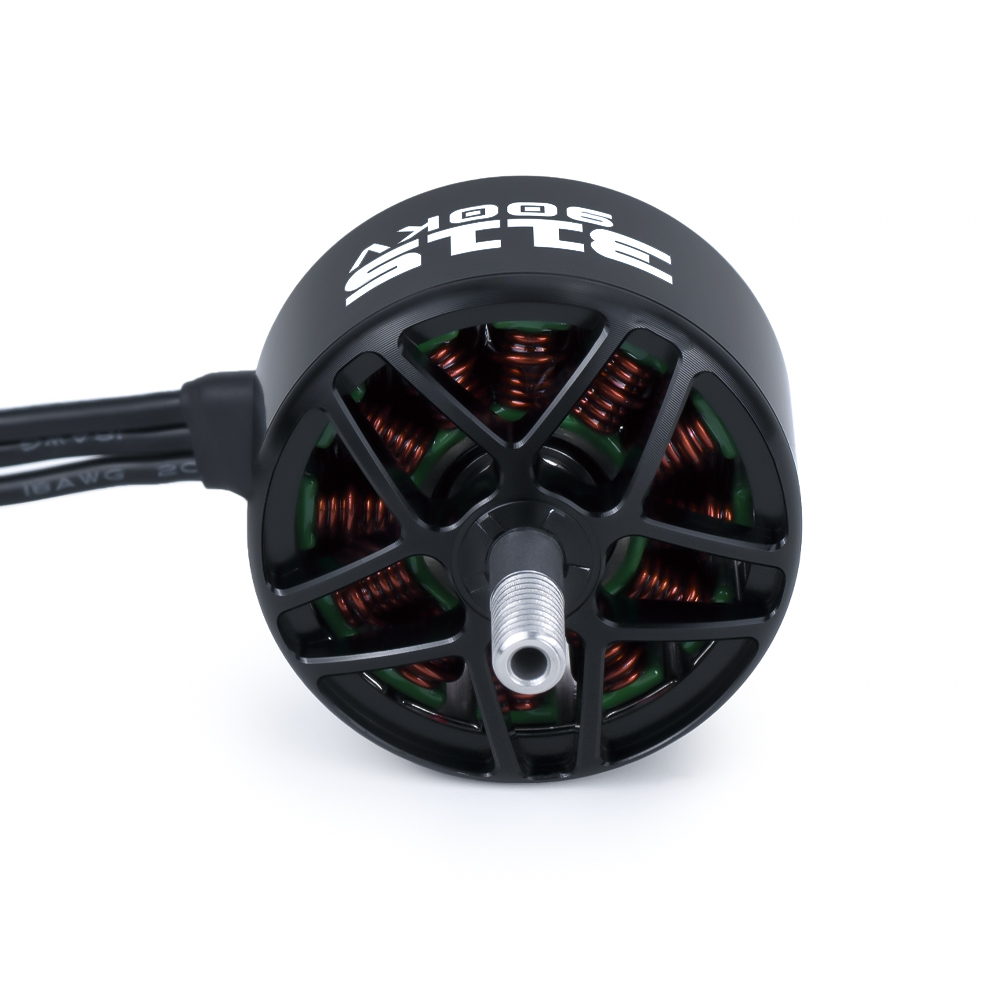

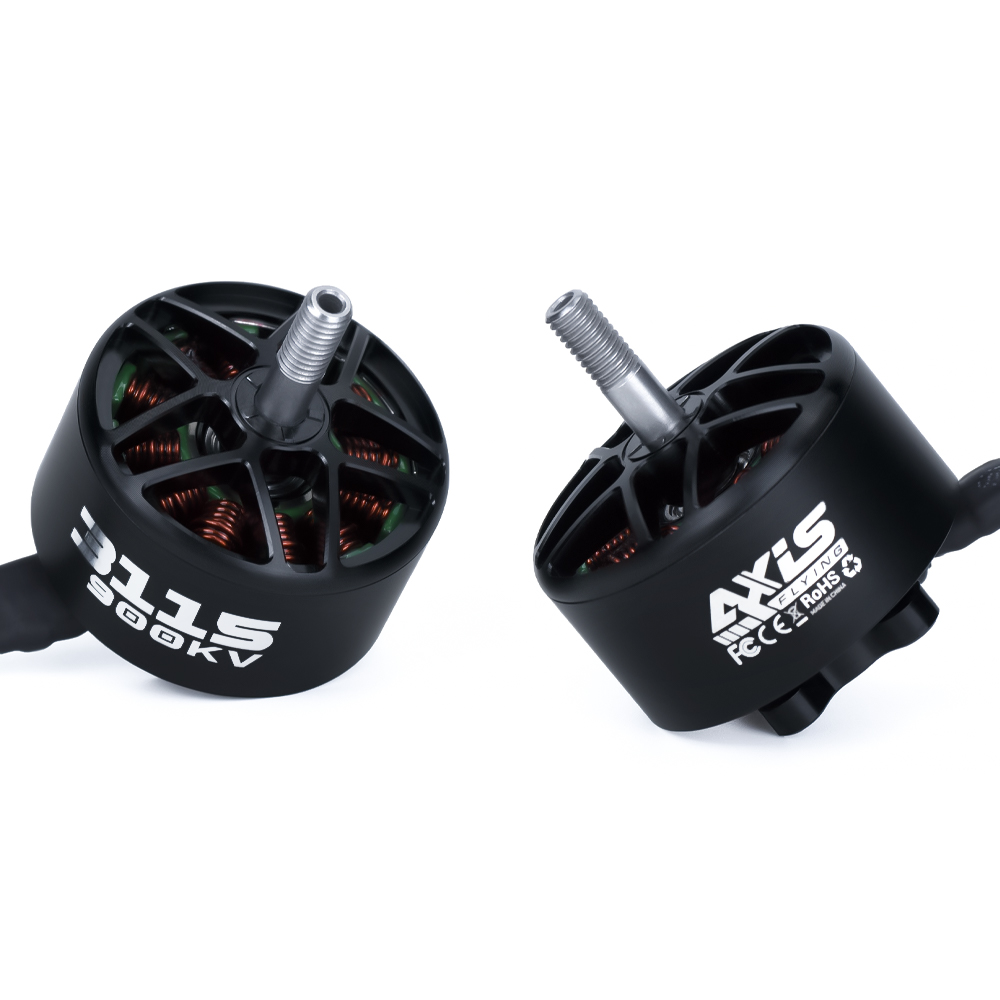

The Axisflying AZ3115 3-6S Brushless Motor for FPV Racing Long Range Drone delivers relentless power, smooth efficiency, and exceptional durability for demanding pilots pushing speed and distance limits. Engineered with high-quality materials, optimized 12N14P design, and impressive thrust output, it ensures stable flight, rapid response, and reliable performance across 3-6S setups, making it ideal for long-range missions and high-performance FPV racing builds while maintaining low heat and consistent efficiency output.

Features

• High-performance 900KV motor for powerful thrust and efficiency
• Optimized 12N14P configuration for smooth and responsive flight
• Supports 3–6S voltage for versatile FPV setups
• Durable construction with excellent heat dissipation
• High peak current capability up to 65A
• Impressive max thrust of 4245g for demanding builds
• Long 310mm silicone wires for flexible installation
• Stable performance for both racing and long-range flights

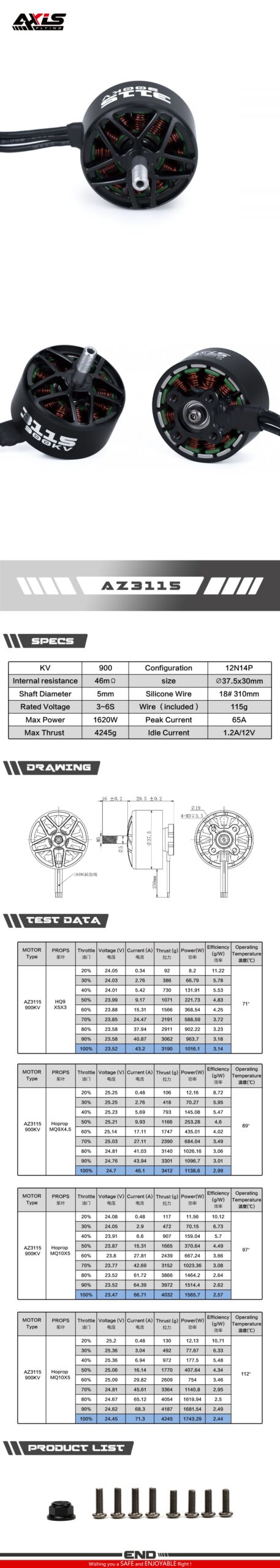

Specifications

• KV Rating: 900KV
• Configuration: 12N14P
• Motor Size: 37.5 × 30mm
• Shaft Diameter: 5mm
• Internal Resistance: 46mΩ
• Rated Voltage: 3–6S
• Peak Current: 65A
• Max Power: 1620W
• Max Thrust: 4245g
• Idle Current: 1.2A / 12V
• Wire: 18# Silicone Wire, 310mm length
• Weight: 115g

Package Includes

• 1 x Axisflying AZ3115 3-6S Brushless Motor for FPV Racing Long Range Drone
