Axisflying DeadCat Manta 5 SE DC Frame For DIY FPV DJI O4 PRO

by

Engineered for smooth cinematic flights with balanced power and visibility. A durable deadcat frame supporting FPV electronics effortlessly.

$89.99

Only 3 left in stock

SKU: 7311 Categories: , Brand:

Description

The Axisflying DeadCat Manta 5 SE DC Frame For DIY FPV DJI O4 PRO delivers cinematic stability, precision carbon construction, and optimized deadcat geometry for pilots demanding smooth footage, balanced handling, and confident control in every flight scenario. Built for 5-inch power, 6S performance, and modern digital systems, it supports robust stacks, flexible camera mounting, and durable 6mm arms, making it ideal for freestyle, cinematic, and long-session FPV builds projects.

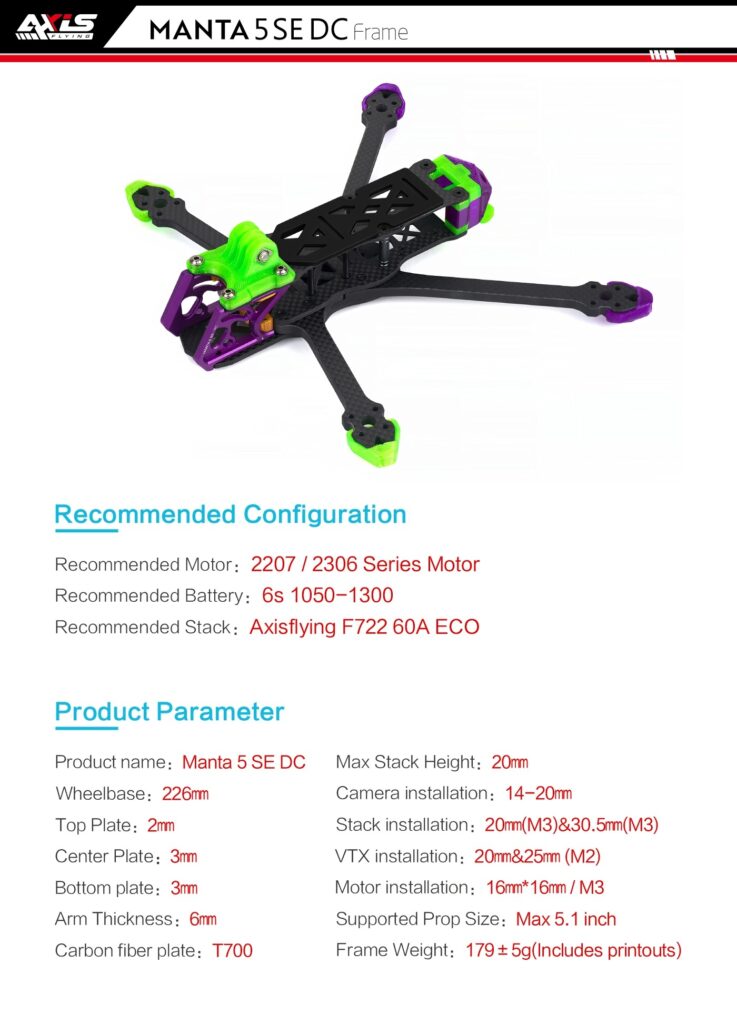

Specifications

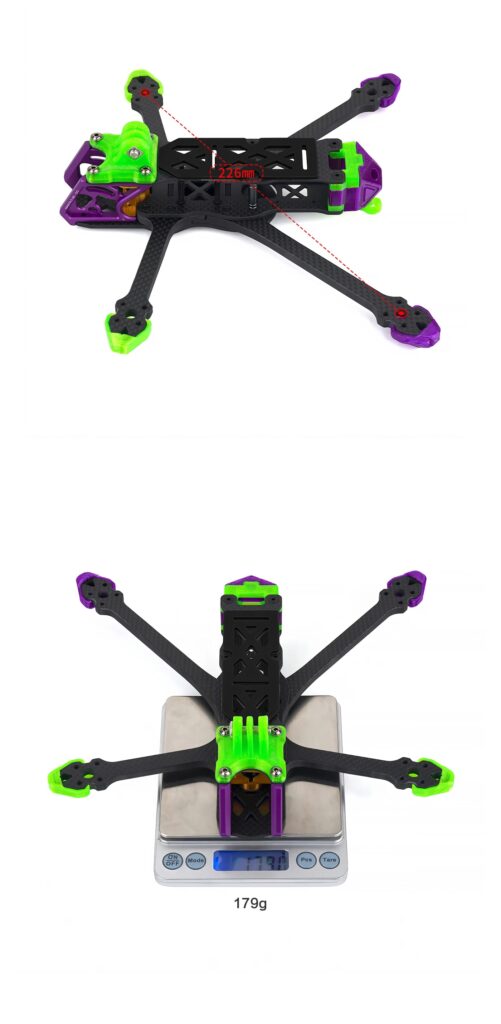

  • Wheelbase: 226mm
  • Supported Prop Size: Up to 5.1 inch
  • Top Plate Thickness: 2mm
  • Center Plate Thickness: 3mm
  • Bottom Plate Thickness: 3mm
  • Arm Thickness: 6mm
  • Carbon Fiber Plate: T700
  • Max Stack Height: 20mm
  • Stack Installation: 20mm (M3) & 30.5mm (M3)
  • Camera Installation: 14–20mm
  • VTX Installation: 20mm & 25mm (M2)
  • Motor Mounting: 16×16mm (M3)
  • Frame Weight: 179 ± 5g (includes printed parts)

Recommended Configuration

  • Recommended Motor: 2207 / 2306 series motors
  • Recommended Battery: 6S LiPo 1050–1300mAh
  • Recommended Stack: Axisflying F722 60A ECO stack

Package Includes

  • 1 x Axisflying DeadCat Manta 5 SE DC Frame For DIY FPV DJI O4 PRO
