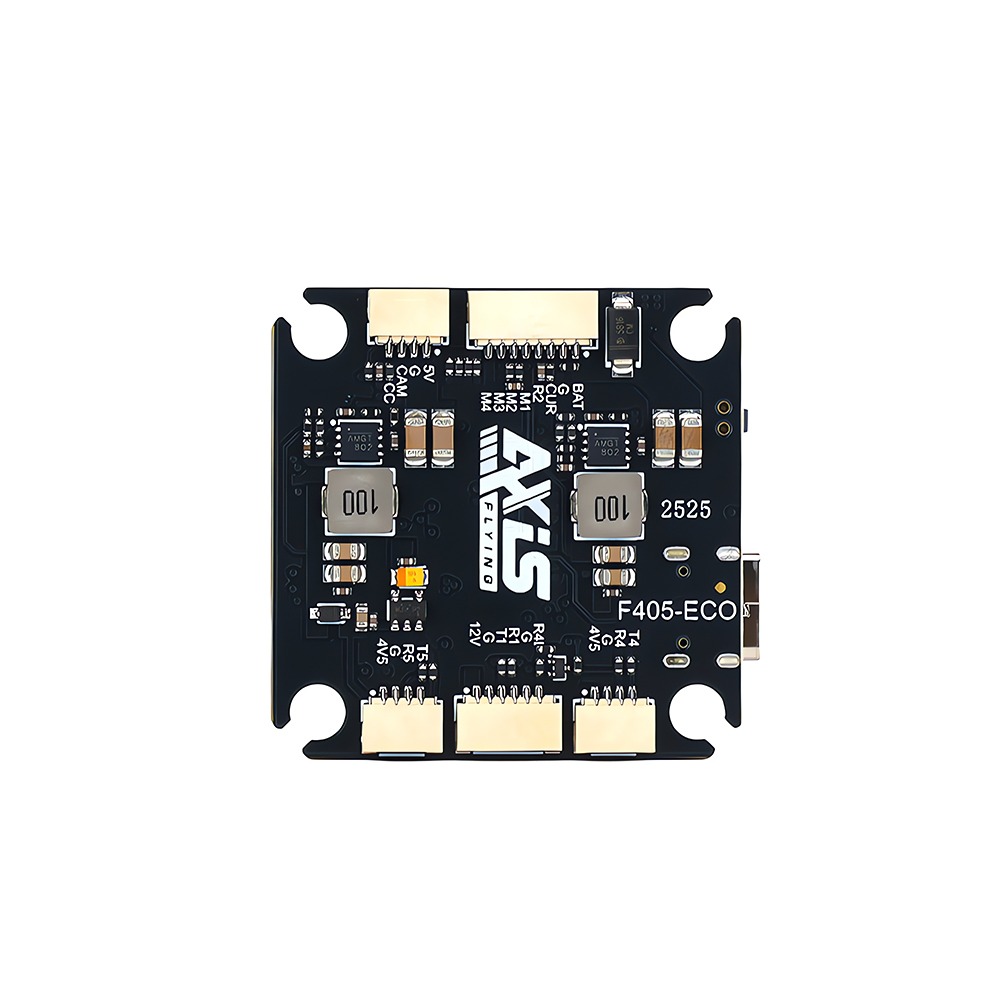

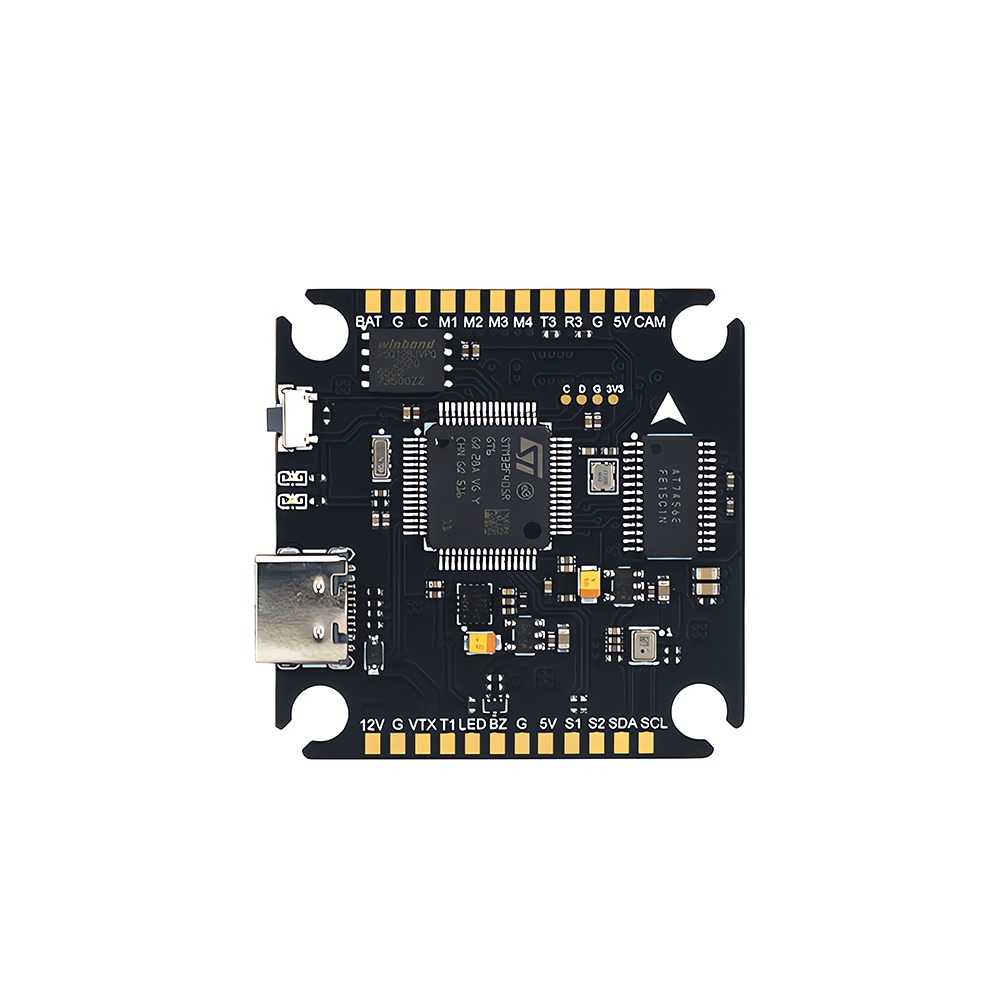

Axisflying ECO 4-8S F405 FC

by

Built for reliable control and clean power delivery. Perfect for HD or analog FPV builds worldwide competitive pilots.

$74.99

In stock

SKU: 1348 Categories: , , Brand:

Description

The Axisflying ECO 4-8S F405 FC delivers rock solid flight performance with an STM32F405 processor, ICM42688P gyro, onboard OSD, and reliable power regulation for demanding freestyle, cinematic, and racing builds. Designed for modern FPV setups, it supports DJI HD, analog VTX, GPS, multiple UARTs, 4–8S LiPo input, and clean wiring, giving pilots confidence, flexibility, and precision in every flight during aggressive tuning and long sessions.

Features

  • STM32F405 MCU for fast, stable flight control
  • ICM42688P gyro for precise and responsive handling

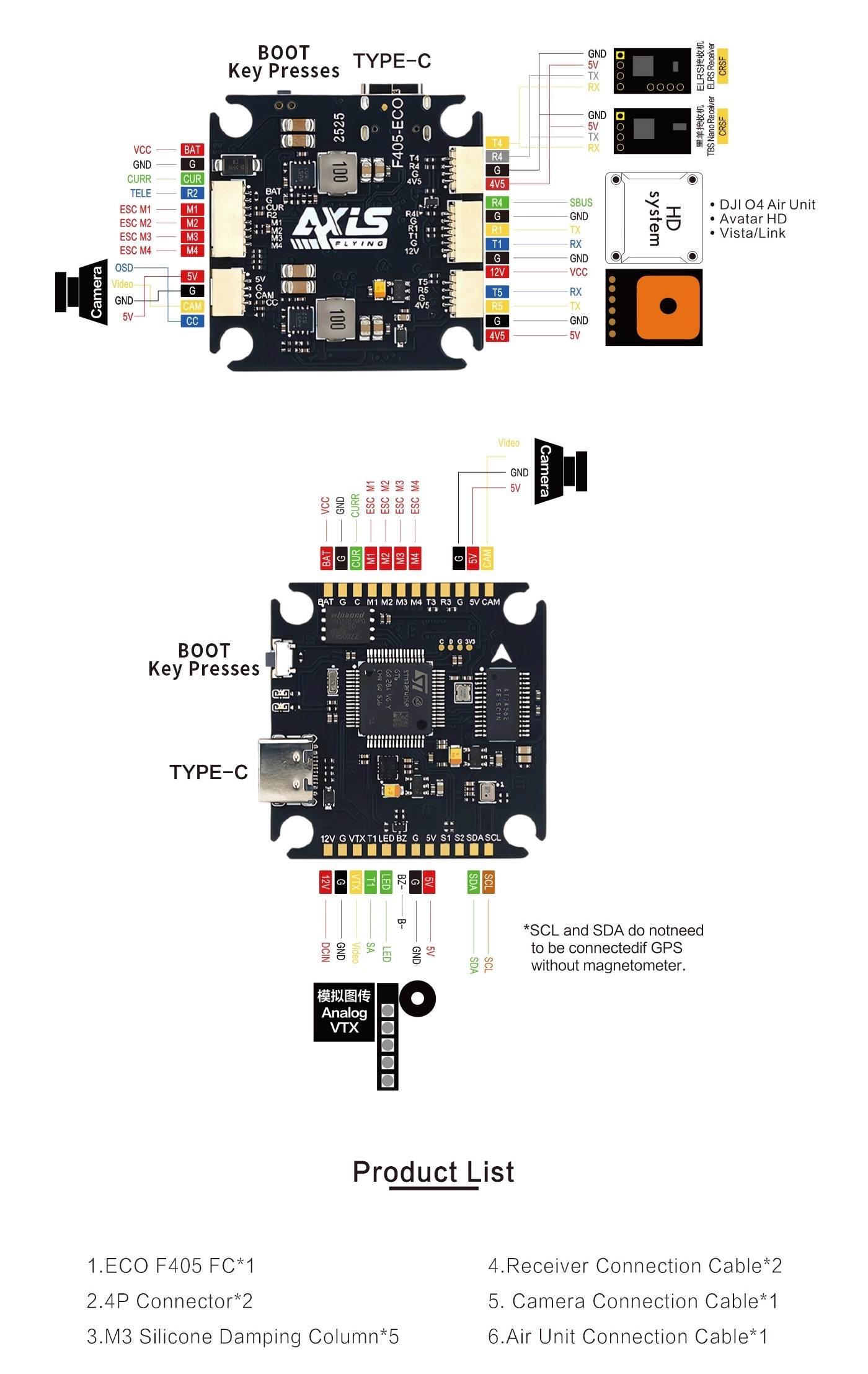

  • Supports DJI HD (Air Unit / Vista / Link) and analog VTX
  • Onboard OSD and barometer support
  • 12V/2A and 5V/2A BEC for clean peripheral power
  • USB Type-C with BOOT button for easy setup
  • GPS support with multiple UARTs
  • Designed for clean, organized wiring

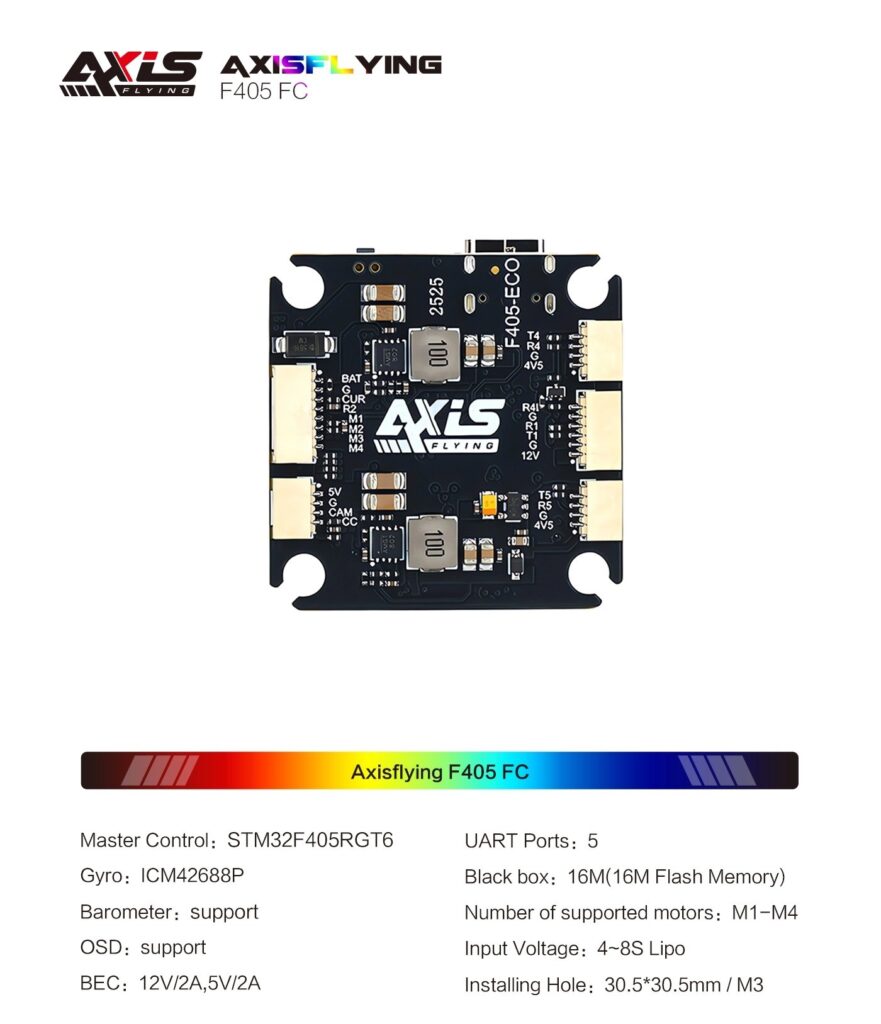

Specifications

  • Flight Controller: Axisflying ECO F405
  • MCU: STM32F405RGT6
  • Gyro: ICM42688P
  • Blackbox: 16MB onboard flash
  • UART Ports: 5
  • Supported Motors: M1–M4
  • Input Voltage: 4–8S LiPo
  • BEC Output: 12V/2A, 5V/2A
  • Mounting Pattern: 30.5 × 30.5 mm, M3
  • Video Support: DJI HD & Analog VTX
  • USB: Type-C

Package Includes

  • 1 x Axisflying ECO 4-8S F405 FC
