Description

KiwiQuads: Suits a range of Camera mounts including O4 Pro.

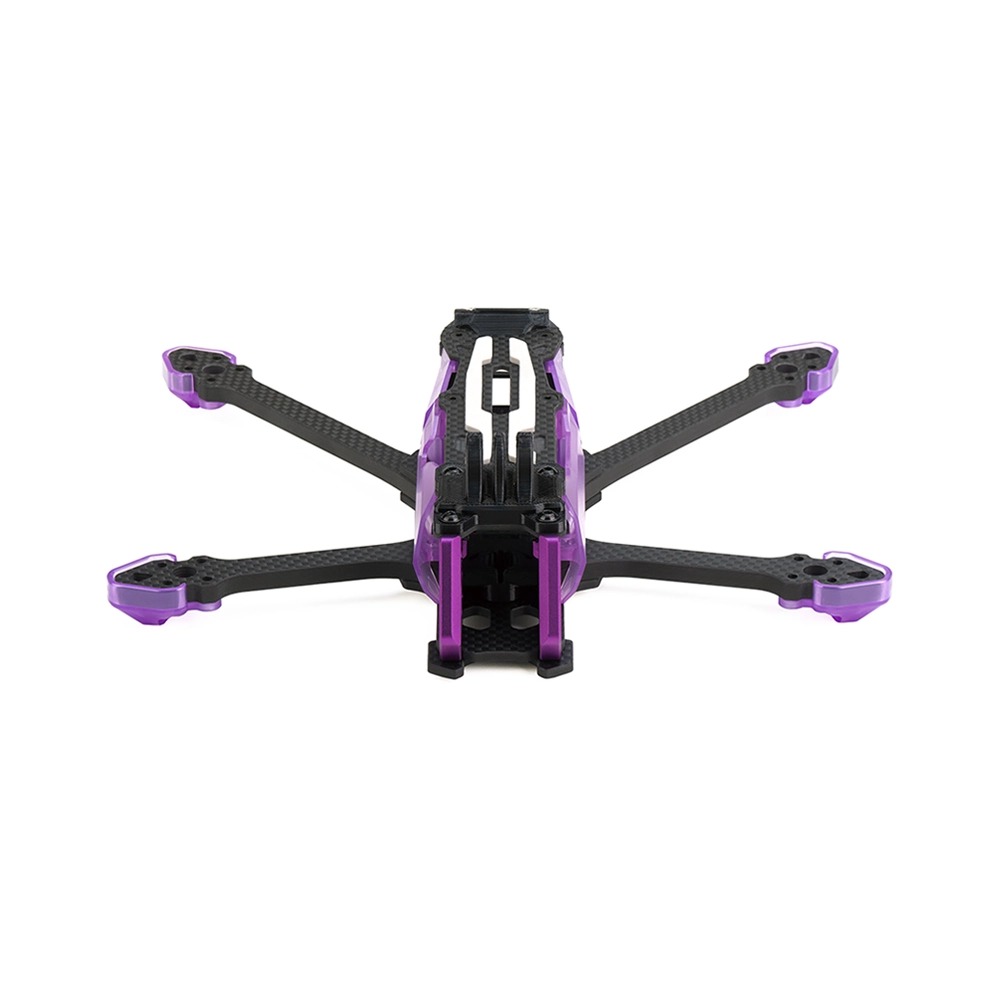

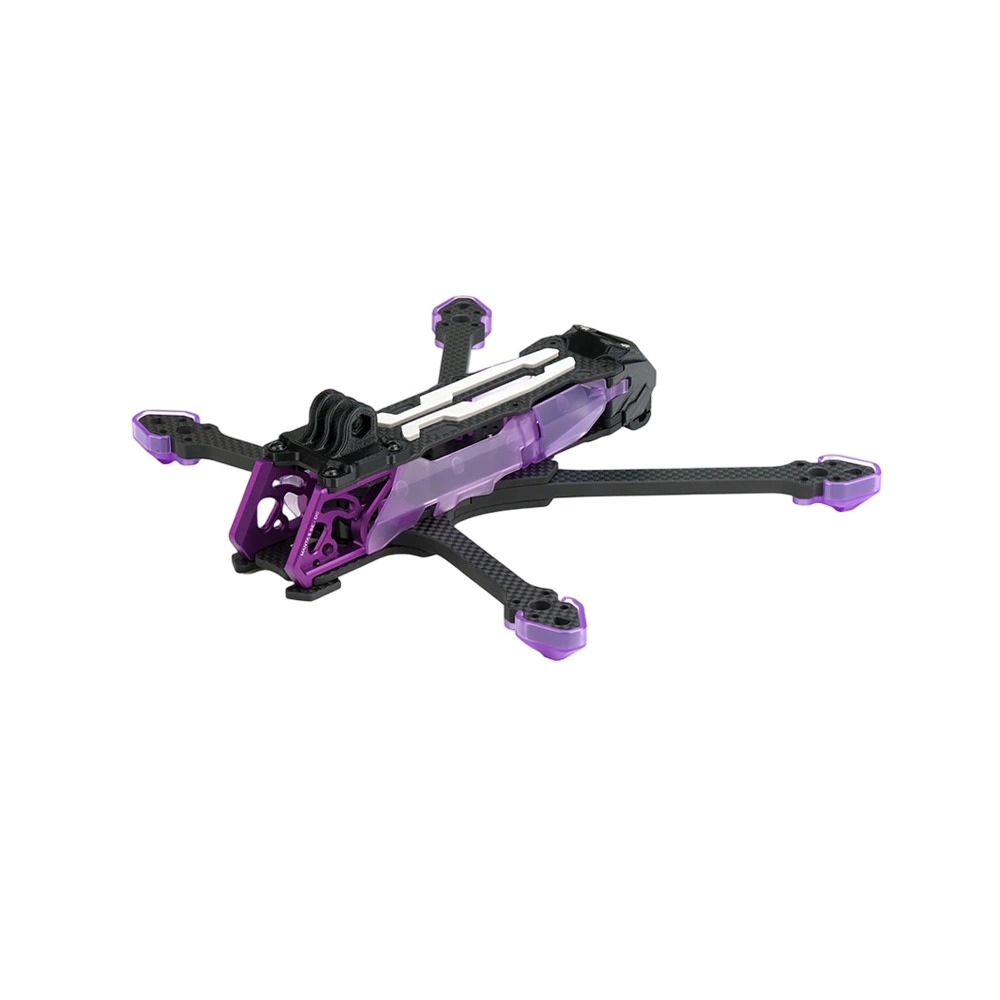

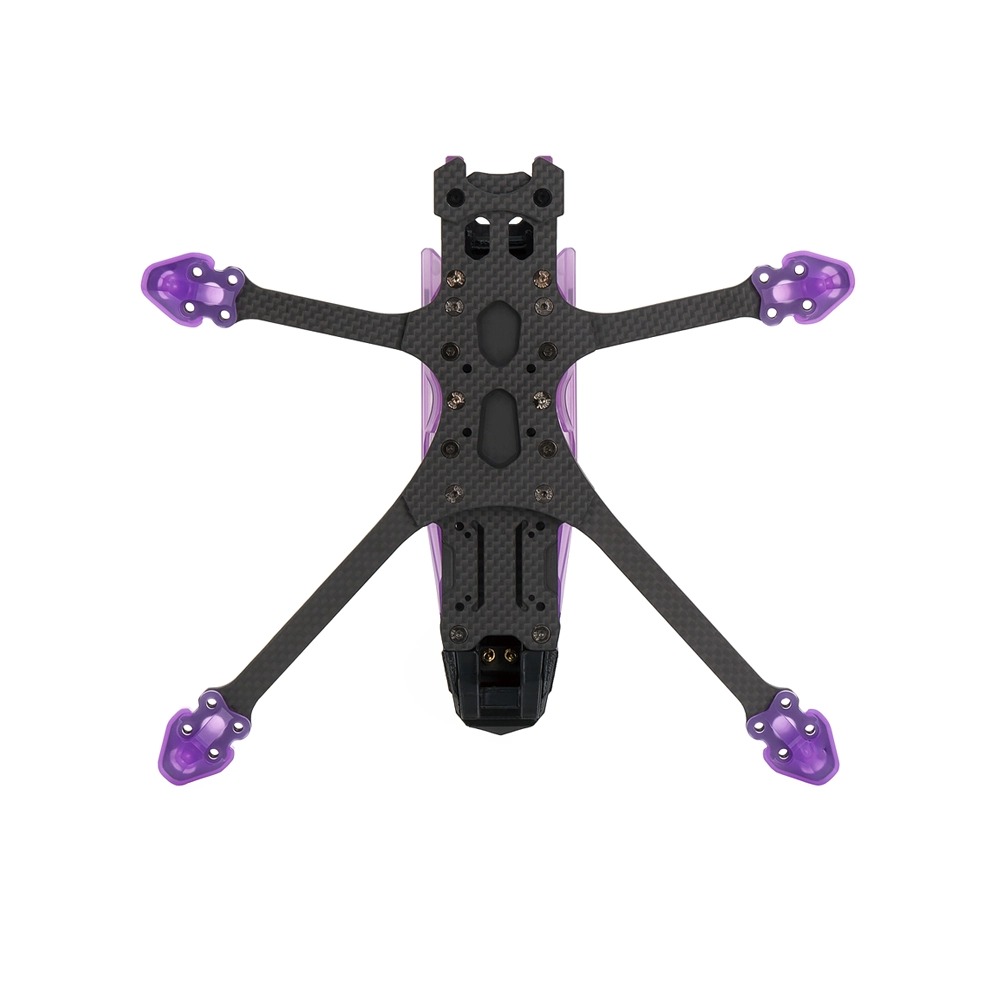

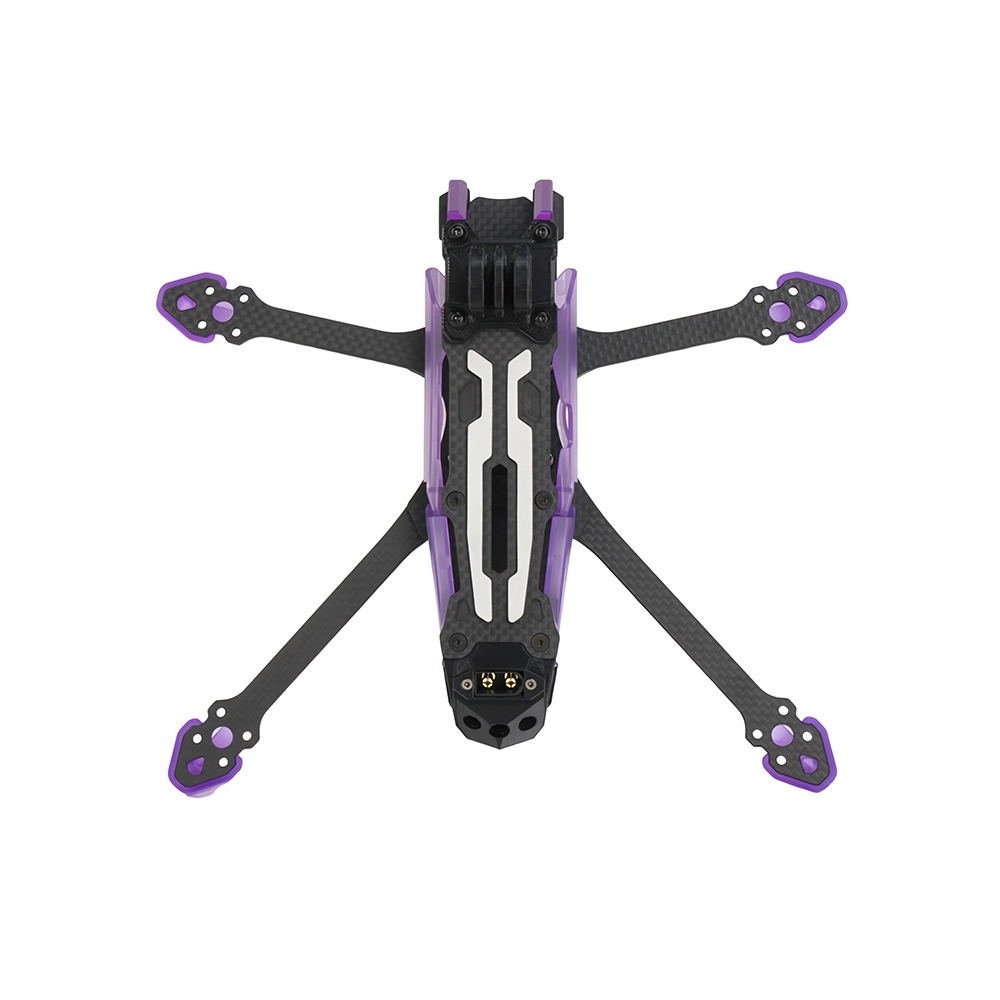

The Axisflying Manta 5 SE V2 Frame delivers exceptional freestyle and cinematic FPV performance with a choice of DC or Squashed X geometry, premium T700 carbon fiber construction, and optimized compatibility for modern electronics. Designed for durability, precision handling, and easy customization, this versatile 5-inch frame features robust 6mm or 5.5mm arms, flexible mounting options, and a lightweight structure that helps pilots unlock smoother, faster, and more confident flights.

Features

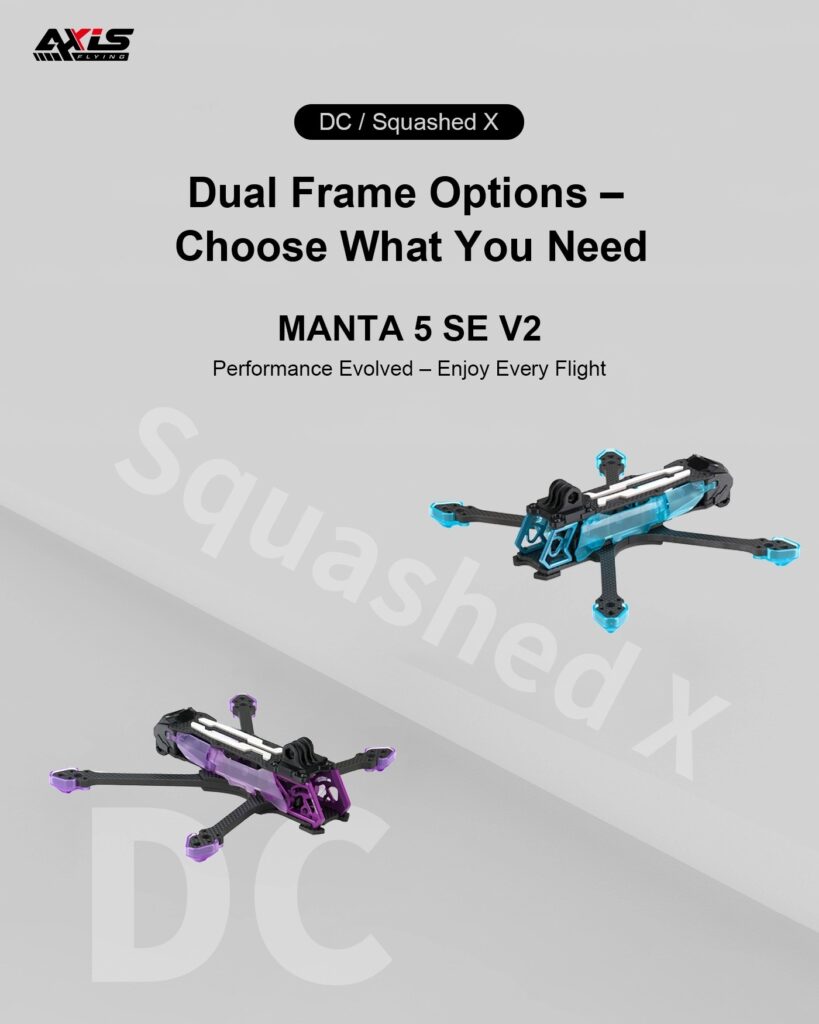

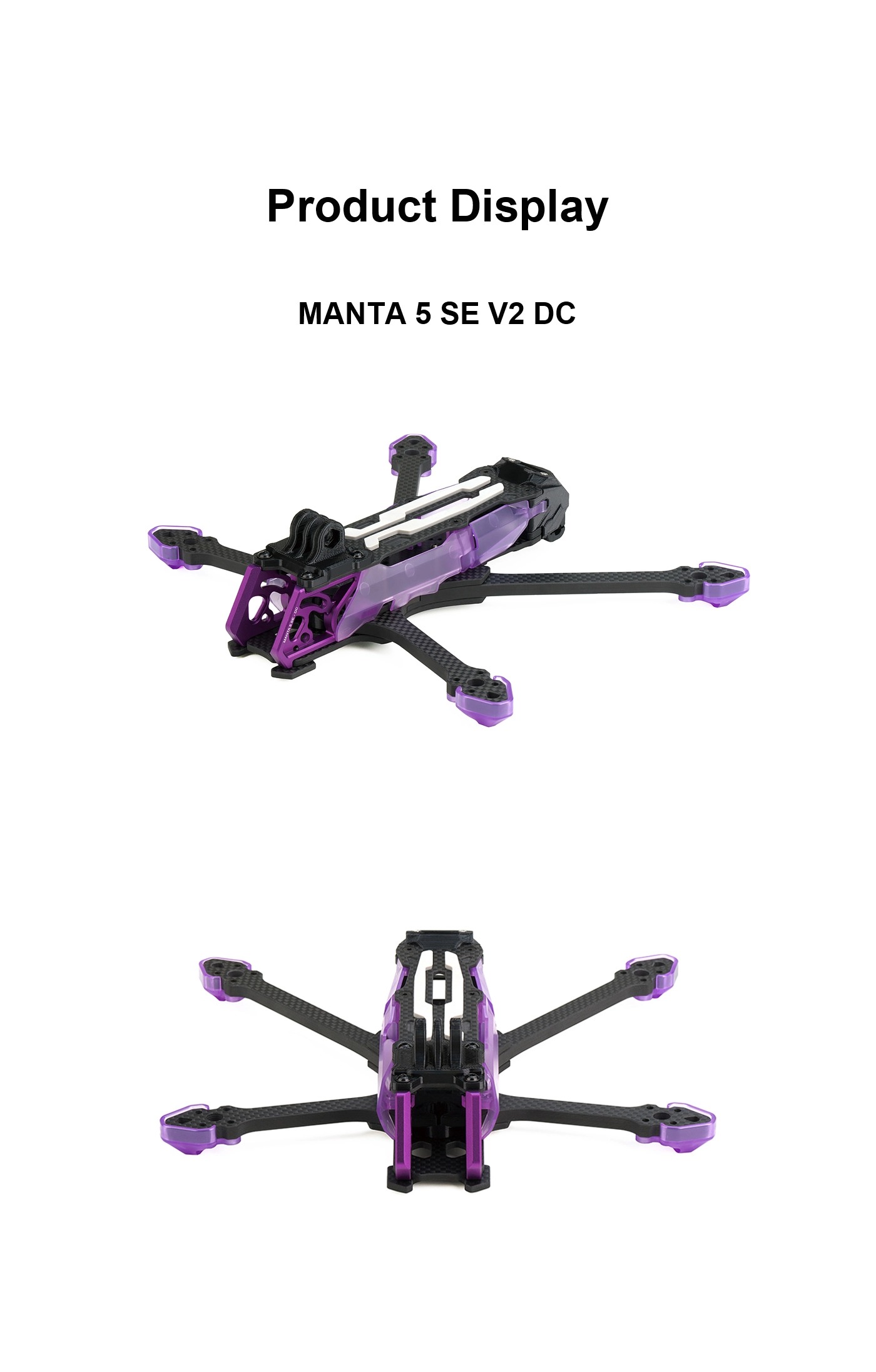

• Available in two frame geometries: DC and Squashed X
• Supports up to 5.1-inch propellers
• Constructed with premium T700 carbon fiber
• Compatible with 20×20mm and 30.5×30.5mm flight controller stacks
• Supports 16×16mm M3 motor mounting pattern
• Adjustable 14–20mm FPV camera mounting
• 20mm electronics bay height for versatile component installation
• Dedicated 20×20mm and 25.5×25.5mm VTX mounting
• Durable 2mm top plate and 3mm center/bottom plates
• Choice of 6mm DC arms or 5.5mm Squashed X arms
• Lightweight design with included TPU print components
• Optimized for freestyle, cinematic, and long-range FPV builds

Specifications

• Wheelbase: 226mm
• Supported Prop Size: Up to 5.1 inch
• Stack Mounting: 20×20mm (M3) & 30.5×30.5mm (M3)
• Motor Mounting: 16×16mm (M3)
• Camera Mounting Width: 14–20mm
• Electronics Layer Height: 20mm
• Carbon Fiber Material: T700
• Top Plate Thickness: 2mm
• Center Plate Thickness: 3mm
• Bottom Plate Thickness: 3mm
• Arm Thickness: 6mm
• VTX Mounting: 20×20mm & 25.5×25.5mm (M2)
• Frame Weight: 172±5g (including TPU parts)

Package Includes

• 1 x Axisflying Manta 5 SE V2 Frame
