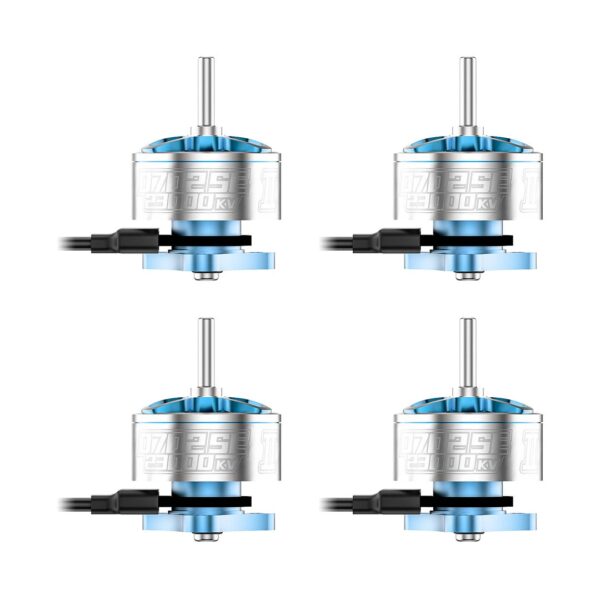

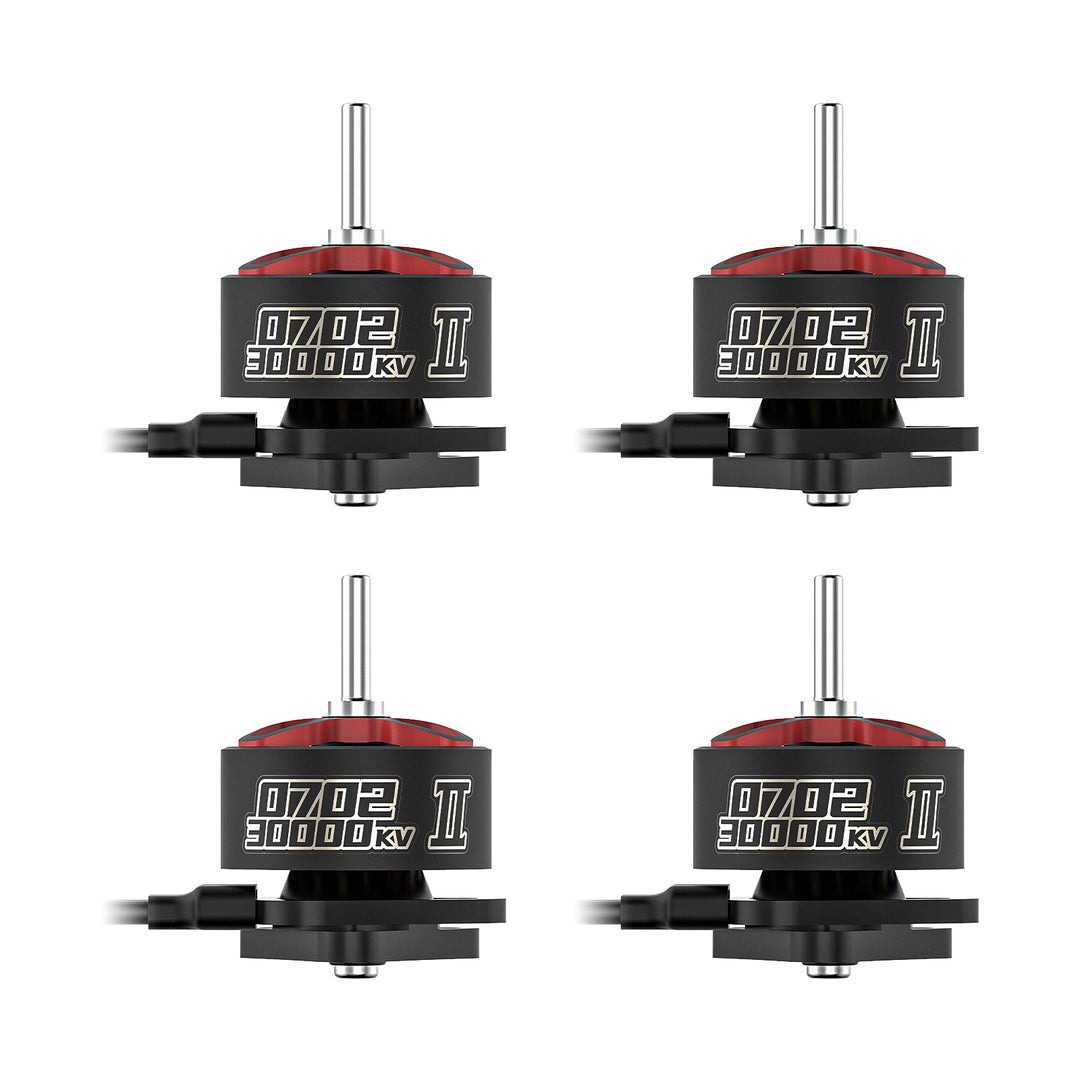

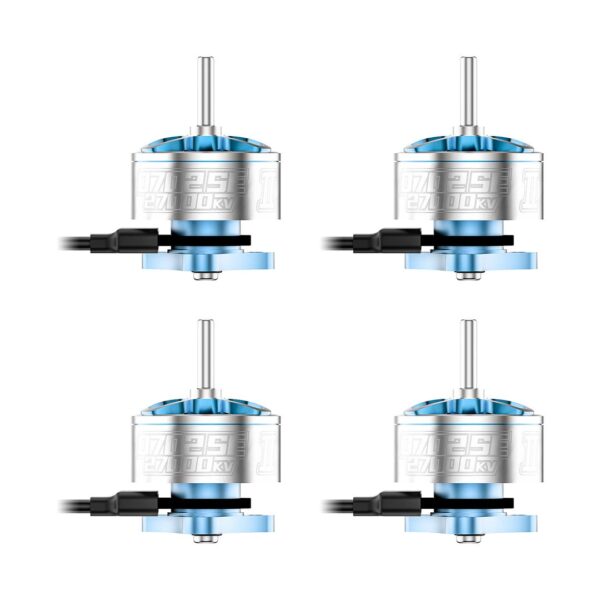

BetaFPV 0702 II / 0702SE II Brushless Motors V2 (4PCS) (23000kv/27000kv/3000kv)

Description

KiwiQuads Notes:

• Please note the 0702 II 30000kv are the motors in the limited edition Air65 – for Racers!
• The 0702SE II are the upgraded motors shipping in Air65 series since Feb 2025
• If you are looking for replacement motors for your earlier Air65 try here: 0702SE V1

The BetaFPV 0702 V2 Brushless Motors redefine micro drone performance with cutting-edge tile-shaped magnets, delivering 14.8% more thrust for unparalleled speed and agility. Ultra-lightweight yet powerful, these motors ensure superior responsiveness and endurance, making them the perfect choice for 65mm whoops. Paired with PEEK screws and Gemfan propellers, they provide the ultimate racing advantage, eliminating magnetic degradation and maximizing efficiency. Take your indoor FPV racing and freestyle flying to the next level!

Features:

• The second generation of 0702 motors are custom-designed for ultra-lightweight 65mm racing drones, delivering exceptional performance for extreme indoor FPV racing and aggressive freestyle flying.
• Upgraded with advanced tile-shaped magnets, the 0702 II and 0702SE II motors deliver up to a 14.8% thrust increase while virtually eliminating magnetic degradation, even during intense flights.
• The 0702 II motors boast dual ball bearings and weighs just 1.55g. For pilots seeking higher speeds, the 30000KV provides more punch on the throttle, ideal for indoor FPV racing and aggressive flying.
• The 0702SE II motors feature brass bushings, making it both lightweight at 1.45g (23000KV) and 1.47g (27000KV) and highly efficient. This more affordable and durable motor is the perfect choice for extremely lightweight installations.
• Paired with the PEEK screws only weighing 0.10 grams/12pcs, it can save up to 0.46g for a build. With superior heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK screws are both reliable and durable.
• Combine these with the ultra-light Gemfan 1210 2-blade or Gemfan 1208 3-blade propellers, you can get robust power output and unparalleled responsiveness, perfect for racing and freestyle flight. Meet various needs of the lightweight whoop drone installation.

Specifications:

• Item: 0702 II Brushless Motors
• Motor KV (rpm/V): 30000KV, 27000KV, 23000KV
• Bearing: Dual ball bearings (0702 II), Brass bushings (0702SE II)
• Weight: 1.55g (0702 II), 1.45g (0702SE II 23000KV), 1.47g (0702SE II 27000KV)
• Color: Black/Red (0702 II), Ice Blue (0702SE II)
• Shaft Diameter: 1mm
• Shaft Length: 4.2mm
• Hole Distance: 6.6mm
• Motor Mount Holes: M1.4
• Input Voltage: 1S
• Cable: 35mm (connector included), 30AWG

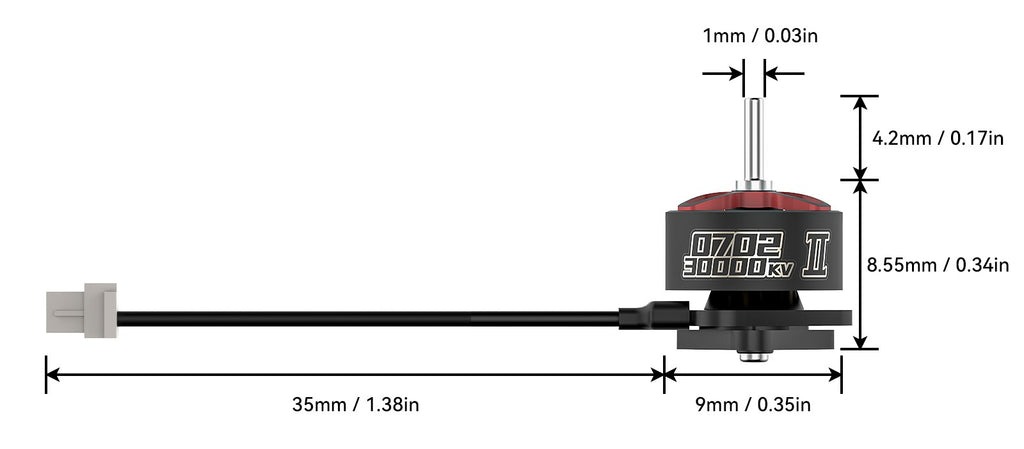

Dimensions of the 0702 II Brushless Motor:

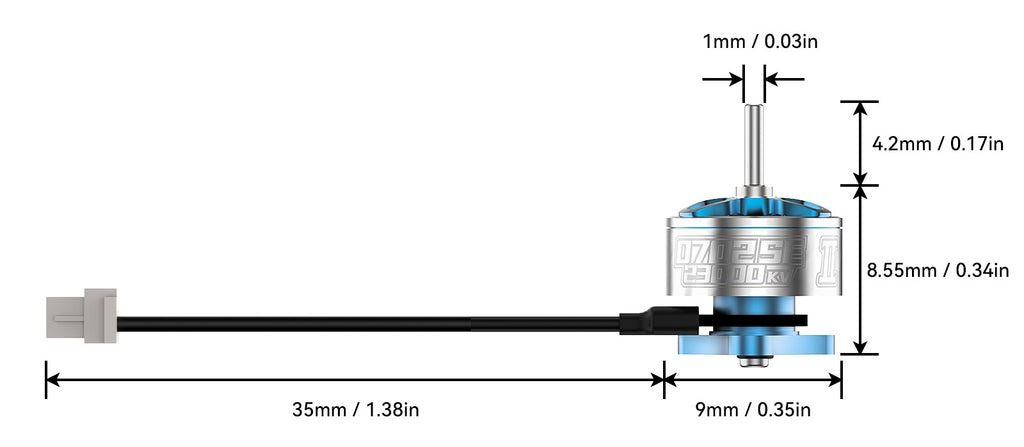

Dimensions of the 0702SE II Brushless Motor:

The Second Generation, A Power Revolution

The upgraded 0702 II motors redefine performance with cutting-edge tile-shaped magnets, an optimized magnetic circuit design, and improved coil filling ratio. Compared to the original 0702, the 0702 II delivers a remarkable 14.8% boost in thrust, while the 0702SE II achieves gains of 13% (23000KV) and 12.7% (27000KV). Engineered to withstand the demands of intense flights, the new design virtually eliminates magnetic degradation. Whether you’re aiming for Freestyle finesse or Racing supremacy, the BETAFPV 0702 II motors deliver unparalleled power and precision for your flight adventures.

PEEK Screws

PEEK Screws is the ultimate solution for lightweight whoop, taking more grams off the build. PEEK screws only weigh 0.10 grams/12pcs, it can save up to 0.46 grams for a build that is using metal screws, while still being stronger and more durable than nylon screws. With more heat resistance, anti-friction, anti-shock, and anti-fatigue properties, the PEEK Screws are both reliable and durable. They are perfect for building 65mm/75mm size drones, including the lightweight Meteor series drone.

Package Includes:

• 4 x 0702 II / 0702SE II Brushless Motors
• 15 x M1.4*3 PEEK screws
• 12 x M1.4*3 metal screws
