BetaFPV 1104 7200KV Brushless Motors (2 Options)

Description

The BetaFPV 1104 7200KV Brushless Motors empower 3S 2.2” quads with unmatched agility and torque precision. Designed for freestyle and cinewhoop creativity, these lightweight motors deliver efficient propulsion, a thrust-to-weight ratio over 5:1, and enhanced performance with the Gemfan 2218 3-Blade Propellers. Paired with the F4 2-3S 20A AIO FC V1, they ensure smooth, swift aerial movements and professional-grade shots, revolutionizing your flying experience with reliability and performance at every turn.

Features:

• Unleash the power of freestyle with the LAVA Series 1104 | 7200KV motors, precision-engineered for 3S 2.2” quads. Experience a quantum leap in performance, taking the Pavo20 Pro Brushless Whoop Quadcopter freestyle experience to new heights.
• With the lower pitch Gemfan 2218 3-Blade Propellers, the max thrust can reach more than 230g, achieving a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle experience.
• Paired with the above GF props, the force efficiency is as high as 4.7g/w when flying at low throttle, and even at full throttle load conditions, it can reach 1.9g/w, providing an efficient propulsion system for the quad.

Specifications:

• Items:  LAVA Series 1104 | 7200KV Brushless Motors
• Maximum Power: 122.5W
• Maximum Current: 10.2A
• Weight: 5.3g
• Shaft Diameter: ø1.5mm
• Shaft Length: 5mm
• Wire Specification: 28AWG
• Wire Length: 24/80mm
• Motor Mounting Hole Size: 4*M2 Ø9mm
• Propeller Mounting Hole Size: 4*M2 Ø5mm

Note:

• Only the 24mm length Version has a connector, suitable for the Pavo20 Pro.

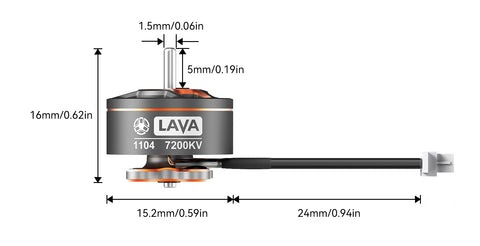

The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(24mm).

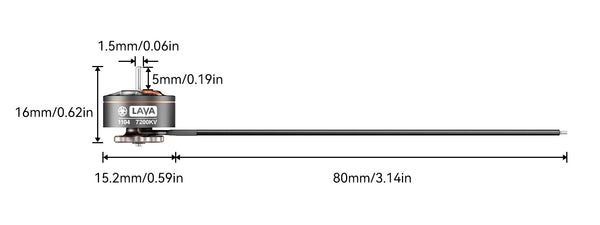

The picture below is the diagram of the LAVA Series 1104 | 7200KV Brushless Motors(80mm).

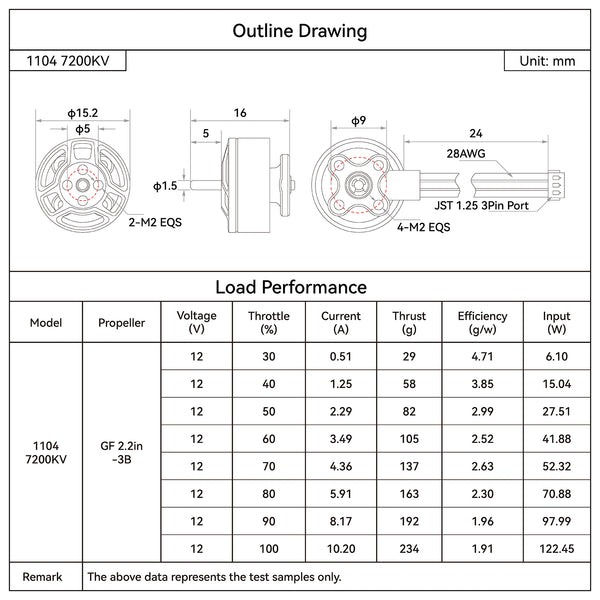

The picture below shows the load performance of the LAVA Series 1104 | 7200KV Brushless Motors.



Package Includes:

• 1 x BetaFPV 1104 7200KV Brushless Motors
• 4  x  M2 * 4 Hex Flat Head Screw
• 4 x M2 * 5 Hex Flat Head Screw
