Description

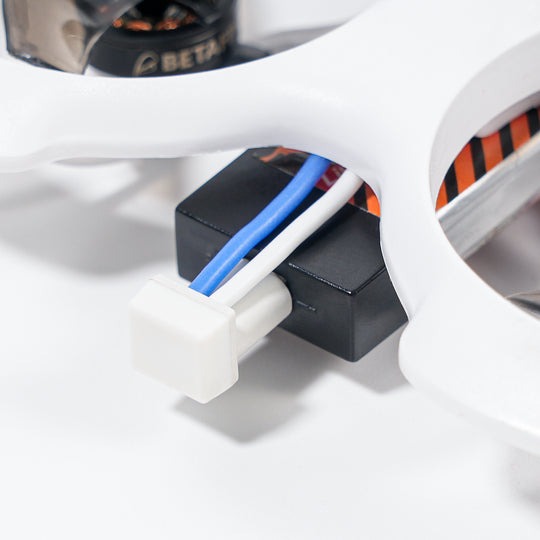

• The U-shaped structure features a smooth stepped design, making battery insertion and removal more convenient.
• The U-shaped structure enables shorter power cables, integrated molding, compact dimensions, and reduced weight.
• BT2.0 connector decreased the internal resistance of the connector effectively by upgrading the crimped pins to a 1.0mm banana connector and increasing the cross-sectional area of the 1.0mm banana connector.
• Using the BT2.0 connector, can solve the problem of voltage sag, and the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flight time without the disturbance of low voltage warnings.
• The light and customized 22AWG wire will make the drone more lighter. The wire uses a US standard core 0.08mm*60. The diameter of the silicone outer layer is only 1.5mm, which is 0.2mm thinner than the 22AWG standard wire.

Specifications:

• Item: BT2.0 U Cable Pigtail
• Weight: 1.0g/pc

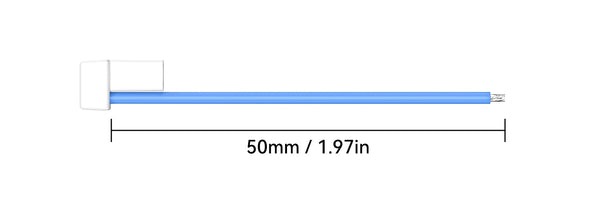

• Cable Length: 50mm
• Wire Type: 22AWG
• Connector: BT2.0 U-shaped Male Connector
• FC: F4 1S 5A AIO FC, F4 1-2S 12A AIO FC (or other 1S FC)
• Metal Material: Gold-plated Copper
• Rated Current: 9A
• Peak Current: 15A
