Description

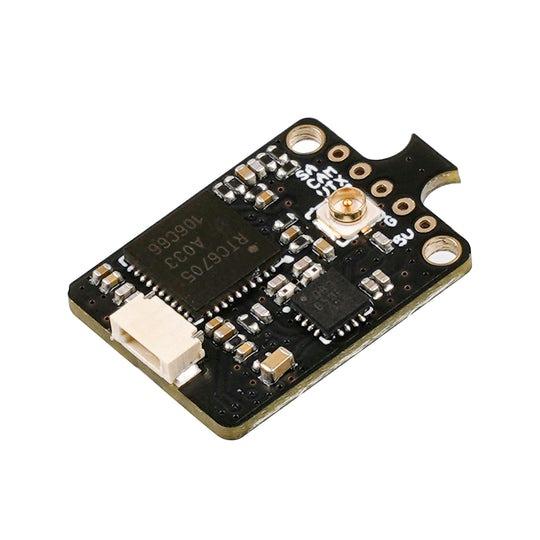

M03 VTX, a ultralight and high output power 5.8GHz analog VTX, is designed for 65-85mm whoop drone for longer range flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and fun.

Specification

• Item: M03 5.8G VTX
• Output power: PIT/25/100/200/400mW (V1.1, adjustable)
• Supply voltage range: 4.5-5.5V
• Weight: 1.1g (antenna not included)
• VTX internal size: 18X14mm
• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
• Channel SEL: SmartAudio
• Modulation type: FM
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency stability: ±100KHz (Typ.)
• Frequency precision: ±200KHz (Typ.)
• Channel carrier error: ±1.5dB
• Antenna port: 50 Ω
• Operating temperature: -10℃~+80℃
• Camera connector: JST-0.8, compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.

Diagram

Below is the diagram of the M03 VTX. The camera connector is JST-0.8 and it is compatible with cameras like BETAFPV C01, BETAFPV C02, C03 and NewBeeDrone BeeEye.

Package Includes

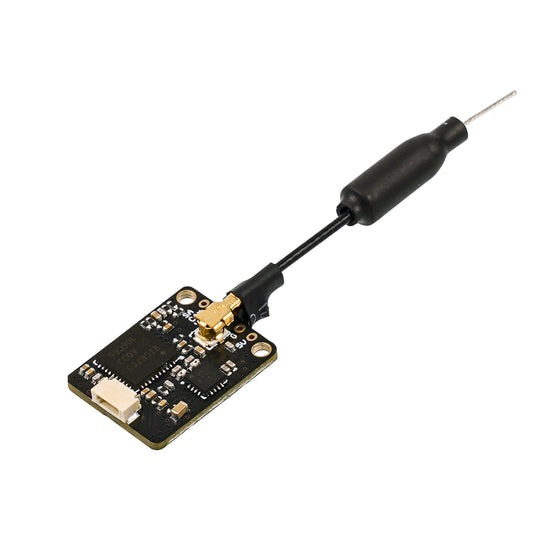

• 1 * BETAFPV M03 5.8G VTX (antenna assembled)
• 5 * 30AWG silicone wire (30mm)
