Description

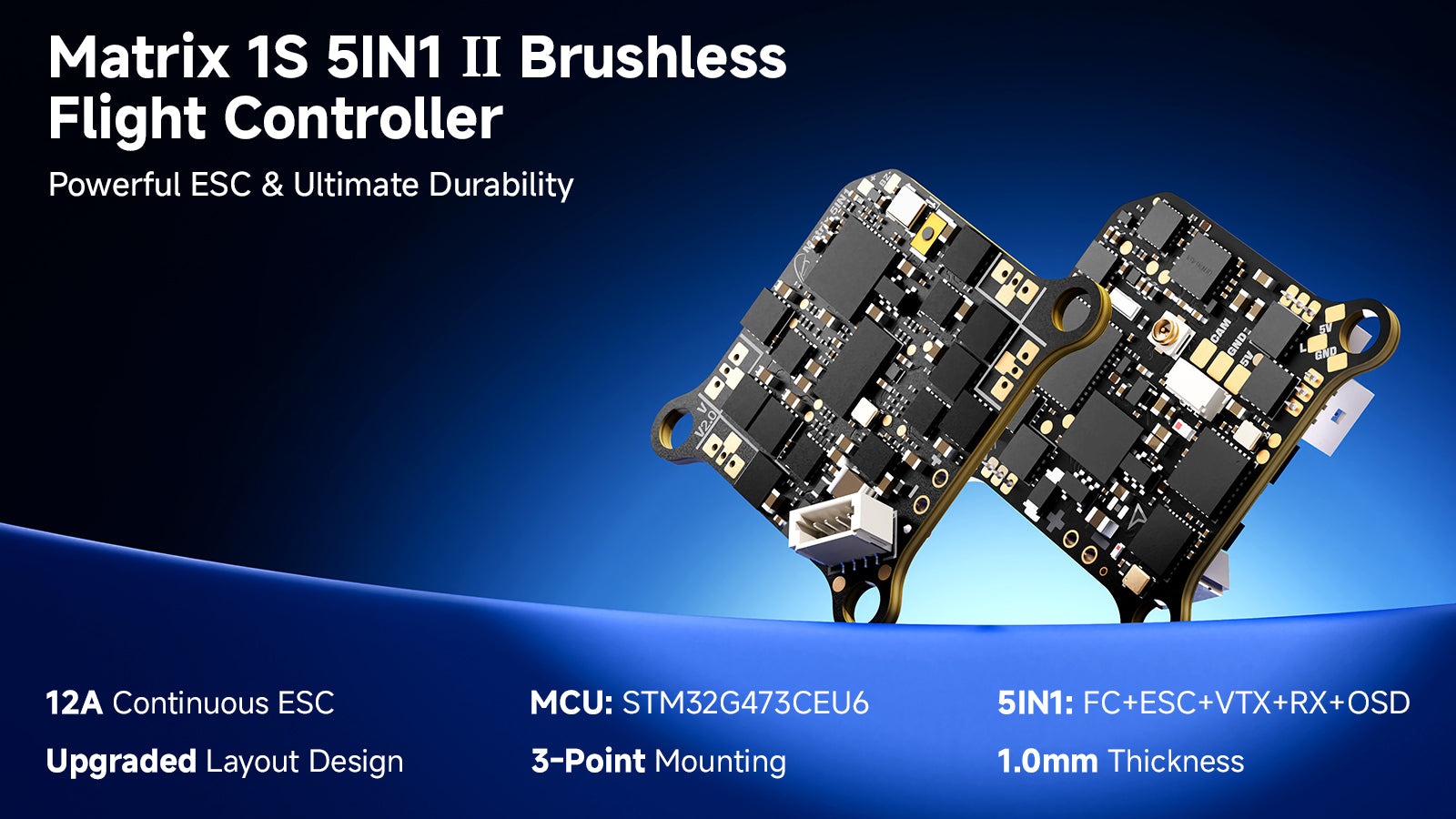

The BetaFPV Matrix 1S Brushless Flight Controller G4 5IN1 V2 (2 Options) is a next-generation all-in-one powerhouse engineered for pilots demanding maximum durability, cleaner builds, and uncompromising 1S performance. Featuring a robust 12A ESC, integrated ELRS 2.4GHz receiver, 5.8GHz 400mW VTX, and crash-resistant 3-point mounting on a thickened PCB, this compact flight core delivers responsive control, stronger propulsion, and flexible build options for serious whoop racers and freestyle pilots.

Features

• All-in-One Integration: Combines the FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8GHz 400mW VTX into a single, compact unit.

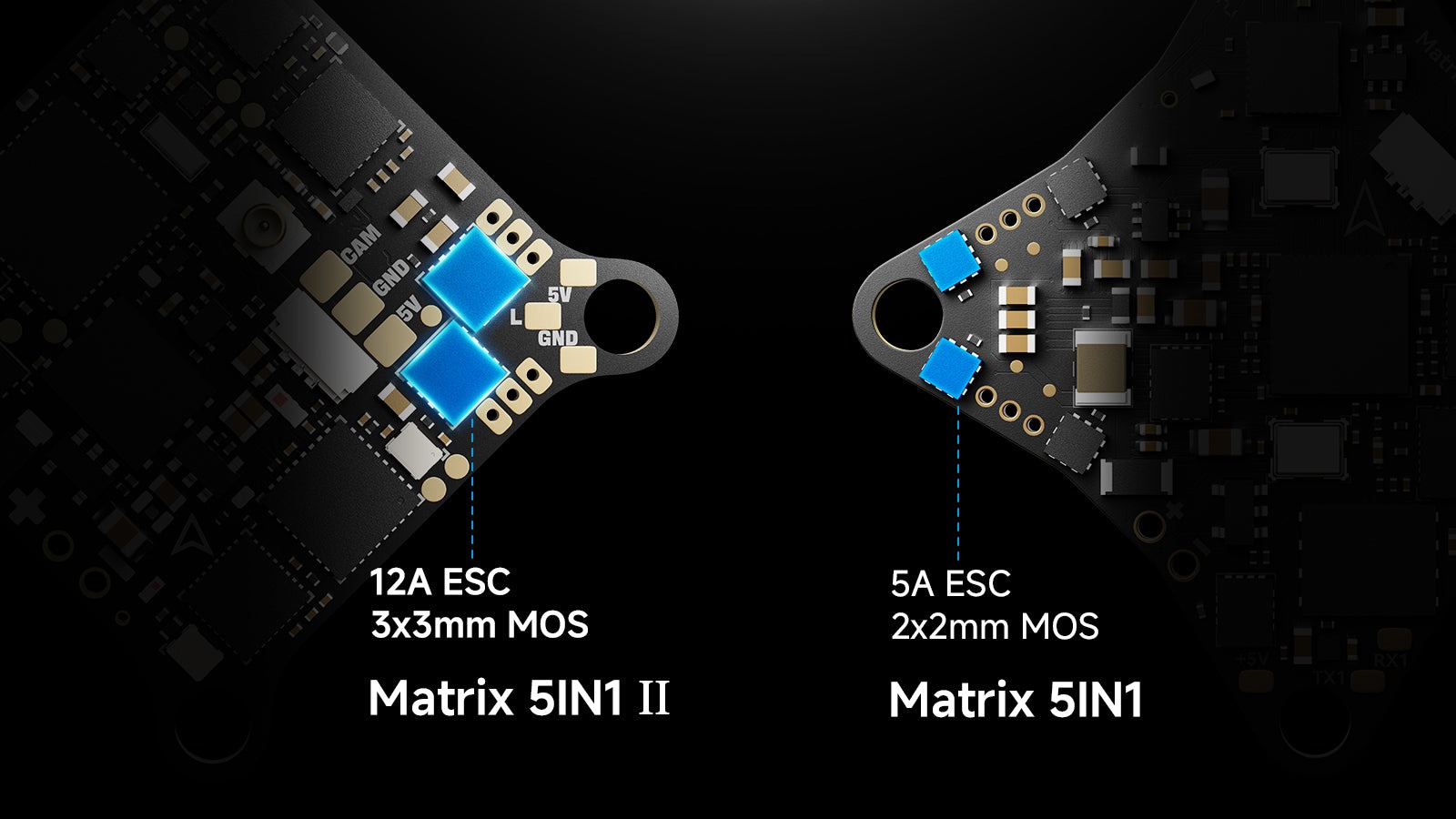

• Upgraded 12A Continuous ESC: Delivers 12A continuous current (18A peak) for powerful propulsion.

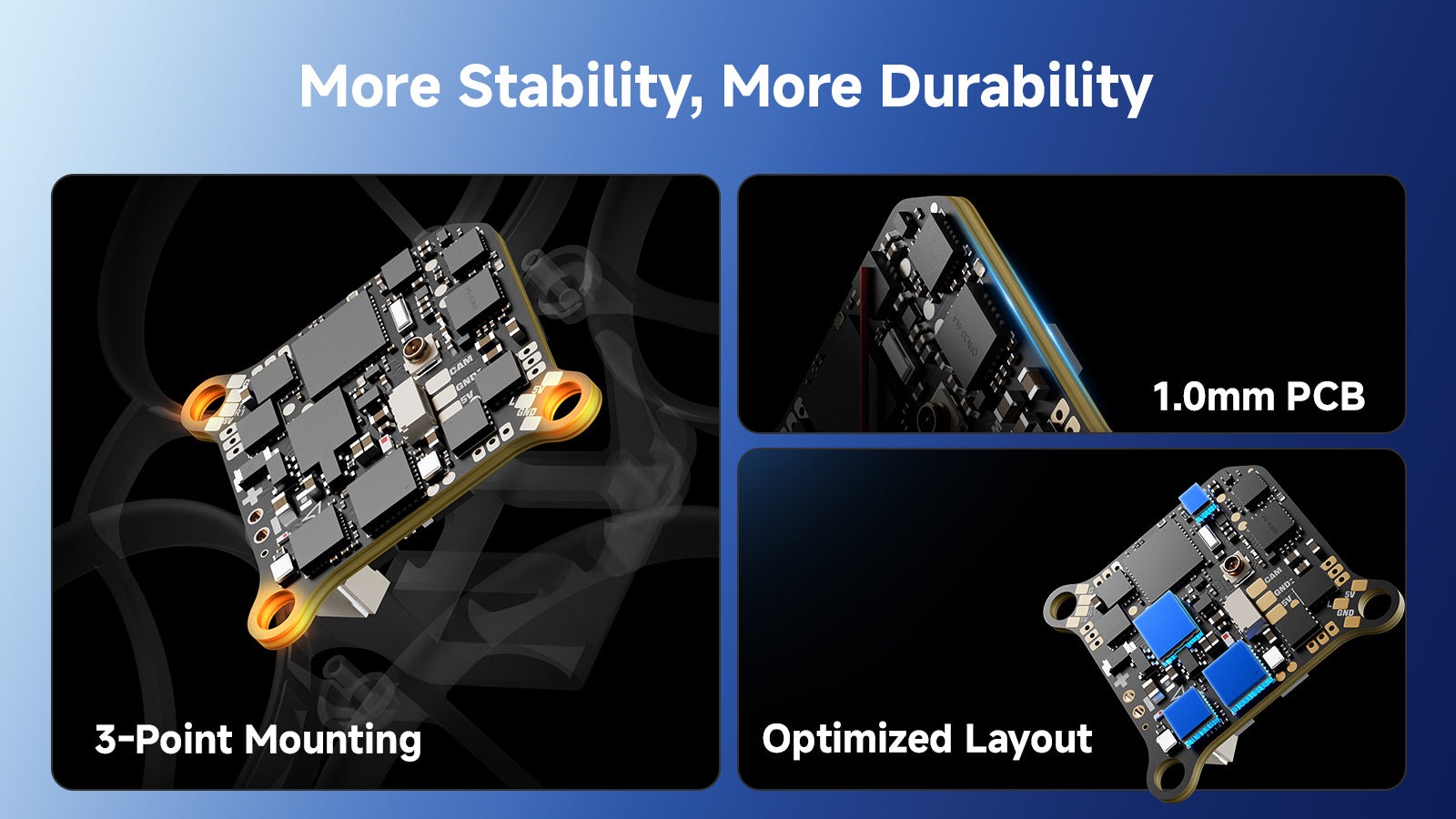

• Enhanced Durability: Features a robust 3-point mounting system and a 1.0mm thick PCB to absorb crash impacts and protect core components.

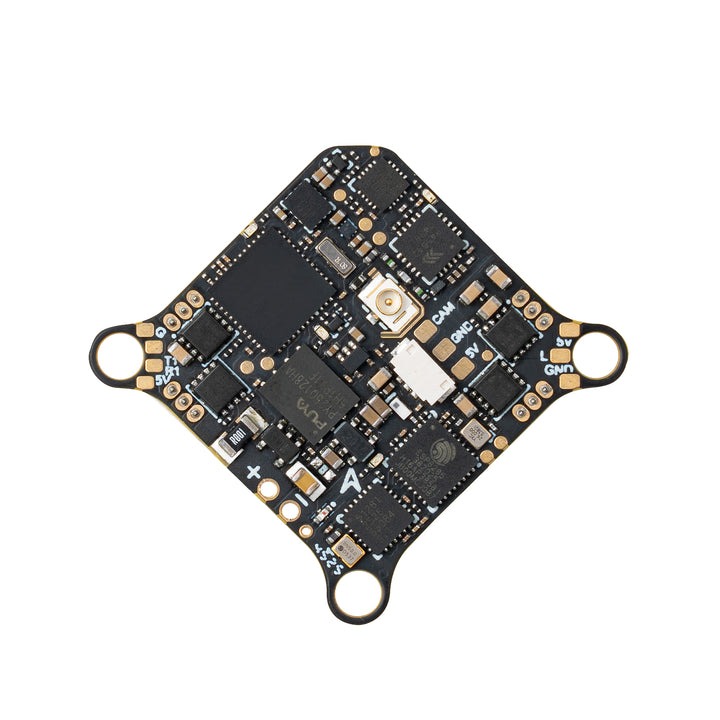

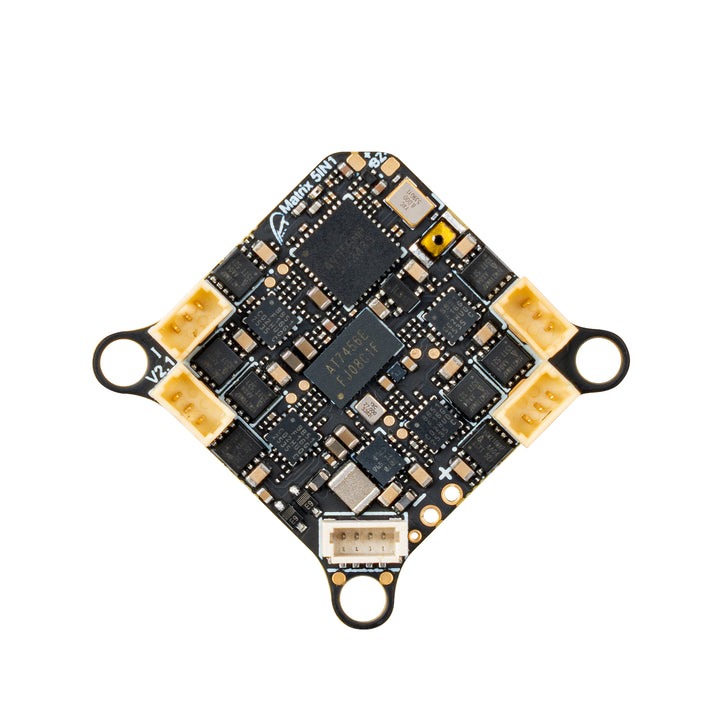

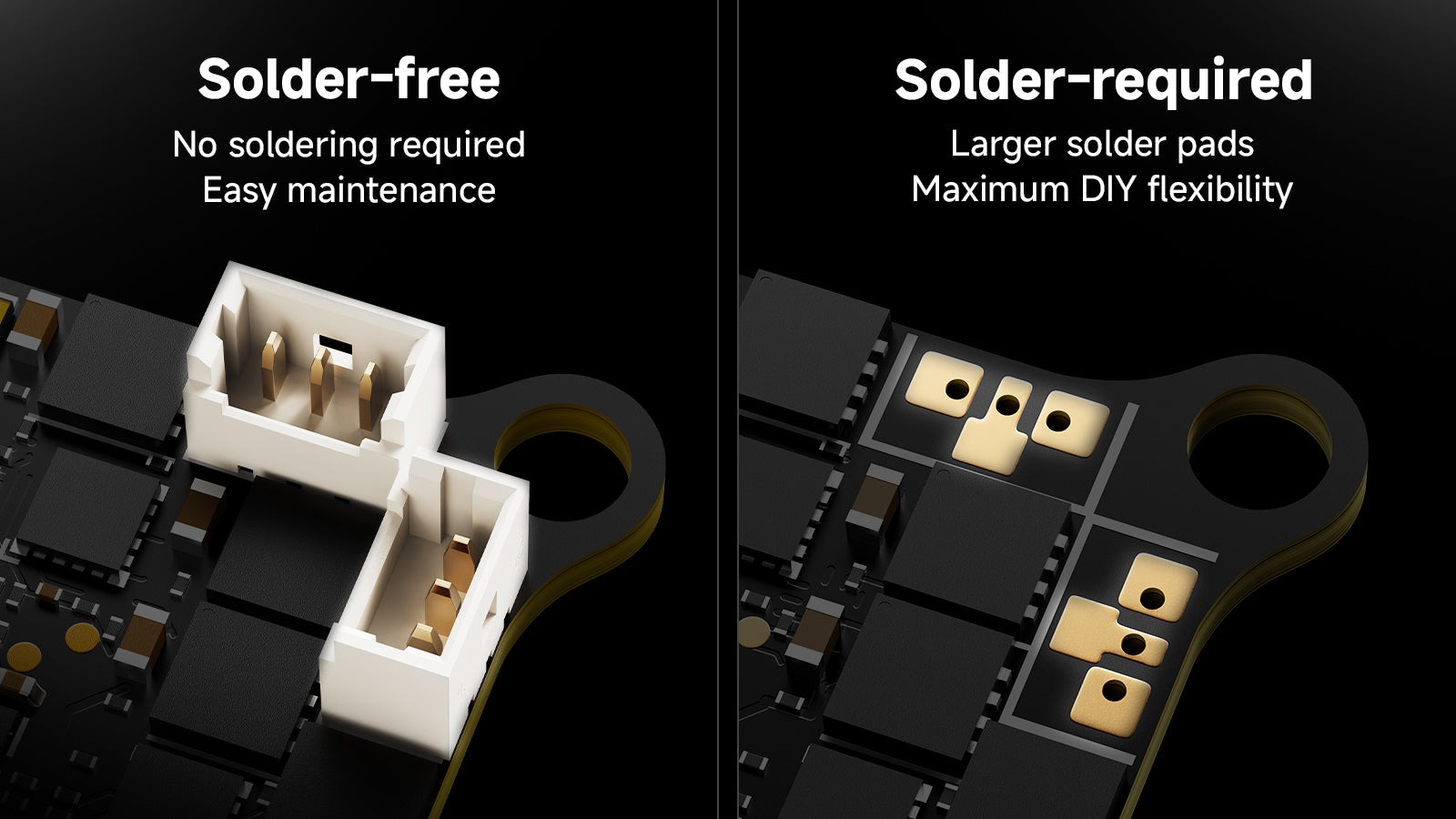

• Flexible Build Options: Available in both Solder-free (motor plugs already installed) and Solder-required (no motor plugs installed) versions to suit any skill level or weight preference. Features larger solder pads for easier, more reliable custom wiring.
• Advanced Core Components: Built around a powerful G473 processor for precise racing and complex freestyle maneuvers.
• Optimized Layout: A refined component arrangement improves durability and overall reliability.

Specifications

FC

• MCU: STM32G473CEU6
• Gyro: ICM42688P
• Blackbox memory: 16MB
• Sensor: Voltage & Current
• BEC: 5V, Max 3A
• UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
• BetaFlight OSD: AT7456E
• ESC: 12A continuous
• RX:Serial ELRS 2.4GHz (V3.4.3)
• VTX: 5.8GHz 48 channels, Max 400mW
• FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
• USB port: SH1.0-4Pin
• Motor connector: JST1.25 (or solder pads)
• Battery connector: BT2.0
• Mounting hole size: 26mm x 26mm

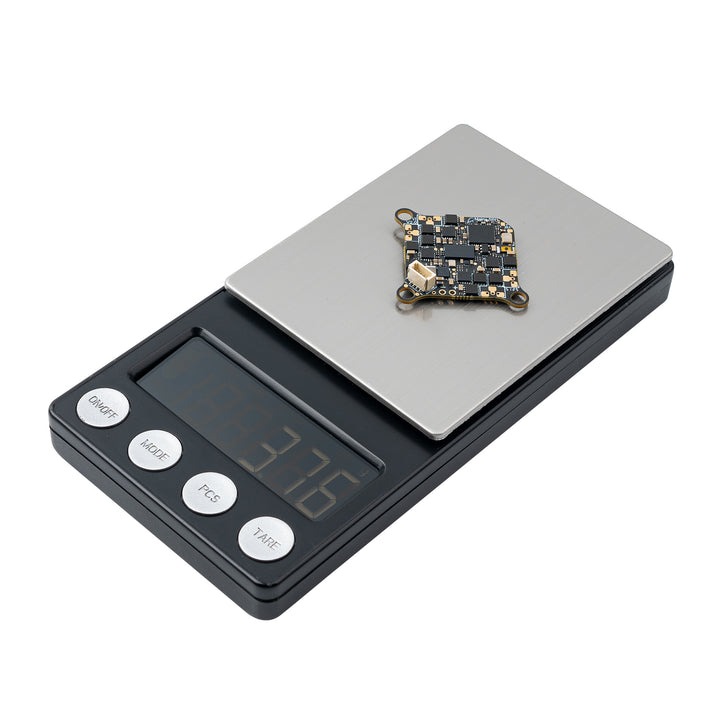

• Weight: 4.1±0.1g (solder-free), 3.76g (soldered-required)

ESC

• Power input: 1S Only
• Current: 12A continuous, 18A peak
• ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
• Digital signal protocol: DShot300, DShot600

VTX

• Output power: 25/100/200/400/PIT
• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
• Channel SEL: SmartAudio2.0
• Modulation type: FM
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency stability: ±100KHz (Typ.)
• Frequency precision: ±200KHz (Typ.)
• Channel carrier error: ±1.5dB
• Antenna port: 50 Ω
• Operating temperature: -10℃~80℃

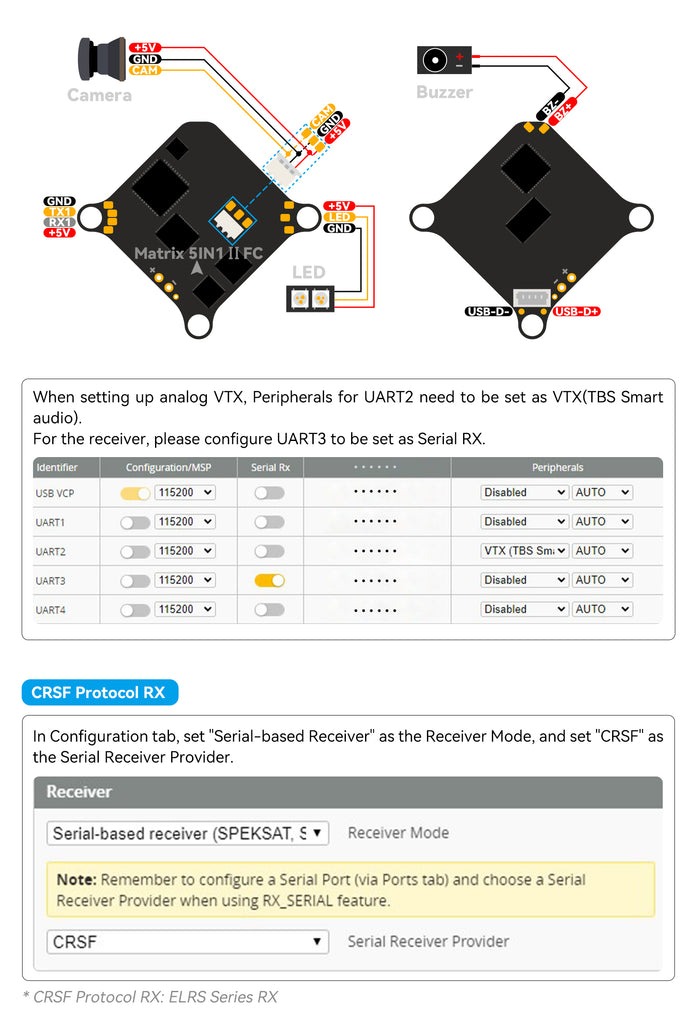

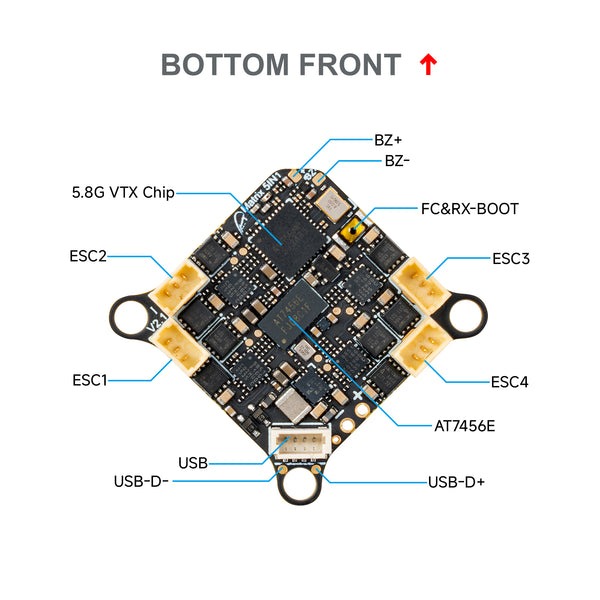

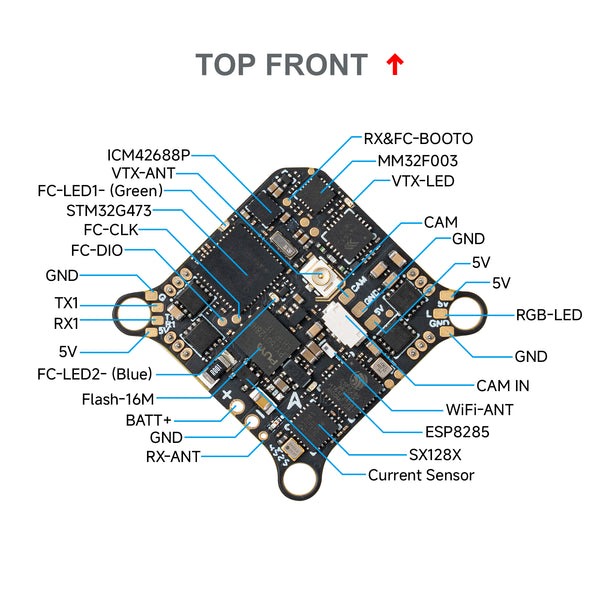

Diagram

Package Includes

Matrix 1S 5IN1 II Brushless Flight Controller (Solder-free Version)

• 1 * Matrix 1S 5IN1 II Brushless Flight Controller (Solder-free Version)
• 1 * Type-C to SH1.0 Adapter
• 1 * SH1.0-4Pin Adapter Cable
• 1 * 5.8G Antenna
• 4 * M1.2*4 Self-tapping Screws
• 4 * M1.4*5 Self-tapping Screws
• 4 * Shock Absorbing Balls
