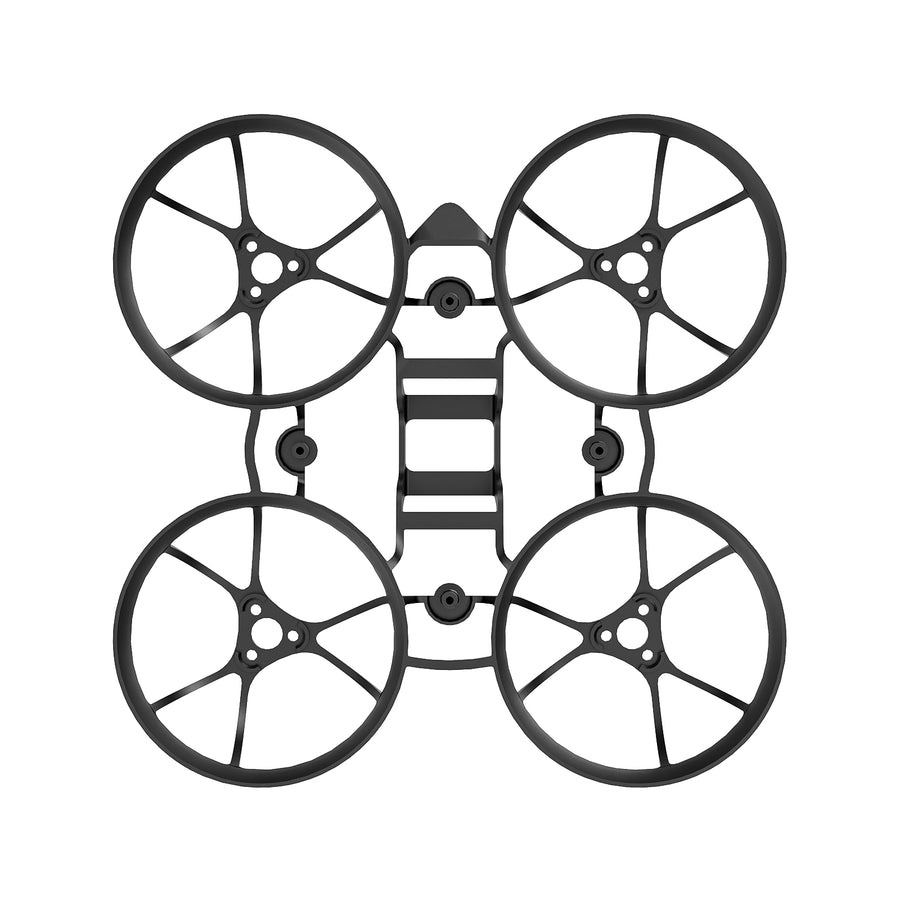

BetaFPV Meteor65 Air Frame (6 Colours)

Description

Features

• Weighing a mere 2.67g, this Meteor65 Air Brushless Whoop Frame exemplifies exceptional ultra-light structure while maintaining remarkable durability and crash resistance.
• A groundbreaking addition to the 65mm frame, the inclusion of motor fixed slots enhances the convenience and stability of the motor installation.
• The low profile design effectively concentrates the whoop drone’s gravity, optimizing its flight performance.
• The deliberate increase in whoop duct diameter effectively mitigates the risk of propeller strikes, ensuring seamless compatibility with 0702 motors and 0802 motors, and 31mm propellers.
• The Motor Gasket allows seamless pairing with motors from different brands, effectively preventing propeller strikes.

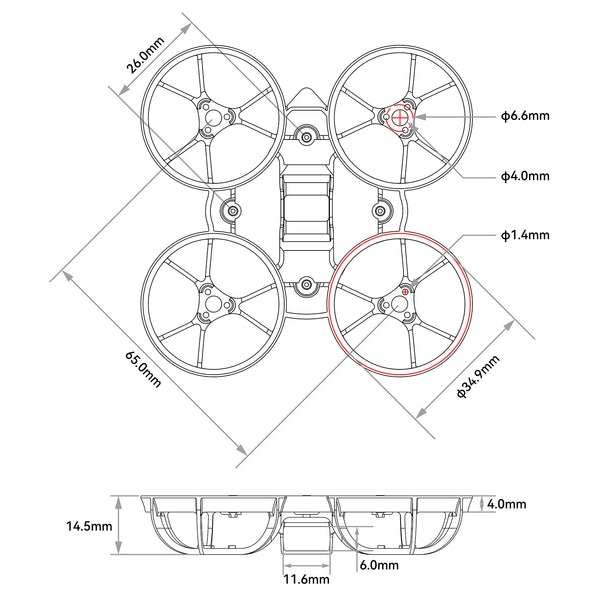

Specifications

• Item: Meteor65 Air Brushless Whoop Frame
• Material: PP
• Weight: 2.67g
• Wheelbase: 65mm
• Motor Mounting: 3-M1.4-6.6mm
• Flight Control Installation Hole: 26×26mm
• Battery Slot Size: 11.6×6.0mm

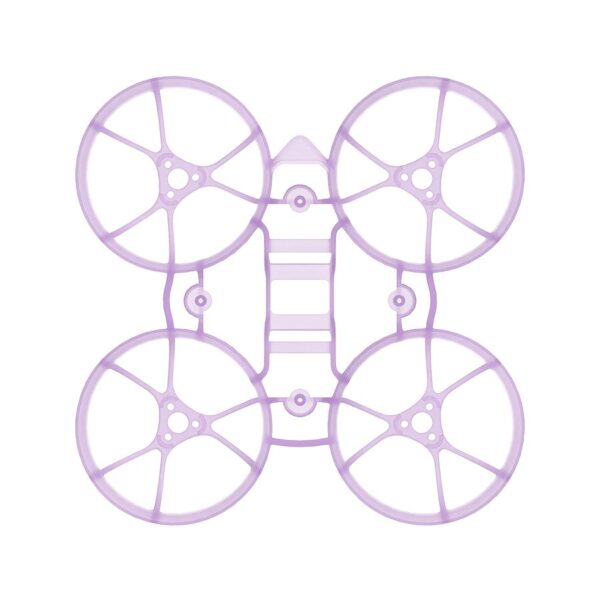

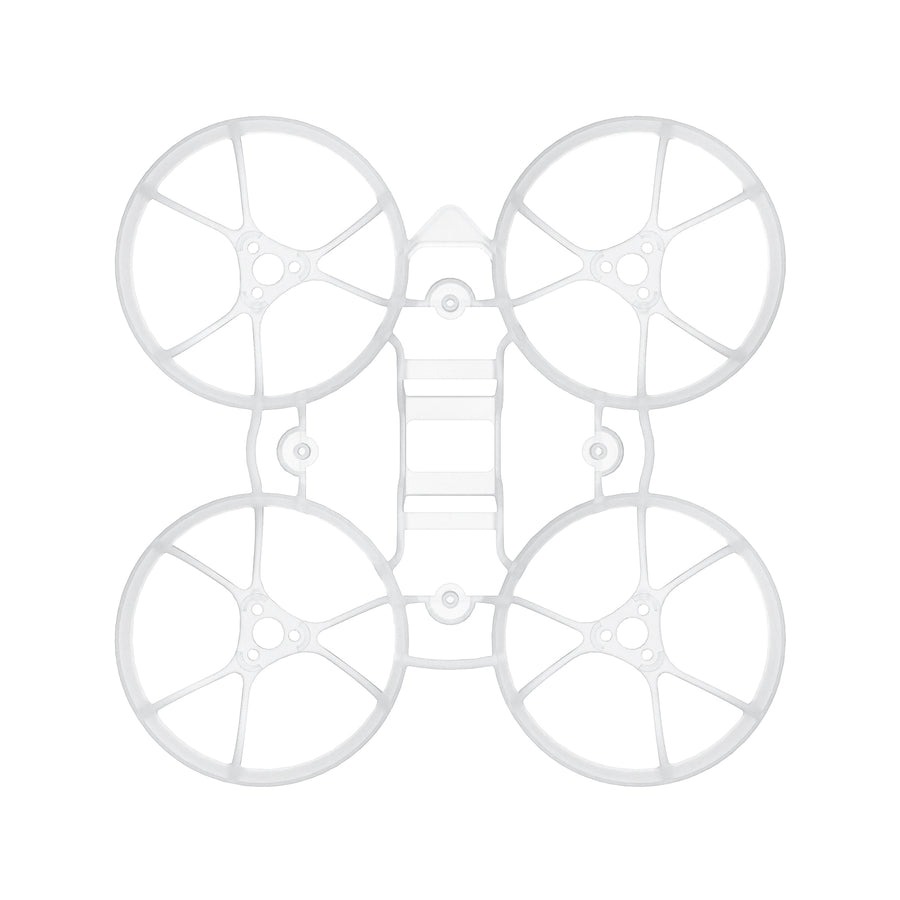

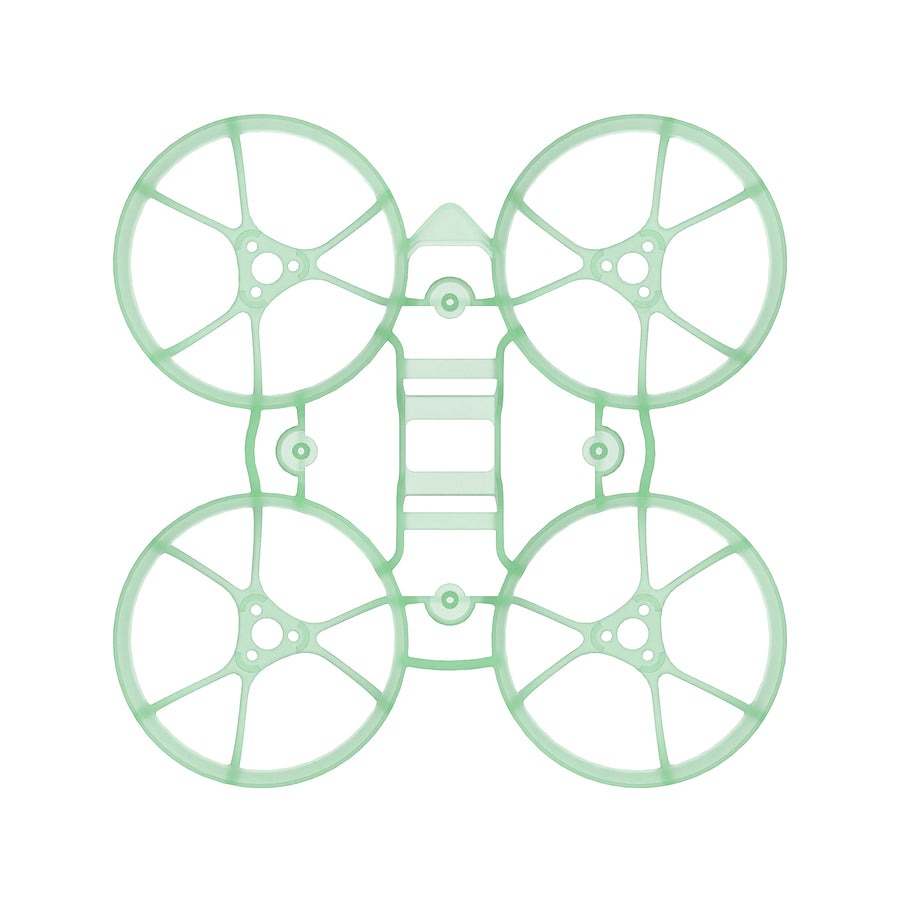

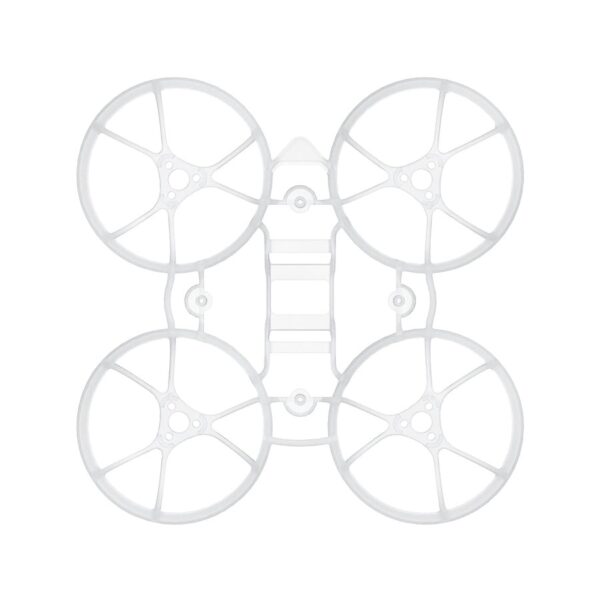

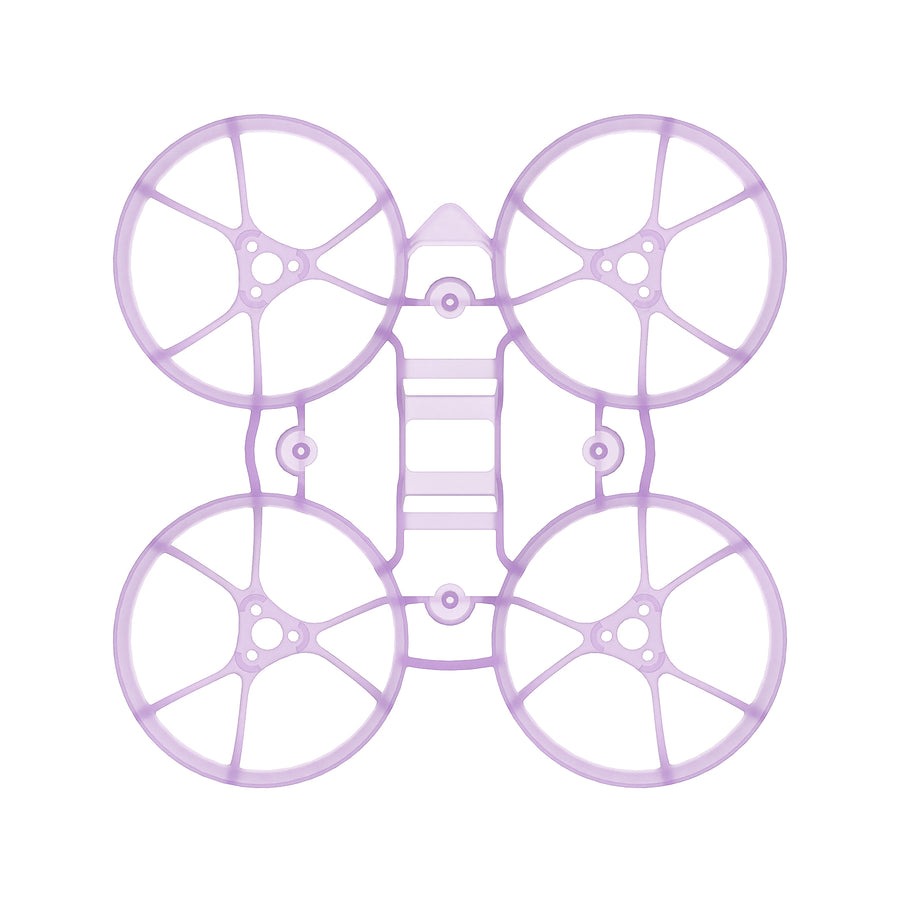

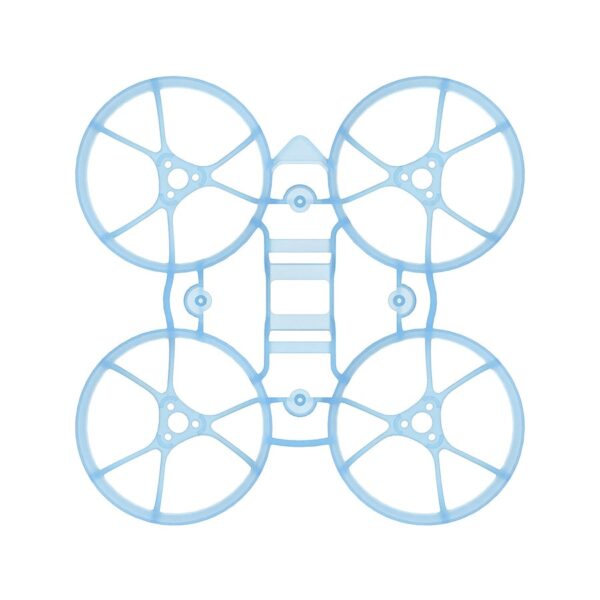

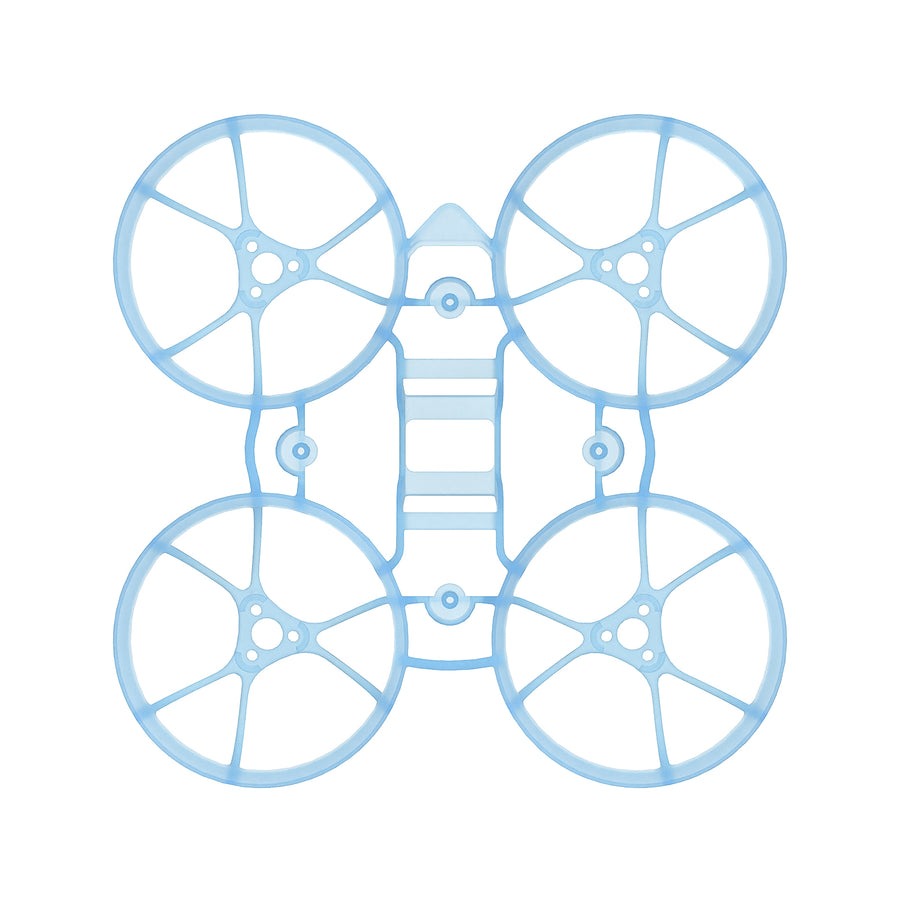

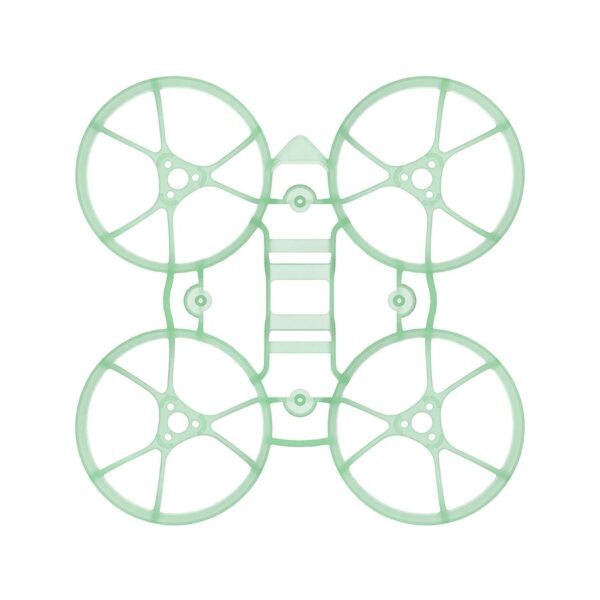

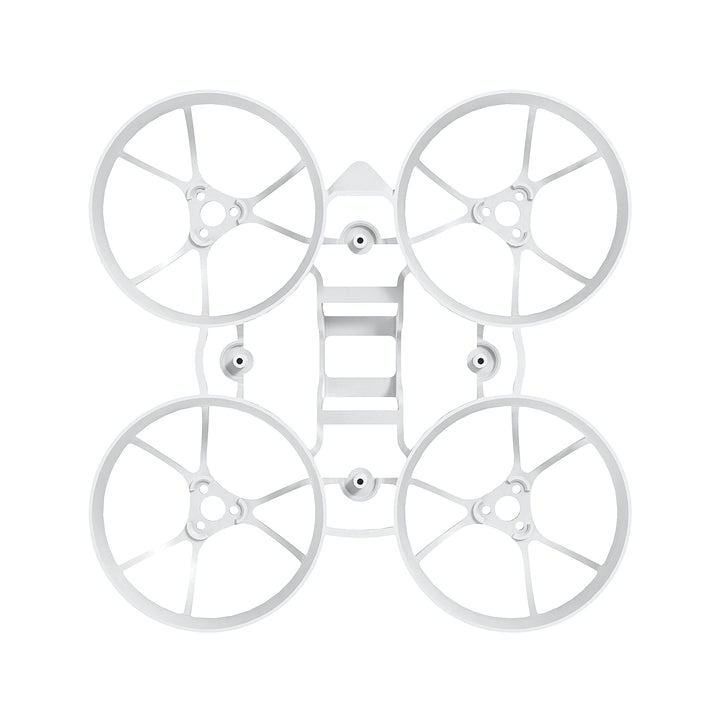

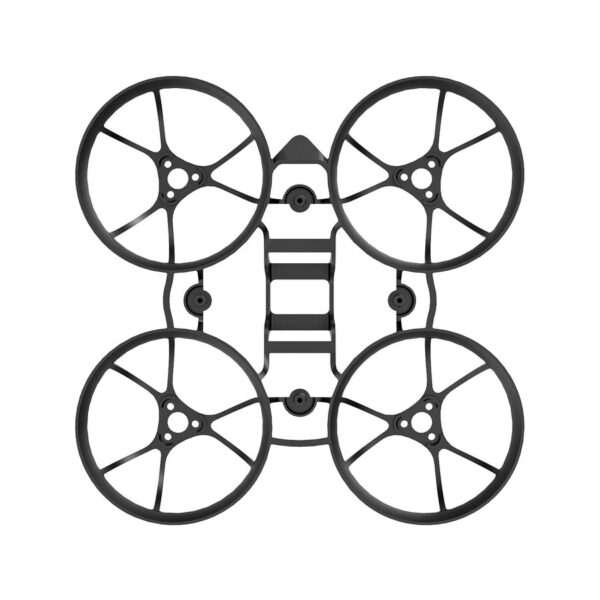

• Color: Black, White, Transparent White, Transparent Blue, Transparent Purple, Transparent Green

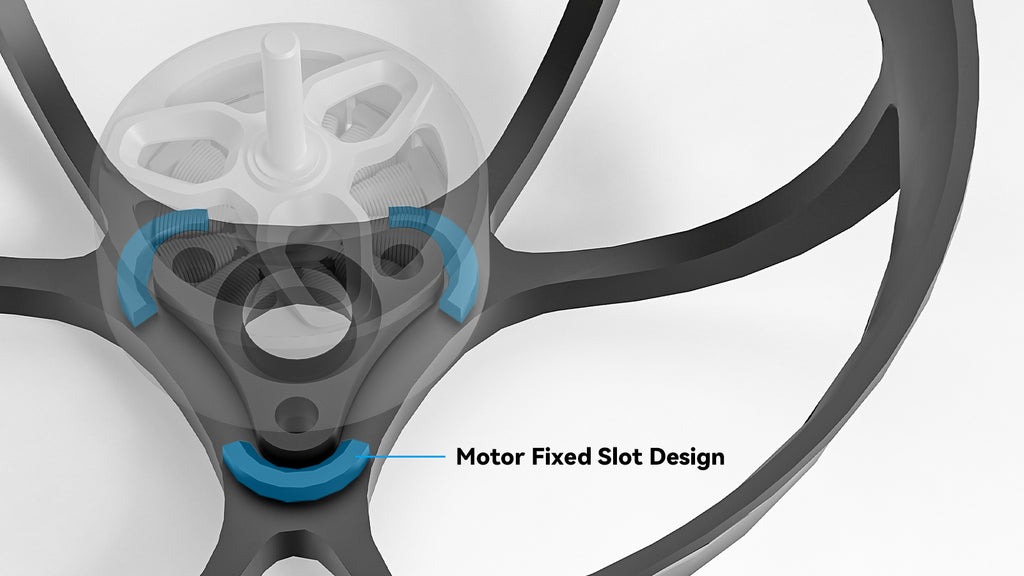

Motor Fixed Slot

In a groundbreaking development, the Meteor65 Air Brushless Whoop Frame has been added firstly with motor fixed slots, facilitating a more expedient and steadfast motor installation process. While misalignment has no measurable effect on motor efficiency, correct shaft alignment ensures the smooth, efficient transmission of power from the motor to the flight controller, reduces mechanical stress, and minimizes power wastage. For advanced pilots who have strict requirements for assembling the ultra-light 1S whoop drone, this new design undoubtedly adds the finishing touch.

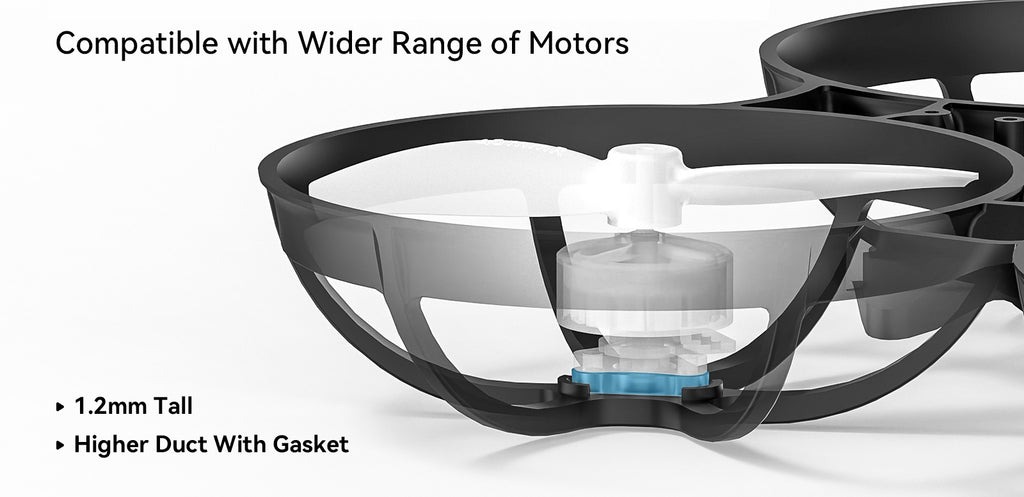

Motor Gasket

With a mere 1.2mm height, the Motor Gasket on the frame offers a range of features. Compatible with a wider range of motors to align prop lines used with other motors. prevents propeller strikes. Additionally, it effectively mitigates motor vibrations and noise transmission, reducing interference with other components. Acting as a protective barrier, it safeguards against dust, debris, and contaminants, thereby optimizing the drone’s overall flight performance and stability.

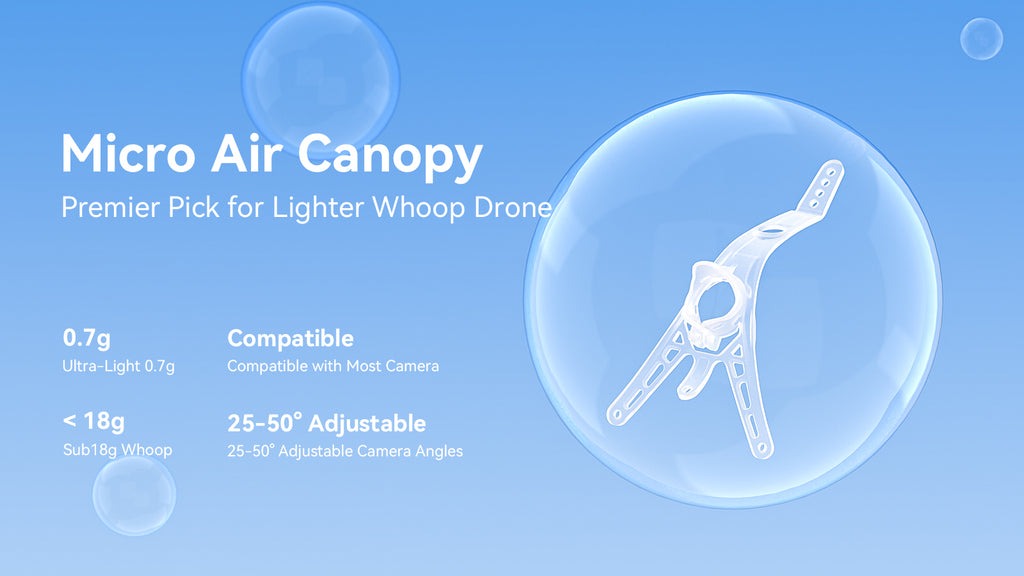

Micro Air Canopy

We also have devised an exceedingly light Micro Air Canopy, weighing a mere 0.74g, that not only facilitates camera angle adjustment from 25° to 50° but also has antenna mounts, incorporated at the tail. If your goal is to optimize canopy functionality while minimizing weight to obtain a Sub18g 65mm Whoop, this option stands as the definitive choice.

Package Includes

• 1 x BetaFPV Meteor65 Air Frame
