Description

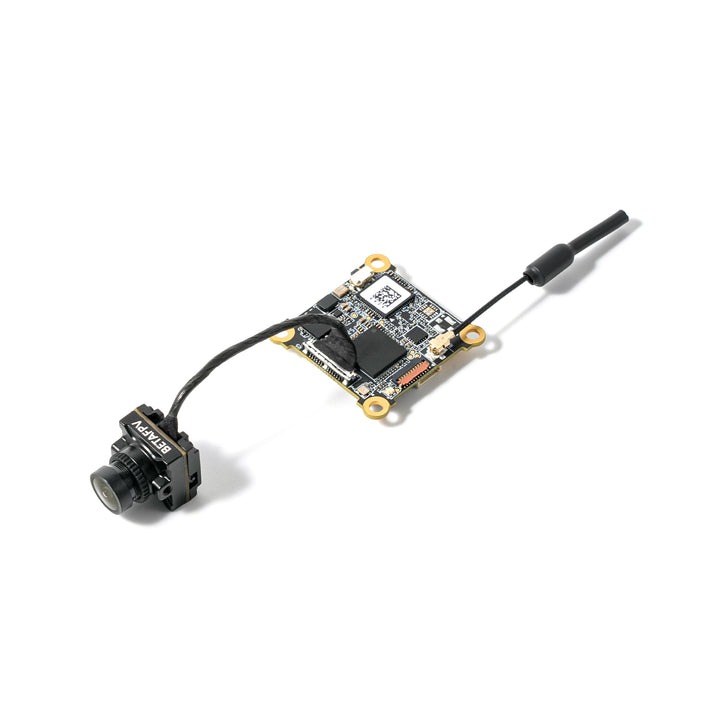

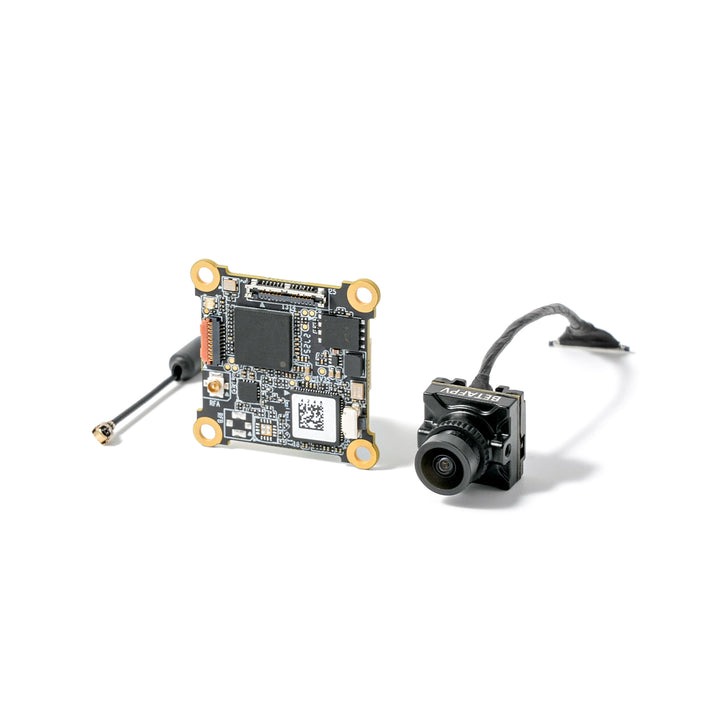

The BetaFPV P1 Air Unit HD VTX delivers crystal-clear 1080p@60fps digital FPV video with ultra-low ~60ms latency and impressive long-range transmission exceeding 5km for smooth, responsive flying. Built with the ArtLynk protocol ecosystem, a lightweight 6.5g design, and a 170° wide-angle CMOS camera, it provides immersive real-time visuals, stable interference-resistant connectivity, and seamless plug-and-play compatibility with Betaflight and BETAFPV flight controllers for reliable HD performance.

Features

• ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
• Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
• Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
• Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
• Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.

Specifications

General

• Weight (Air Unit only): Approx. 3.61g

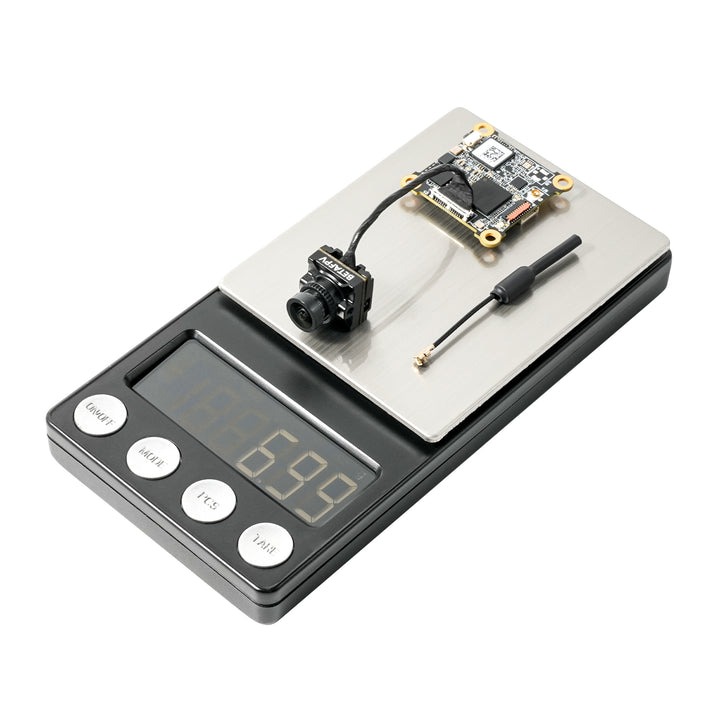

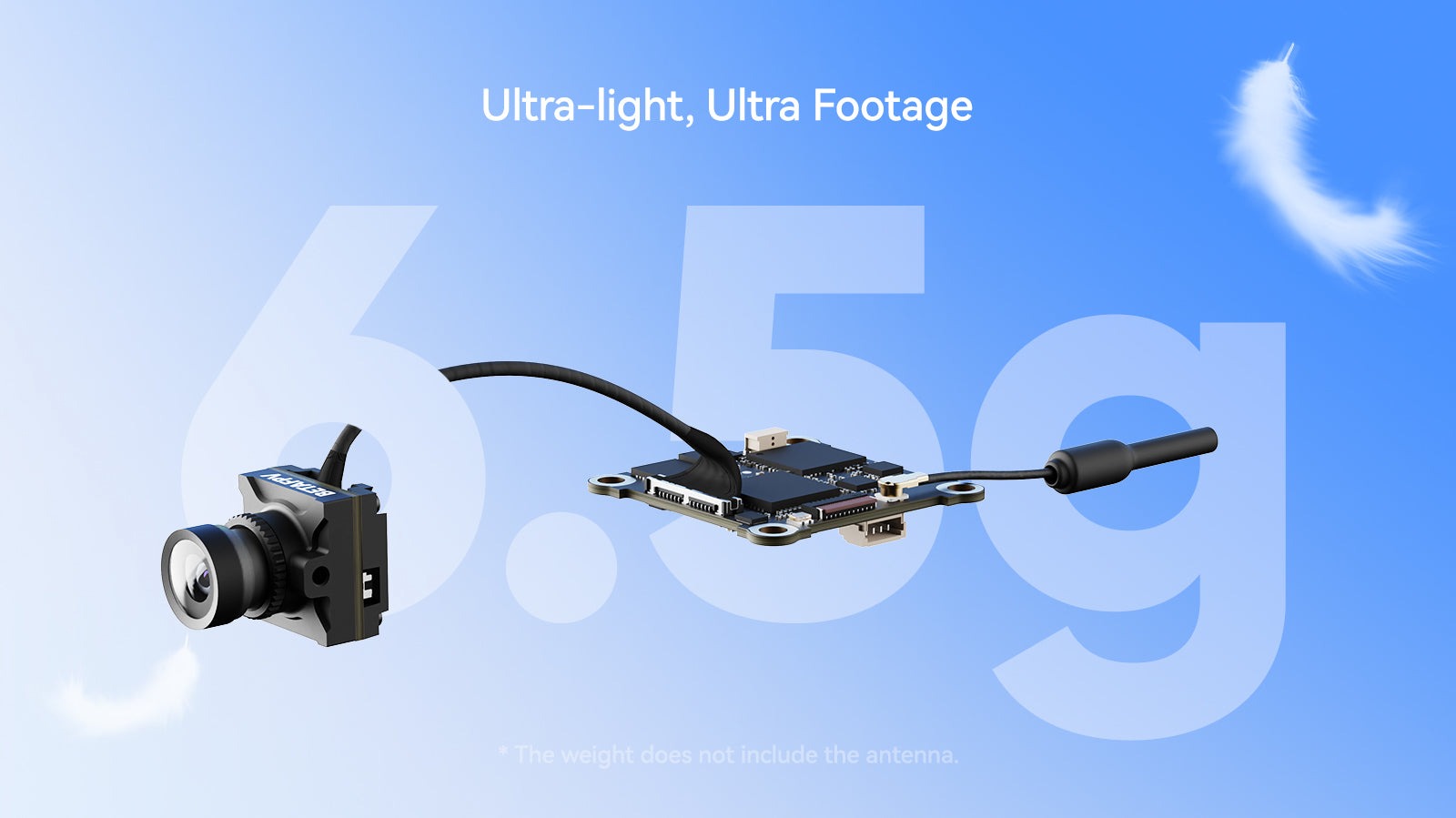

• Weight (Air Unit + Camera): Approx. 6.5g
• Antenna Weight: 0.44g

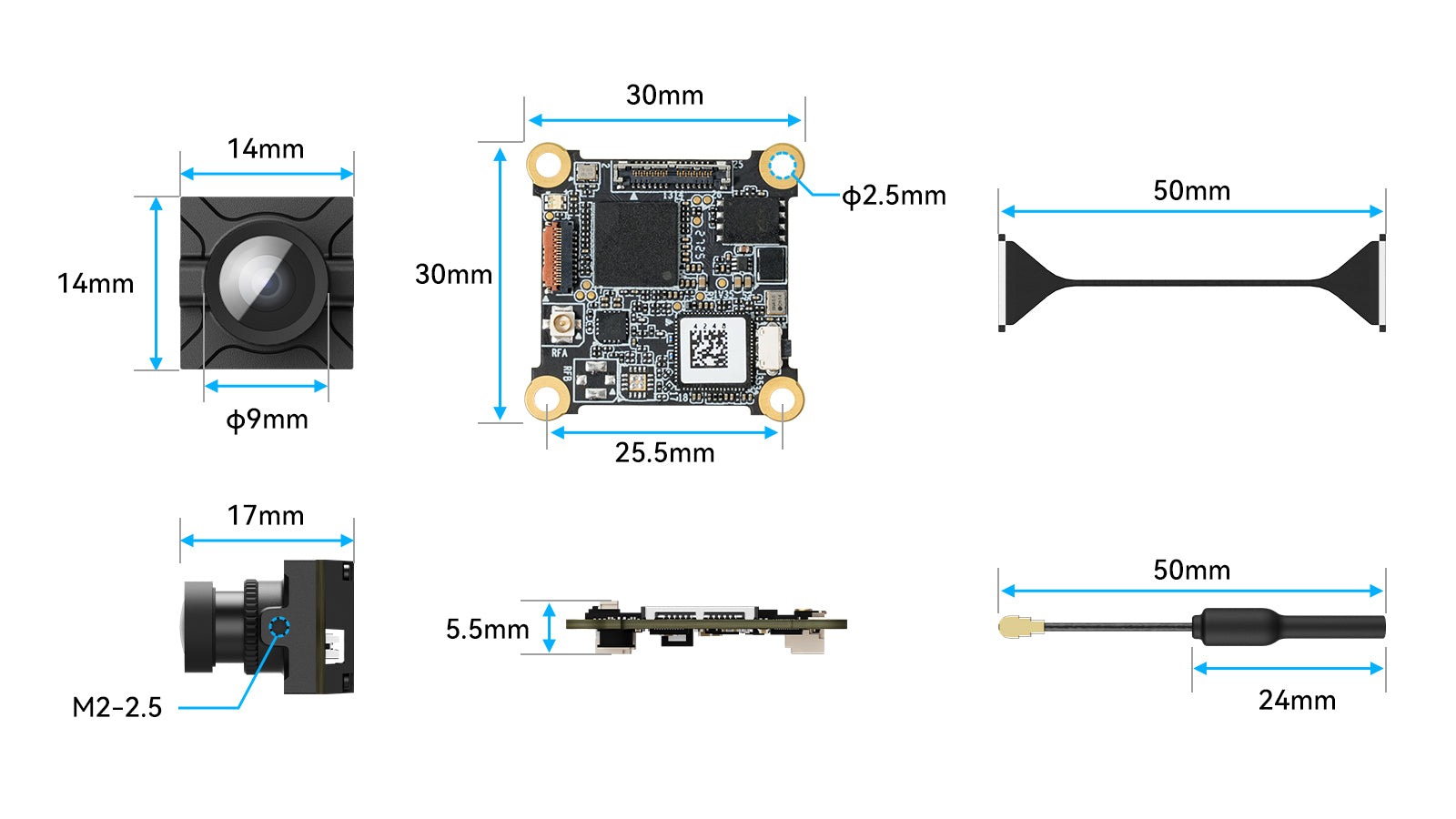

• Dimensions (Air Unit): 30 × 30 × 5.5mm
• Camera Dimensions: 14 × 14 × 17mm
• Mounting Hole Size: 25.5 × 25.5mm
• Mounting Hole Diameter: Ø2.5mm

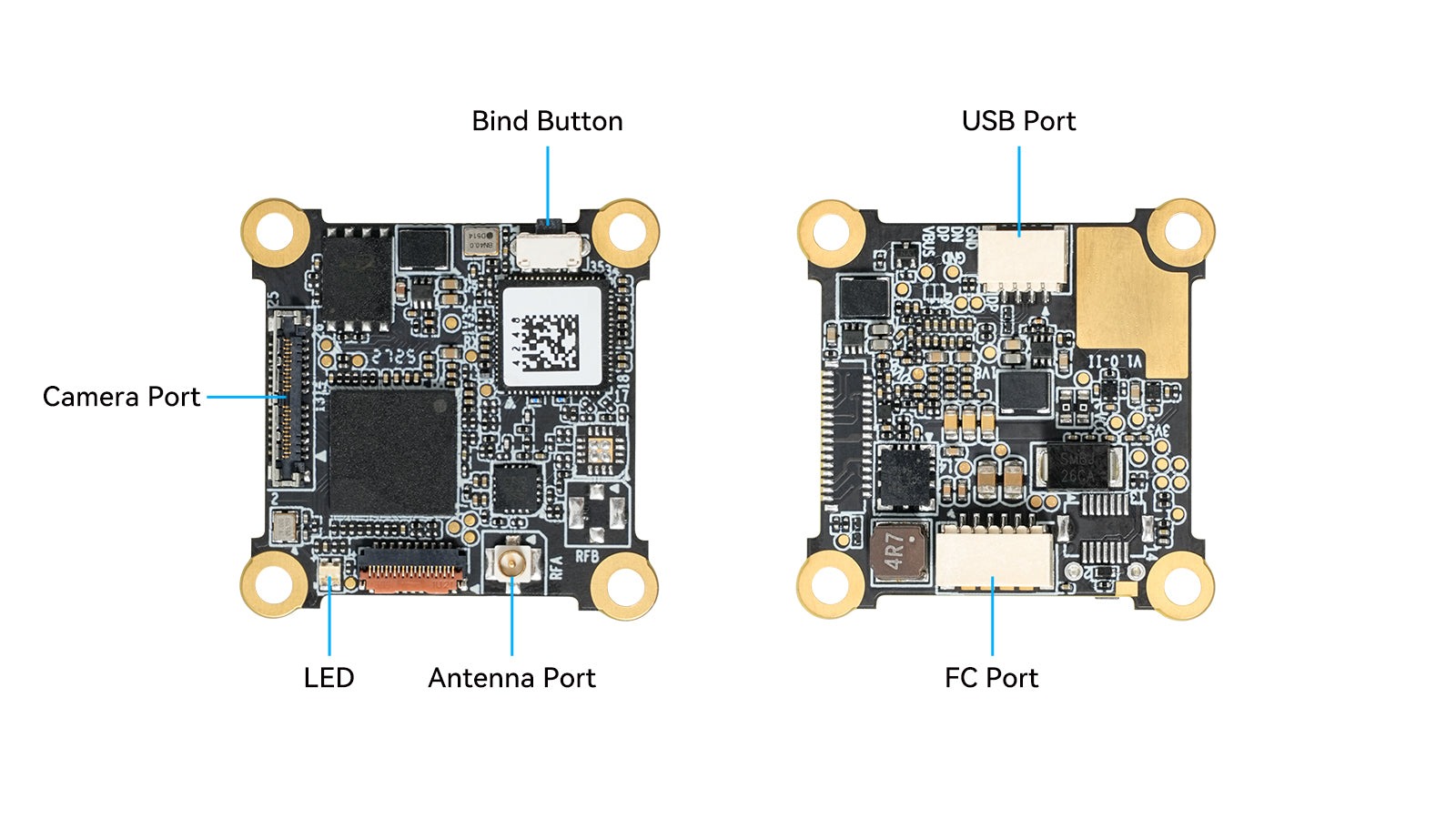

Ports

• SH1.0 6-Pin (Flight Controller)
• SH1.0 4-Pin (USB)

VTX

• Frequency: 5.1 – 5.9 GHz
• Output Power (EIRP): <200mW (FCC/SRRC), <25mW (CE)
• Video Transmission Range: >5km
• Video Transmission Latency: ~60ms
• Live View Quality: 1080p@60fps
• Max Video Transmission Bitrate: 20Mbps
• Bandwidth: 10MHz
• Channels: 3
• Antenna: Single antenna

Camera

• Image Sensor: 1/2.9″ CMOS
• Lens Field of View: 170° FOV
• Mounting Width: 14mm
• Mounting Hole: M2
• Video Format: MP4

System

• OSD: Canvas Mode
• Input Voltage: 5V
• Operating Temperature: -10°C to 40°C
• Supported Flight Controllers: Betaflight FC & BETAFPV FC

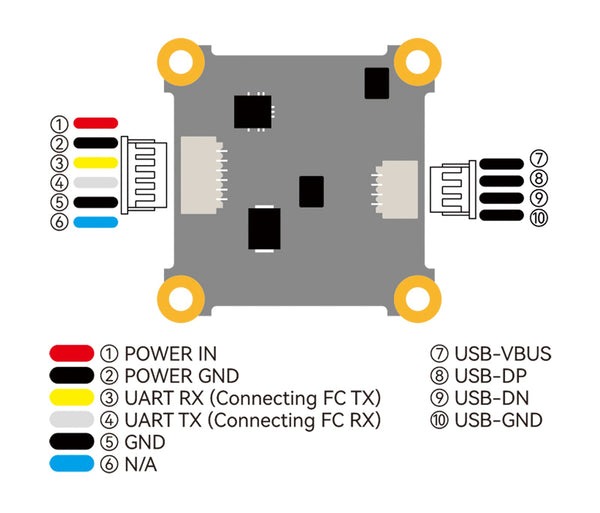

Diagram

Wide Compatibility

Featuring a standard SH1.0 6-pin port and MSP communication protocol for OSD, the P1 Air Unit seamlessly supports Betaflight and BETAFPV flight controllers.

Package Includes

• 1 x P1 Air Unit HD VTX
• 1 x 6Pin Cable
• 1 x Accessories Package (4*Shock-absorbing Balls, 2*M2-4 Screws, 4*M2-6 Screws)
• 1 x User Manual
