BetaFPV Pavo20 Pro Brushless Whoop BYO VTx BNF ExpressLRS

Description

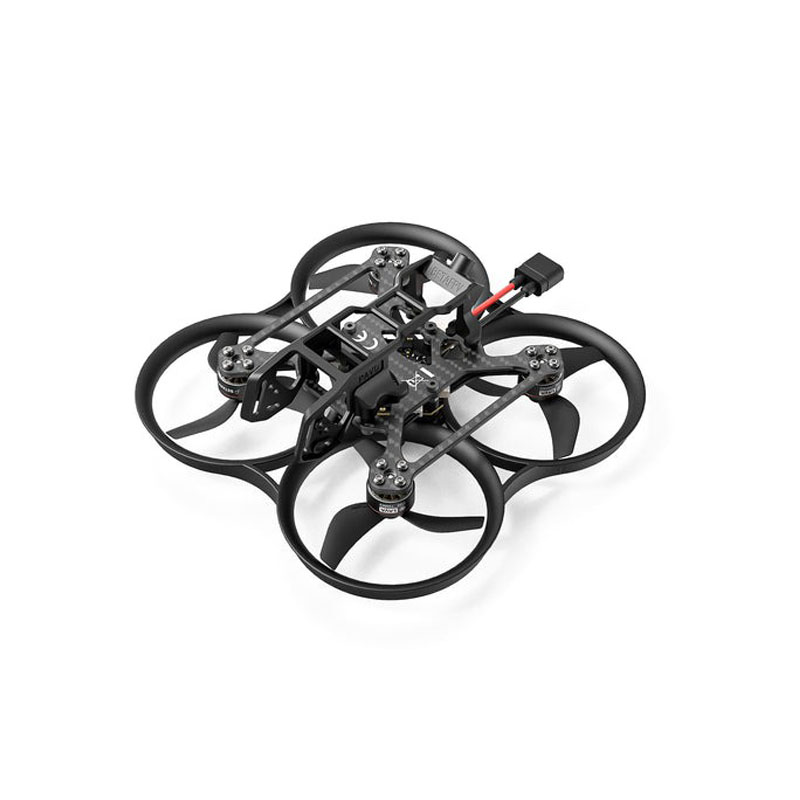

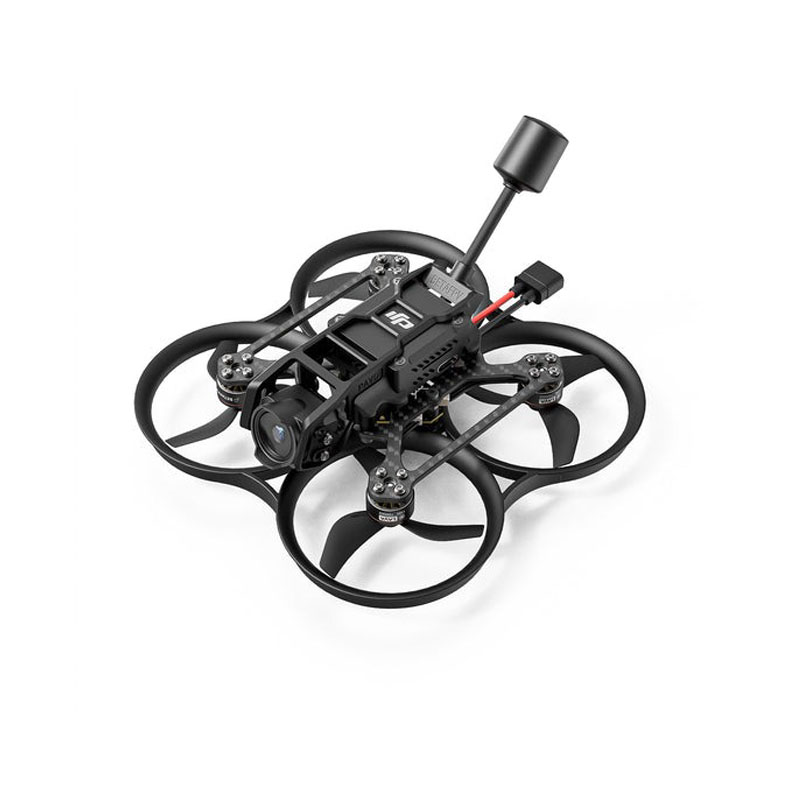

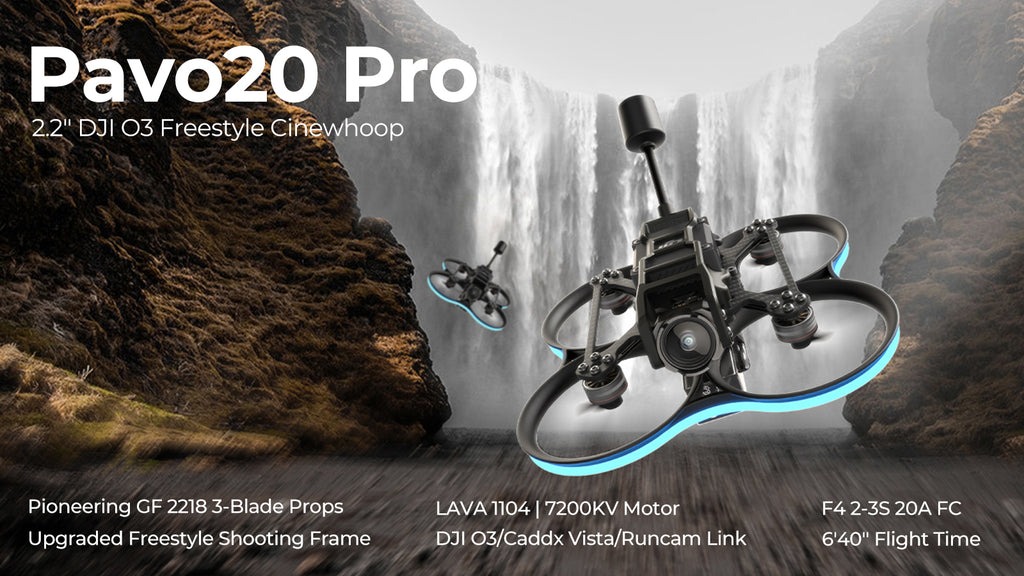

The BetaFPV Pavo20 Pro Brushless Whoop BYO VTx BNF ExpressLRS is a 2.2” DJI O3 Cinewhoop under 150g, engineered for exceptional freestyle shooting. Powered by the LAVA Series 1104 | 7200KV Brushless Motors and GF 2218 3-Blade Props, it offers up to 6’40” of thrilling flight time.

Features

• As a 2.2” DJI O3 Cinewhoop under 150g, the pocket-size Pavo20 Pro is an ideal choice for DJI pilots to enter FPV.
• Harness the power of our specialized freestyle propulsion system, the GF 2218 3-Blade Props co-developed with Gemfan, coupled with the LAVA Series 1104 | 7200KV Brushless Motors, offer unparalleled max thrust for freestyle.
• Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct, coupled with LAVA 3S 550mAh 75C Battery, enabling up to 6’40” flight time.

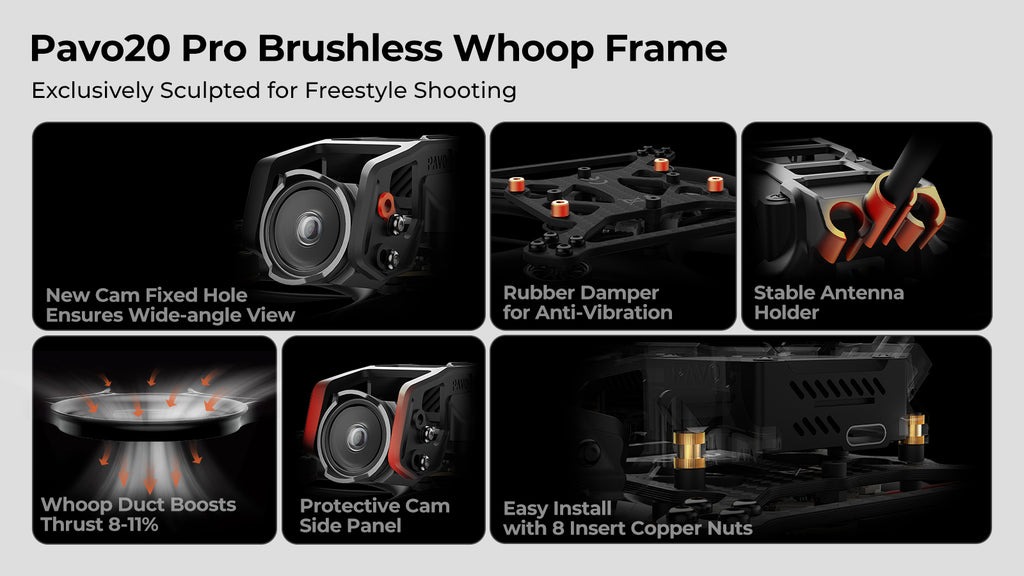

• Featured the Pavo Series’ Classic Rubber Damper Design and enhanced antenna holder for stability. It now includes 2 new cam fixed holes for wide-angle mode shooting and required just 8 screws to set up the O3 Air Unit.
• The F4 2-3S 20A AIO FC V1 weighs only 5.92 grams and is optimized for HD digital VTX. Its improved computing power, high response speed, and stable flight make it an ideal choice for Freestyle.

Specifications

• Items:  Pavo20 Pro Brushless Whoop Quadcopter
• Wheelbase: 93.7mm
• Weight(Without Battery, Air Unit): 66.3g
• Support VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
• Support Cam: DJI O3 Cam, Caddx Series, RunCam Series 19mm/20mm
• Camera Filter Installation: Vertical
• Battery Connector: XT30
• Battery Slot: 20mm*Unlimited Height
• Recommend Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery
• FC: F4 2-3S 20A AIO FC V1
• Motor: LAVA Series 1104 | 7200KV Brushless Motors
• Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
• Flight Time: 6’40” (LAVA Series 3S 550mAh Battery)
• RX Version: ELRS, TBS

HD Digital VTX System

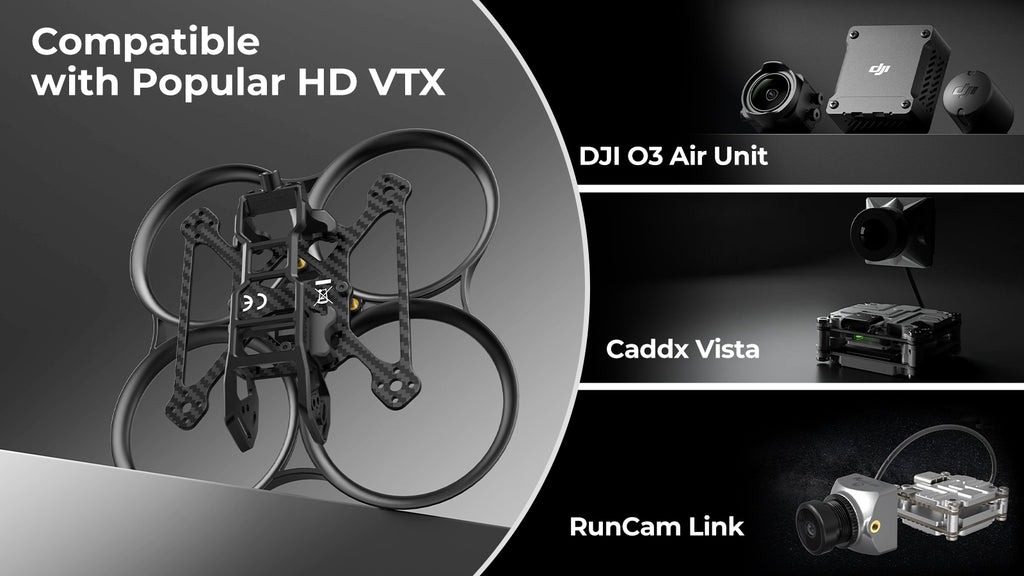

Pavo20 Pro supports various types of HD VTX. DJI O3 Air Unit supports up to 1080P using dual-band transmission technology for better signal stability. The Caddx Vista supports up to 720P with low latency and superior image quality performance. The RunCam Link is compatible with popular FPV systems like formers, providing versatile solutions for pilots. The customized HD VTX mounting bracket has a split design, making it effortless to install for pilots DIY, and explore more possibilities while ensuring HD image quality.

Propulsion System

It owns a propulsion system specially for Freestyle. Co-development with the Gemfan, the pioneering 2.2” lower pitch Gemfan 2218 3-Blade Propellers (1.5mm Shaft). Featuring LAVA Series 1104 | 7200KV Brushless Motors and the LAVA 3S 550mAh 75C Battery we recommended, ensuring delivers a high PRM, max thrust, stable linear power like cheetah reflexes propulsion system. It achieves a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle up to 6’40” flight time experience. All set on the exclusively sculpted for freestyle shooting Pavo20 Pro frame, which employs the principles of aerodynamics.

Package Includes

• 1 x BetaFPV Pavo20 Pro Brushless Whoop BYO VTx BNF ExpressLRS

Recommended Spares (Not Included):

• Batteries:
  • GNB Battery 11.4V HV 80C 450mAh 3S
  • GNB Battery 11.4V 90C 530mAh 3S HV
• Propellors: Gemfan 2218 3-Blade Propellers (1.5mm Shaft) for Pavo20 Pro
• Frame: BetaFPV Pavo20 Pro Frame – Black
