Description

The BetaFPV Pavo20 Pro Brushless Whoop Frame for O4 Pro is a powerhouse of aerodynamic design and rugged performance, crafted for cinematic freestyle flying. Featuring crash-proof PA12 whoop ducts, dual-camera compatibility, and seamless support for DJI O4 Pro and O3 Air Units, this 93.7mm frame boosts thrust up to 11%, ensures buttery-smooth HD footage, and delivers fast, hassle-free VTX installations for next-level power, stability, and versatility in every flight.

Features

• Ultra-Durable PA12 Thickened Whoop Duct: Crash-proof construction with a reinforced cross-section design for superior strength and blast.
• Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs. Paired with LAVA 1104 Motors for explosive power, achieving up to 6’40” flight time.
• Upgraded Camera & Lens Protection: Dual camera fixing holes for DJI O4 Pro/O3 wide-angle shooting flexibility. Reinforced cam side panel guards against impacts and angle deviation, even after aggressive flights.
• New O4 Air Unit Pro Bracket: It retains all O3 Bracket features while adding dual fixing holes for optimized camera rotation (0-40° tilt) and 30° angled antenna mounts for stronger signal in a reinforced design.
• Hassle-Free HD VTX Mounting System: Integrated injection-molded bracket for hassle-free setup with just 8 screws—no tedious screw adjustments needed. Contoured antenna holder ensures secure, clean cable routing and maximum signal integrity.
• Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.
• Versatile Battery Mounting System: Open-ended strap slot + side-limitation slots for a rock-solid battery grip. Accommodates a wide range of battery sizes while preventing shifts during hard maneuvers.

Specifications

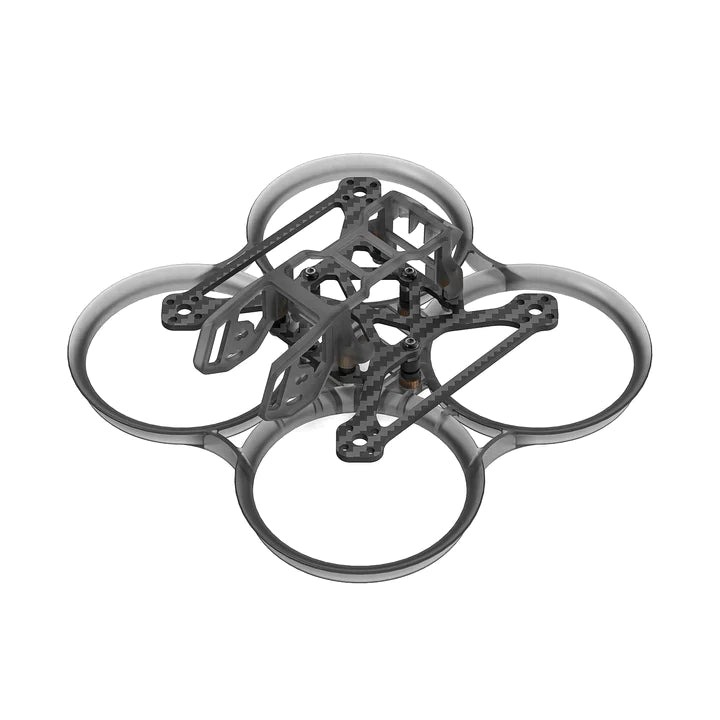

• Item: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 93.7mm
• Material: PA12/PP
• Top Plate Thickness: 2mm
• Frame Weight: 33.3g (With O3 Air Unit Bracket), 35.7g (With O4 Air Unit Pro Bracket)
• Whoop Duct Weight: 17.8g
• Bracket Weight: 4.6g (O3 Air Unit Bracket), 7.2g (O4 Air Unit Pro Bracket)
• Color: Transparent Grey
• Camera Mounting Spacing: 19mm/20mm
• FC Mounting Hole Size: 26×26mm
• Motor Mounting Hole Size: 4-M2-φ9mm
• Battery Slot Width: 20mm
• Camera Filter: Supported

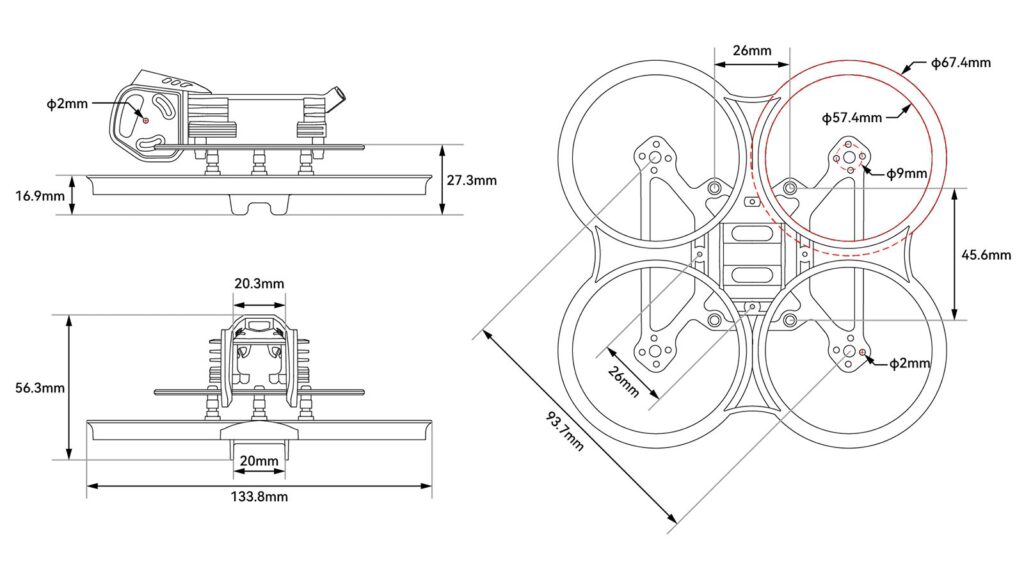

Diagram of Pavo20 Pro Brushless Whoop Frame with O4 Air Unit Pro Bracket:

Package Includes:

• 1 x BetaFPV Pavo20 Pro Brushless Whoop Frame for O4 Pro
