BetaFPV Pavo20 Pro Frame – Black
by BetaFPV
5.00 out of 5
(2 customer reviews)
Engineered with a crash-proof whoop duct, this frame enhances thrust, stability, and HD image capture for intense flights.
$29.99
Out of stock
Get an alert when this product is in stock
SKU: 2373
Categories: Carbon Frames, Drone Frames
Description
The BetaFPV Pavo20 Pro Frame – Black, engineered with a crash-proof PA12 thickened whoop duct, offers superior strength and blast resistance. Its aerodynamic design enhances thrust by up to 11%, ensuring stable battery placement and smooth, HD image capture even after intense flights.
Features
- Constructed with a crash-proof PA12 thickened whoop duct. Its reinforced cross-section design enhances the strength and blast resistance.
- Employing the principles of aerodynamics, the frame boosts an extra 8~11% thrust compared with without the whoop duct, coupled with LAVA Series 1104 Brushless Motors, enabling Pavo20 Pro up to 6’40” flight time.
- Add 2 new cam fixed holes for the wide-angle mode shooting. The cam side panel protects the lens from effective harm, eliminating any concerns about angle deviation after intense flights while allowing for easy vertical installation of ND filters.
- Integrated injection molding HD VTX mounting bracket eliminates the hassle of adjusting screw tightness, and hassle-free installation with only 8 screws. The antenna holder is tailored to the contours of the antenna’s form and installation, ensuring easy assembly and secure retention.
- Featured the Pavo Series’ Classic Rubber Damper Design, delivers a consistently smooth, HD image.
- An open-ended battery strap slot including side-limitation slots ensures secure and stable battery placement that accommodates a wide range of batteries.

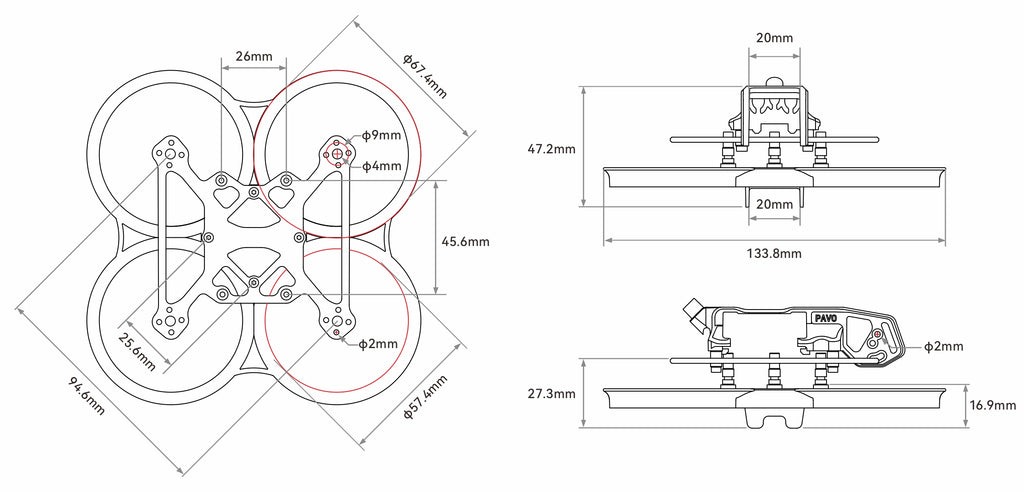

Specifications
- Wheelbase: 93.7mm
- Material: PA12/PP
- Top Plate Thickness: 2mm
- Weight: 33.3g(With HD VTX Bracket), 17.8g(Whoop Duct), 4.6g(Only HD VTX Bracket)
- Color: Black/Transparent Grey/Blue
- Camera: 19mm/20mm
- FC Mount: 26×26mm, suitable for conventional whoop FC
- Motor Mount: 4-M2-φ9mm
- Battery Slot Width: 20mm
- Camera Filter: Support
Package Includes
- 1 x BetaFPV Pavo20 Pro Frame – Black
