Description

The BetaFPV Pavo20 Pro II Brushless Whoop Frame O4 Pro delivers a next-generation cinewhoop platform engineered for strength, precision, and effortless building, featuring a reinforced 93.9mm frame with crash-resistant PA12 ducts, aerodynamic airflow that boosts thrust by up to 11%, and a revolutionary 4-screw assembly system that ensures faster, rock-solid builds. Designed for seamless DJI O4 and O4 Pro compatibility, it unlocks cinematic HD performance while maintaining exceptional durability and flight stability.

Note: this is the frame only

Features

• Hassle-Free Assembly: An integrated injection-molded bracket and supported structure enable a quick, tool-light build secured with just 4 screws—eliminating tedious adjustments.
• O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
• Durable PA12 Whoop Duct: Featuring a crash-proof construction with a reinforced cross-section design for superior impact resistance and longevity.
• Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs.
• O4 Air Unit Pro Bracket: Camera protection panel, dual fixing holes and 30° angled antenna mounts gurantee smooth cinematic shooting.
• Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.
• Versatile Battery Mounting System: Open-ended strap + side-limitation slot ensures a rock-solid battery grip, accommodating a wide range of battery sizes while preventing shifts during hard maneuvers.

Specifications

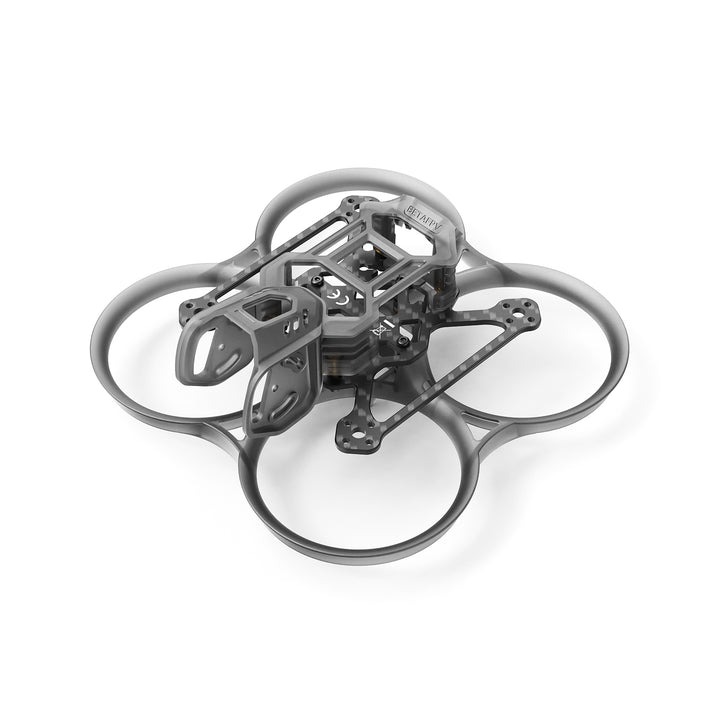

• Item: Pavo20 Pro II Brushless Whoop Frame
• Wheelbase: 93.9mm
• Material: PA12/PP
• Top Plate Thickness: 2mm
• Frame Weight: 35.7g (With O4 Air Unit Pro Bracket)
• Whoop Duct Weight: 17.8g
• Color: Black/Transparent Grey
• Camera Mounting Spacing: 20mm
• FC Mounting Hole Size: 26×26mm
• Motor Mounting Hole Size: 4-M2-φ9mm
• Battery Slot Width: 20mm
• Camera Filter: Supported

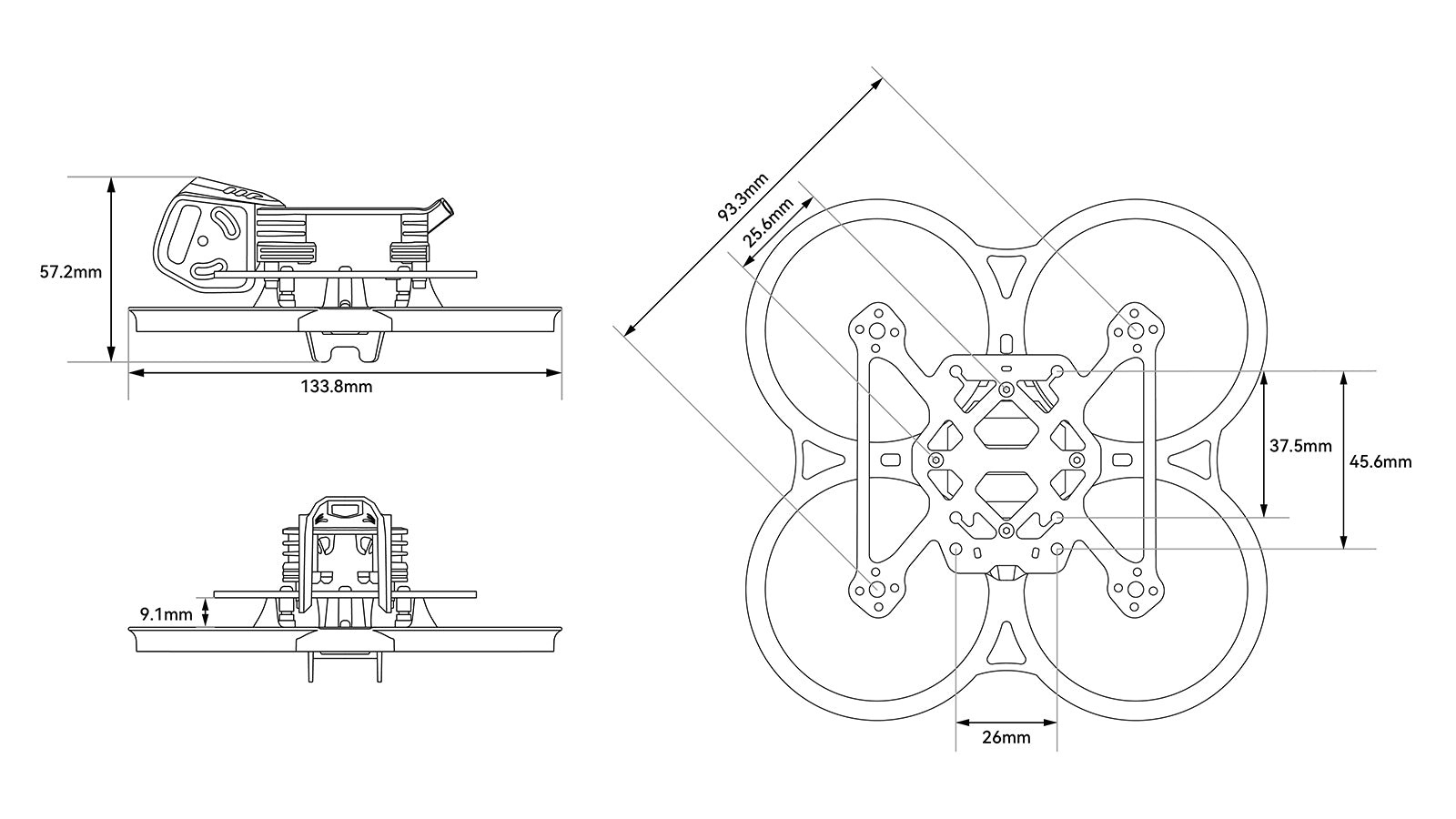

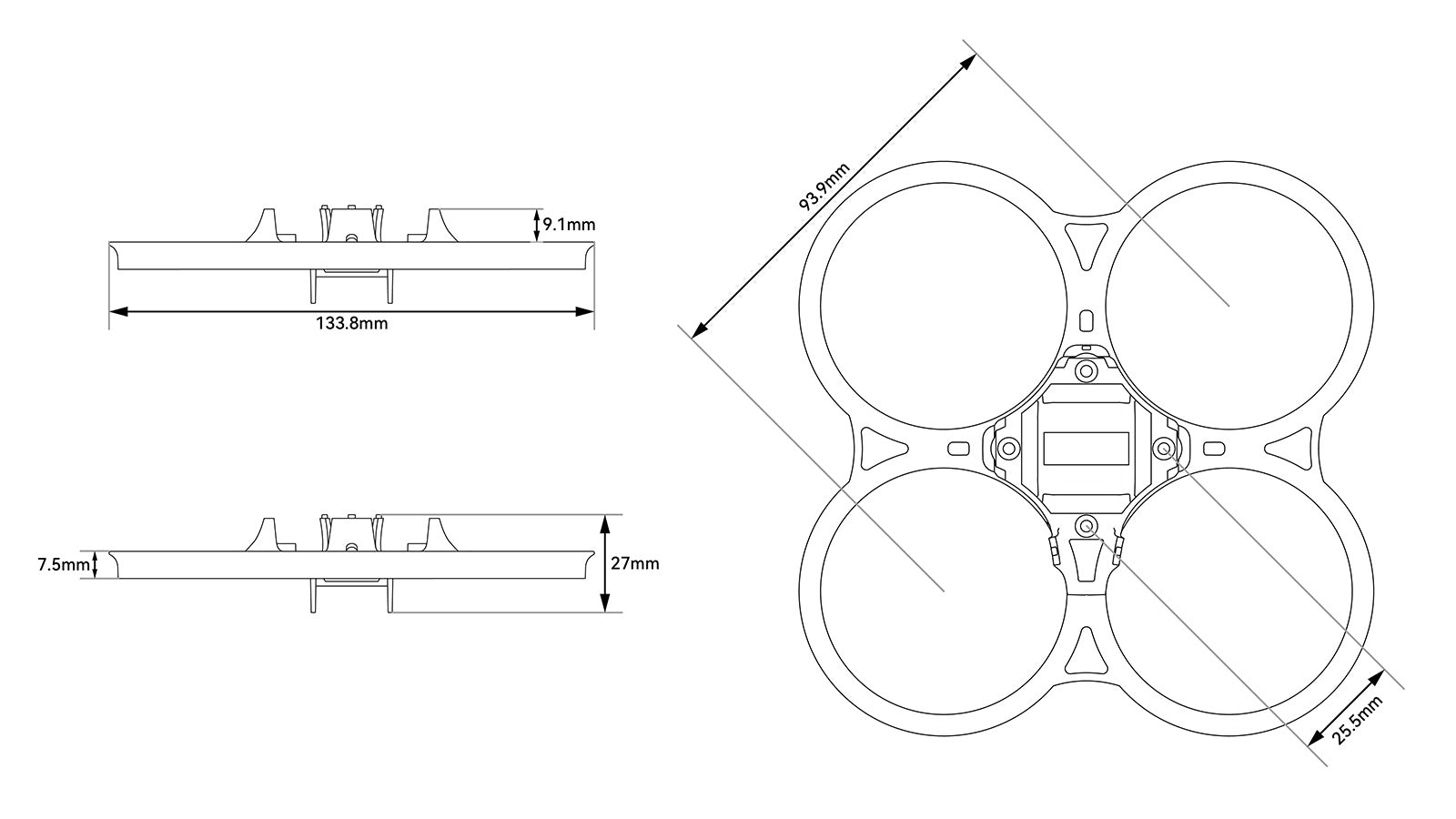

Diagram

Compatibility with Popular HD VTX

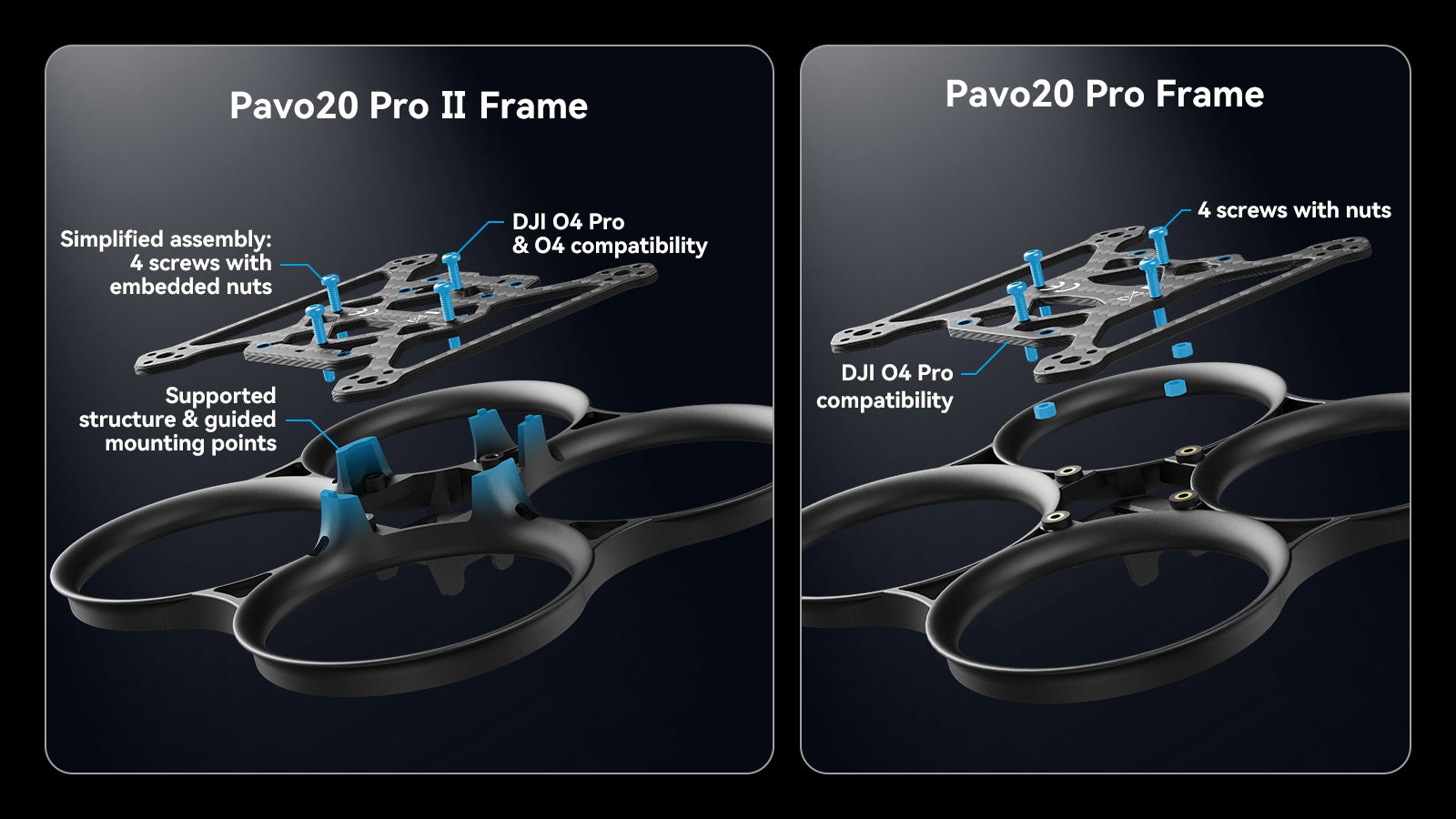

With a robust 93.9mm wheelbase and crash-proof PA12 thickened whoop ducts, the Pavo20 Pro II Frame is engineered for resilience and agility. Its revolutionary assembly system features embedded nuts and requires only four screws for a secure, crash-resistant lock—making building faster and more reliable than ever. Advanced injection molding combines a supported structure with three guided mounting points, guaranteeing perfect carbon plate alignment and eliminating flex for an incredibly rigid, stable platform.

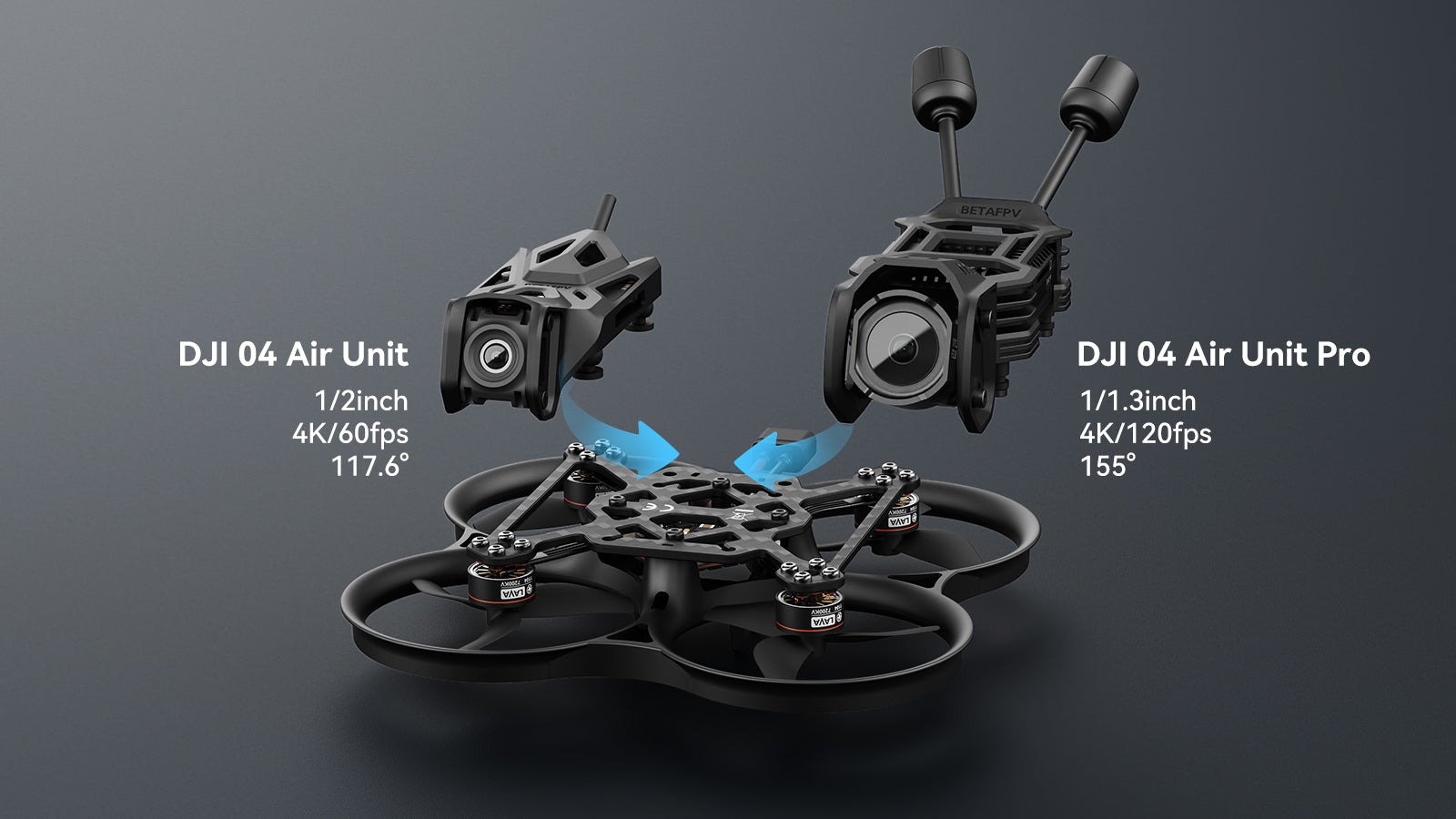

The newly designed carbon plate expands compatibility to seamlessly support both the DJI O4 Air Unit Pro and DJI O4 Air Unit, future-proofing your setup for stunning HD footage. With pre-tuned PID parameters optimized for both O4 systems, achieving peak performance is effortless—simply select your configuration via the OSD and fly with precision and confidence.

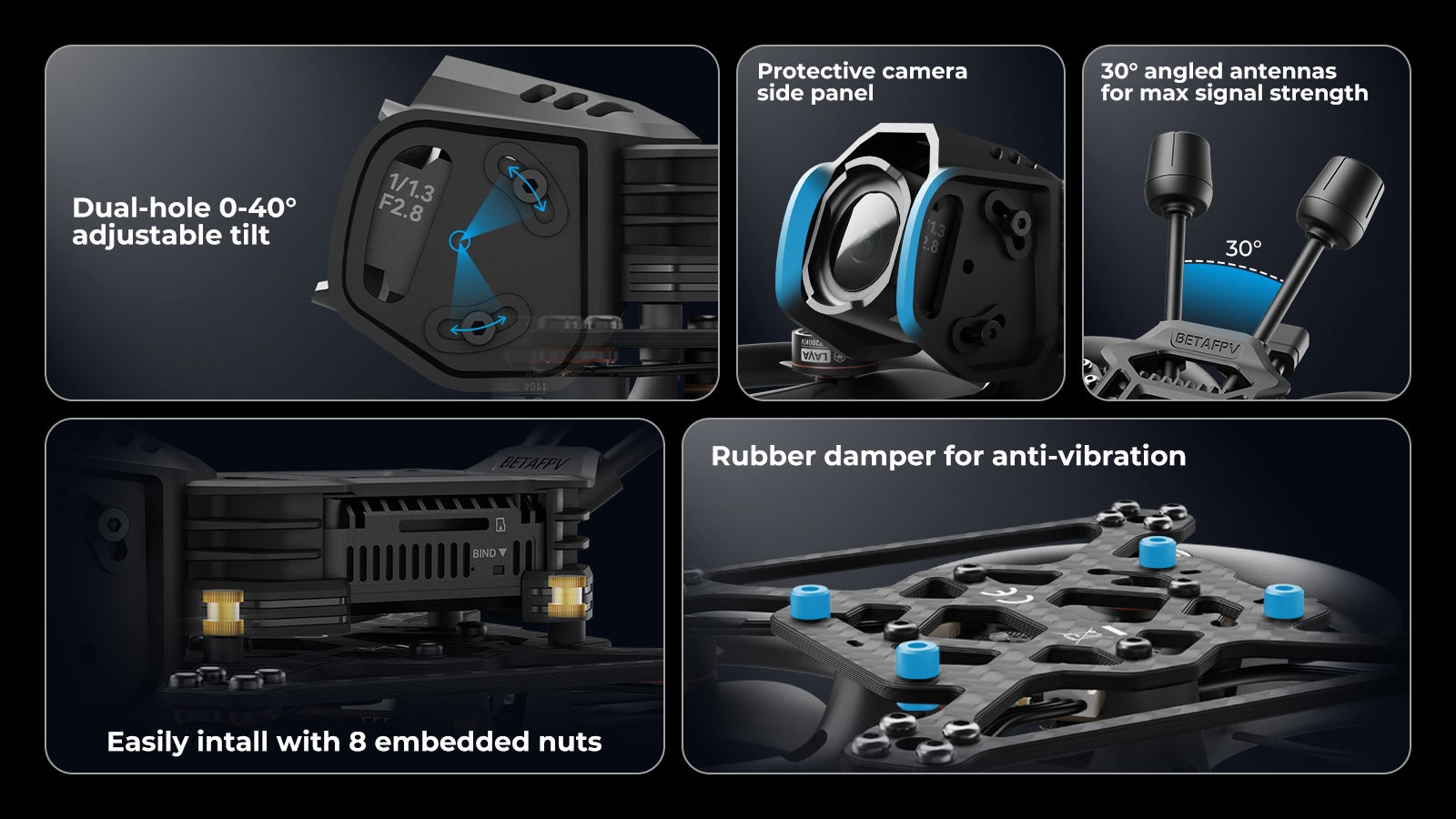

O4 Air Unit Pro Bracket

The Pavo20 Pro II integrates the advanced O4 Air Unit Pro Bracket, engineered to deliver exceptionally stable, smooth HD footage while streamlining your building experience. It features a reinforced camera side panel for maximum protection and dual fixing holes that optimize the camera’s center of rotation, enabling smooth 0-40° tilt adjustments and providing unobstructed ND filter access even in wide-angle scenarios. The 30° angled antenna mounts ensure optimal signal strength, while tool-free installation allows for quick antenna swaps. Securely assembled with just 8 half-thread screws, the bracket eliminates tedious assembly while enhancing anti-vibration performance.

Package Includes

• 1 x Pavo20 Pro II Top Plate
• 1 x Pavo20 II Whoop Duct
• 1 x O4 Air Unit Pro Bracket
• 6 x Shock-absorbing Balls for Flight Controller (8mm)
• 6 x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
• 6 x M2*10 Screws
• 6 x M2*4 Screws
• 6 x M2*14 Screws
• 1 x 130mm Battery Strap
• 2 x 5.8g Antenna
• 1 x 5.8G VTX Antenna Mount
• 1 x H1.5 Hex Screwdriver
