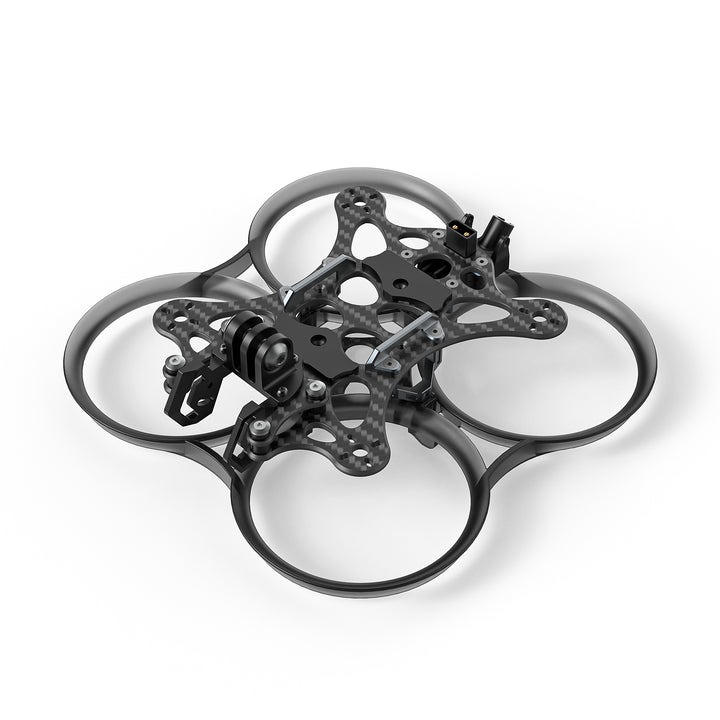

BetaFPV Pavo25 V2 Whoop Frame

Description

BetaFPV Pavo25 V2 Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop has a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 2.5″ cinewhoops.

• Pavo25 V2 is specifically designed to seamlessly integrate with the DJI O3 Air Unit, addressing the previous limitation of Pavo25’s inability to accommodate O3 compatibility.
• The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
• Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
• The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
• The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

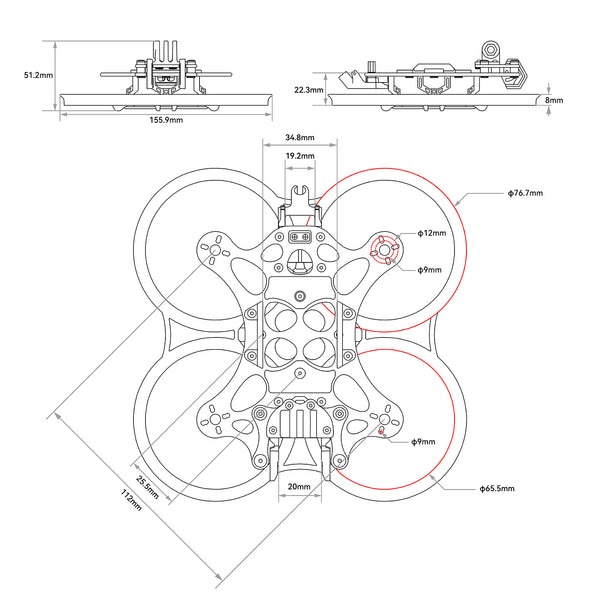

Specifications:

• Item: BetaFPV Pavo25 V2 Whoop Duct
• Wheelbase: 112mm
• Top Plate: 2.5mm T700 carbon fiber
• Base Plate: 1.5mm T700 carbon fiber
• Gimbal Carbon Plate: 2mm T700 carbon fiber
• Column: 7075 aluminum alloy CNC
• Battery Holder: 7075 aluminum alloy CNC
• Whoop Duct: PC injection-molded translucent gray
• Whoop Duct Diameter: 65.5mm
• Battery Connector: Fixed XT30
• Camera Installation Size: 20mm (compatible with 19mm)
• HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
• HD VTX Antenna Mounting Hole Size: 4mm
• Flight controller Mounting Hole Size: 25.5*25.5mm
• Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm

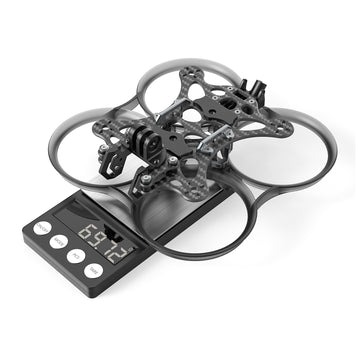

• Weight: 70g

BetaFPV Pavo25 V2 Whoop Duct can enhance an additional 200g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 200g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo25 V2 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.

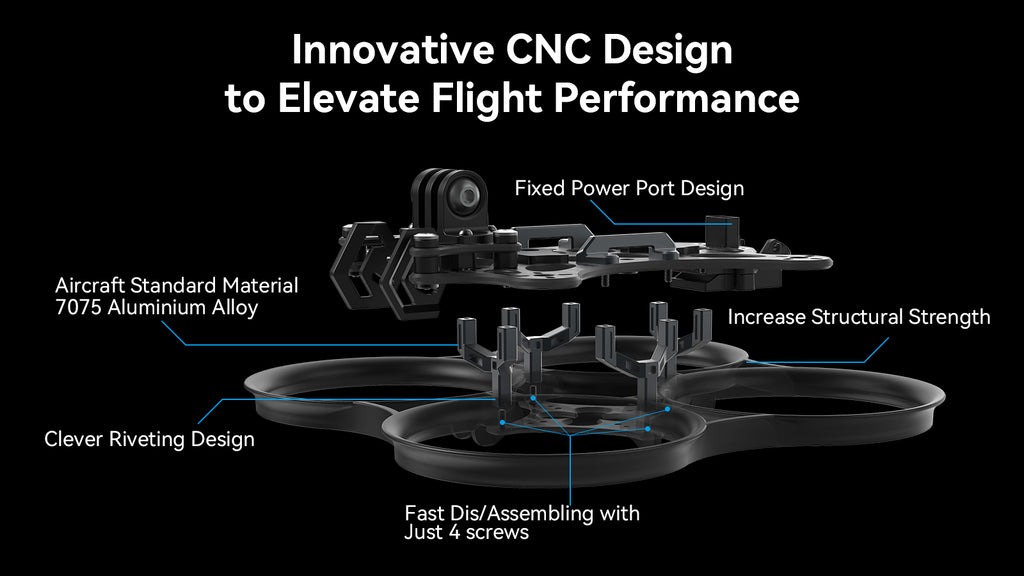

The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material – 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.

Inclusions:

1 x BetaFPV Pavo25 V2 Whoop Frame only
