Description

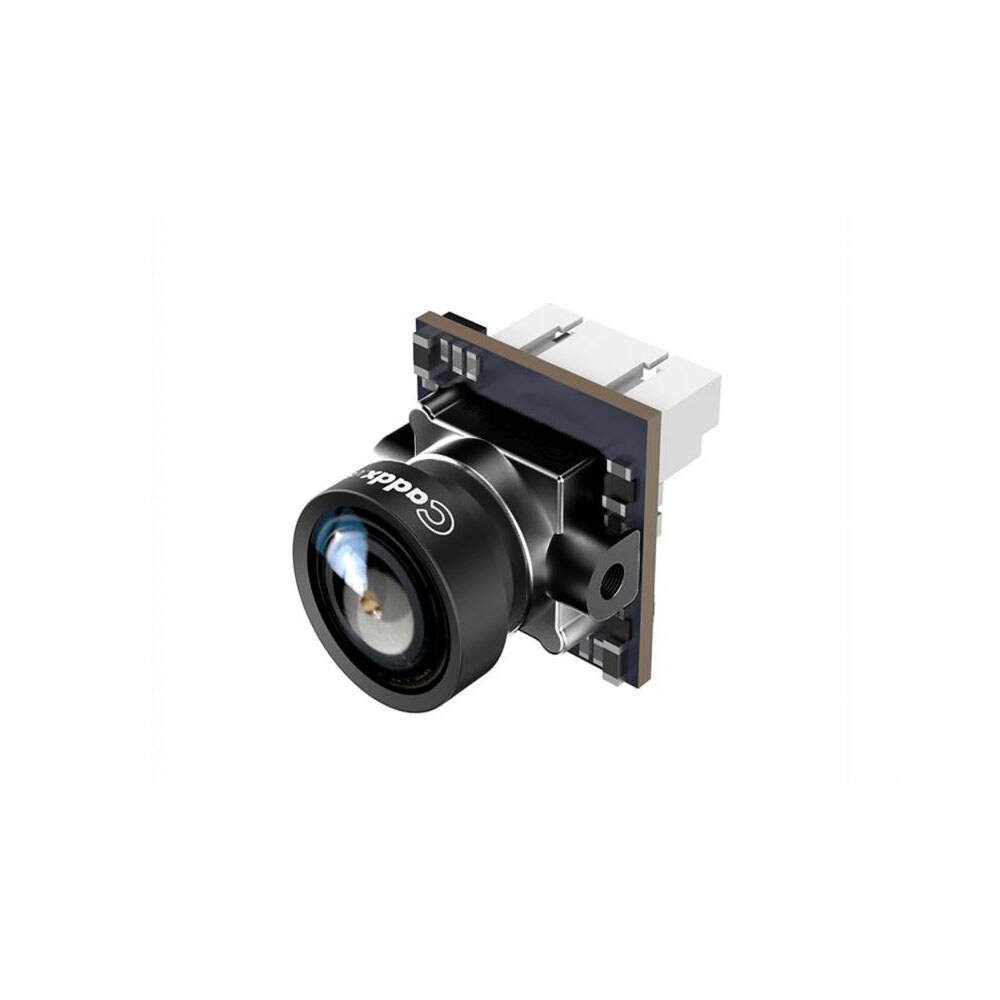

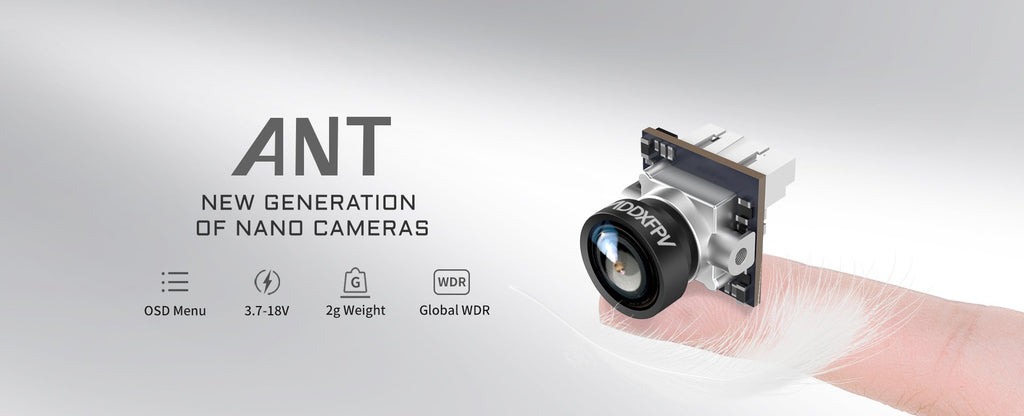

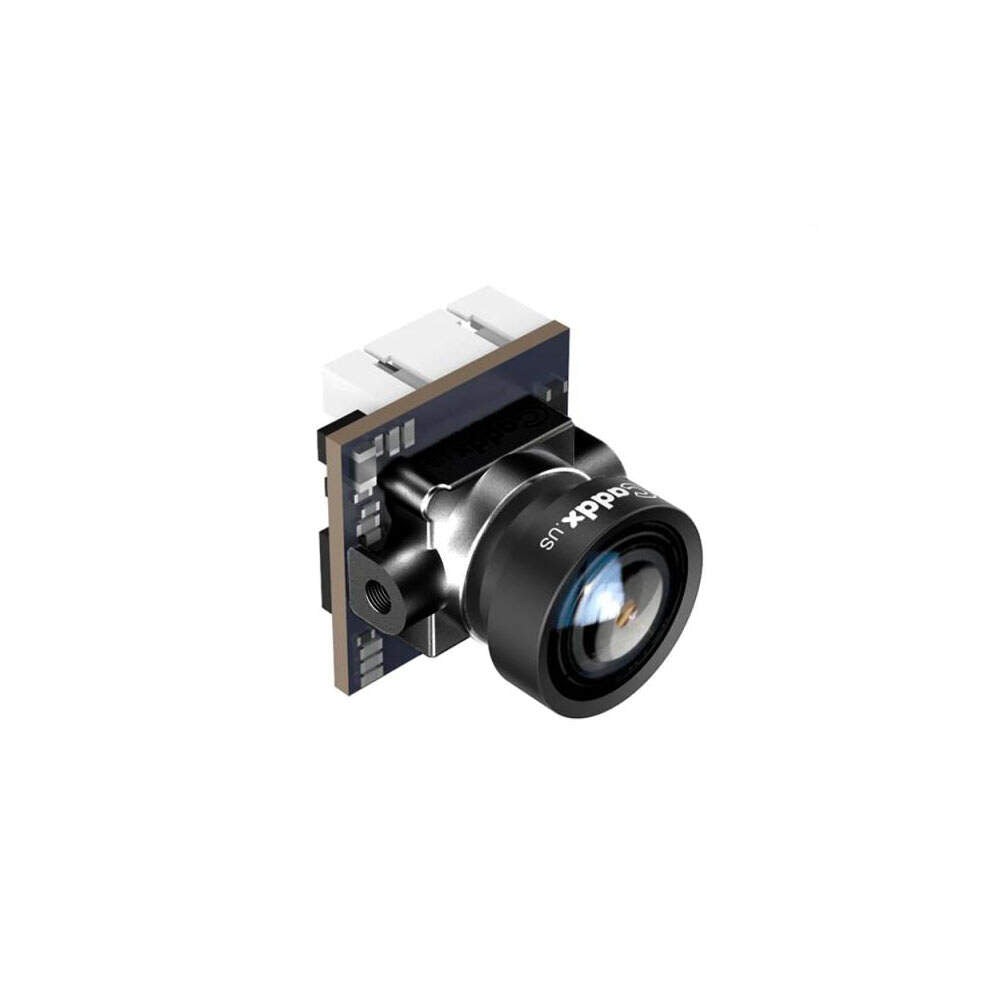

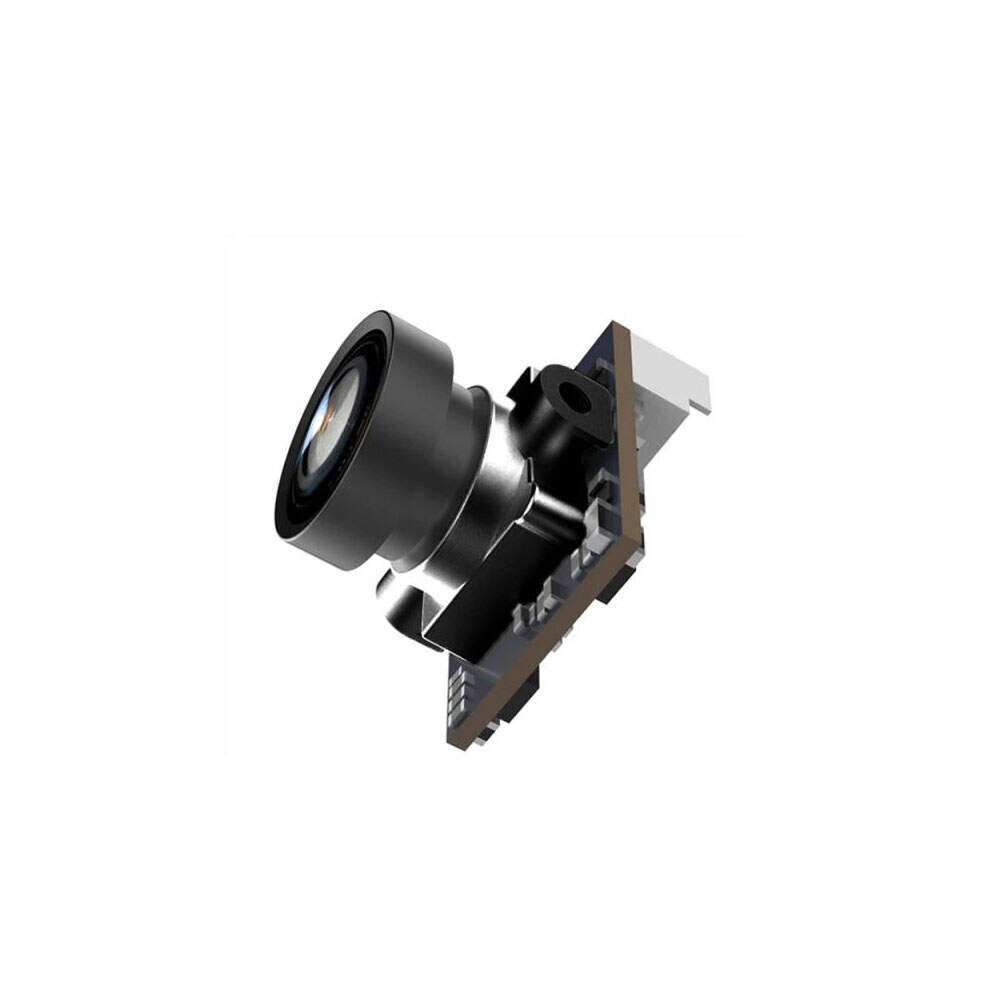

The Caddx Ant Nano Analog Camera (Black 4:3) delivers unmatched clarity and performance in a micro-sized form. The ultra-light 2g build, 1200TVL resolution, global WDR, and ultra-low light sensitivity ensure razor-sharp visuals and consistent reliability in any FPV environment, making it the ultimate choice for pilots who demand precision, power, and performance without compromise—no matter the conditions, no matter the mission.

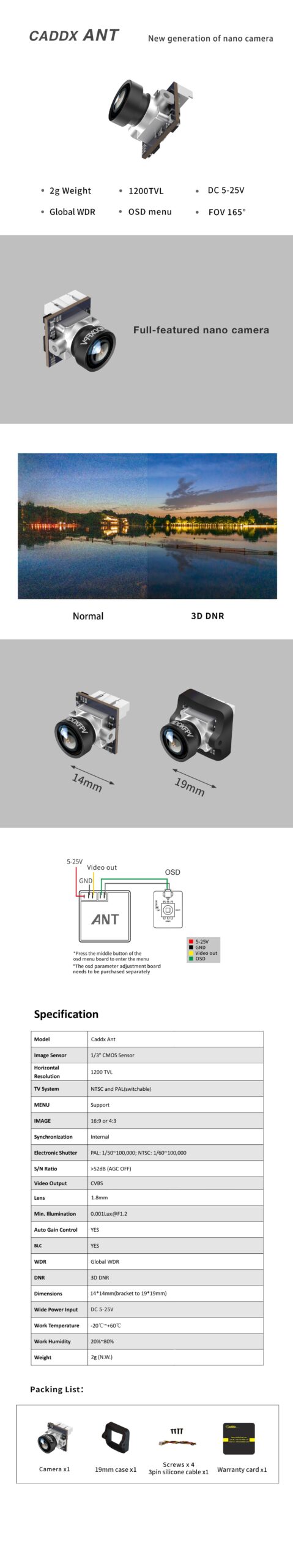

Specifications

• Model: Caddx Ant
• Image Sensor: 1/3″ CMOS Sensor
• Horizontal Resolution: 1200 TVL
• TV System: NTSC or PAL
• MENU: Support
• IMAGE: 4:3
• Synchronization: Internal
• Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
• S/N Ratio: >52dB (AGC OFF)
• Video Output: CVBS
• Lens: 1.8mm
• Min. Illumination: [email protected]
• Auto Gain Control: YES
• BLC: YES
• WDR: Global WDR
• DNR: 3D DNR
• Dimensions: 14*14mm(with bracket to 19*19mm)
• Wide Power Input: DC 3.7-18V
• Work Temperature: -20℃~+60℃
• Work Humidity: 20%~80
• Caddx Ant 4:3 Black
• Weight:  2g (N.W.)

Package Includes

• 1 x Camera
• 1 x 3pin FPV silicone cable
• 1 x Warranty card
• 1 x Expend bracket
• 4 x Screws
