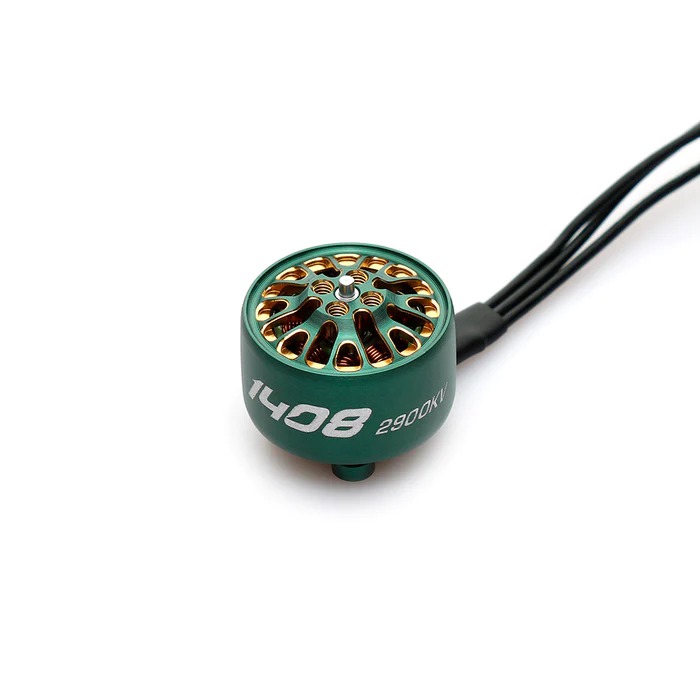

Diatone Mamba TOKA 1408 4-6S Brushless Racing Motor (2900kV/4100kV)
Diatone Mamba TOKA 1408 4-6S Brushless Racing Motor (2900kV/4100kV) - Image 2
Diatone Mamba TOKA 1408 4-6S Brushless Racing Motor (2900kV/4100kV) - Image 3
Diatone Mamba TOKA 1408 4-6S Brushless Racing Motor (2900kV/4100kV) - Image 4

Diatone Mamba TOKA 1408 4-6S Brushless Racing Motor (2900kV/4100kV)

by Diatone
4.75 out of 5
(4 customer reviews)

Diatone’s Mamba series motors provide unparalleled performance for your racing quad. They’re featured in all of Diatone’s FPV quads and trusted by thousands. This motor is particular good for CineWhoop style builds

$25.99

SKU: 1504 Category: Tag:

Description

Mamba Toka 1408 2900KV Racing Motor Green

Overall Dimension:Φ20.6×18.5mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch

Bearing：5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 15.75A
ldle Current：10V/0.4~1.0A
Maximum Power: 376.3W
Internal Resistance：135mΩ

Mamba Toka 1408 4100KV Racing Motor Green

Overall Dimension:Φ20.6×18.5mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm，M2
Prop: 3inch~4inch
Bearing：5*2*2.5
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Pated Voltage:3~4S (12.6V~16.8V)
Peak Current: 19.5A
ldle Current：10V/0.8~1.5A
Maximum Power: 376.3W
Internal Resistance：85mΩ

1408 2900KV motor table1408 4100KV table



Additional information

Brand

Motor Size

KV Rating

2900Kv, 4100Kv
