Diatone MAMBA Basic F405 MK3 50A 6S 8bit Stack

Description

MAMBA Basic F405 MK3 FC & 50A 8bit 6S Stack

MAMBA Basic F405MK3
MCU: 168MHz STM32F45RGT6
GYRO: MPU Series Six-Axis
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED（4 Set 2812 LED）
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&  5V 3A ( (System Power)&5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm, M3

MAMBA F50_BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:50A×4
BURST CURRENT:60A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3


Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0  ×2
12AWG 100mm ×2
AMASS Original XT60

Mark 3 improvements over Mark 2

Fixed

1. Add I2C function
2. When you connect the USB, the receiver and OSD settings can be saved

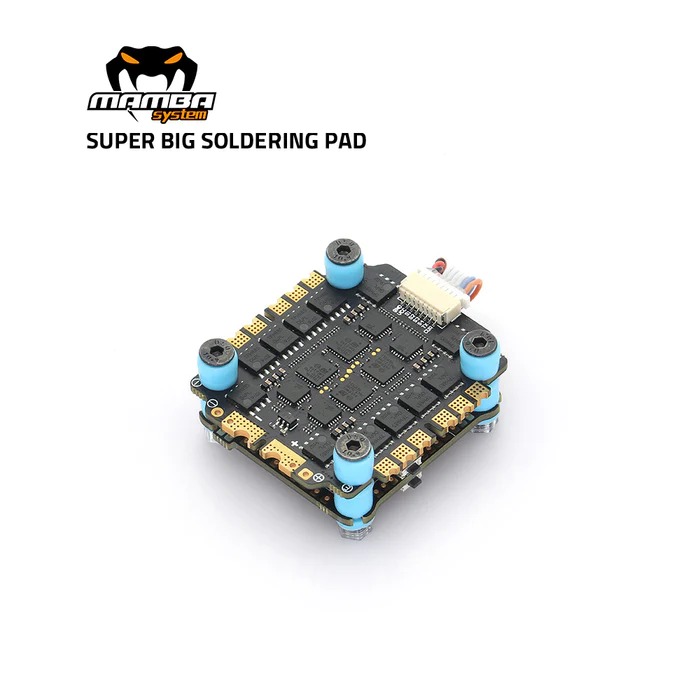

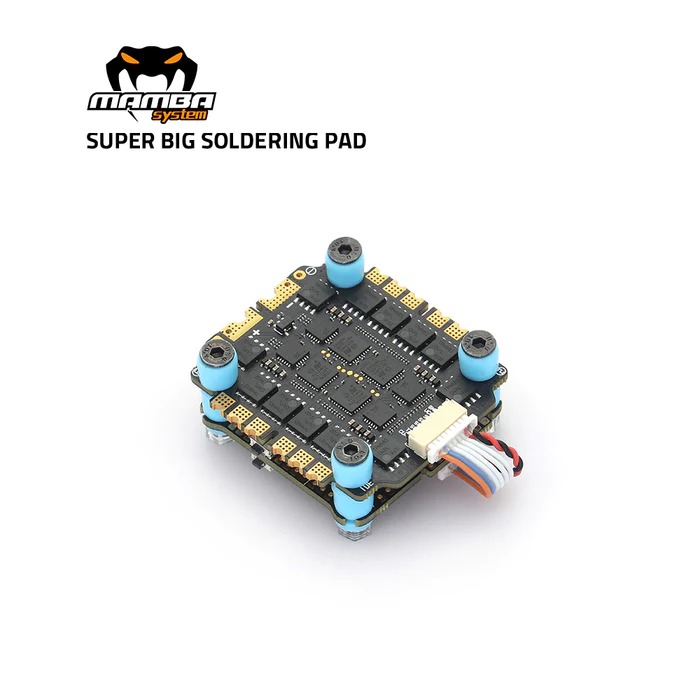

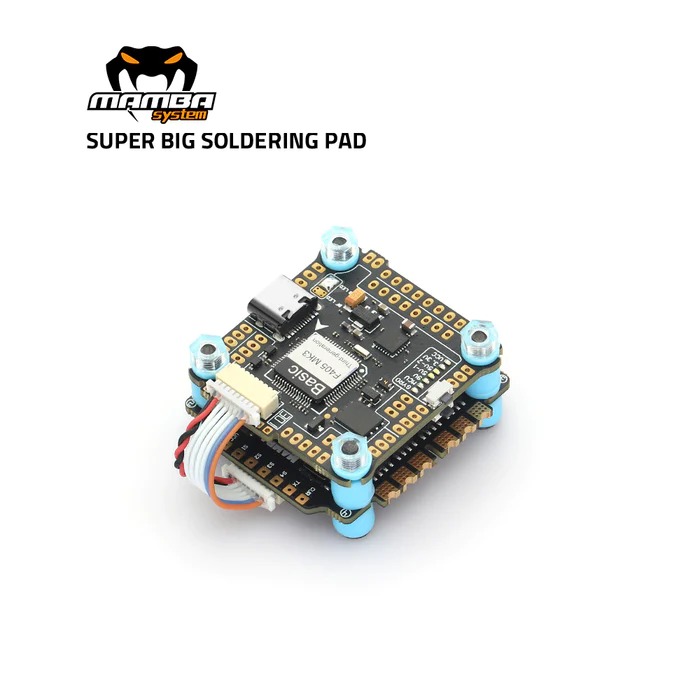

3. Increase the pad area
4. LED signal selection （when Mamba Led sys avaiable）
5. BEC short circuit protection
6. TVS instant high voltage protection 30V

Update

1. F405 models support F.prot
2. Upgrade the anti-interference cable
3. Use Type-C

Added

1. Add self-recovery insurance to the receiver’s 5V power supply
2. Increase the camera VCC power supply pad
3. Standard flight controller (30.5×30.5) adds spare pad
4. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference
