Diatone MAMBA MK4 H743 55A 6S 128K 32bit Stack

Description

#All H7 uses Development version 4.3 Target temporarily

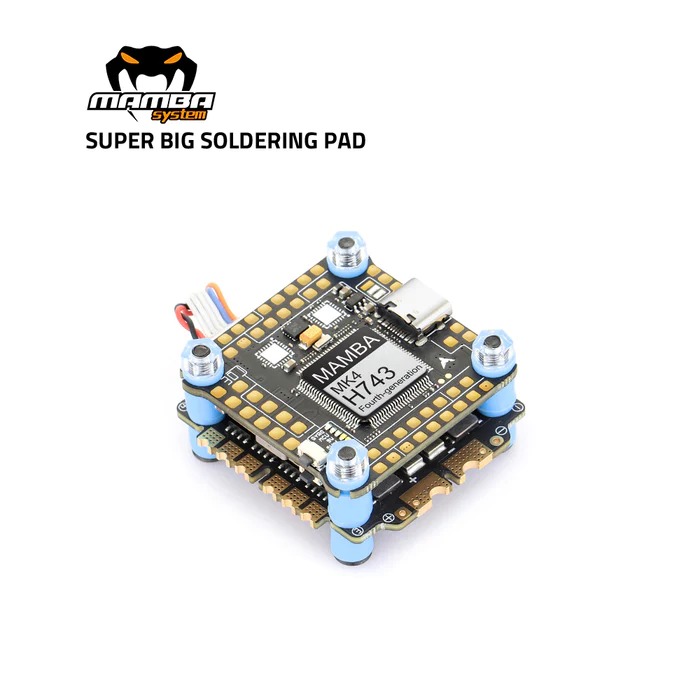

FC Specifications

MAMBA MK4 H743
MCU: 480MHz STM32H743
GYRO: MPU BMI 270
Barometer: Yes
OSD: Yes
Blacbox: 128M Flash Memory
Uarts: 8Set
ESC Signal:8Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED（4 Set 2812 LED）
F.Port: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A (System Power)&
5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm,M3

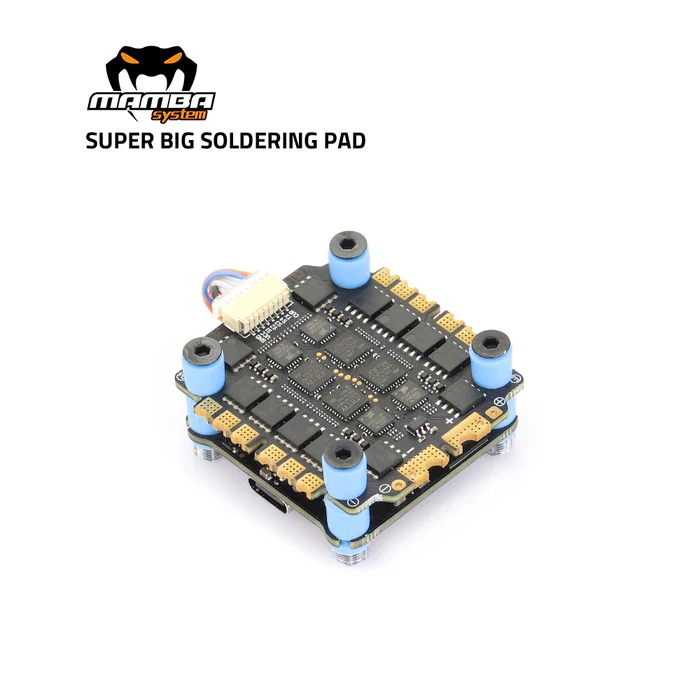

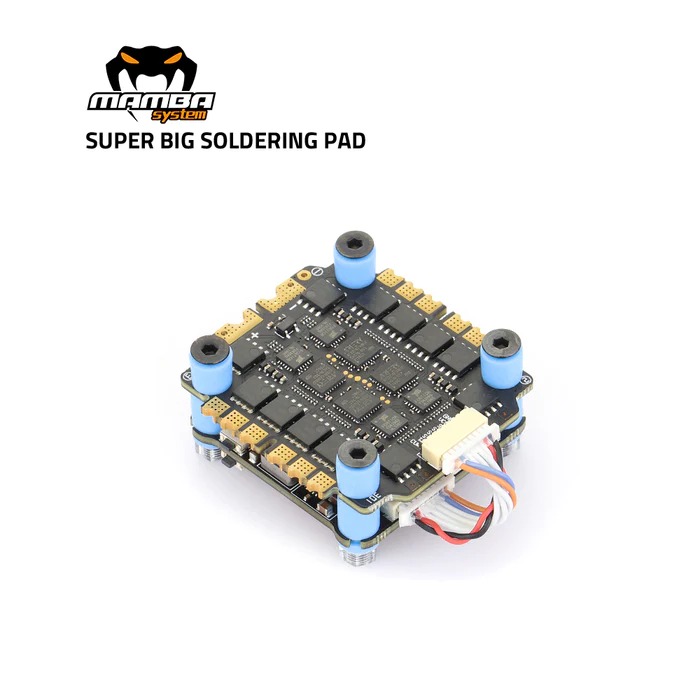

ESC Specifications

MAMBA F55_128K
NPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:55A×4
BURST CURRENT:65A (10S)
BEC: No
Target: BLHeli_32 MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

MAMBA F65_128K
NPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:65A×4
BURST CURRENT:75A (10S)
BEC: No
Target: BLHeli_32 MAMBA F65_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Supply :
High Frequency 470uF/35V ×1
8pin sh1.0 ×2
12AWG 100mm ×2
AMASS Original XT60

Note: For different batches of products, the component layout may be adjusted due to raw material supply and design optimization.  If the functionality of the product is the same, no new notification of changes will be issued.
