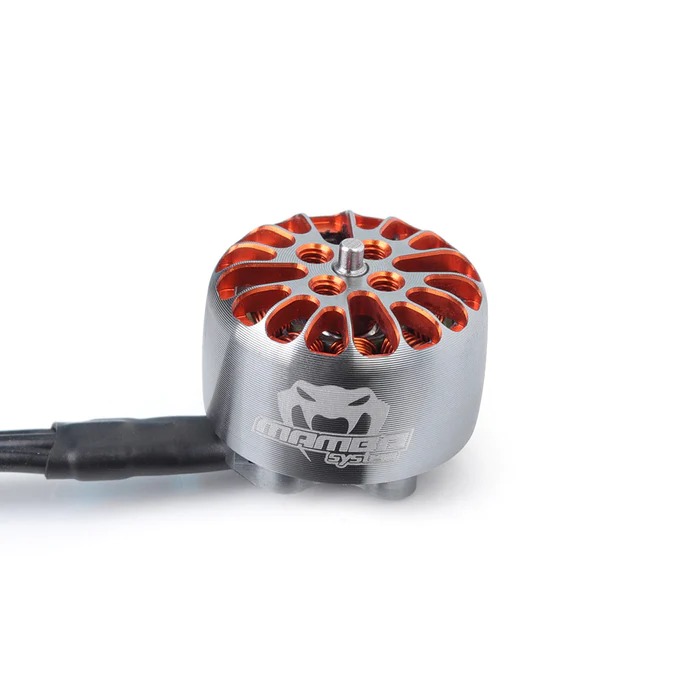

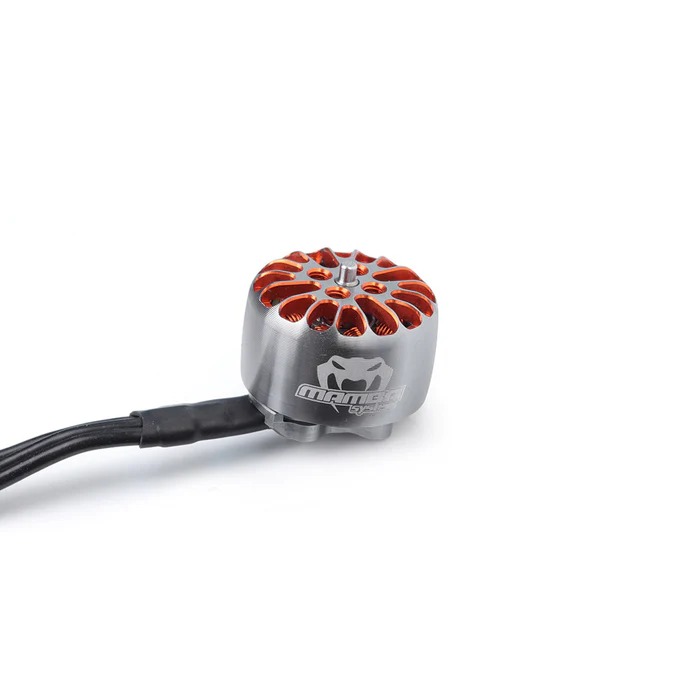

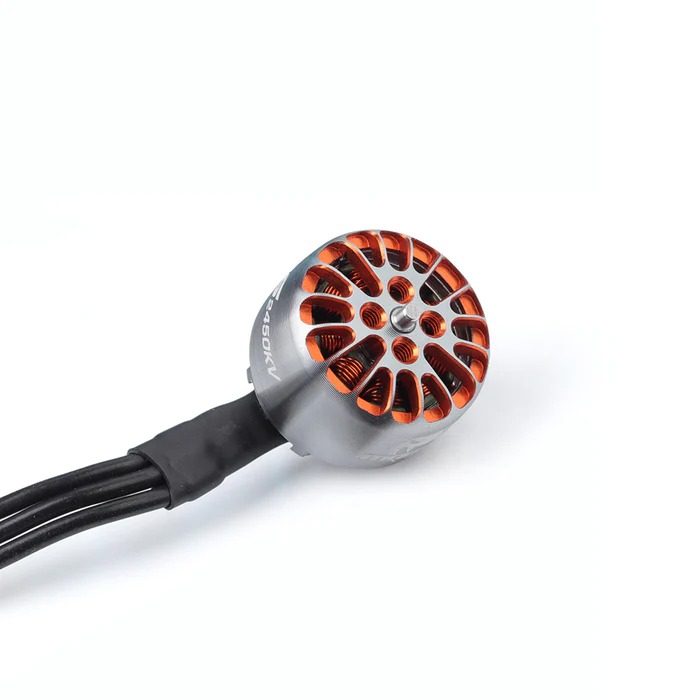

Diatone Mamba TOKA 1206 Racing Motor 3-6S (2450kV/3600kV)

by Diatone

The Mamba TOKA 1206 Motor is part of a new series of motors by Diatone that is best suited for micro CineWhoop builds, choose between 2450KV (for 4-6S), or 3600KV (for 3-4S).

$23.99

SKU: 2465 Category:

Description

MAMBA TOKA 1206 2450KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 5.8A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：456mΩ

MAMBA TOKA 1206 3600KV Racing motor

Overall Dimension:Φ17×13.4mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mm，M2
Prop: 2inch~3inch
Bearing：5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
Configuration:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：12mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 10A
ldle Current：6V/0.4A
Maximum Power: 160W
Internal Resistance：236mΩ



Additional information

Brand

KV Rating

2450Kv, 3600Kv
