DJI Focus Pro All-In-One Combo

Description

The DJI Focus Pro All-In-One Combo revolutionizes cinematic focus control with DJI’s first Automated Manual Focus (AMF) system, merging precision and human-machine collaboration. Designed for professional filmmakers, it features a powerful LiDAR focus system, intuitive touchscreen adjustments, and versatile Bluetooth connectivity, providing seamless control over focus, even during handheld or remote filming. The newly enhanced Grip ensures a robust 2.5-hour power supply and supports lens data storage for ultimate filming convenience.

• Accessory Port: Cold Shoe
  1/4″-20 Threaded Hole
  USB-C Firmware Update Port (Power/USB)
  USB-C Data Port (Power/CVBS/CAN)

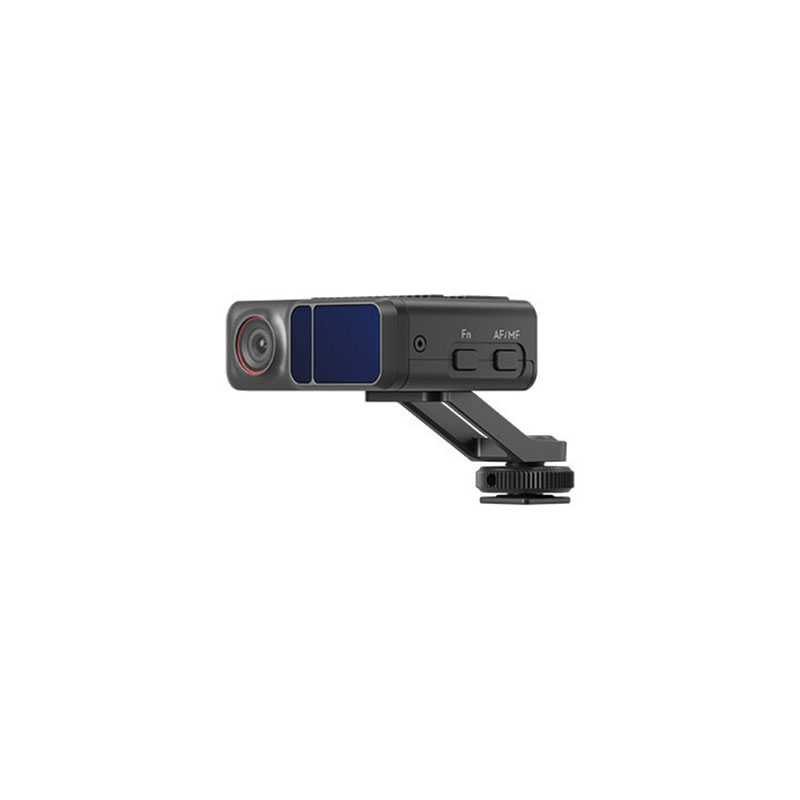

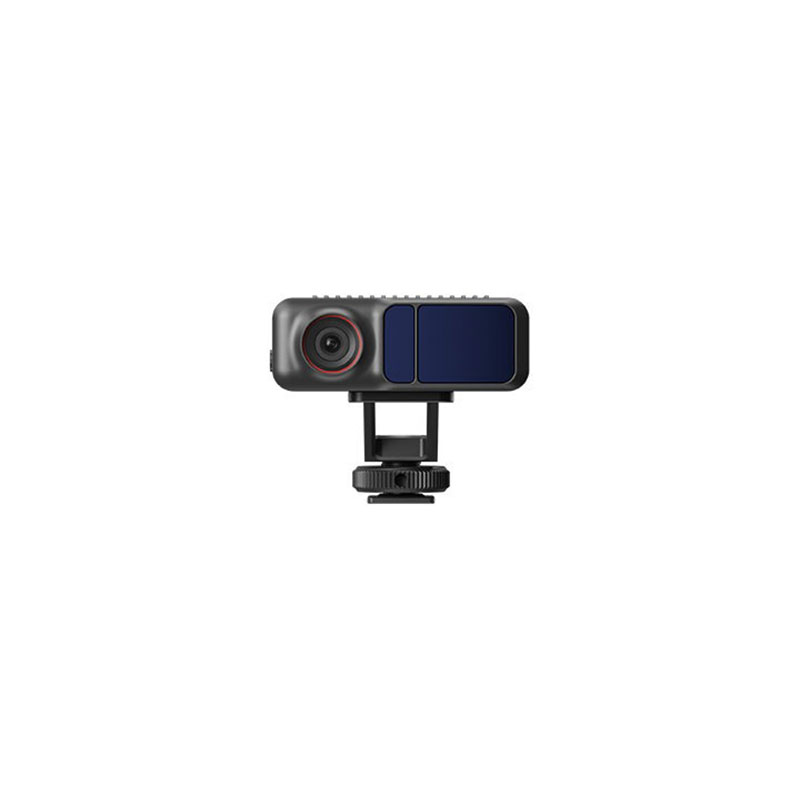

• Image Sensor: Resolution: 1920×1440
• FOV: ‌57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
• Frame Rate: 30fps
• Equivalent Focal Length: 30 mm
• ToF Sensor: Ranging Points: 76,800
• Sensing Range: 0.5-20 m
• FOV: Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
• Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
• Frame Rate: 30fps
• Equivalent Focal Length: 30 mm (wide-angle mode)
• Ranging Accuracy: ±1% to 3% (affected by the distance)
• Machine Learning: Tracking Subject: Can recognize up to five subjects at the same time, and choose one to follow
• Smart Object Identification: Human, vehicle
• Focus Area: Flex Spot (activate focus lock by framing the subject and pressing the trigger; supports autofocus only, not ActiveTrack); Wide (when subject-locked on human, supports both autofocus and ActiveTrack*; when subject-locked on vehicle, supports autofocus only, not ActiveTrack) ^{* ActiveTrack is available only when used in conjunction with DJI RS 4 Pro or DJI RS 3 Pro.}
• Electrical Properties: ‌Power Consumption: Average approx. 6.3 W, max 6.8 W
  Input Voltage: 6.6-17.2 V
  Operating Temperature: -20° to 45° C (-4° to 113° F)
  Mechanical Properties: Main Body Dimensions: Approx. 68×25×57 mm (L×W×H)
  Weight: Approx. 140 g (0.31 lbs)
  Mounting Method and Position: Can be mounted directly via cold shoe or using the 1/4″ threaded hole ^{It is recommended to mount the DJI Focus Pro LiDAR close to the camera’s optical axis.}

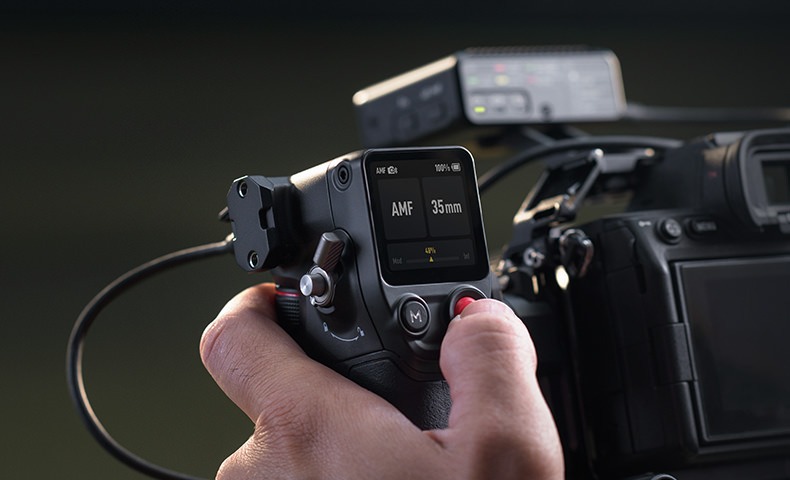

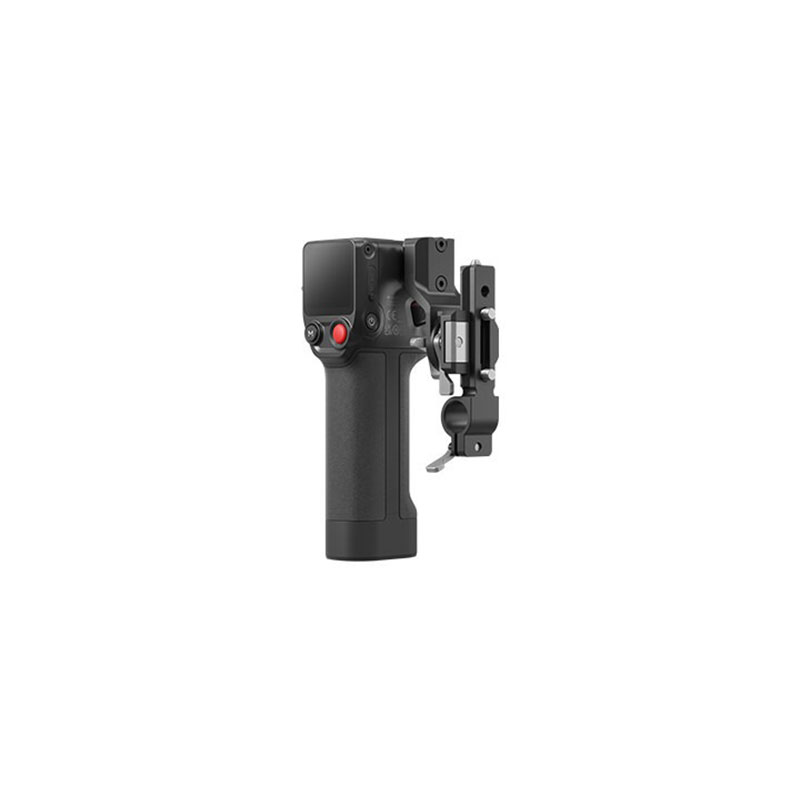

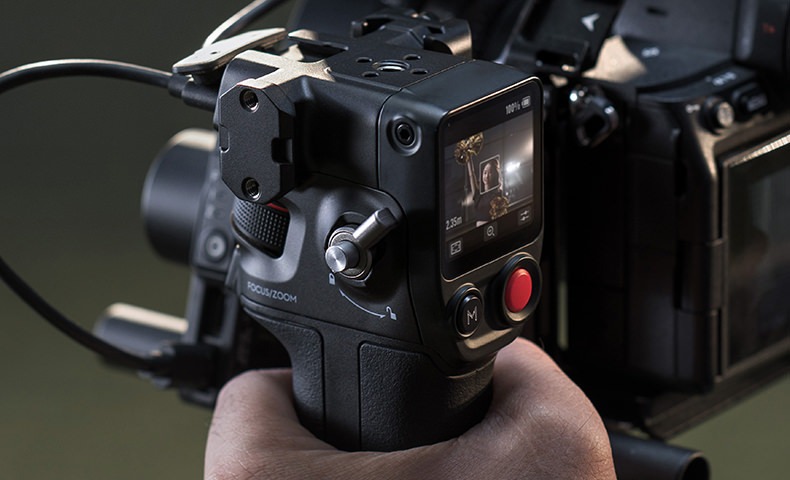

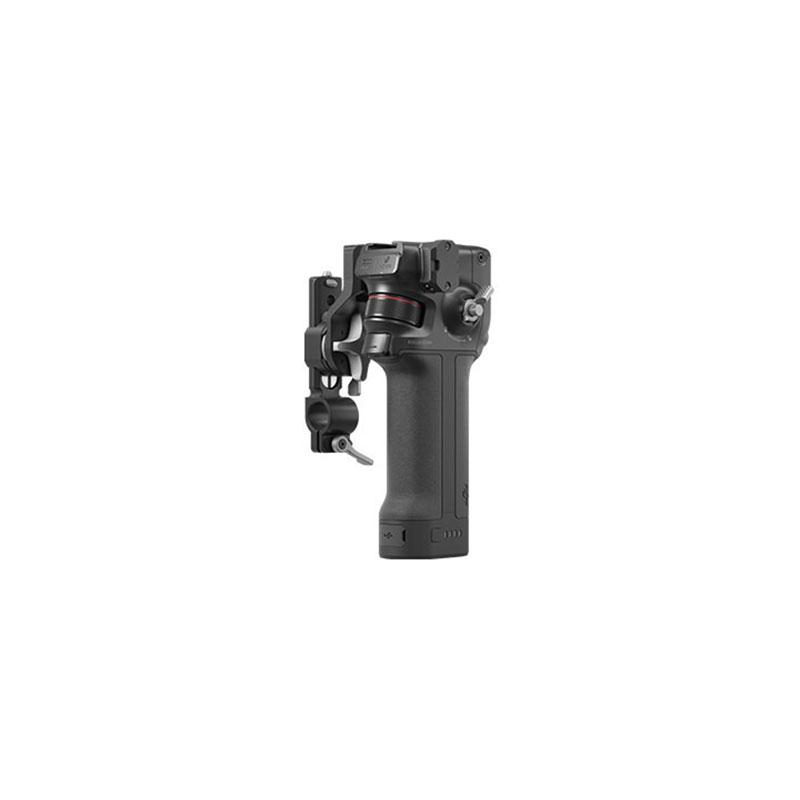

Grip

• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Transmitter Power: < 8 dBm
• Mechanical Properties: Main Body Dimensions: Approx. 59×73×162 mm (L×W×H)
  Main Body Weight: Approx. 482 g (1.06 lbs)
• Mounting Method: Flexible mounting on either left or right side of the cage via NATO port
• Screen: 1.8-inch full-color touchscreen
• Port: USB-C Port (DJI Focus Pro LiDAR)
  USB-C Port (DJI Focus Pro Motor)
  USB-C Port (Camera Control Port)
  USB-C Port (Battery Charging Port)
• Operating Time: ‌Approx. 2.5 hours
  ^{Measured in a 25° C (77° F) environment while simultaneously powering the grip, LiDAR, and a focus motor, with AF continuously on, and paired with a manual lens.}
• Charging Power: Supports 18W PD fast charging
• Battery Model: BHX711-3000-7.2V
• Power Supply Voltage: 6.6-8.4 V
• Operating Temperature: -20° to 45° C (-4° to 113° F)

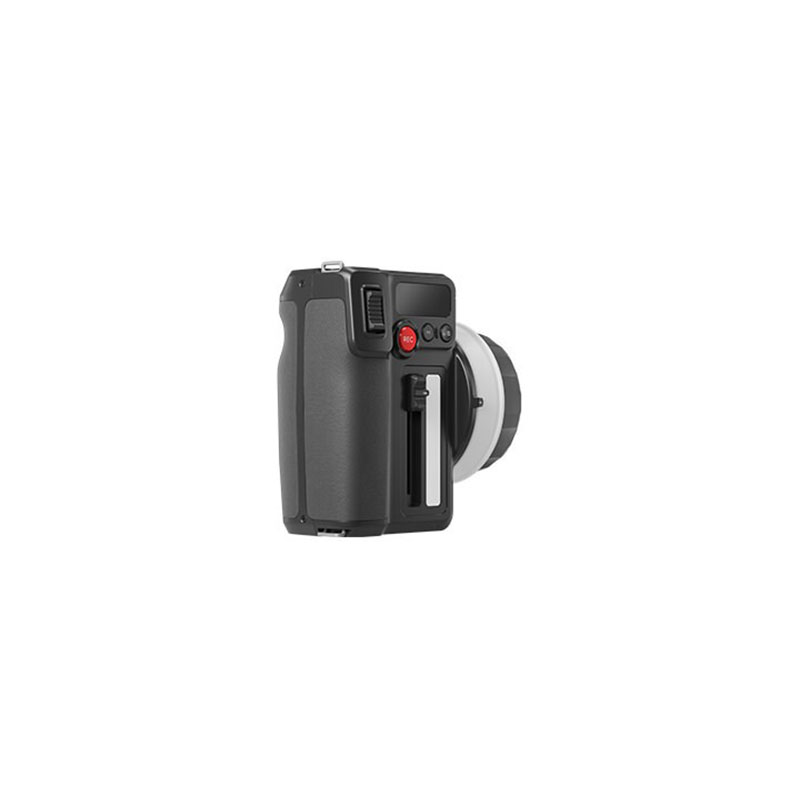

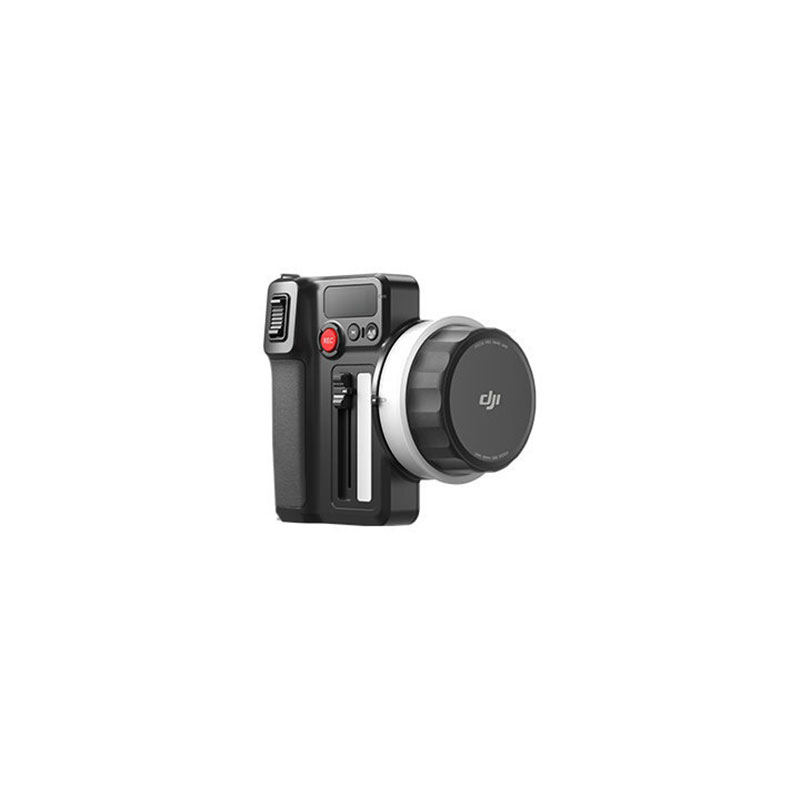

Hand Unit

• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Transmitter Power: < 8 dBm
• 2.4GHz Transmitter Power (EIRP): ‌< 20 dBm (CE/SRRC/MIC)
  < 26 dBm (FCC)
• 2.4GHz Transmission Distance: 160 m*
  100 m**
  ^{‌* Measured under FCC standard in an unobstructed environment free of interference.
  ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.}
• Mechanical Properties: ‌Dimensions: Approx. 128×87×87 mm (L×W×H)
• Weight: Approx. 555 g (1.22 lbs) (without battery)
• Battery: Model: NP-F550
• Input: 6.3-8.4 V
• Dimensions: 71×38.6×21.1 mm (L×W×H)
• Screen: 1.09-inch full-color touchscreen
• Static Power Consumption: 0.83 W
• Operating Temperature: -20° to 45° C (-4° to 113° F) (excluding battery temperature)

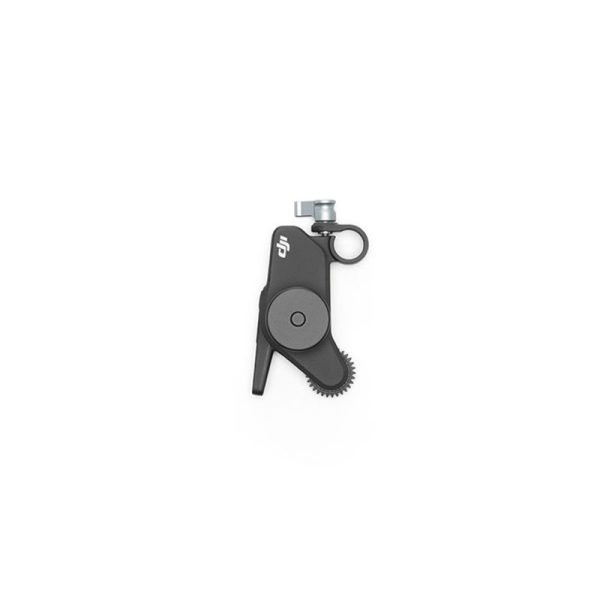

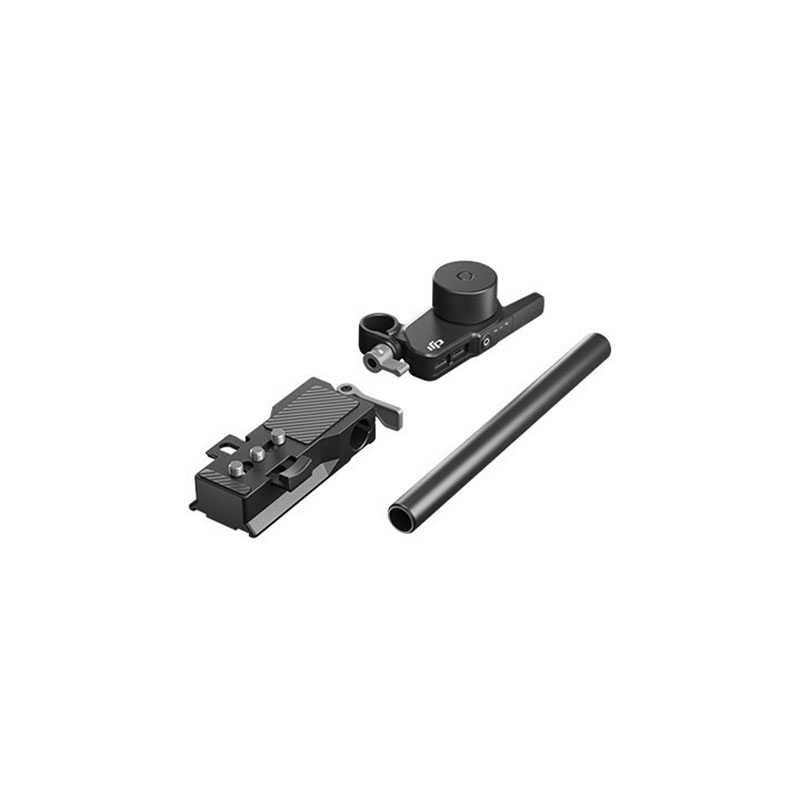

Motor

• 2.4GHz Transmitter Power (EIRP): ‌< 20 dBm (CE/SRRC/MIC)
  < 26 dBm (FCC)
• 2.4GHz Transmission Distance: 160 m*
  100 m**
  ^{‌* Measured under FCC standard in an unobstructed environment free of interference.
  ‌‌‌‌** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.}
• Mechanical Properties: ‌Dimensions: Approx. 100×61×34 mm (L×W×H)
• ‌Weight: Approx. 123 g (0.27 lbs)
• Rod Diameter: 15 mm
• Output Gear Teeth: 30
• Output Gear Module: 0.8
• Performance: Max Torque: 0.6 N·m (8 V)
• Max Speed: 300 rpm (8 V)
• Power Supply Voltage: 6.6-17.2 V
• Stall Current: 2 A, 8 V
• Free Current: 60 mA, 8 V
• Operating Temperature: -20° to 45° C (-4° to 113° F)
• Output Voltage: 6.6-17.2 V

Package Includes:

• 1 x DJI Focus Pro LiDAR
• 1 x DJI Focus Pro Grip
• 1 x DJI Focus Pro Motor
• 1 x DJI Focus Pro Hand Unit
• 1 x DJI Focus Pro Carrying Case
