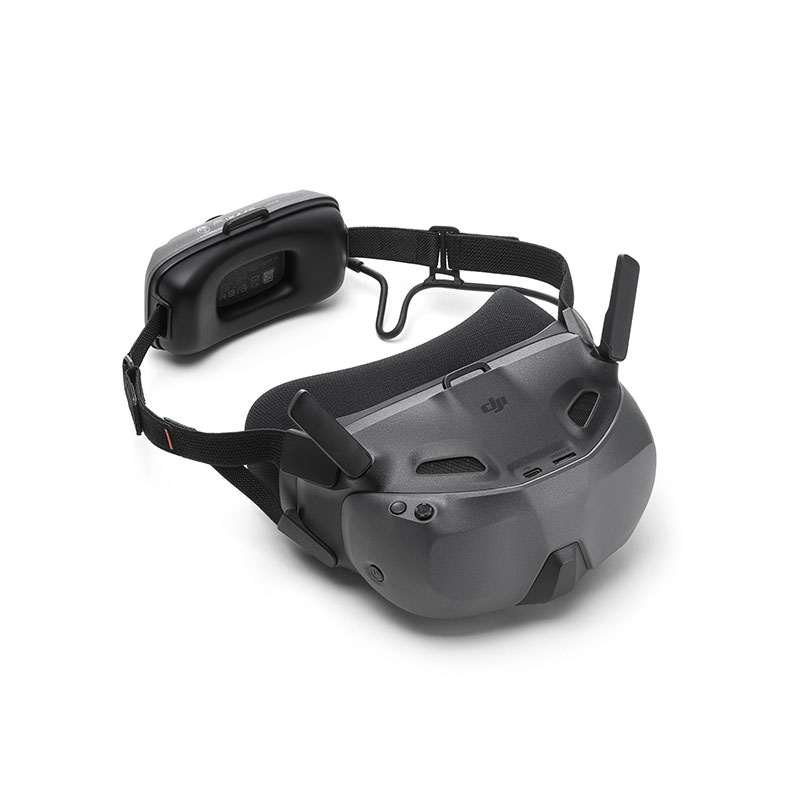

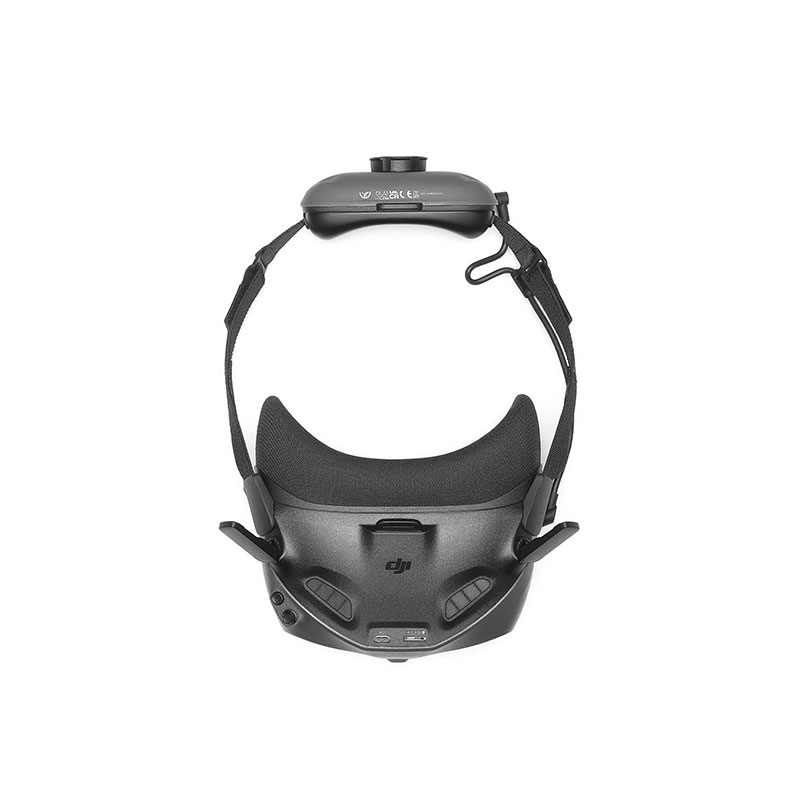

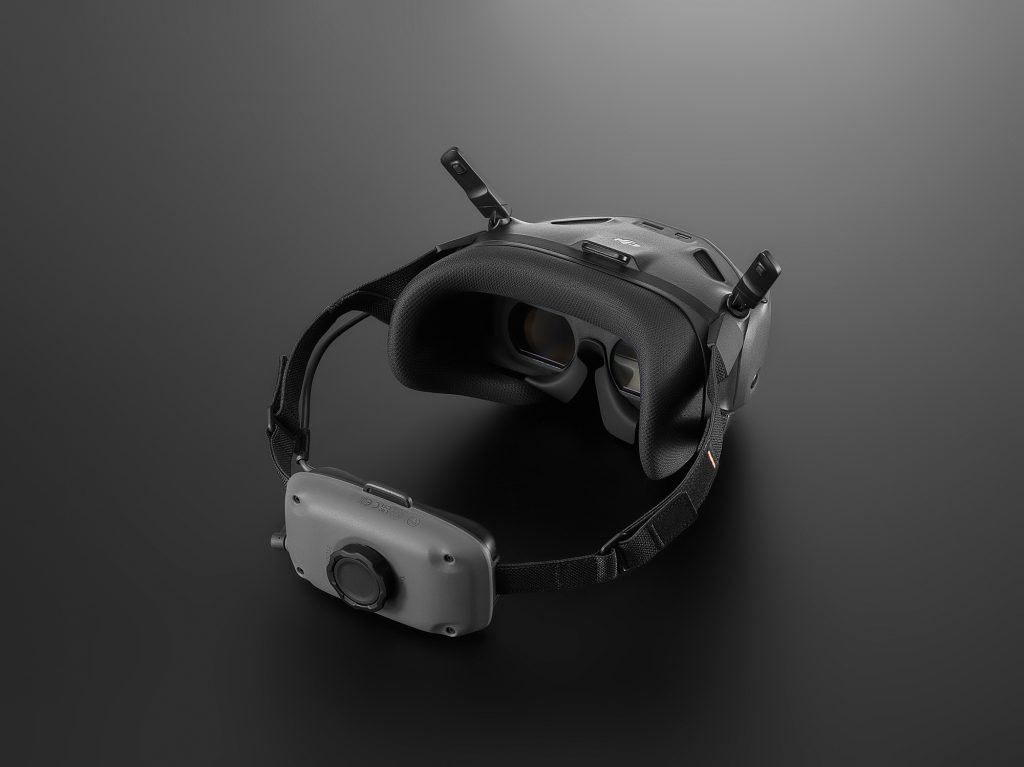

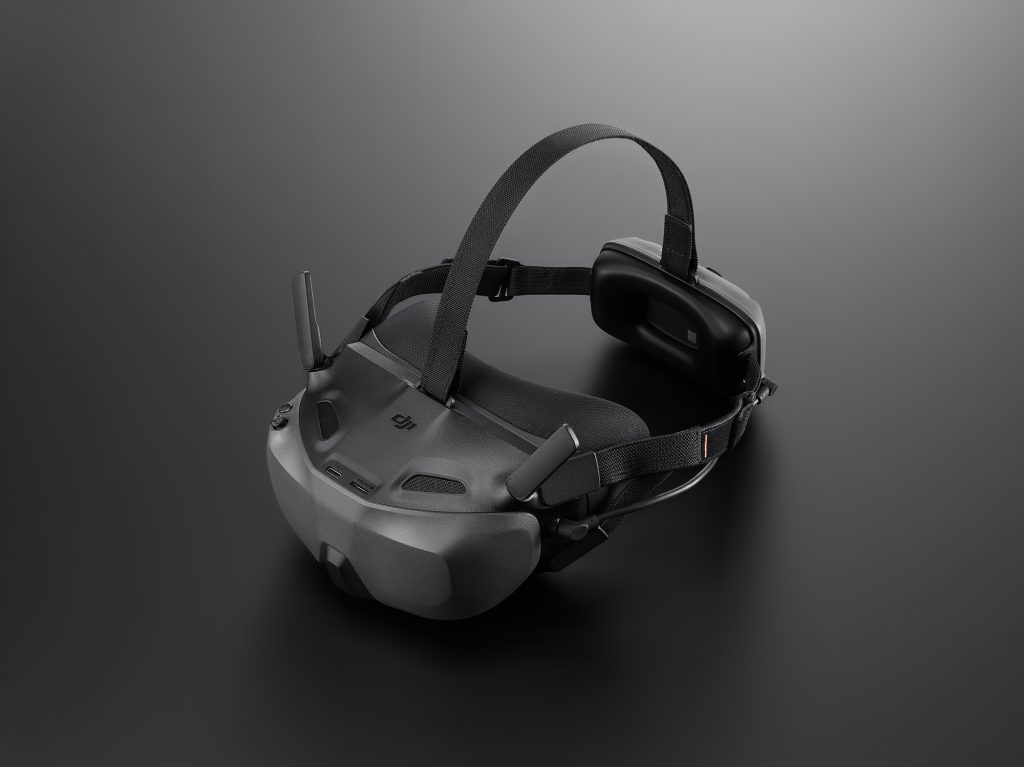

DJI Goggles N3

Description

The DJI Goggles N3 delivers an immersive, cinema-quality flight experience with a 1080p ultra-wide screen and minimal latency, bringing breathtaking visuals and fluid real-time transmission to every flight. Paired with DJI Neo or Avata 2, you can activate head tracking to navigate using intuitive head or wrist movements, creating a seamless drone-pilot connection. With 2.7 hours of operating time, enjoy extended aerial adventures without interruption, capturing every stunning moment.

Features:

• Immersive Flight Experience
• Ready to Use
• 1080p Ultra-Wide Screen
• DJI O4 Video Transmission
• AR Cursor
• 2.7-Hour Max Operating Time

Embrace the Pilot’s Perspective

When paired with DJI Neo/DJI Avata 2 and DJI RC Motion 3, ^[2] DJI Goggles N3 lets you soar through the skies and enjoy an immersive flight experience, as if you were in the pilot seat. Activate the head tracking function to control Neo/Avata 2 with head or wrist movements, achieving seamless synergy between you and your drone.

Easily unlock the aerial acrobatics of Neo, and let Goggles N3 immerse you in the thrilling experience of 360° front/back flips, left/right rolls, and 180° drifts.

Unlock the Easy ACRO feature – Power Loop with Avata 2 with a single push (no need for advanced Manual mode controls with the DJI FPV Remote Controller series), and experience adrenaline-pumping excitement with DJI Goggles N3.

Ready to Use, Streamlined Creation

• Roomy and Eyewear-Friendly Design

The roomy interior comfortably accommodates glasses, without needing diopter adjustments or lens installations. Simply put them on, and you can take off right away.

• Integrated Design

The integrated headband and battery design balance the overall weight of the goggles, ensuring no pressure on your face for a comfortable fit.

One-Tap Defogging

When fog builds up on the surface of the lenses, the defogging function effectively controls moisture by accelerating the internal fan speed to swiftly circulate air, making it ideal for changing temperatures and high-humidity conditions.

1080p Ultra-Wide Screen

DJI Goggles N3 has a full 1080p 60Hz LCD screen and an impressive 54° FOV. Enjoy stunning visuals with minimal dizziness as impactful aerial scenes come alive before your eyes.

LCD Screen Material

1920×1080 Screen Resolution

60 Hz Max Screen Refresh Rate

1350 nits Max Screen Brightness

 O4 FHD Video Transmission

• Ultra-Low Latency, Stable Video Transmission

The advanced DJI O4 digital video transmission system adopts a 2T4R antenna design, offering exceptional anti-interference performance. Enjoy 1080p/60fps live feeds with a minimum latency of 31 ms and a transmission range of up to 13 km. The goggles automatically select the optimal frequency band between 2.4 GHz and 5.8 GHz based on the environment. This ensures stable transmission so you can experience flying in real-time and get a buttery-smooth live view.

 With a max video transmission bitrate of 60 Mbps and SyncSmooth technology, video transmission from the skies to the ground is optimized, providing a smooth live view even when flying at a high speed.

Smooth Flight, Powerful Operating Time

• AR Cursor

DJI RC Motion 3 ^[2] can be used as an AR cursor before the aircraft takes off, or when the aircraft is braking or hovering. This allows you to effortlessly activate functions and adjust settings without taking your hands off RC Motion 3.

Real-Time Live Feed Sharing

Connect DJI Goggles N3 to your smartphone using a USB-C cable, and you can display a secondary live feed through the DJI Fly app. This allows others to check the live view in real-time, making sharing and teaching convenient and efficient.

Panorama Video Playback

Import panoramic videos onto a microSD card, and you can watch them through DJI Goggles N3. Enjoy a cinematic viewing experience in everyday life.

2.7-Hour Operating Time

A fully charged DJI Goggles N3 can last through the use of up to 13 DJI Neo batteries. ^[7] With a powerful 2.7-hour operating time, ^[1] you can unleash your creative passion and potential to the fullest.

DJI Goggles Series Comparison

DJI Goggles N3	DJI Goggles 3
One 1080p Ultra-Wide LCD Screen FOV: 54°	Dual Micro-OLED Screens FOV: 44°
Ready to Use With Glasses On	Adjustable Diopters -6.0 D to +2.0 D
–	Real View PiP
USB-C Wired Live Feed Sharing	Wi-Fi Wireless/USB-C Wired Live Feed Sharing
Integrated Battery Design 2.7-Hour Max Operating Time [1]	Integrated Battery Design 3-Hour Max Operating Time [8]
DJI O4 Video Transmission Max Transmission Bitrate: 60 Mbps ( 2) [6]	DJI O4 Video Transmission Max Transmission Bitrate: 60 Mbps (Avata 2) [9]
Compatible Models DJI Neo DJI Avata 2	Compatible Models DJI Neo DJI Avata 2 DJI Air 3 DJI Mini 4 Pro



Specifications:

GOGGLES

• Model: TKGSM
• Weight:
  • Approx. 536 g (battery and headband included)
  • 349 g (battery and headband excluded)
• Dimensions:
  • With antennas folded: 193×163×103 mm (L×W×H)
  • With antennas unfolded: 206×163×132 mm (L×W×H)
• Screen Size (single screen): 3.5 inches
• Resolution (single screen): 1920×1080
• Refresh Rate: Up to 60 Hz
• Interpupillary Distance Range: No interpupillary distance adjustment required, ready to use immediately.
• Diopter Adjustment Range: Diopter adjustment not supported, can be used with personal glasses.
• FOV (single screen): 54°
• Video Recording Format: MOV (video format: H.264)
• Supported Video and Audio Playback Formats:
  • MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
  • Panoramic Video: Spherical 2D panoramic videos
  • Max Video Specification: 4K/60fps
• Real View Display: Real View not supported.
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Power Input: Built-in battery
• Supported SD Cards: microSD (up to 512 GB)
• Recommended microSD Cards:
  • Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  • Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  • Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  • Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
  • Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
  • Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
  • Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
  • Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC

VIDEO TRANSMISSION

• Video Transmission: O4
• Operating Frequency:
  • 2.400-2.4835 GHz
  • 5.150-5.250 GHz
  • 5.725-5.850 GHz
  • Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
• Transmitter Power (EIRP):
  • 2.4 GHz:
    • ＜30 dBm (FCC)
    • < 20 dBm (CE/SRRC/MIC)
  • 5.1 GHz:
    • < 23 dBm (CE)
    • < 21 dBm (FCC)
  • 5.8 GHz:
    • ＜33 dBm (FCC)
    • < 30 dBm (SRRC)
    • < 14 dBm (CE)
• Max Transmission Distance:
  • With DJI Avata 2:
    • 13 km (FCC)
    • 10 km (CE/SRRC/MIC)
  • With DJI Neo:
    • 10 km (FCC)
    • 6 km (CE/SRRC/MIC)
• Max Video Bitrate:
  • With DJI Avata 2: 60 Mbps
  • With DJI Neo: 50 Mbps
  • Measured in an open, outdoor environment without interference or obstructions. Actual data varies with the operating environment.

GFSK

• Operating Frequency: 2.400-2.4835 GHz
• Transmitter Power (EIRP):
  • < 26 dBm (FCC)
  • < 20 dBm (CE/SRRC/MIC)

BATTERY

• Dimensions: 120×71×44 mm (L×W×H)
• Capacity: 2450 mAh
• Voltage: 6.33-8.4 V
• Type: Li-ion
• Chemical System: LiNiMnCoO2
• Energy: 17.28 Wh
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Max Charging Power: 5 V/3 A (charging when powered off)
• Runtime:
  • 2.7 hours
  • The 2.7-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles’ battery fully charged and not supplying power to external devices such as smartphones.

Package Includes:

• 1 x DJI Goggles N3
• 1 x DJI Goggles N3 Foam Padding
• 1 x DJI RC Motion 3
• 1 x Lanyard
