Description

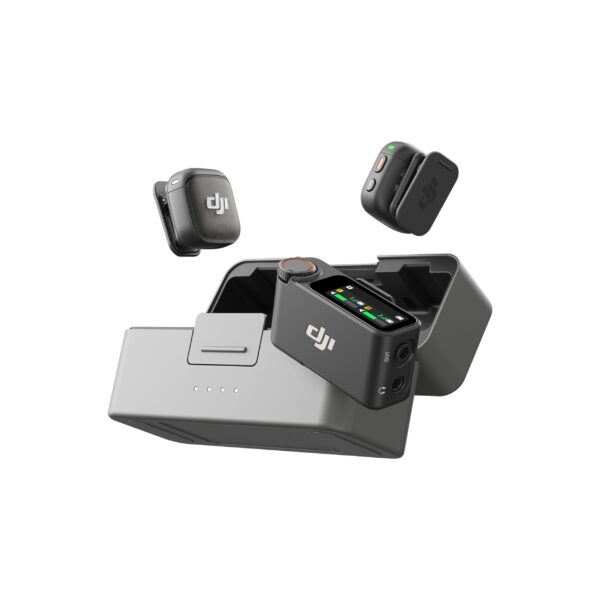

The DJI Mic 3 (2 TX + 1 RX + Charging Case) redefines wireless audio with professional-grade clarity, adaptive gain control, and dual-band reliability for creators who demand flawless sound. With 32-bit float internal recording, intelligent noise cancellation, and up to 28 hours of extended power, this all-in-one system ensures seamless performance, making it the ultimate choice for vlogging, live streaming, filmmaking, and multi-source productions.

DJI Mic 3 supports automatic frequency hopping between 2.4 GHz and 5 GHz bands, with a transmission range of up to 400 meters. Its robust anti-interference capabilities ensure stable audio transmission, even in complex wireless environments like trade shows.

Features

• Lightweight & Intuitive, Compact Storage
• 4TX + 8RX Capability & Four-Channel Output
• Adaptive Gain Control for Balanced Volume
• Three Voice Tone Presets, Two-Level Noise Cancelling
• Dual Band Anti-Interference, Lossless Audio Transmission
• Dual-File 32-bit Float Internal Recording
• Integrated Timecode for Seamless Editing
• Extended Operating Time & Fast Charging

Specifications

General Specifications

• Polar Pattern: Omnidirectional
• Frequency Response: Low Cut Off: 20 Hz–20 kHz (encoded), 20 Hz–24 kHz (lossless); Low Cut On: 100 Hz–20 kHz (encoded & lossless)
• Microphone Sensitivity: -36±1 dBV@1 kHz, 94 dB SPL
• SNR: 72 dB
• Max SPL: 126 dB SPL@1% THD; 130 dB SPL@10% THD
• Sampling Frequency: 48 kHz
• Bit Depth: 32-bit float/24-bit (switchable)
• Max Input Level (3.5 mm): –
• Equivalent Noise: 22 dBA
• Monitor Interface Output Power: Max 20 mW@1 kHz, 32 Ω
• Max Transmission Distance: 400 m (open, interference-free) | 80 m (high-interference, lab conditions)

DJI Mic 3 Transmitter (Model: DMT03)

• Dimensions: 28.77 × 28.34 × 16.35 mm (L×W×H) (with magnet)
• Weight: 16 g (with magnet)
• Wireless Mode: Wi-Fi 802.11 a/b/g/n/ac/ax; SDR Customizable
• Wireless Mode Operating Frequency: Wi-Fi: 2.400–2.4835 GHz, 5.725–5.850 GHz | SDR: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.850 GHz (varies by region)
• EIRP: Wi-Fi: 2.400–2.4835 GHz < 20 dBm (FCC/CE/SRRC/MIC); 5.725–5.850 GHz < 20 dBm (FCC/SRRC), < 14 dBm (CE) | SDR: 2.400–2.4835 GHz < 20 dBm; 5.150–5.250 GHz < 20 dBm; 5.250–5.350 GHz < 20 dBm; 5.470–5.725 GHz < 20 dBm; 5.725–5.850 GHz < 20 dBm (FCC/SRRC), < 14 dBm (CE)
• Bluetooth: Protocol 5.4; Frequency 2.400–2.4835 GHz
• Bluetooth EIRP: BLE < 10 dBm; BR/EDR < 20 dBm
• Battery: Li-ion, 137 mAh, 0.531 Wh, 3.87 V
• Charging Specification: Max 5 V
• Charging Time: Approx. 50 minutes
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Operating Time: ~8 hours (measured in controlled conditions)
• Internal Recording Duration: 24-bit single 57.3 hrs; 24-bit dual 28.6 hrs; 32-bit float single 43.0 hrs; 32-bit float dual 21.5 hrs

DJI Mic 3 Receiver (Model: DMR03)

• Dimensions: 53.85 × 28.69 × 22.00 mm (L×W×H)
• Weight: 25.1 g
• Wireless Mode: Wi-Fi 802.11 a/b/g/n/ac/ax; SDR Customizable
• Operating Frequency: Wi-Fi: 2.400–2.4835 GHz, 5.725–5.850 GHz | SDR: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz, 5.725–5.850 GHz
• EIRP: Same as transmitter
• Bluetooth: Protocol 5.4; Frequency 2.400–2.4835 GHz
• Bluetooth EIRP: BLE < 10 dBm
• Battery: Li-ion, 275 mAh, 1.065 Wh, 3.87 V
• Charging Specification: Max 5 V
• Charging Time: Approx. 50 minutes
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Operating Time: ~10 hours (measured in controlled conditions)

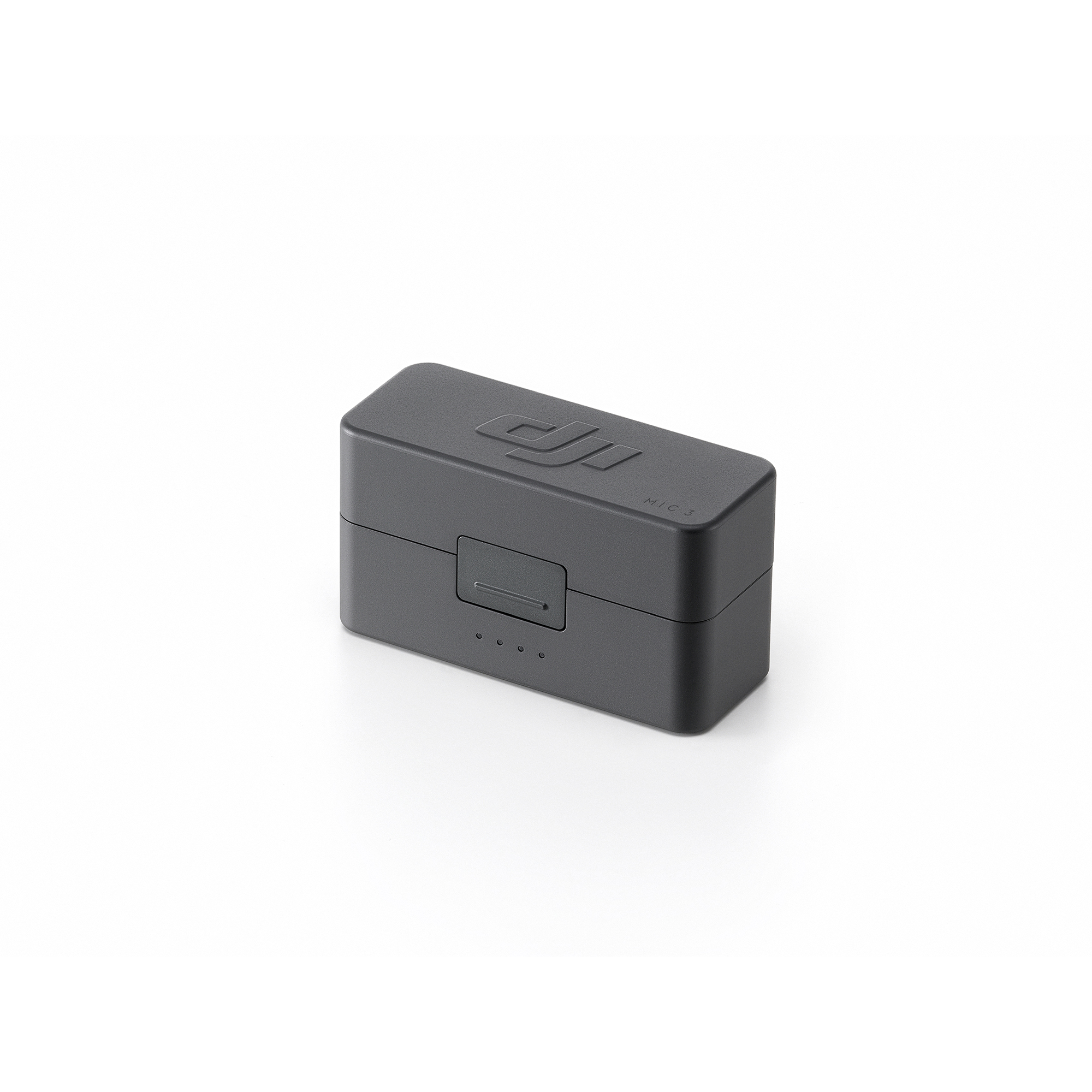

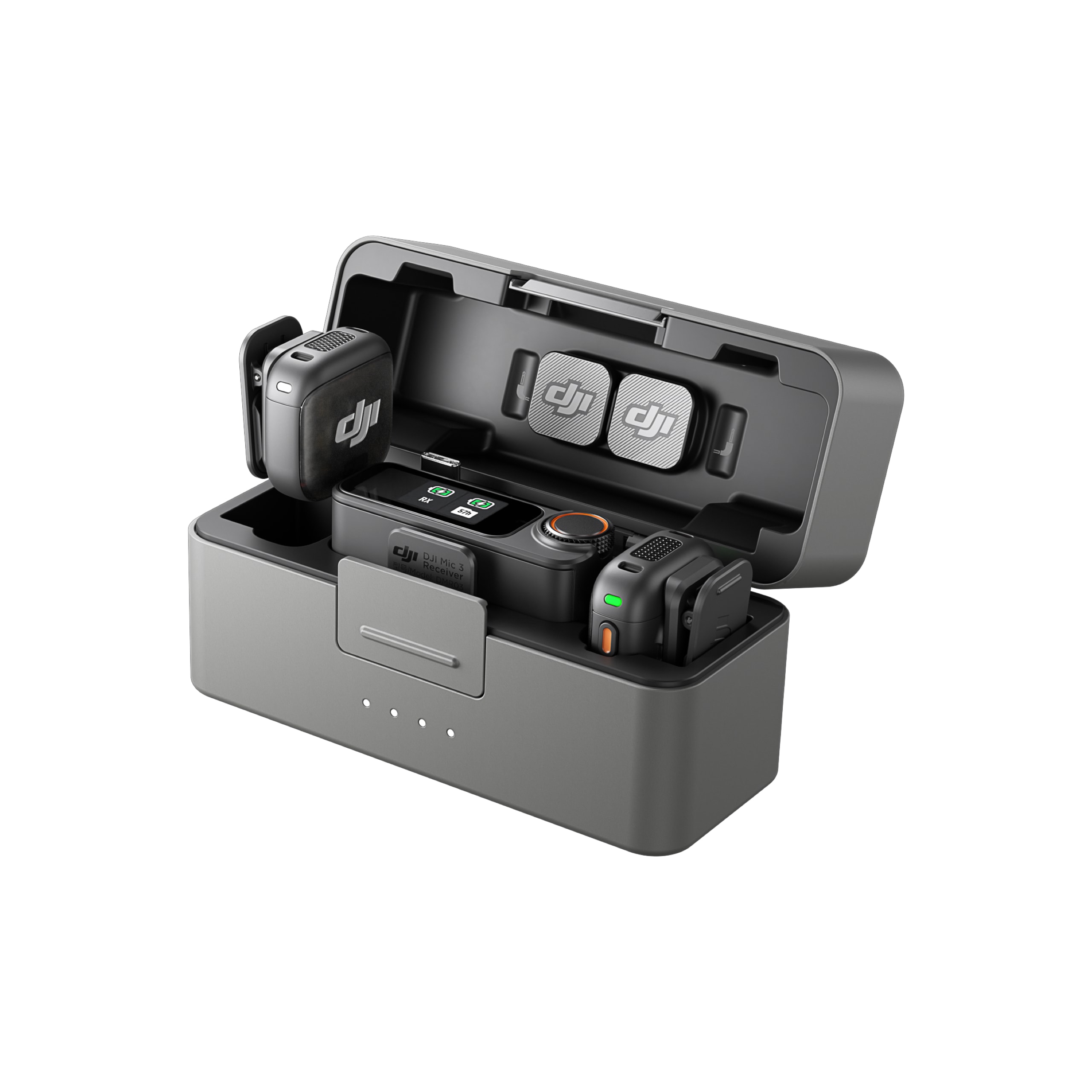

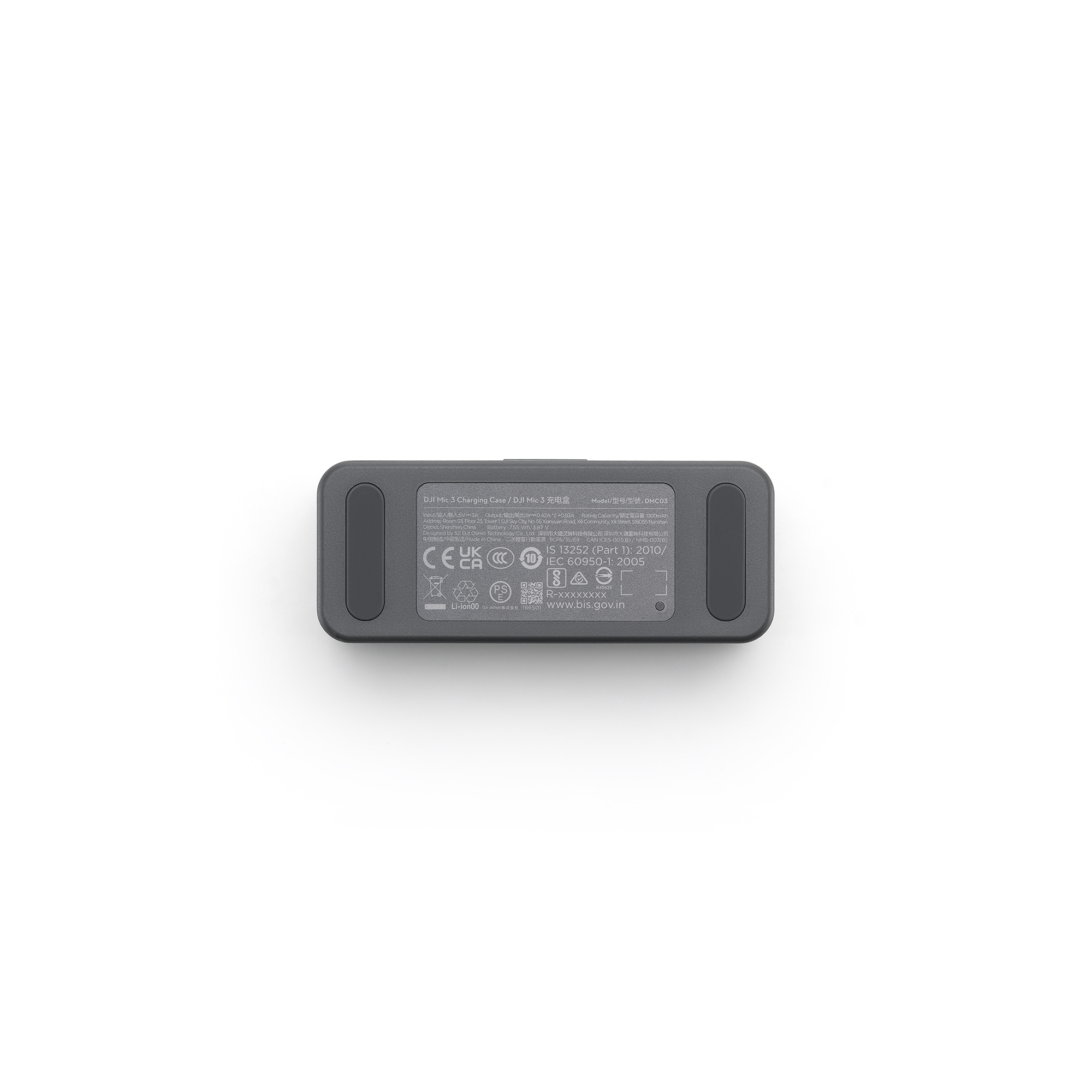

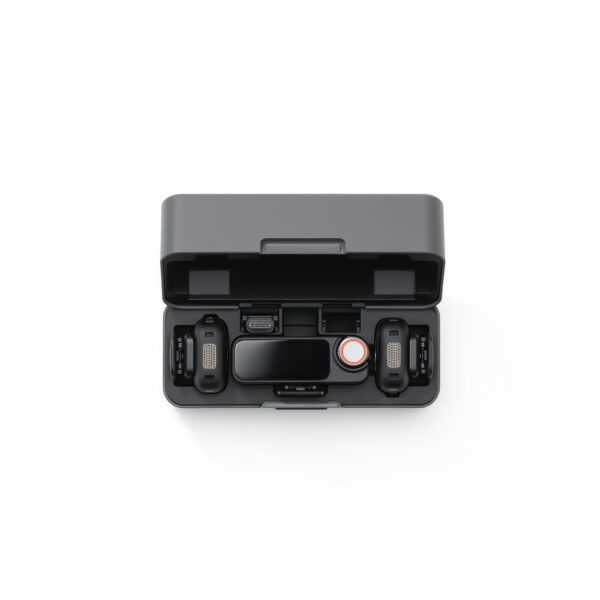

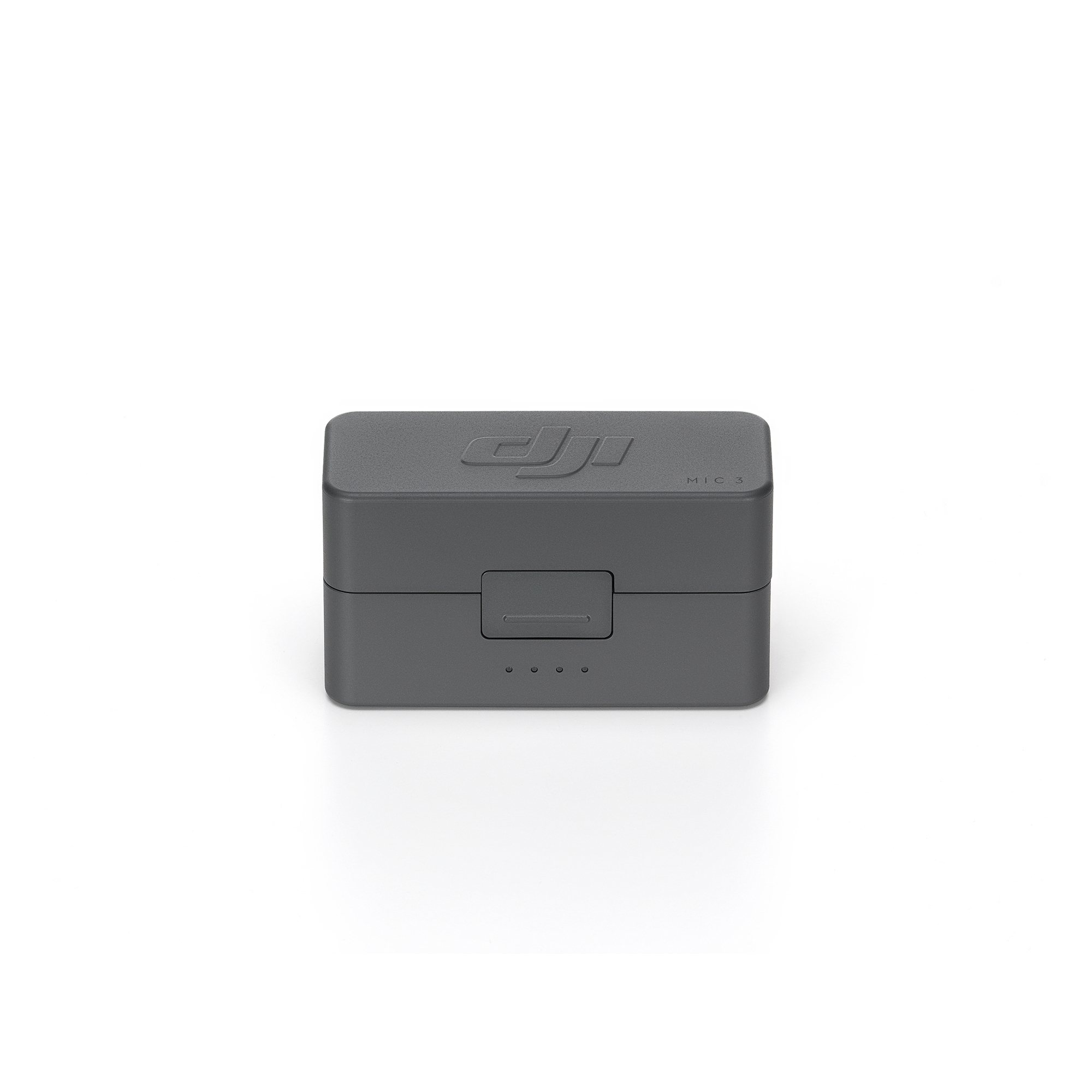

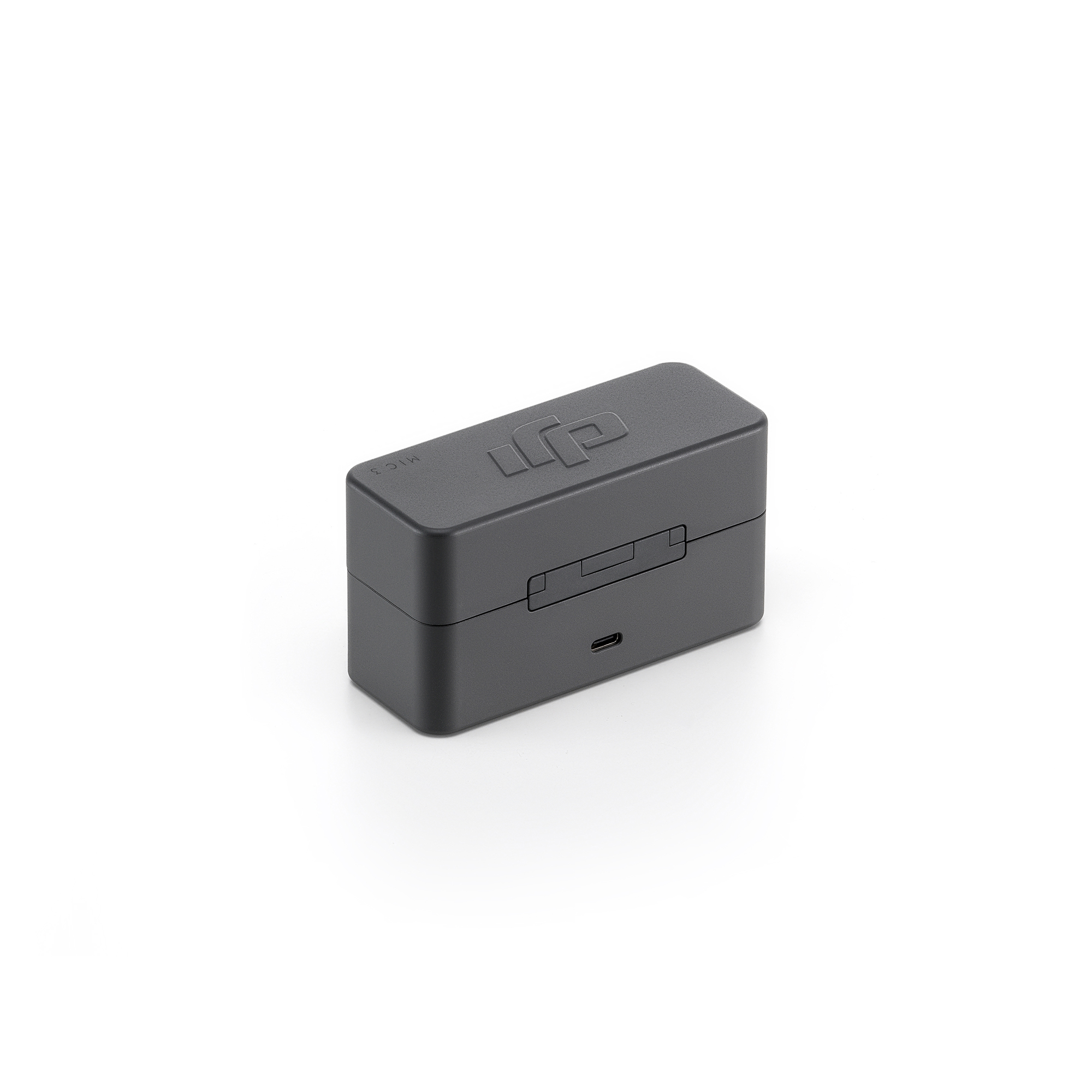

DJI Mic 3 Charging Case (Model: DMC03)

• Dimensions: 106.30 × 42.50 × 59.20 mm (L×W×H)
• Weight: 164.1 g (case only)
• Battery: Li-ion, 1950 mAh, 7.55 Wh, 3.87 V
• Charging Specification: Max 5 V, 1.5–2 A
• Charging Time: Approx. 1.5 hours
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Cycles for TX/RX: Fully charges 2 transmitters + 1 receiver ~2.4 times

Timecode

• Supported Frame Rate: 23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 50F, 60F
• Offset: 0.5 ppm (less than 1 frame deviation in 24 hrs)
• Input: LTC | Input Port: 3.5mm TRS | Input Voltage: ≤ +6 dBu
• Output: LTC, Audio-TC | Output Port: 3.5mm TRS, USB-C | Output Voltage: 0.5 Vp-p

Related Products

• DJI Mic 3 (1 TX + 1 RX)

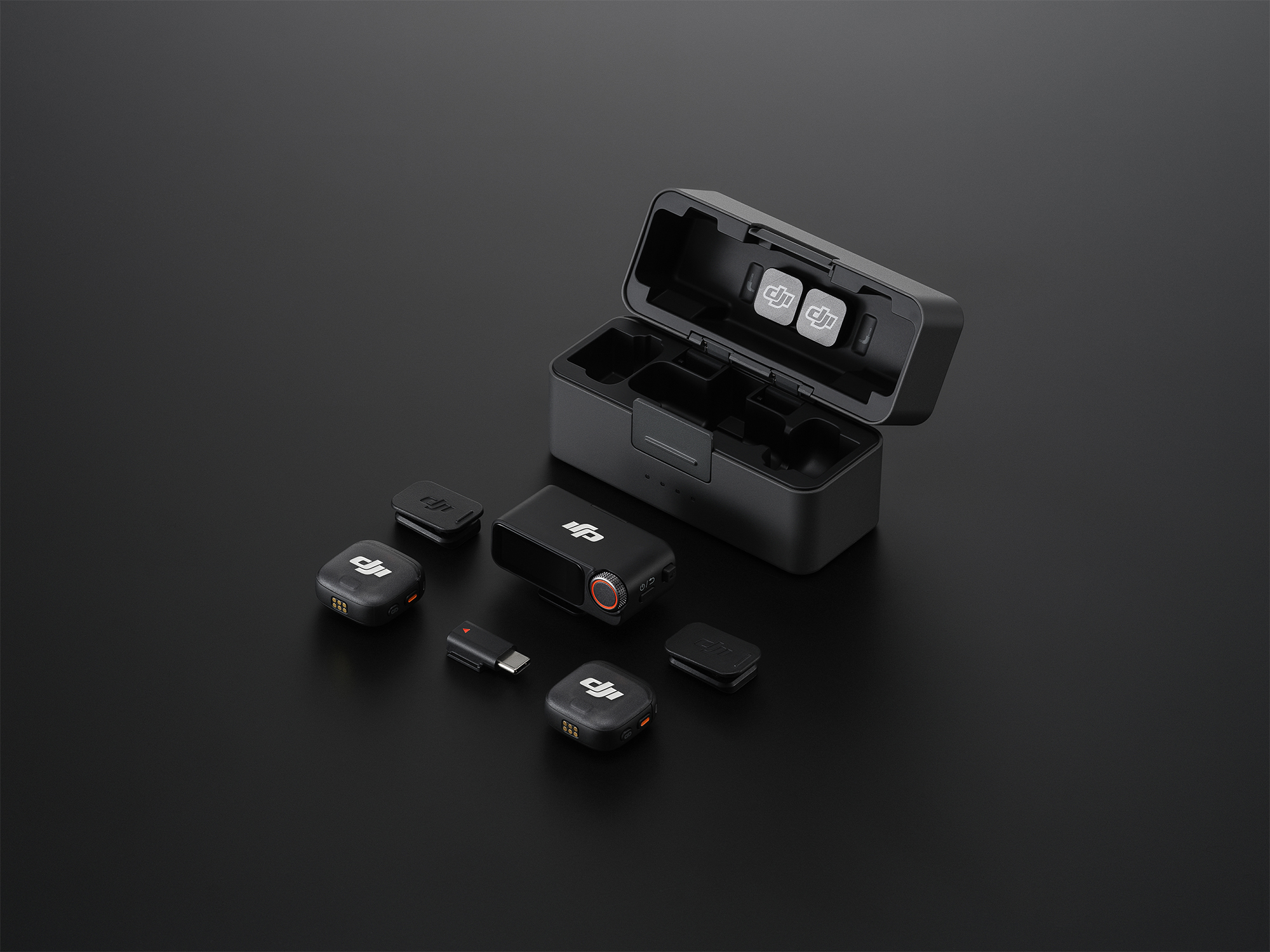

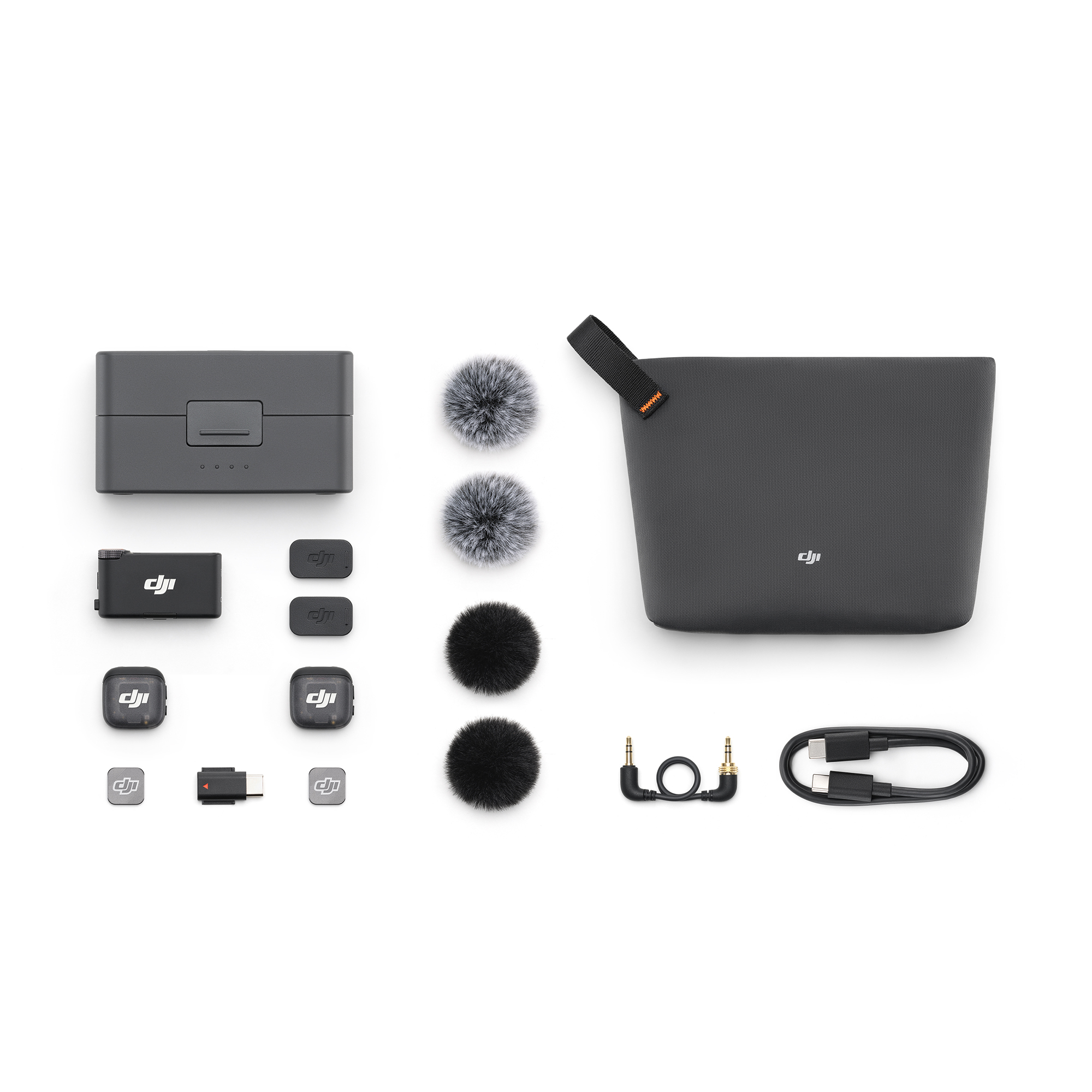

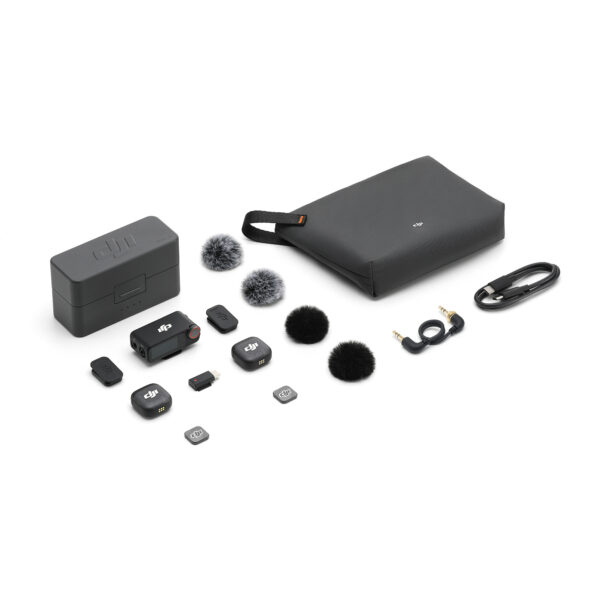

Package Includes

• 2 × DJI Mic 3 Transmitter
• 1 × DJI Mic 3 Receiver

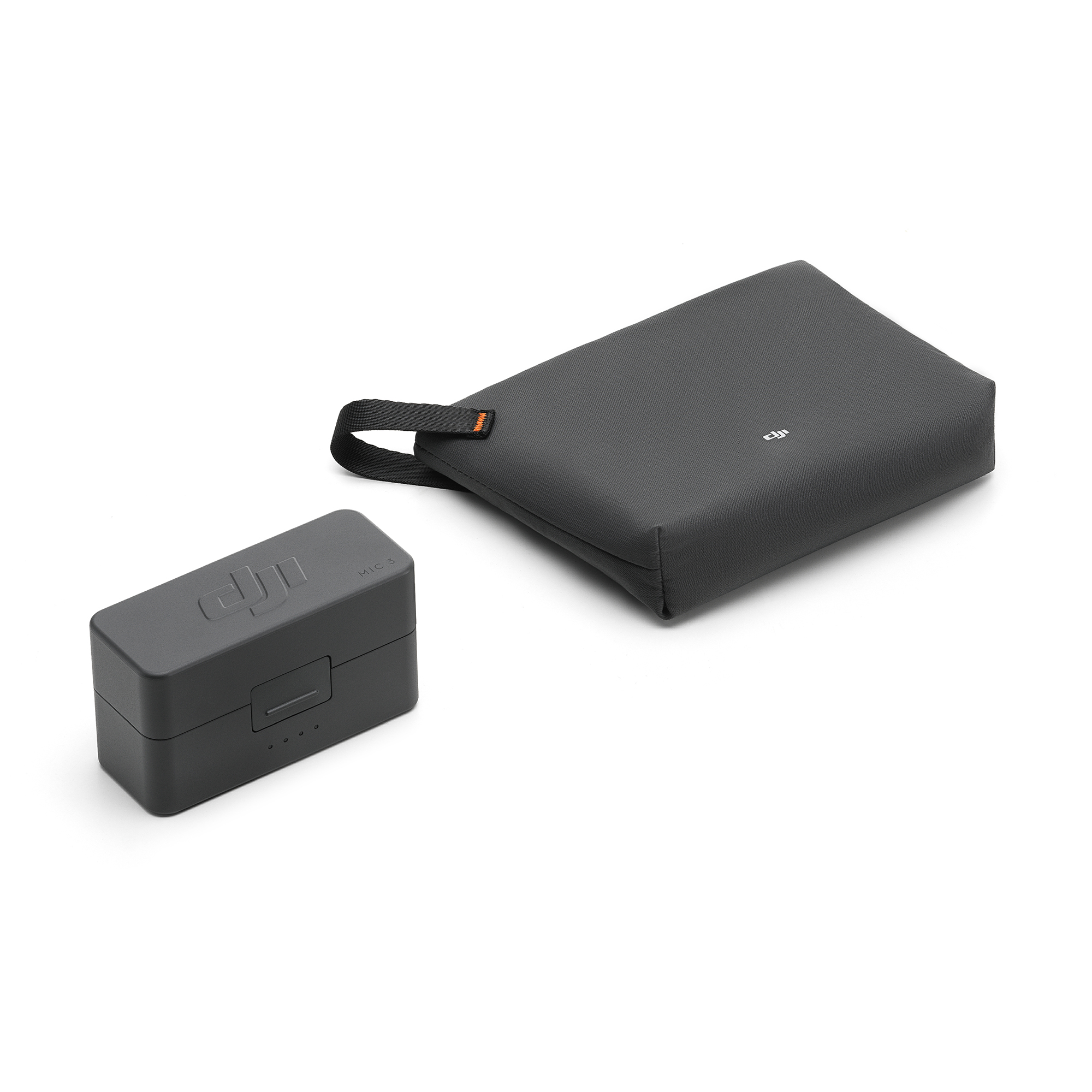

• 1 × DJI Mic 3 Charging Case
• 1 × DJI Mic 3 Mobile Phone Adapter (USB-C)
• 1 × USB-C to USB-C Data Cable
• 1 × DJI Mic 3 Locking Audio Adapter Cable (3.5mm TRS to TRS)
• 2 × DJI Mic 3 Windscreen (Black/Gray)
• 2 × DJI Mic 3 Windscreen (Black)
• 2 × DJI Mic 3 Magnet
• 2 × DJI Mic 3 Magnetic Clip
• 1 × DJI Mic 3 Carrying Pouch
