Description

The DJI Mic Mini 2 (1 TX + 1 Mobile RX + Charging Case) redefines portable audio with ultra-lightweight design, vibrant style options, and seamless multi-device connectivity for creators on the move. Capture crystal-clear sound with smart noise cancelling, automatic limiting, and long-lasting battery power, ensuring every moment is recorded with clarity precision and effortless convenience wherever you go with reliable performance and versatile recording in any situation today easily.

Features

• Lightweight & Versatile, Compact Storage
• High-Quality Audio, Mixed Device Transmission
• Three Voice Tone Presets, Two-Level Noise Cancelling
• Automatic Limiting to Prevent Audio Clipping
• DJI OsmoAudio Direct Connection
• 48-Hour Operating Time & Power Saving

Specifications

General

• Polar Pattern: Omnidirectional
• Frequency Response: Low Cut Off: 20 Hz – 20 kHz / Low Cut On: 100 Hz – 20 kHz
• Maximum Sound Pressure Level (SPL): 120 dB SPL
• Max Input Level (3.5 mm): –
• Equivalent Noise: 24 dBA
• Monitor Interface Output Power: 20 mW@1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
• Max Transmission Distance: 400 m / 300 m / 200 m

DJI Mic Mini 2 Transmitter

• Model: DMMT02
• Dimensions: 28.58×28.04×13.52 mm (L×W×H)
• Weight: Approx. 11 g (excluding the magnet clip and magnet)
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Wireless Mode Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Battery Type: Li-ion
• Battery Capacity: 114 mAh
• Battery Energy: 0.45 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: Approx. 70 minutes
• Operating Time: Approx. 11.5 hours

DJI Mic Mini Receiver

• Model: DMMR01
• Dimensions: 46.50×29.61×19.32 mm (L×W×H)
• Weight: Approx. 17.8 g (including the interface cover)
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Battery Type: Li-ion
• Battery Capacity: 170 mAh
• Battery Energy: 0.66 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: Approx. 100 minutes
• Operating Time: Approx. 10.5 hours

DJI Mic Mini 2 Charging Case

• Model: DMMC02
• Dimensions: 106.30×42.50×59.20 mm (L×W×H)
• Weight: Approx. 159.3 g (charging case only)
• Battery Type: Li-ion
• Battery Capacity: 1950 mAh
• Battery Energy: 7.55 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V, 3 A
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Time: Approx. 2 hours
• Charging Cycles for TX and RX: When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 3.6 times.

DJI Mic Series Mobile Receiver

• Model: DMMR02
• Dimensions: 39.26×27.26×8.97 mm (L×W×H)
• Weight: Approx. 6.5 g
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)

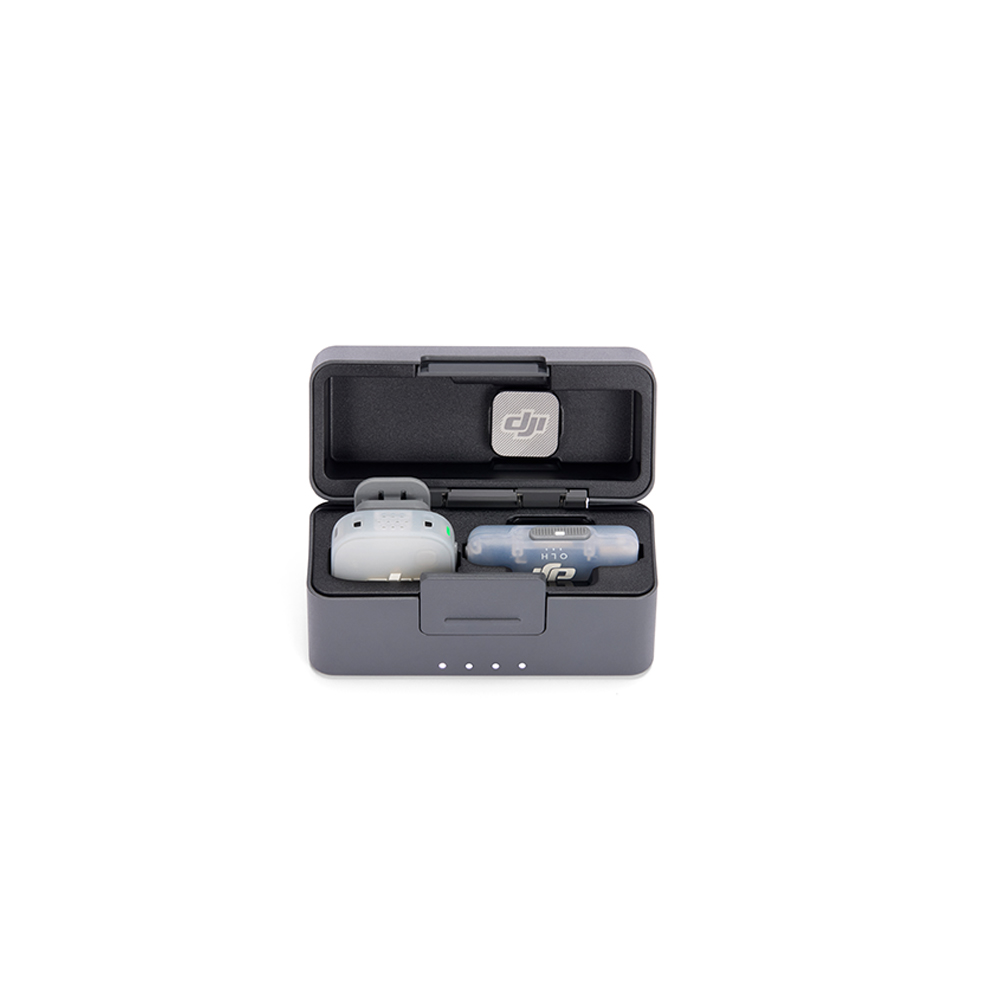

DJI Mic Mini 2 Charging Case (1 TX + 1 Mobile RX)

• Model: DMMCS2
• Dimensions: 78.8×33.07×44.70 mm (L×W×H)
• Weight: Approx. 71.0 g (charging case only)
• Battery Type: Li-ion
• Battery Capacity: 275 mAh
• Battery Energy: 1.07 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V, 3 A
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Time: Approx. 1 hour
• Charging Cycles for TX: Approx. 1.3 cycles when charging one TX

Package Includes

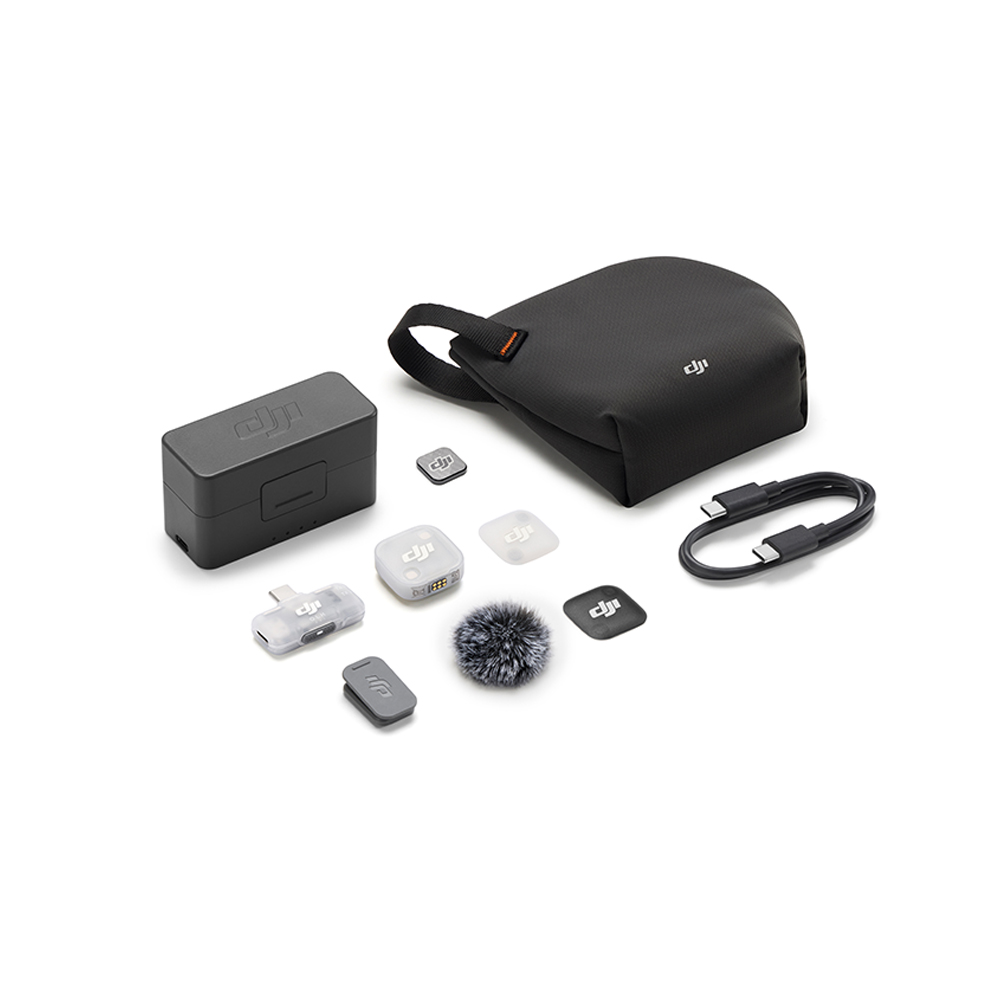

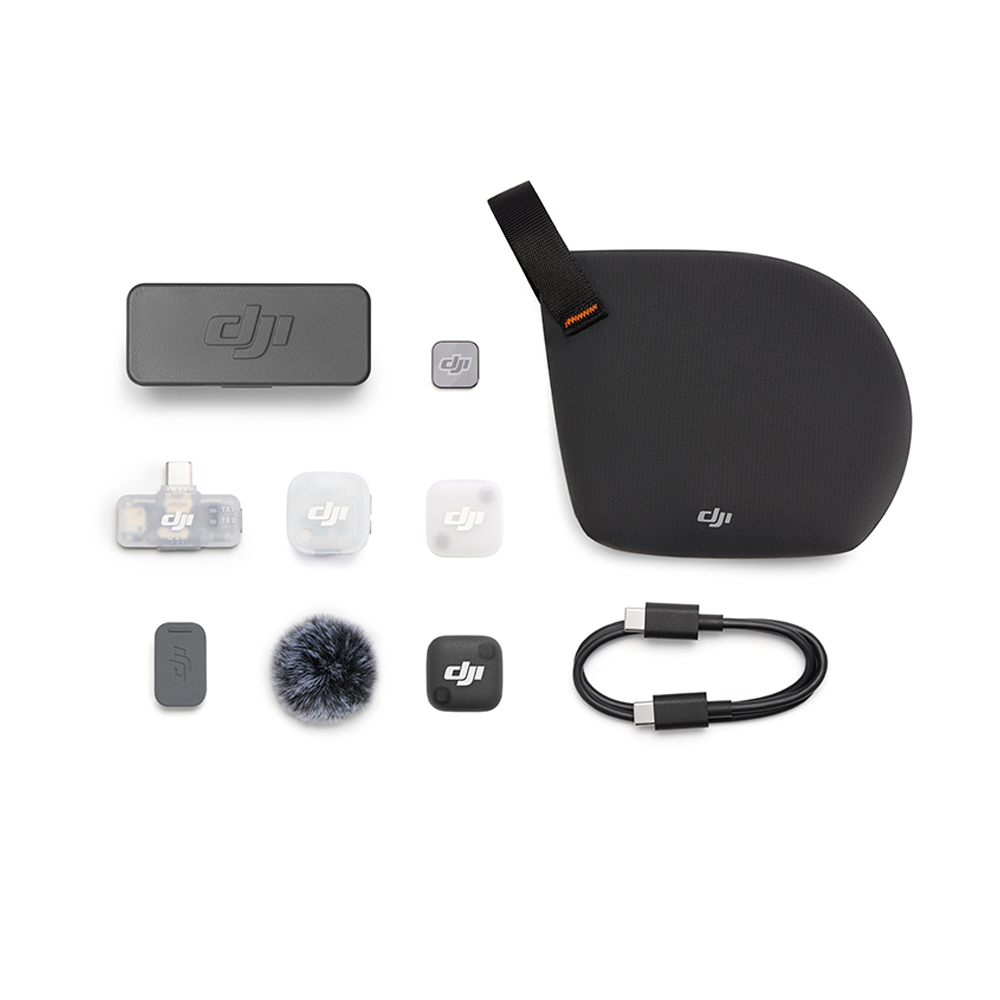

• 1 x DJI Mic Mini 2 (1 TX + 1 Mobile RX + Charging Case)
