Description

The DJI Mic Mini 2 (2 TX + 1 Mobile RX + Charging Case) delivers ultra-compact wireless audio with stylish magnetic covers, pro-grade clarity, and seamless multi-device recording for creators who demand flexibility and performance anywhere. Enjoy rich or bright voice presets, strong noise cancelling, automatic limiting, and up to forty eight hours battery life, all packed in a sleek all-in-one case built for effortless shooting and uninterrupted creativity today.

Features

• Lightweight & Versatile, Compact Storage
• High-Quality Audio, Mixed Device Transmission
• Three Voice Tone Presets, Two-Level Noise Cancelling
• Automatic Limiting to Prevent Audio Clipping
• DJI OsmoAudio Direct Connection
• 48-Hour Operating Time & Power Saving

Specifications

General

• Polar Pattern: Omnidirectional
• Frequency Response: Low Cut Off: 20 Hz – 20 kHz / Low Cut On: 100 Hz – 20 kHz
• Maximum Sound Pressure Level (SPL): 120 dB SPL
• Max Input Level (3.5 mm): –
• Equivalent Noise: 24 dBA
• Monitor Interface Output Power: 20 mW@1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
• Max Transmission Distance: 400 m / 300 m / 200 m

DJI Mic Mini 2 Transmitter

• Model: DMMT02
• Dimensions: 28.58×28.04×13.52 mm (L×W×H)
• Weight: Approx. 11 g (excluding the magnet clip and magnet)
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Wireless Mode Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Battery Type: Li-ion
• Battery Capacity: 114 mAh
• Battery Energy: 0.45 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: Approx. 70 minutes
• Operating Time: Approx. 11.5 hours

DJI Mic Mini Receiver

• Model: DMMR01
• Dimensions: 46.50×29.61×19.32 mm (L×W×H)
• Weight: Approx. 17.8 g (including the interface cover)
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Battery Type: Li-ion
• Battery Capacity: 170 mAh
• Battery Energy: 0.66 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: Approx. 100 minutes
• Operating Time: Approx. 10.5 hours

DJI Mic Mini 2 Charging Case

• Model: DMMC02
• Dimensions: 106.30×42.50×59.20 mm (L×W×H)
• Weight: Approx. 159.3 g (charging case only)
• Battery Type: Li-ion
• Battery Capacity: 1950 mAh
• Battery Energy: 7.55 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V, 3 A
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Time: Approx. 2 hours
• Charging Cycles for TX and RX: When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 3.6 times.

DJI Mic Series Mobile Receiver

• Model: DMMR02
• Dimensions: 39.26×27.26×8.97 mm (L×W×H)
• Weight: Approx. 6.5 g
• Wireless Mode: GFSK 2Mbps
• Equivalent Isotropic Radiated Power (EIRP): < 20 dBm
• Operating Frequency: 2.400-2.4835 GHz
• Bluetooth Protocol: Bluetooth 5.3
• Bluetooth Transmitter Power (EIRP): < 20 dBm
• Bluetooth Operating Frequency: 2.400-2.4835 GHz
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)

DJI Mic Mini 2 Charging Case (1 TX + 1 Mobile RX)

• Model: DMMCS2
• Dimensions: 78.8×33.07×44.70 mm (L×W×H)
• Weight: Approx. 71.0 g (charging case only)
• Battery Type: Li-ion
• Battery Capacity: 275 mAh
• Battery Energy: 1.07 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V, 3 A
• Charging Temperature: 5° to 40° C (41° to 104° F)
• Operating Temperature: 5° to 45° C (41° to 113° F)
• Charging Time: Approx. 1 hour
• Charging Cycles for TX: Approx. 1.3 cycles when charging one TX

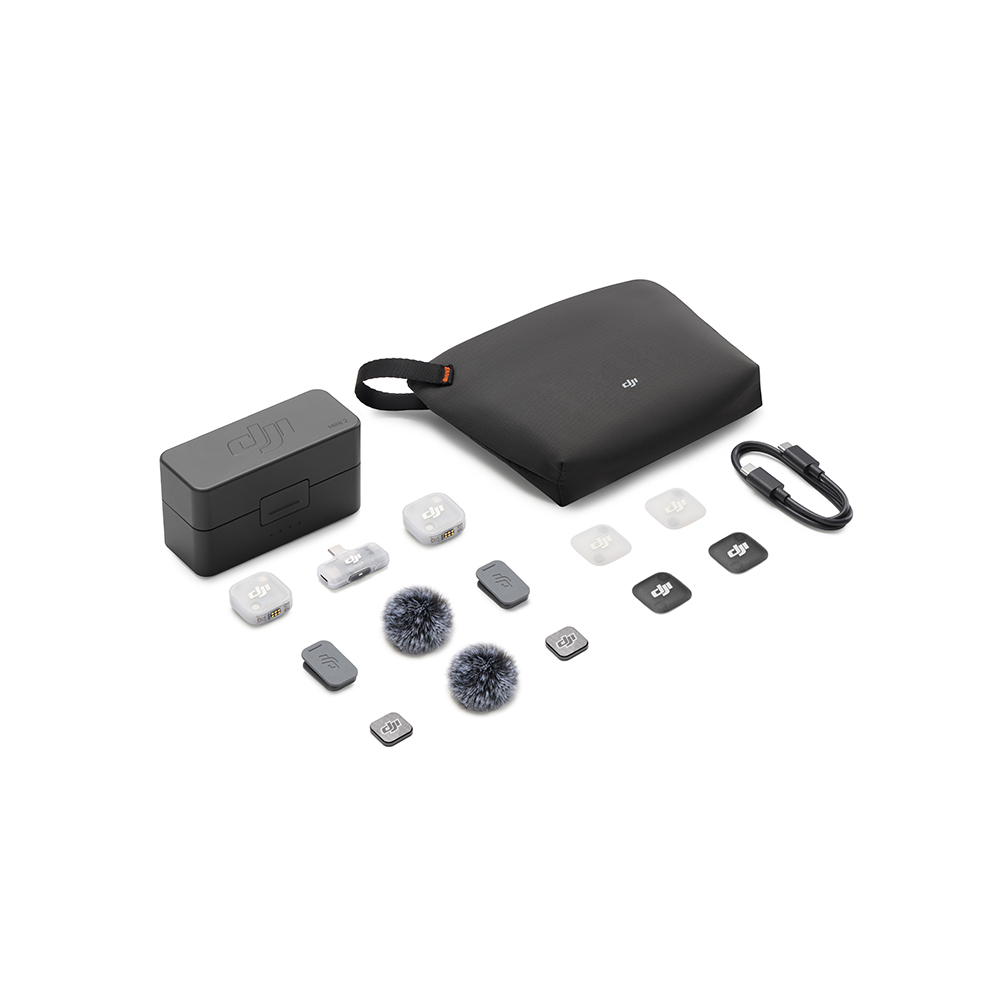

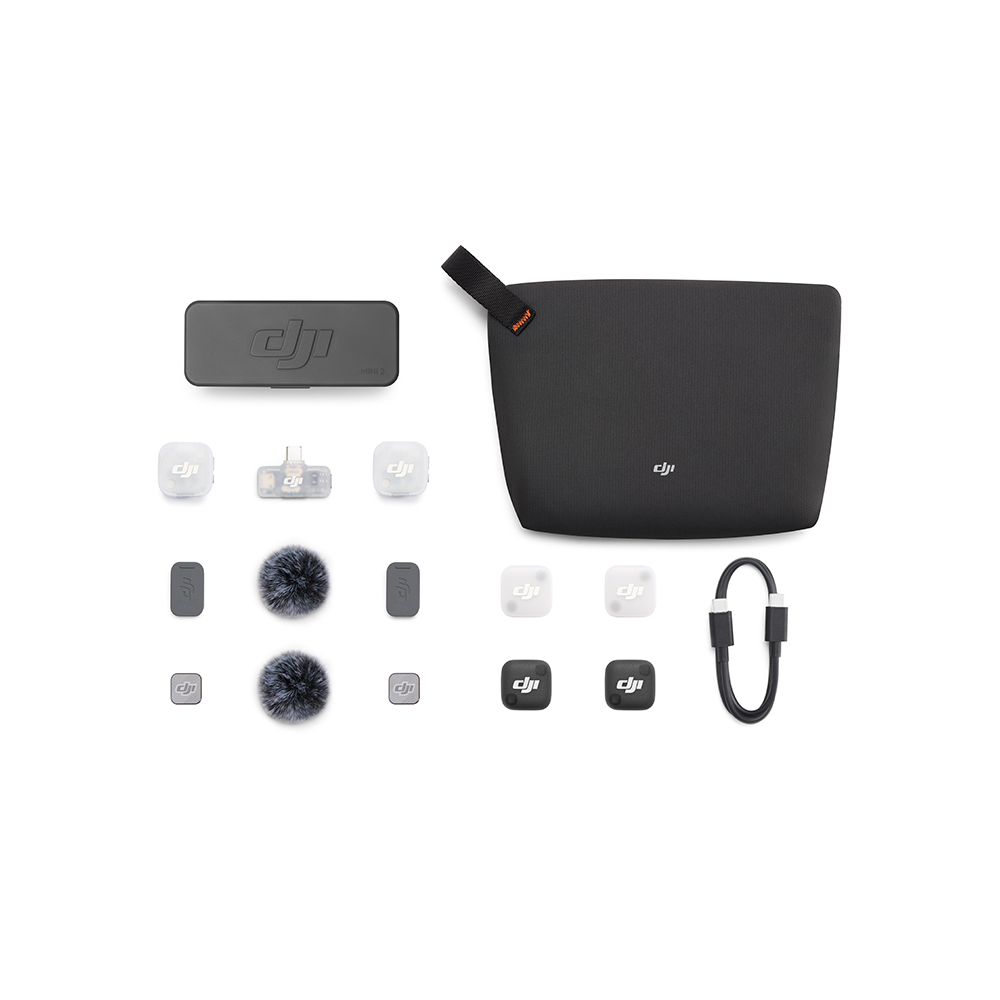

Package Includes

• 1 x DJI Mic Mini 2 (2 TX + 1 Mobile RX + Charging Case)
