DJI OM 7 Series Tracking Kit

Description

The DJI OM 7 Series Tracking Kit enhances your gimbal with intelligent tracking, audio reception, and lighting capabilities. Featuring a magnetic multifunctional module for seamless attachment, it simplifies solo content creation with remote gesture control. The kit includes a magnetic phone clamp and a USB-C cable, ensuring effortless connectivity. Unlock pro-level shots with intuitive operation, making every moment cinematic and dynamic with DJI’s cutting-edge stabilization technology.

Specifications:

GENERAL

• Osmo Mobile 7P Dimensions
  • Unfolded: 288×107×96 mm (L×W×H)
  • Folded: 190×95×46 mm (L×W×H)
• Osmo Mobile 7 Dimensions
  • Unfolded: 278×107×93 mm (L×W×H)
  • Folded: 179×95×39 mm (L×W×H)
• Weight
  • Osmo Mobile 7P: Approx. 368 g (Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module)
  • Osmo Mobile 7: Approx. 300 g (Gimbal + Built-in Tripod + Magnetic Phone Clamp)
  • Data was collected in a controlled environment. Actual experience may vary.
• Extension Rod
  • Osmo Mobile 7P: Built-in Extension Rod, Max Extension Length: 215 mm
  • Osmo Mobile 7: No Built-in Extension Rod
• Compatible Phone Weight: 170-300 g
• Compatible Phone Thickness: 6.9-10 mm
• Compatible Phone Width: 67-84 mm
• Bottom Port: 1/4″ Screw Hole

BATTERY

• Battery
  • Type: Li-Po 1S
  • Capacity: 3350 mAh
  • Energy: 12.06 Wh
  • Charging Temperature: 5° to 40° C (41° to 104° F)
  • Operating Temperature: 0° to 40° C (32° to 104° F)
• Operating Time
  • Osmo Mobile 7P: Approx. 10 hours (Measured with the gimbal balanced in a level and stationary state without additional accessories)
  • Osmo Mobile 7: Approx. 10 hours (Measured with the gimbal balanced in a level and stationary state without additional accessories)
  • With the Multifunctional Module’s intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours.
• Charging Time: Approx. 2.5 hours (Measured with a 10W USB-C charger)
• Gimbal Charging Port: USB-C
• Phone Charging: Supported

GIMBAL

• Controllable Range
  • Pan: -99° to 210°
  • Roll: -67° to 245°
  • Tilt: -20° to 40°
• Mechanical Range
  • Pan: -109° to 222°
  • Roll: -77° to 255°
  • Tilt: -224° to 100°
• Max Control Speed: 120°/s

WIRELESS MODE

• Model: Bluetooth 5.3

SOFTWARE

• App: DJI Mimo

TRIPOD

• Built-in Tripod
  • Length: 67 mm

MULTIFUNCTIONAL MODULE

• Compatibility
  • Osmo Mobile 7P: Supported (standard)
  • Osmo Mobile 7: Supported (optional)
• GFSK
  • Data Rate: 2 Mbps
  • Transmitter Power (EIRP): < 16 dBm
  • Operating Frequency: 2.4000-2.4835 GHz
• Bluetooth Protocol
  • Bluetooth 5.3
  • Transmitter Power (EIRP): < 16 dBm
  • Operating Frequency: 2.4000-2.4835 GHz
• Fill Light
  • Illuminance: 40 lux
  • This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.
  • Color Temperature: 2500-6000 K

Related Products (Not Included):

• DJI OM 7P Osmo Mobile Phone Gimbal
• DJI OM 7 Series Magnetic Phone Clamp
• DJI OM Magnetic Quick-Release Mount
• DJI OM 7 Osmo Mobile Phone Gimbal
• DJI OM Magnetic Phone Clamp 4
• DJI Phone Charging/Audio Recording Cable (USB-C to Lightning)

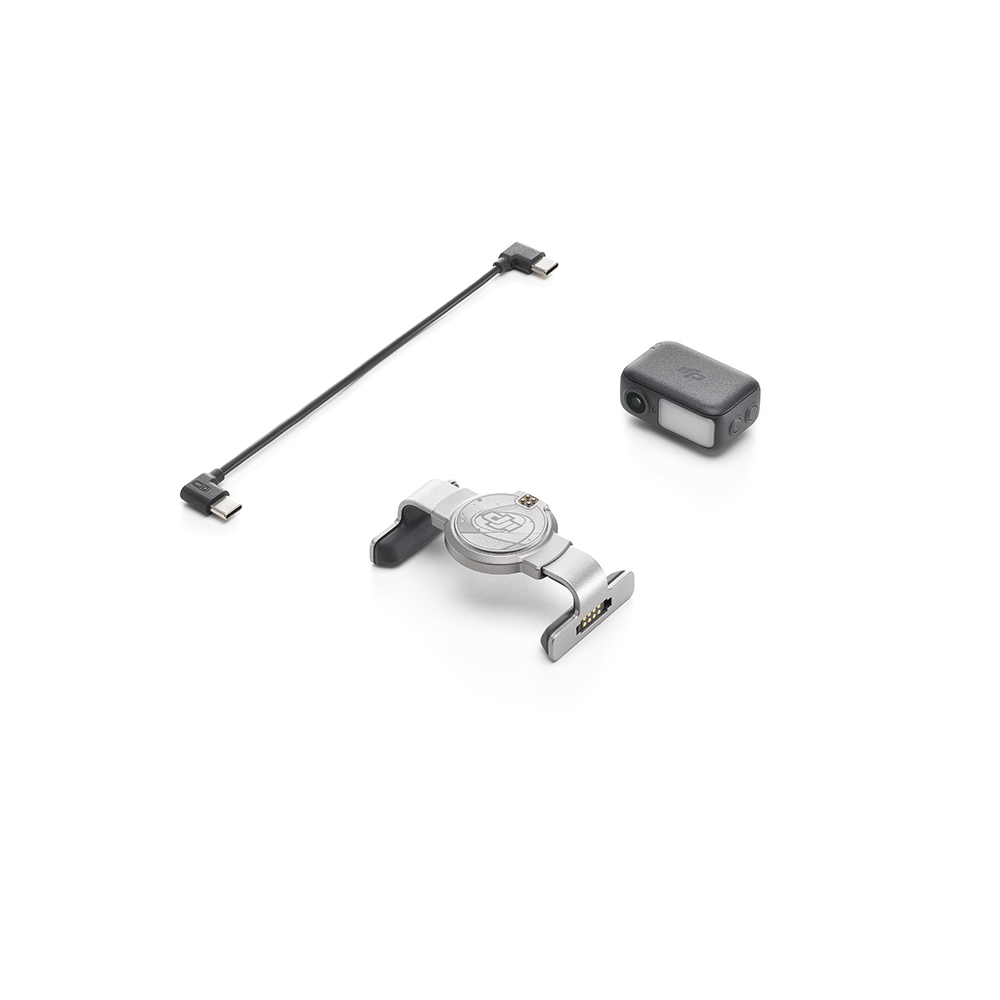

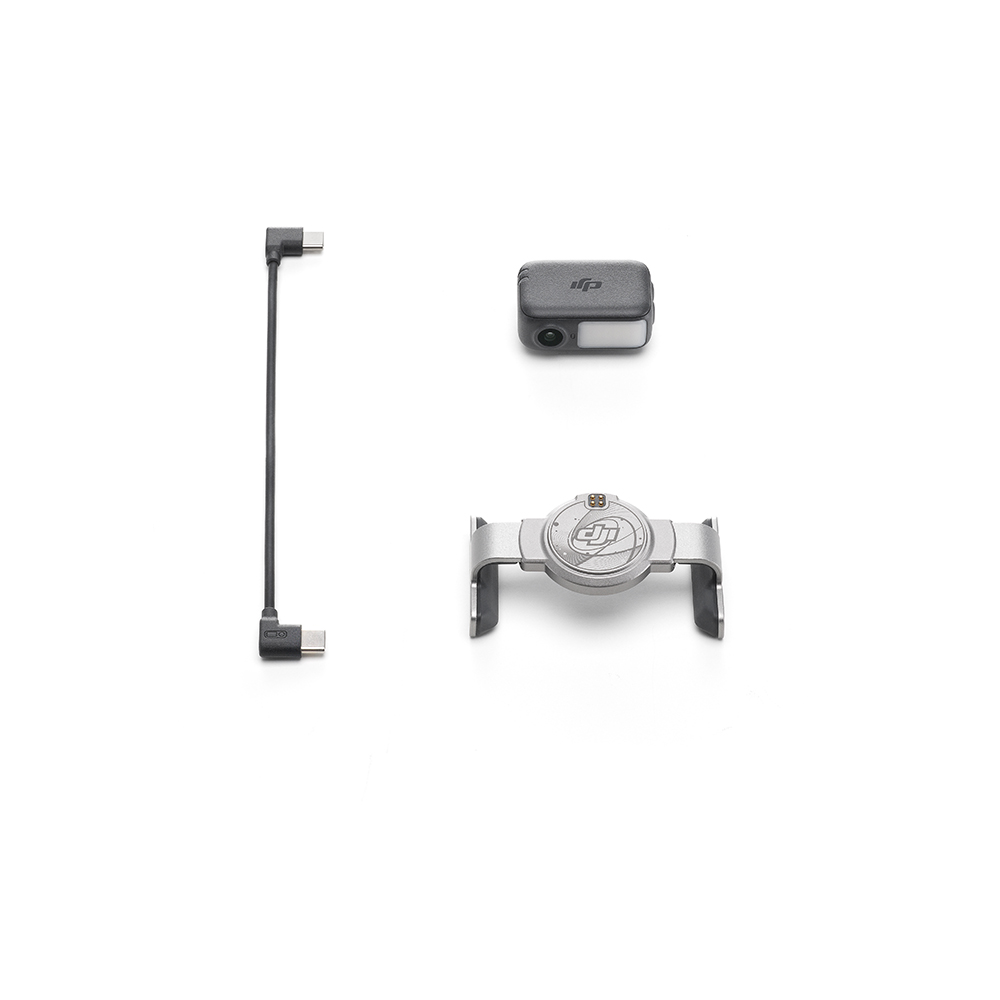

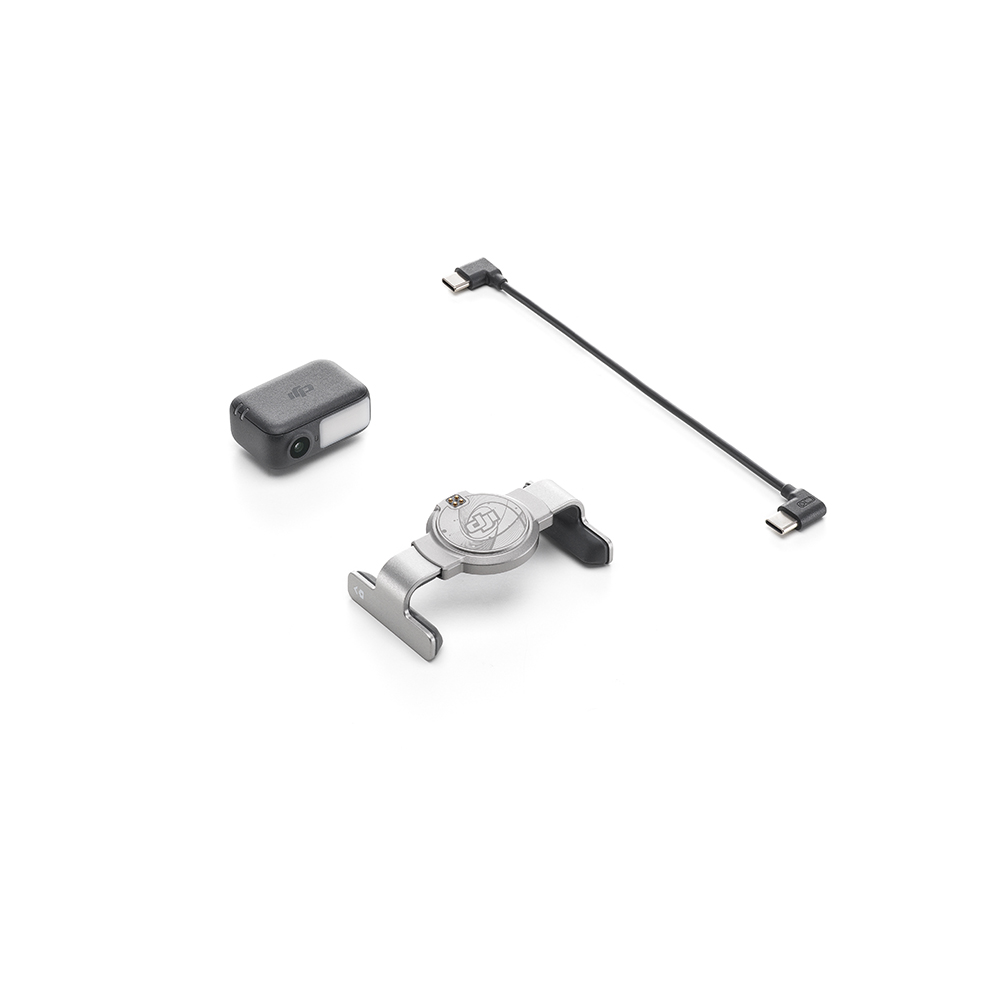

Package Includes:

• 1× DJI OM Multifunctional Module
• 1× DJI OM 7 Series Magnetic Phone Clamp
• 1× Phone Charging/Audio Recording Cable (USB-C to USB-C, 15 cm)
