Description

This is a special order product, please contact us for availability and shipping cost [email protected]

The DJI Power 1000 Mini delivers ultra-portable 1kWh power with fast 0-80% charging in 58 minutes, ensuring reliable energy anywhere. Built with durable LFP chemistry, smart safety systems, versatile outputs including AC, USB-C, USB-A, and SDC, plus a retractable 100W cable and 400W car charging with MPPT, it supports demanding devices while maintaining efficiency, long cycle life, and dependable performance for outdoor adventures, emergency backup, travel, and professional use everywhere.

Features

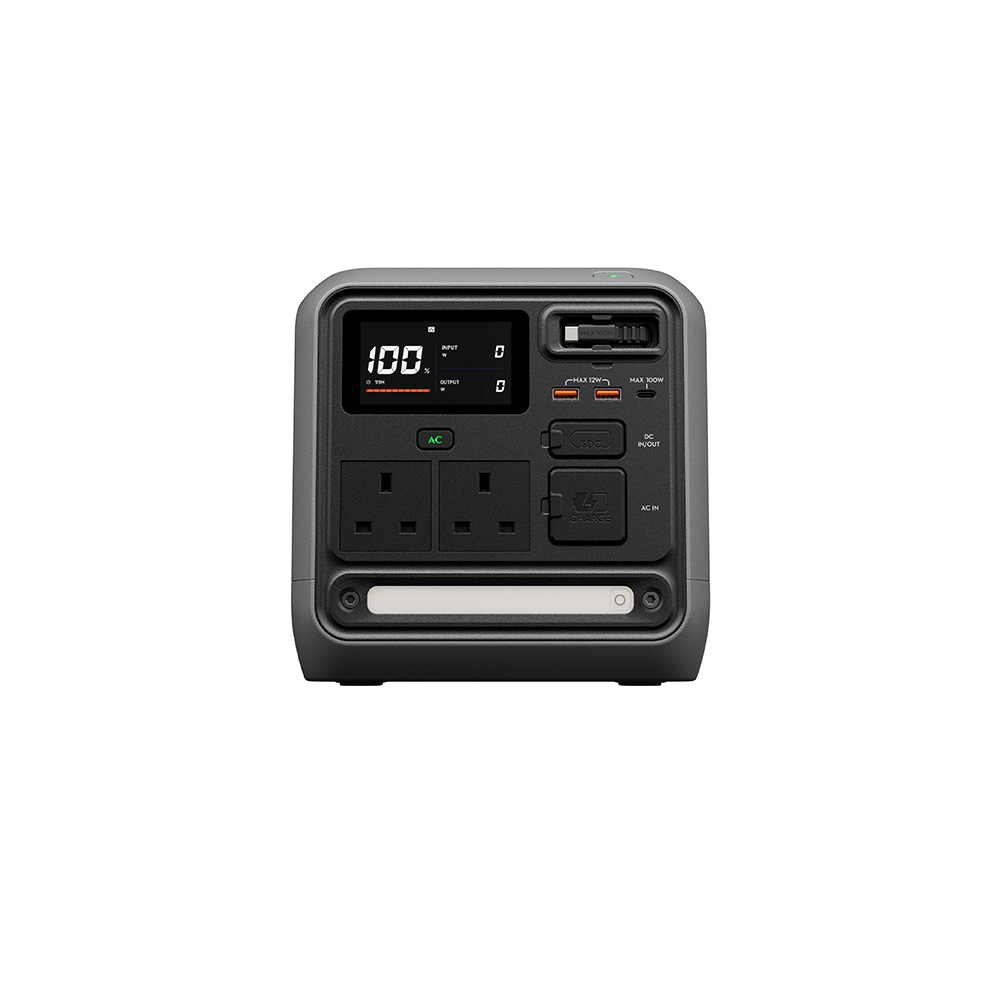

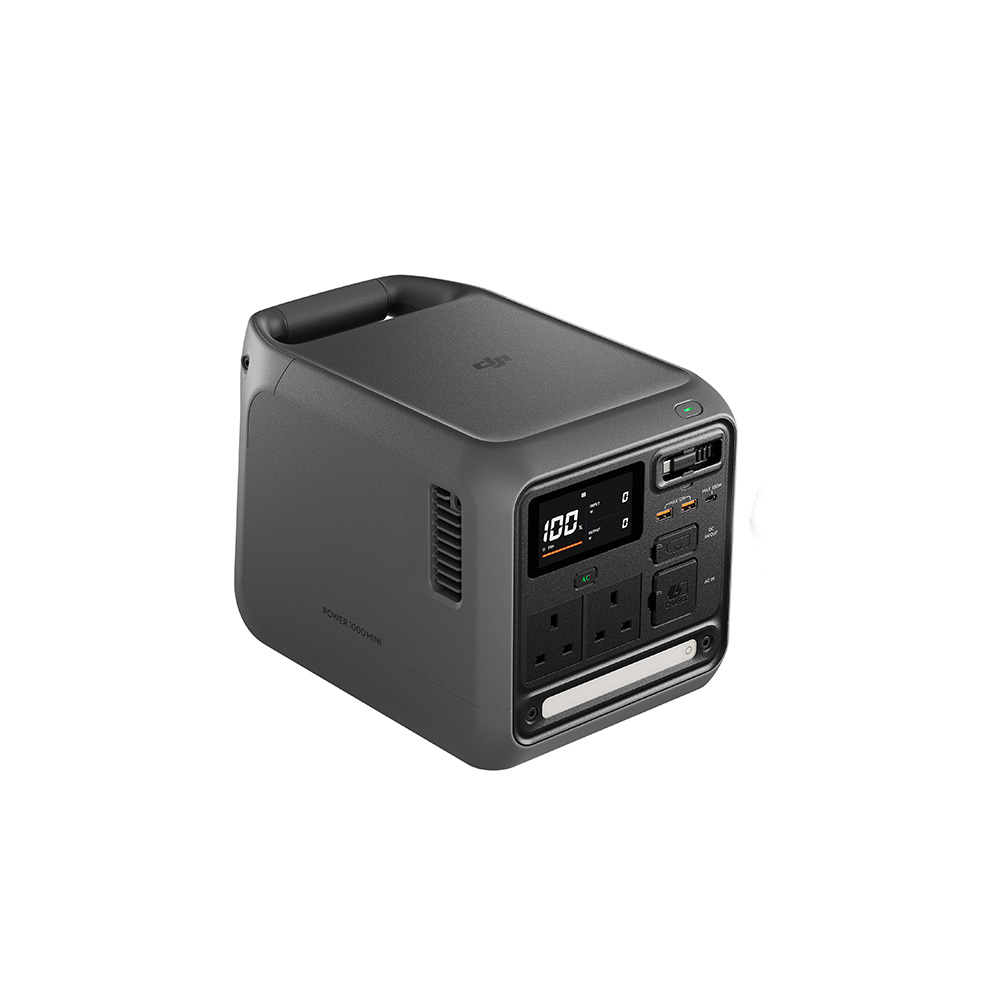

• DJI’s Ultra-Portable 1kWh Power Station [1]
• High-Efficiency Power, Built to Last
• 0-80% Recharge in Just 58 Mins
• Built-in 400W Car Charger & MPPT Module [2]

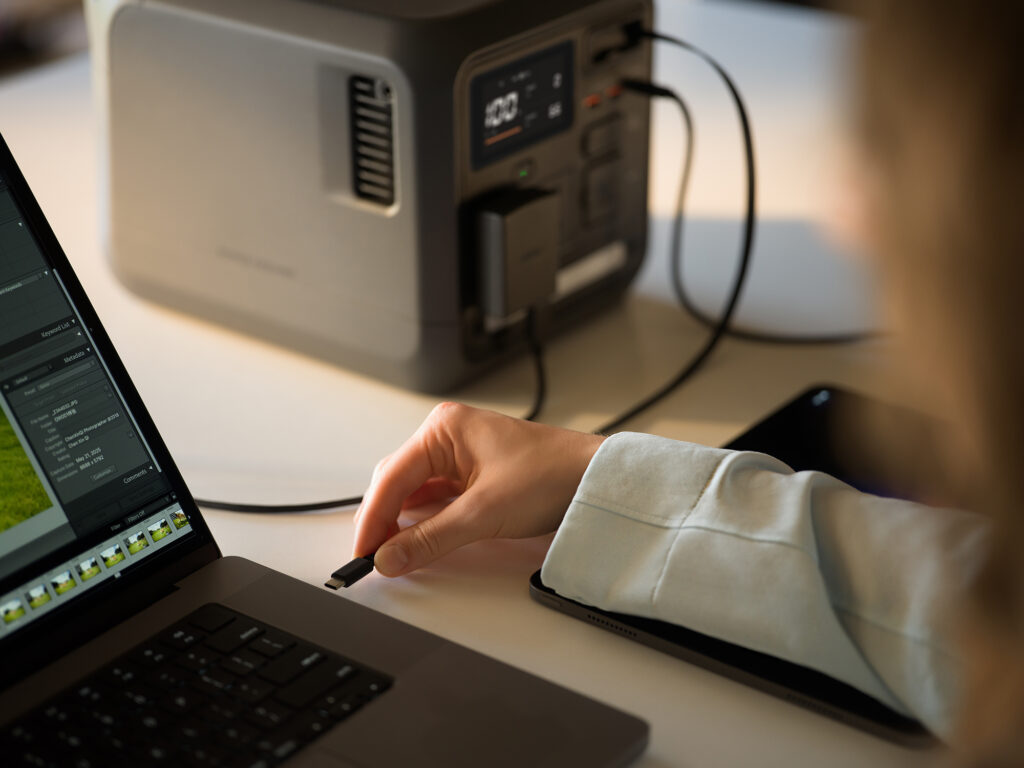

• 100W Retractable Cable, Effortless Charging & Storage
• Engineered for Secure & Reliable Use

Specifications

General

• Model: DYM1000M
• Cell Chemistry: LFP (lithium ferrophosphate)
• Energy: 1008 Wh (typical)
• Cycle Life: Maintains over 80% capacity after 4000 cycles.
  One cycle is defined as a complete charge and discharge. Tested in a 25° C (77° F) laboratory environment, with DJI Power 1000 Mini recharged in Standard Mode and discharged at 400 W output power to external devices.
• Net Weight: Approx. 11.5 kg
• Dimensions: 314×212×216 mm (L×W×H)
• Number of Ports:
  • AC output port × 2 (For regions using CN, EU, AU and UK standards)*
  • AC output port × 4 (For regions using US and JP standards)*
  • USB-C × 1
  • USB-C Retractable Cable × 1
  • USB-A × 2
  • SDC × 1
  • AC Input × 1
    * Models for regions using US and JP standards feature four AC output ports. Due to differing port sizes, models for other regions include only two.
• Max Operating Altitude: 5000 m

Output Specifications

• AC Output:
  • Low voltage:
    • AC 100-120 V, 50/60 Hz, max current 10 A, max 1000 W (continuous at 800 W)
    • AC 100-120 V, max current: 14.4 A, up to 1440 W (Bypass mode)
  • High voltage:
    • AC 220-240 V, 50/60 Hz, max current 4.5 A, max 1000 W (continuous at 800 W)
    • AC 220-240 V, max current: 10 A, up to 2200 W (Bypass mode)
      <sup>AC output data varies by country and region.
• USB-A Output:
  • 5 V, 2.4 A
  • Max output power per channel: 12 W
• USB-C Output:
  • 5 V, 5 A
  • 9 V, 5 A
  • 12 V, 5 A
  • 15 V, 5 A
  • 20 V, 5 A
  • Max output power per channel: 100 W*
     The USB-C port supports a max output power of 100 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications. When charging devices concurrently via the retractable cable and USB-C port, the total output power is 150 W, with the retractable cable providing up to 100 W and the USB-C port up to 50 W.
• SDC Output:
  • SDC: 9-28 V, max 300 W

Input Specifications

• AC Input:
  • Low voltage:
    • AC 100-120 V, 50/60 Hz, max current 10 A, max 1000 W (continuous at 800 W)
    • AC 100-120 V, max current: 14.4 A, up to 1440 W (Bypass mode)
  • High voltage:
    • AC 220-240 V, 50/60 Hz, max current 4.5 A, max 1000 W (continuous at 800 W)
    • AC 220-240 V, max current: 10 A, up to 2200 W (Bypass mode)
      <sup>AC input data varies by country and region.
• USB-C Input:
  • Max charging power: 100 W
• SDC Input:
  • SDC: 9-28 V, max 400 W

Operating Temperature

• Power Supply Temperature: -10° to 45° C (14° to 113° F)
• Recharging Temperature: -10° to 45° C (14° to 113° F)
• Storage Temperature: -10° to 45° C (14° to 113° F)

Wi-Fi and Bluetooth

• Transmitter Power (EIRP):
  • Wi-Fi (802.11 b/g/n):
    • 2.4000-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
  • Bluetooth 5.0:
    • 2.4000-2.4835 GHz: < 7 dBm
      The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations.

Package Includes

• 1 x DJI Power 1000 Mini
