Description

The DJI RS 5 delivers professional stabilization with a powerful 3 kg payload, intelligent subject tracking, and effortless camera control for demanding creators. Its 2nd-Gen Automated Axis Locks, Teflon™ arms, fine-tuning knobs, and redesigned Electronic Briefcase Handle make balancing and shooting smoother, faster, and more intuitive, while the RS Enhanced Intelligent Tracking Module enables precise subject selection, tracking, framing adjustments, and recording control for polished footage with confidence.

Features

• 3 kg (6.6 lbs) maximum tested payload
• 2nd-Gen Automated Axis Locks
• RS Enhanced Intelligent Tracking Module
• Touchscreen subject selection and tracking
• Intelligent subject tracking with framing adjustment
• Teflon™ arms for ultra-smooth balancing
• Fine-tuning knobs for precise balancing
• Electronic Briefcase Handle for direct gimbal control
• 360° continuous pan rotation
• 360°/s maximum pan, tilt, and roll speed
• Vertical shooting support
• Approx. 1-hour full charging time
• Approx. 14-hour standby time
• Magnetic attachment for tracking module
• Gesture and touchscreen tracking controls
• USB-C camera and multifunctional ports
• Bluetooth 5.0 connectivity
• Ronin App compatibility

Specifications

Peripheral

• Accessory Port: Ronin Series Accessories (RSA)/NATO Ports
• Mounting Hole: 1/4″-20
• Cold Shoe: Supported
• Camera Control Port: USB-C
• Multifunctional Port: USB-C
• Connections: Bluetooth 5.0; USB-C Charging Port
• Ronin App Requirements: iOS 14.0 or above; Android 9.0 or above
• Supported Touchscreen Languages: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Battery

• Model: BHX715-2150-15.48
• Type: LiPo 4S
• Capacity: 2150 mAh
• Energy: 33.29 Wh
• Voltage: 11.2 V to 17.8 V
• USB Input: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A Max
• Standby Time: Approx. 14 hours
• Charging Time: Approx. 1 hour
• Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Working Performance

• Tested Payload: 3.0 kg (6.6 lbs)
• Maximum Controlled Rotation Speed: Pan: 360°/s; Tilt: 360°/s; Roll: 360°/s
• Mechanical Range: Pan Axis: 360° continuous rotation; Roll Axis: -95° to +240°; Tilt Axis: -112° to +214°
• Axis Lock: Auto
• Vertical Shooting: Supported

Mechanical & Electrical Properties

• Operating Frequency: 2.4000-2.4835 GHz
• Bluetooth Transmitter Power: < 8 dBm
• Operating Temperature: -20° to 45° C (-4° to 113° F)
• Weight: Gimbal: Approx. 1193 g (2.63 lbs); Grip: Approx. 274 g (0.6 lbs); Quick-Open Tripod: Approx. 149 g (0.3 lbs); Upper and Lower Quick-Release Plates: Approx. 93 g (0.21 lbs)
• Dimensions: Folded: 247.4×115.7×258.7 mm; Unfolded: 223.2×192.2×418.8 mm

Accessories

• DJI RS Enhanced Intelligent Tracking Module: Weight: Approx. 19 g; Dimensions: 35.9×17.5×38.5 mm; Tracking Distance: 0.5-10 m; Operating Environment: Illuminance > 20 lux; Trigger Modes: Gimbal trigger, gesture, gimbal touchscreen Gesture; Functions: Start/stop tracking, start/stop recording, framing adjustment; Power Consumption: Approx. 1 W; Operating Temperature: -10° to 45° C; Mounting Method: Magnetic attachment
• Electronic Briefcase Handle: Weight: Approx. 149 g; Dimensions: 60×197.5×79.5 mm; Standby Power Consumption: Approx. 0.2 W; Operating Temperature: -20° to 45° C

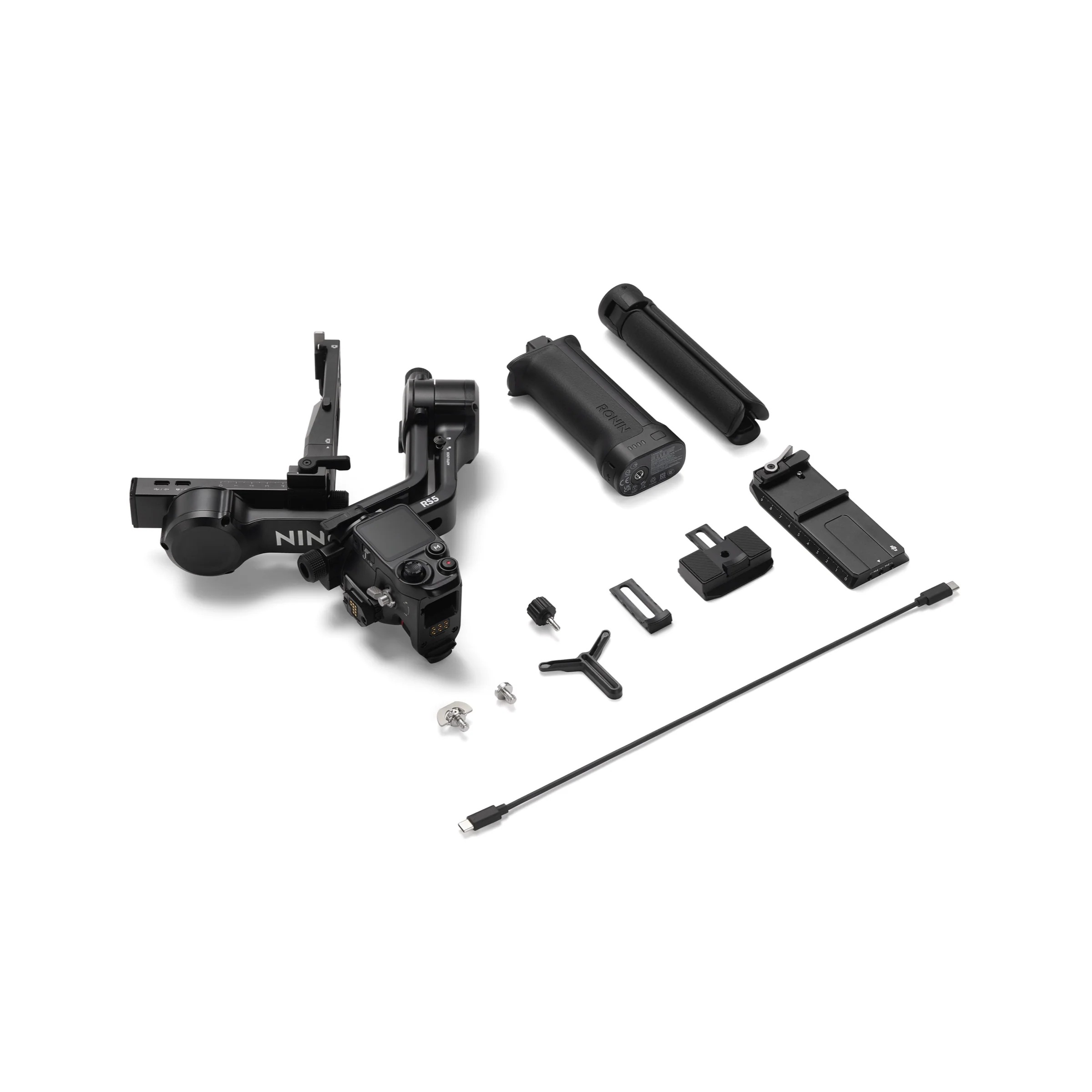

Package Includes
