Description

The DJI SDR Transmission 2 Expansion Accessory Kit expands professional wireless video workflows with versatile connectivity, rugged mounting, and flexible power solutions for demanding productions. Designed to complement the DJI SDR Transmission 2, it enables expanded SDI, HDMI, and USB-C connectivity while supporting secure installation across gimbals, rigs, and outdoor setups, helping filmmakers achieve reliable monitoring, remote control, and efficient multi-camera transmission wherever complex shoots take place.

Features

• 1 TX to 8 RX With Control, Multi-Group Transmission Auto Channel 2.0 for Seamless, Stable Feed
• TX/RX Switchable for Flexible Deployment Pairing-Free Connection for Fast Camera Switching
• Supports Ronin Monitoring & Control DCI 4K/60fps 10-bit HDR Wireless Transmission

Specifications

Transceiver

• Weight: Approx. 136 g (including antennas)
• Dimensions: 76 × 61 × 25 mm (L × W × H, excluding antennas and Cold Shoe Adapter)
• Ports: HDMI input/output; USB-C (Top) for PD power input/output; USB-C (Bottom) for DP input/output, PD power input/output, device activation, firmware updates, log export, phone app connection, and connection to DJI Ronin series, Osmo Action 6, and Osmo Pocket series devices
• Operating Frequency: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz (Non-DFS); 5.250–5.350 GHz and 5.470–5.725 GHz (DFS)
• Transmitter Power (EIRP): <20 dBm at 2.400–2.4835 GHz; 23 dBm at 5.150–5.350 GHz; 26 dBm at 5.470–5.725 GHz; 30 dBm SRRC / 14 dBm CE at 5.725–5.850 GHz
• Maximum Bandwidth: 40 MHz
• Maximum Encoding Bitrate: 50 Mbps
• Power Consumption: Standby—Single Transmitter approx. 5.04 W; Single Receiver approx. 5.31 W. 1T1R—Main Unit transmitter approx. 8.52 W, receiver approx. 7.58 W; with Expansion Plate, transmitter approx. 10.36 W, receiver approx. 8.89 W
• Power Supply: USB-C Type 1: 15 V, 3 A (PD); USB-C Type 2: 6.8–17.5 V DC; NP-F Battery: 6.8–8.4 V
• Video I/O Formats: DCI 4K, 4K UHD, 1080p, 1080i, and 720p at supported frame rates from 23.98/24 fps up to 60 fps
• Audio I/O Formats: Input—SDI embedded, HDMI embedded, DP embedded; Output—16-bit, 48 kHz, stereo PCM
• Video Transmission System: SDR
• Minimum Video Transmission Latency: 35 ms
• Video Coding Format: H.265
• Maximum Transmission Distance: 4 km (CE)
• Operating Temperature: -10° to 40° C (14° to 104° F)

Expansion Plate

• Weight: Approx. 105 g
• Dimensions: 76 × 54 × 25 mm (L × W × H, excluding Cold Shoe Adapter)
• Ports: HDMI input/output; USB-C (Right) for power supply and DJI RS 5 connection; USB-C (Bottom) for power supply, camera control, and DJI Ronin series connection; SDI input/output
• Power Supply: USB-C Type 1: 15 V/9 V, 3 A (PD); USB-C Type 2: 6.8–17.5 V DC
• Operating Temperature: -10° to 40° C (14° to 104° F)

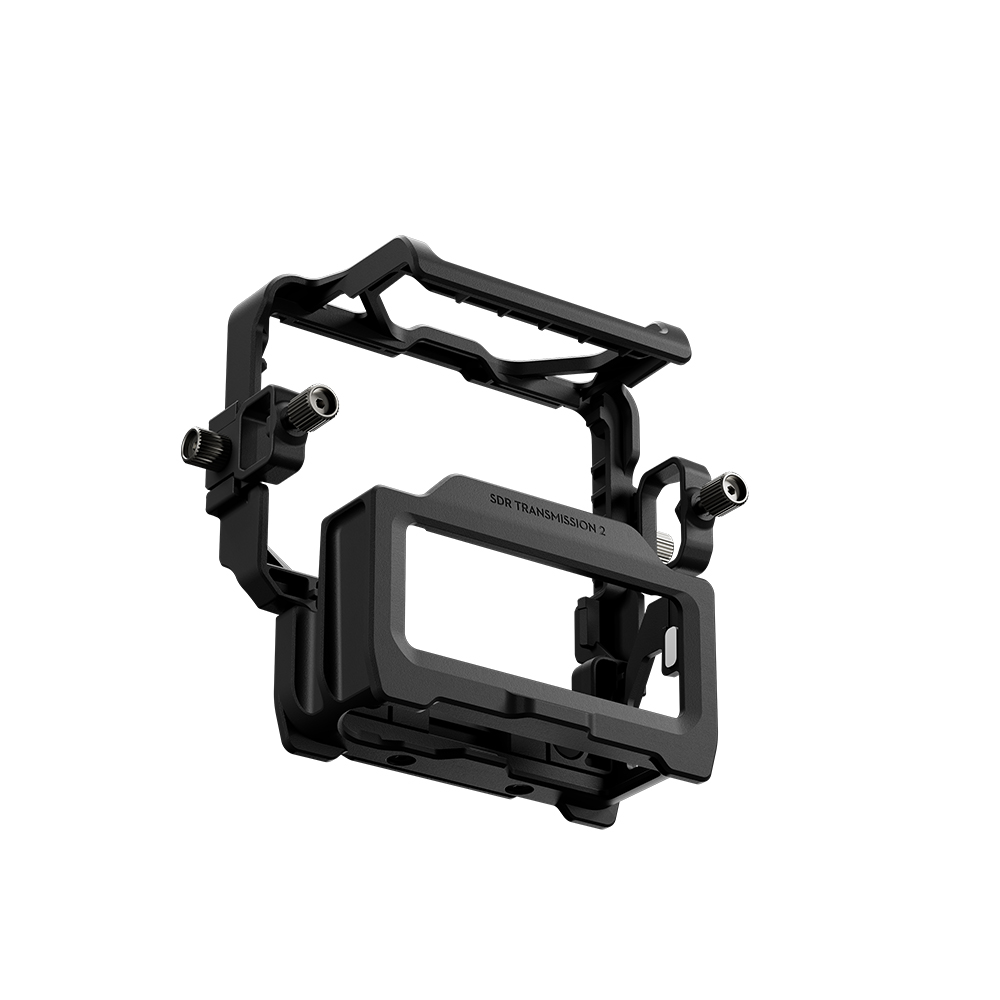

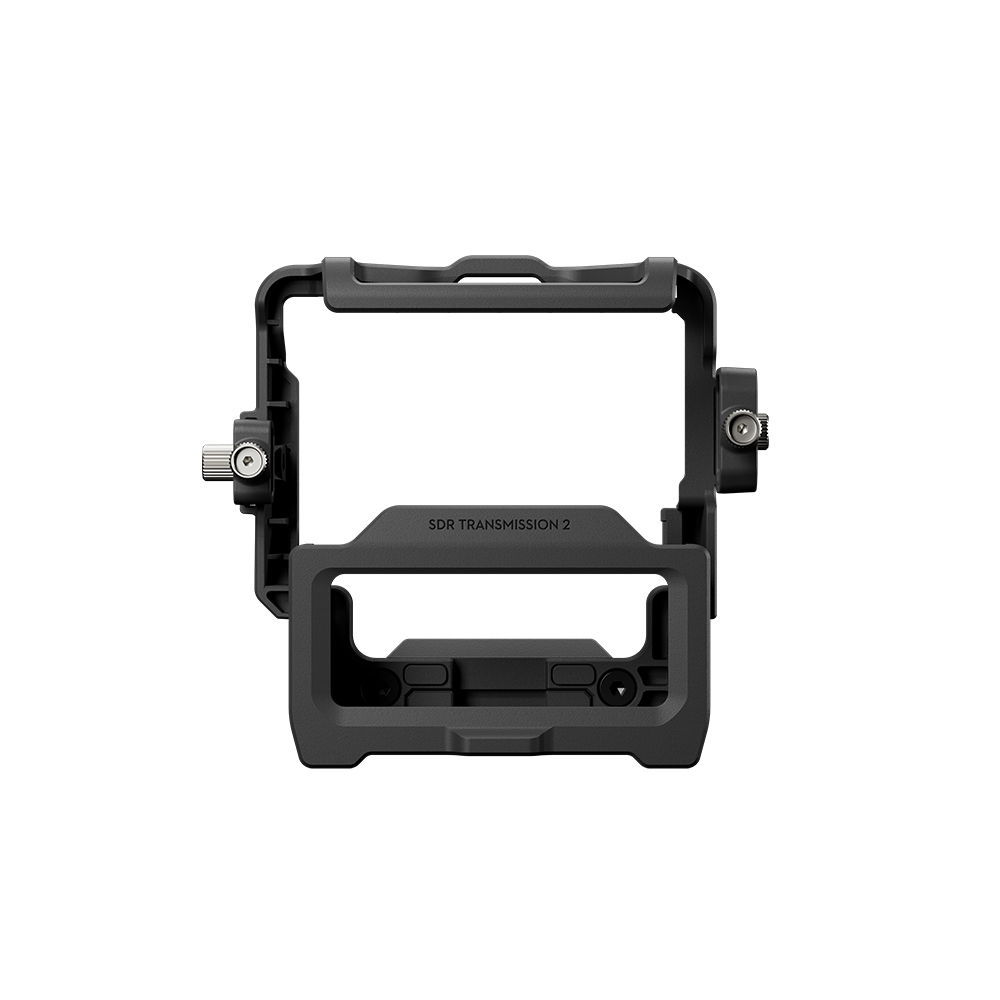

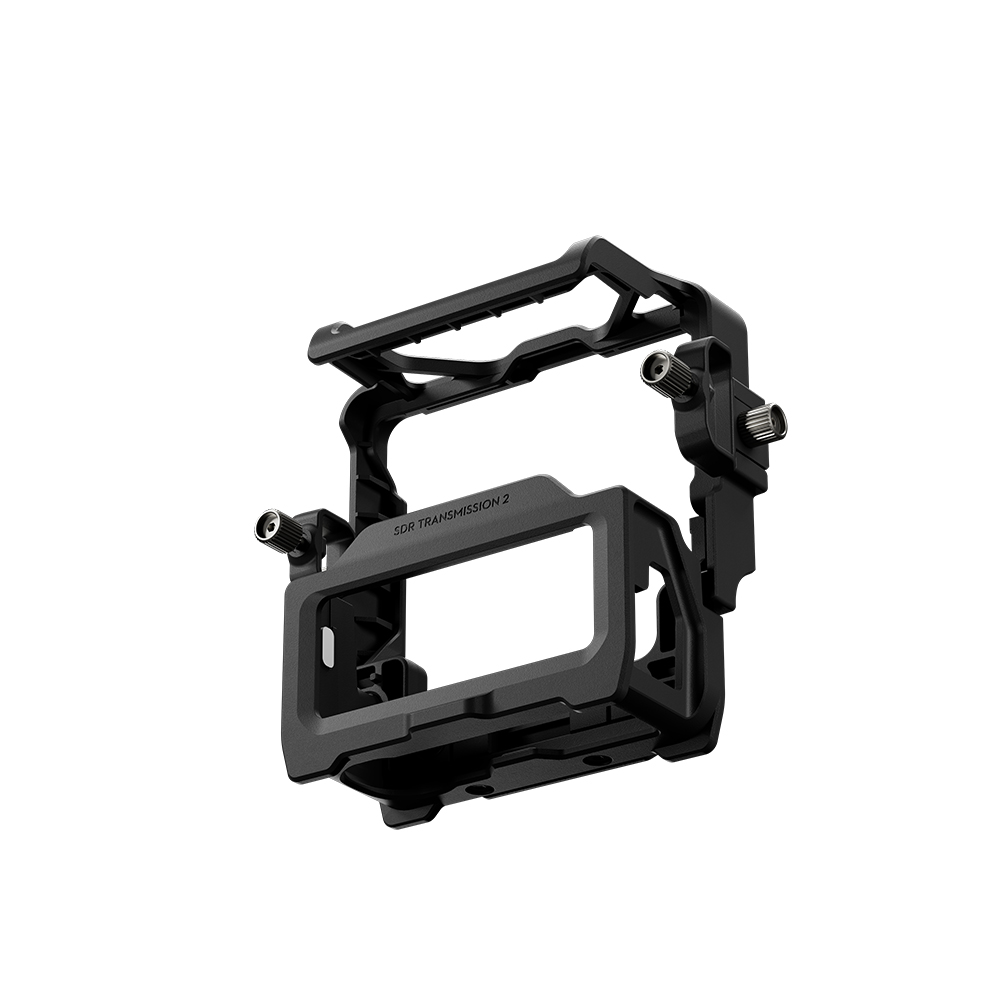

Transceiver Cage

• Weight: Approx. 91 g
• Dimensions: 124 × 110 × 49 mm (L × W × H)
• Mounting: NATO port; 1/4″-20 screw holes × 2; 3/8″-16 screw hole; HDMI cable clamp; USB-C cable clamp
• Operating Temperature: -10° to 40° C (14° to 104° F)
