Description

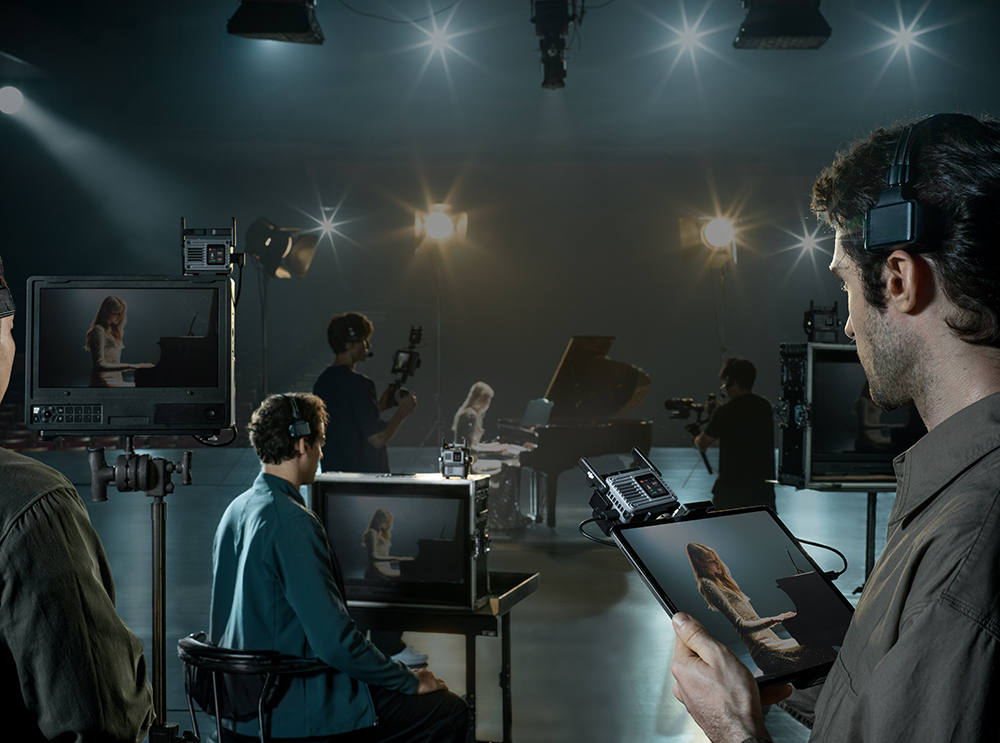

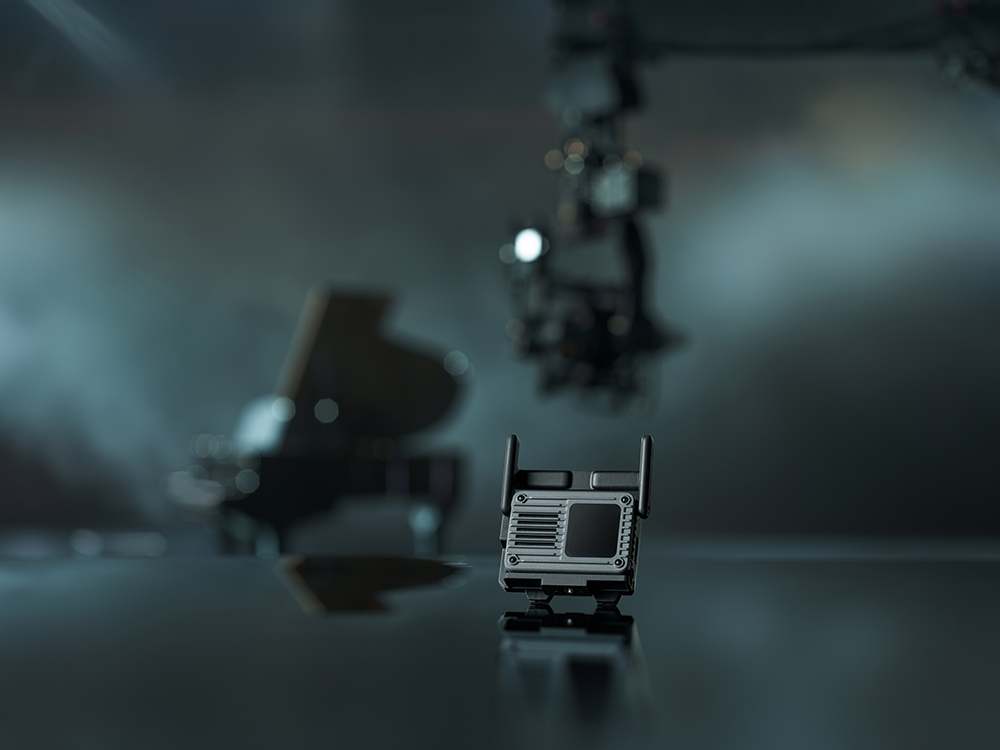

The DJI SDR Transmission 2 delivers reliable, high-quality wireless video transmission for complex professional sets, combining powerful SDR technology, enhanced interference resistance, and flexible TX/RX switching in a compact design. With DCI 4K/60fps 10-bit HDR, up to 4 km range, latency as low as 35 ms, and support for multi-group transmission, Ronin monitoring, and remote camera control, it keeps directors, operators, and crews connected.

Features

• 1 TX to 8 RX With Control, Multi-Group Transmission Auto Channel 2.0 for Seamless, Stable Feed

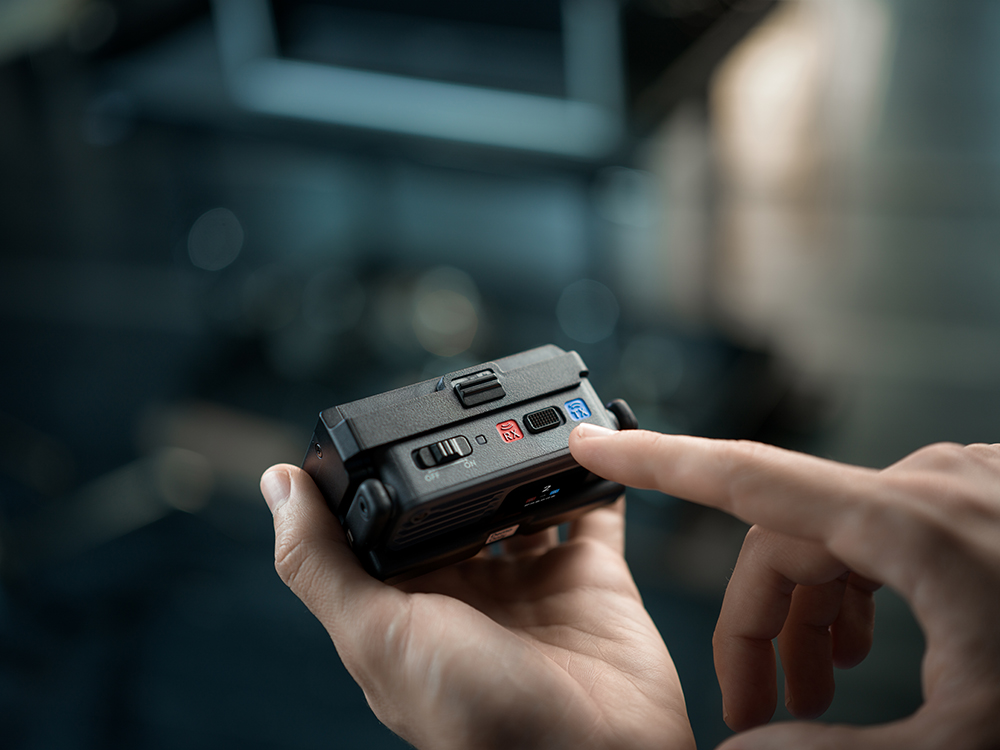

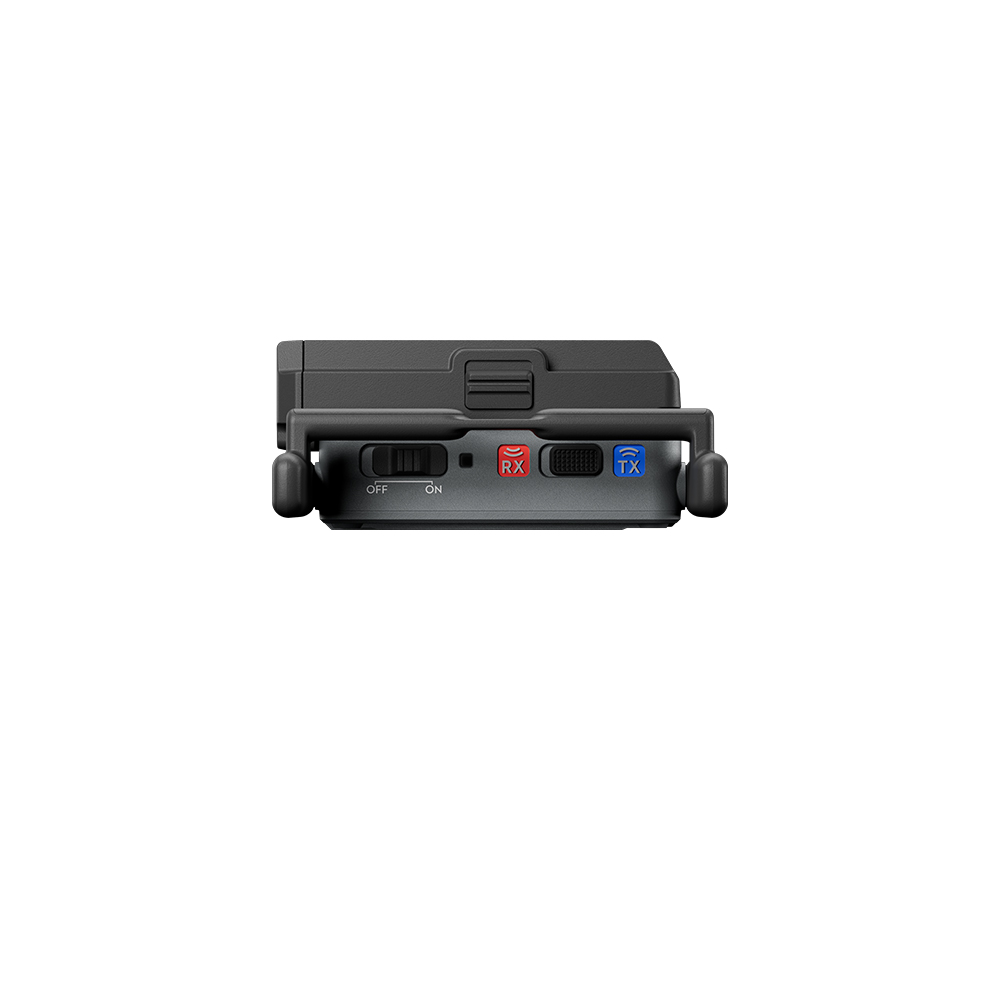

• TX/RX Switchable for Flexible Deployment Pairing-Free Connection for Fast Camera Switching
• Supports Ronin Monitoring & Control DCI 4K/60fps 10-bit HDR Wireless Transmission

Specifications

Transceiver

• Weight: Approx. 136 g (including antennas)
• Dimensions: 76 × 61 × 25 mm (L × W × H, excluding antennas and Cold Shoe Adapter)

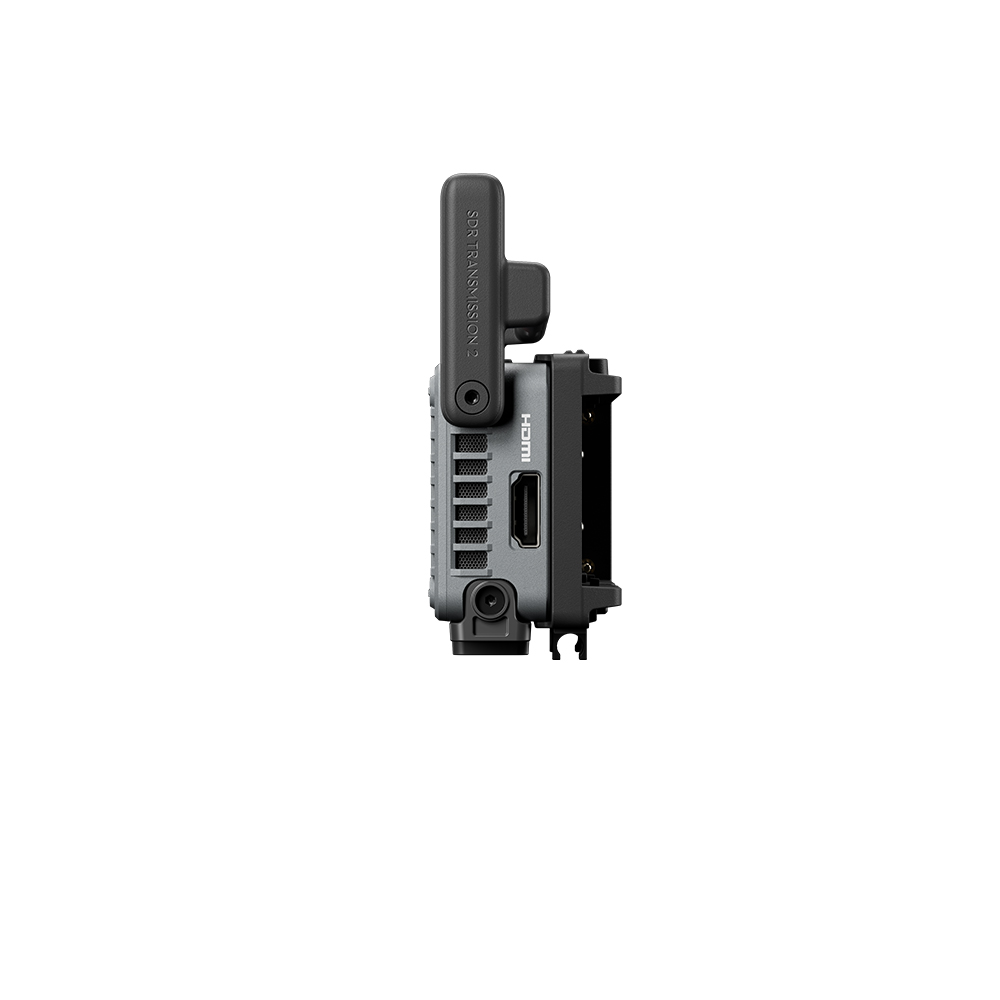

• Ports: HDMI input/output; USB-C (Top) for PD power input/output; USB-C (Bottom) for DP input/output, PD power input/output, device activation, firmware updates, log export, phone app connection, and connection to DJI Ronin series, Osmo Action 6, and Osmo Pocket series devices
• Operating Frequency: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz (Non-DFS); 5.250–5.350 GHz and 5.470–5.725 GHz (DFS)
• Transmitter Power (EIRP): <20 dBm at 2.400–2.4835 GHz; 23 dBm at 5.150–5.350 GHz; 26 dBm at 5.470–5.725 GHz; 30 dBm SRRC / 14 dBm CE at 5.725–5.850 GHz
• Maximum Bandwidth: 40 MHz
• Maximum Encoding Bitrate: 50 Mbps
• Power Consumption: Standby—Single Transmitter approx. 5.04 W; Single Receiver approx. 5.31 W. 1T1R—Main Unit transmitter approx. 8.52 W, receiver approx. 7.58 W; with Expansion Plate, transmitter approx. 10.36 W, receiver approx. 8.89 W
• Power Supply: USB-C Type 1: 15 V, 3 A (PD); USB-C Type 2: 6.8–17.5 V DC; NP-F Battery: 6.8–8.4 V
• Video I/O Formats: DCI 4K, 4K UHD, 1080p, 1080i, and 720p at supported frame rates from 23.98/24 fps up to 60 fps
• Audio I/O Formats: Input—SDI embedded, HDMI embedded, DP embedded; Output—16-bit, 48 kHz, stereo PCM
• Video Transmission System: SDR
• Minimum Video Transmission Latency: 35 ms
• Video Coding Format: H.265
• Maximum Transmission Distance: 4 km (CE)
• Operating Temperature: -10° to 40° C (14° to 104° F)

Expansion Plate

• Weight: Approx. 105 g
• Dimensions: 76 × 54 × 25 mm (L × W × H, excluding Cold Shoe Adapter)
• Ports: HDMI input/output; USB-C (Right) for power supply and DJI RS 5 connection; USB-C (Bottom) for power supply, camera control, and DJI Ronin series connection; SDI input/output
• Power Supply: USB-C Type 1: 15 V/9 V, 3 A (PD); USB-C Type 2: 6.8–17.5 V DC
• Operating Temperature: -10° to 40° C (14° to 104° F)

Transceiver Cage

• Weight: Approx. 91 g
• Dimensions: 124 × 110 × 49 mm (L × W × H)
• Mounting: NATO port; 1/4″-20 screw holes × 2; 3/8″-16 screw hole; HDMI cable clamp; USB-C cable clamp
• Operating Temperature: -10° to 40° C (14° to 104° F)
