Description

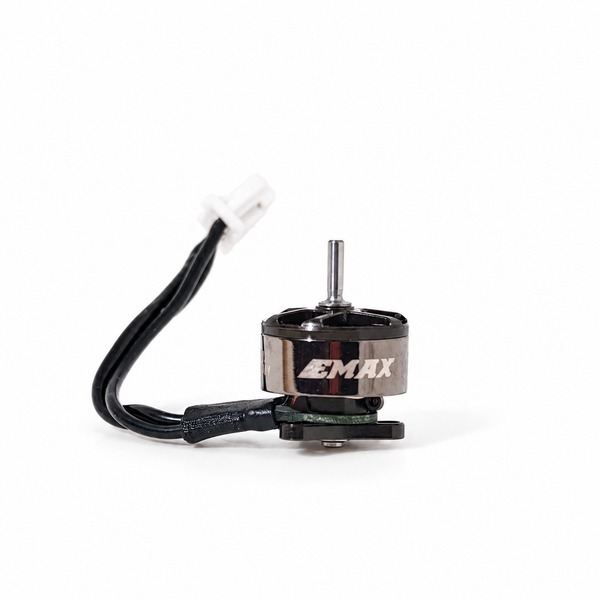

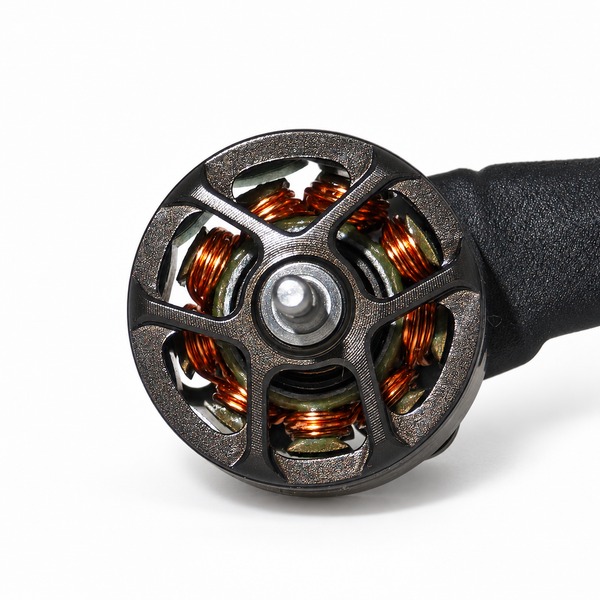

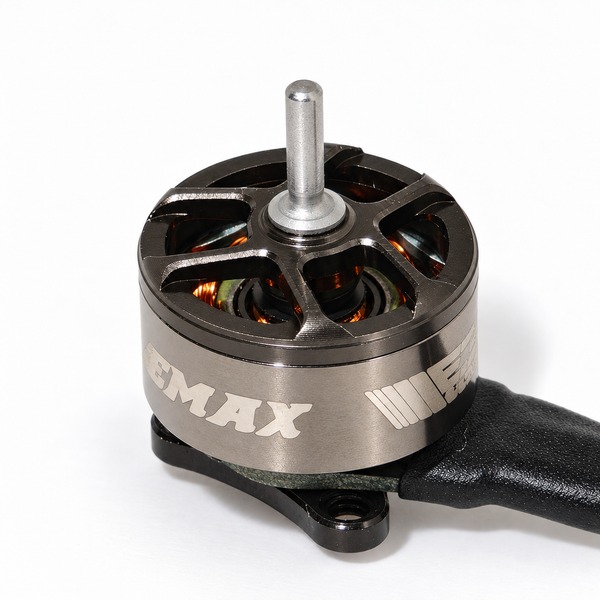

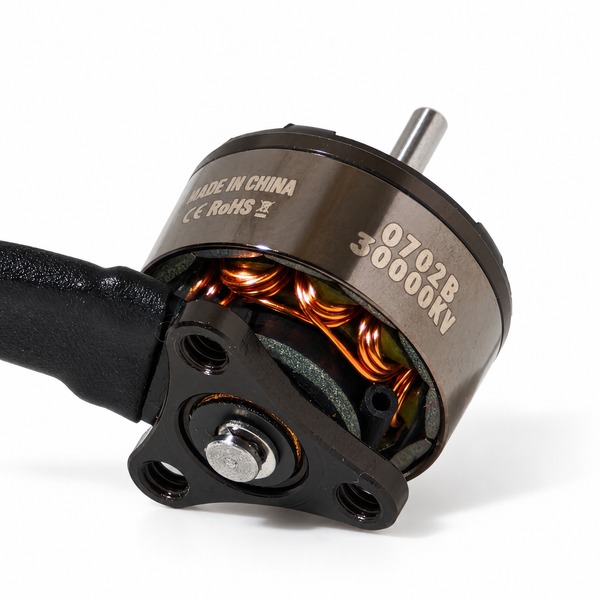

The EMAX E3 Series 0702B Brushless Motors deliver sharp throttle response, reliable power, and impressive durability for demanding FPV builds. Crafted with an aircraft-grade 7075 aluminum bell, hardened steel shaft, G1 precision bearings, and N52SH arc magnets, this precision-engineered motor provides smooth rotation, efficient performance, and excellent heat dissipation. Designed for intermediate to advanced pilots, it is ideal for responsive 1S racing and freestyle setups where durability and control matter.

Features

• Aircraft-grade 7075 aluminum bell for enhanced impact resistance
• Hardened steel shaft for long service life
• G1 precision bearings for smooth, stable rotation
• Single strand wiring reduces resistance and improves heat dissipation
• N52SH arc magnets provide greater torque and instant throttle response
• Precision-engineered for robust FPV performance
• Suitable for racing, freestyle, cinematic, and heavy-lift applications
• Designed for intermediate to advanced FPV pilots
• High-value performance with premium components
• EMAX quality and field-ready durability

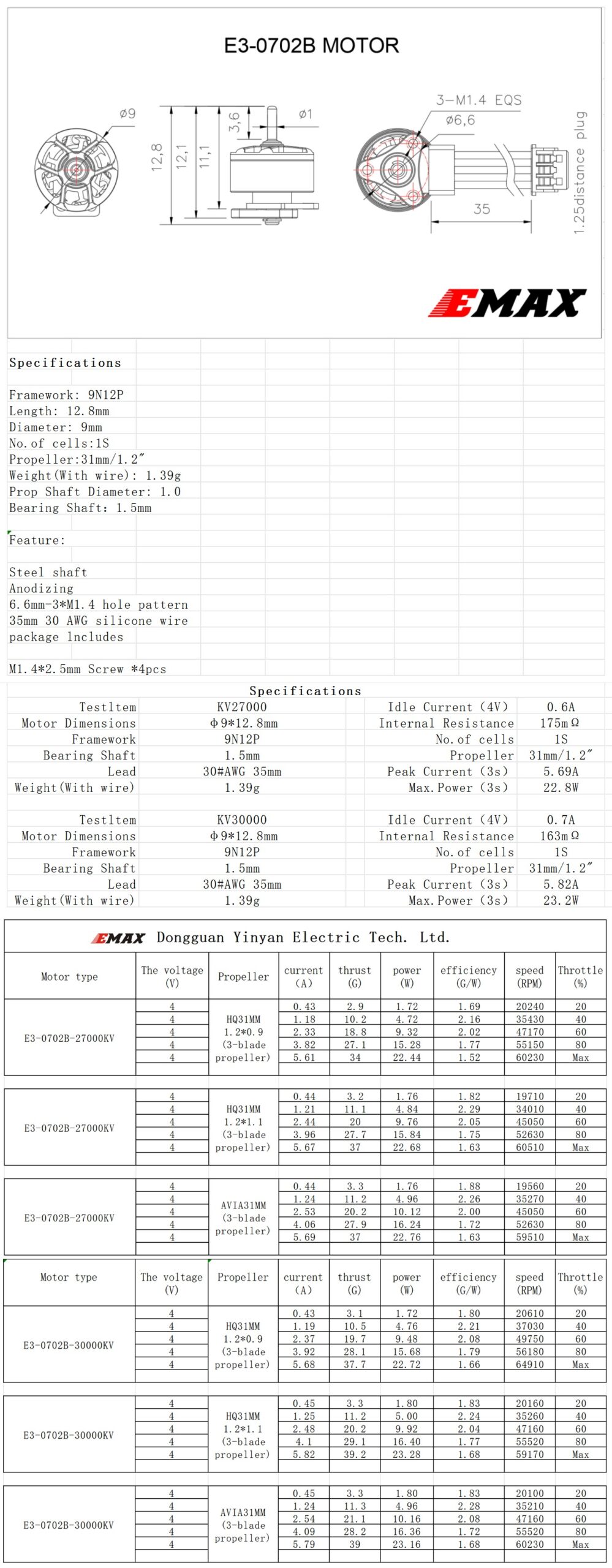

Specifications

• Series: E3
• Motor: 0702B Brushless Motor
• Framework: 9N12P
• Length: 12.8mm
• Diameter: 9mm
• No. of Cells: 1S
• Propeller: 31mm / 1.2″
• Weight (With Wire): 1.39g
• Prop Shaft Diameter: 1.0mm
• Bearing Shaft: 1.5mm
• Magnets: N52SH Arc Magnets
• Bell Material: Aircraft-grade 7075 Aluminum
• Shaft Material: Hardened Steel
• Bearings: G1 Precision Bearings
• Wiring: Single Strand
• Frame, ESC, Propellers, Battery, and Transmitter: Not included
• Required: Matched ESC and propeller setup

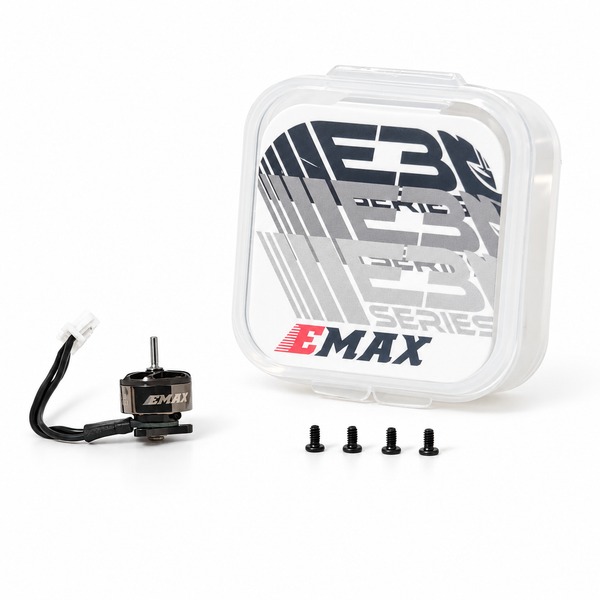

Package Includes

• 1 x EMAX E3 Series 0702B Brushless Motors
