Description

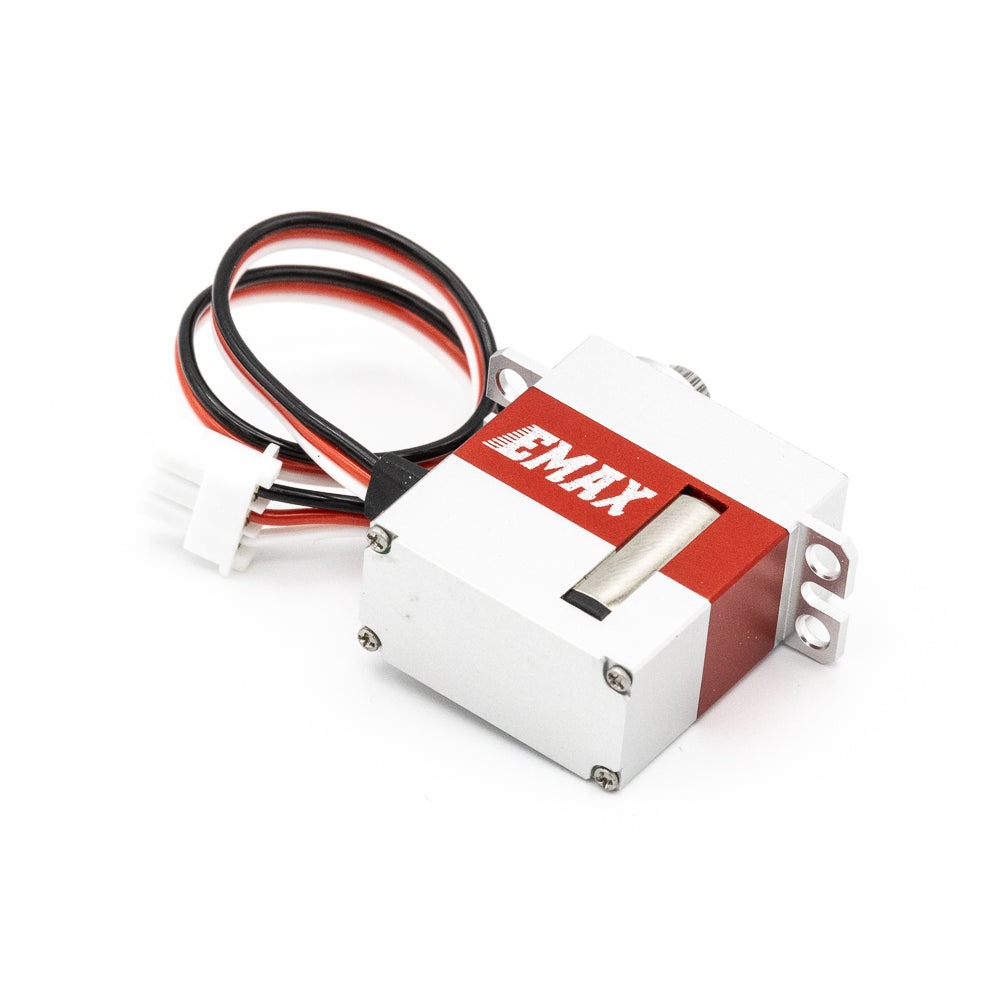

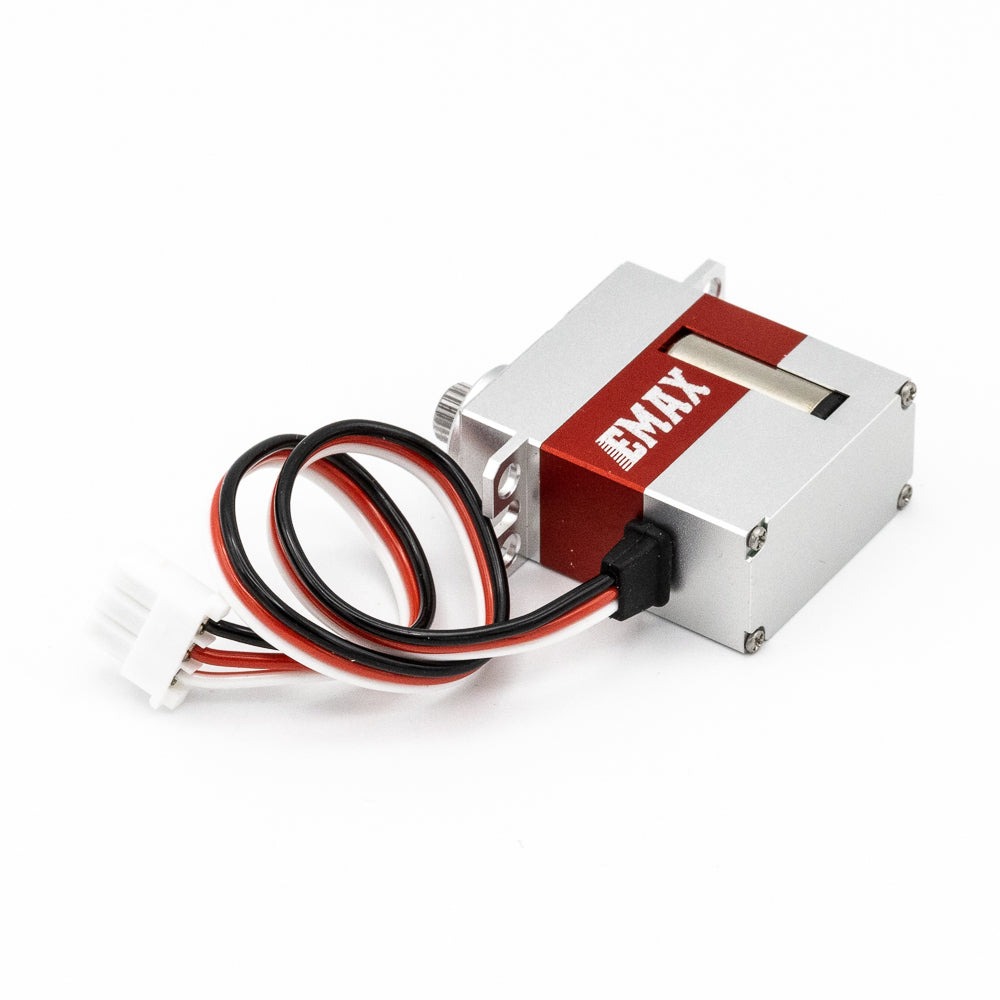

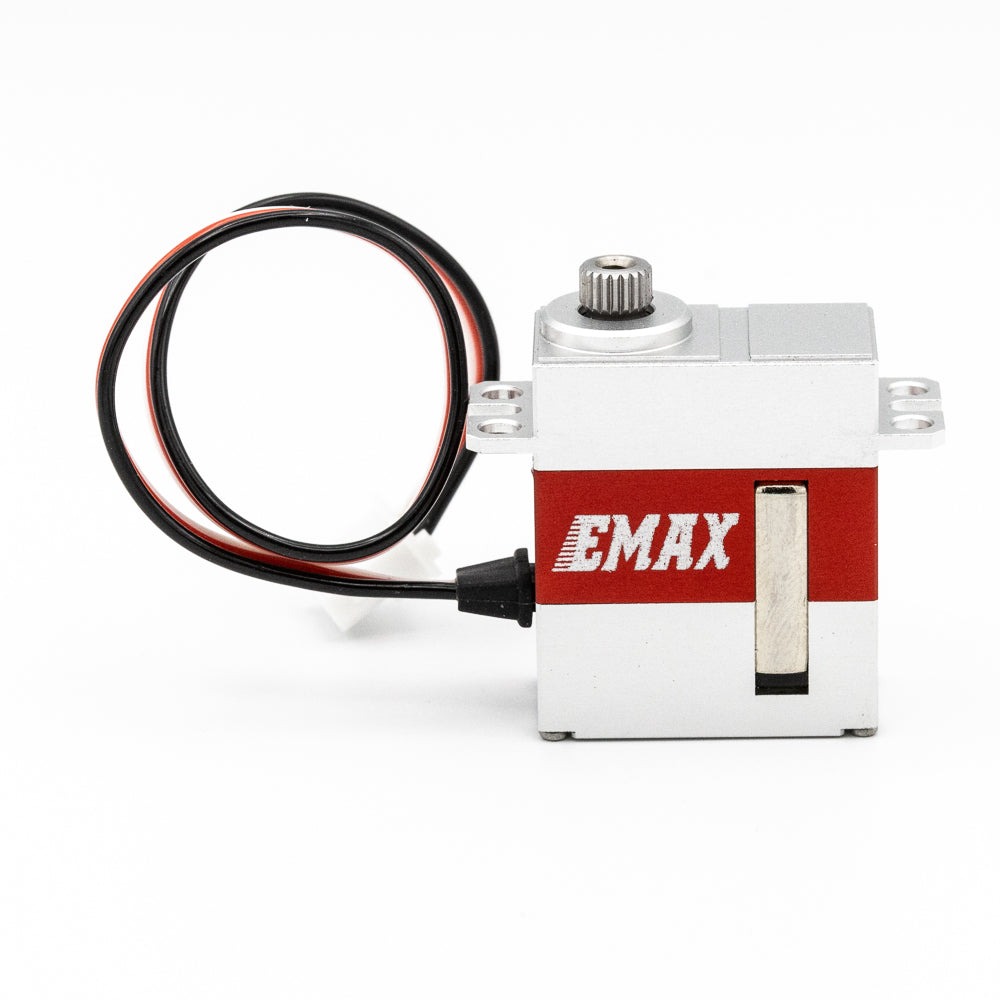

The EMAX ES9256HV Digital Serial Servo Metal Gear delivers exceptional precision, high-speed response, and reliable performance for demanding RC applications requiring accurate control and smooth operation. Featuring durable metal gears, 360° maximum travel, TTL serial communication, dual ball bearings, and high-voltage compatibility up to 8.4V, this lightweight servo provides outstanding torque, efficiency, and durability for robotics, aircraft, and advanced remote-control projects.

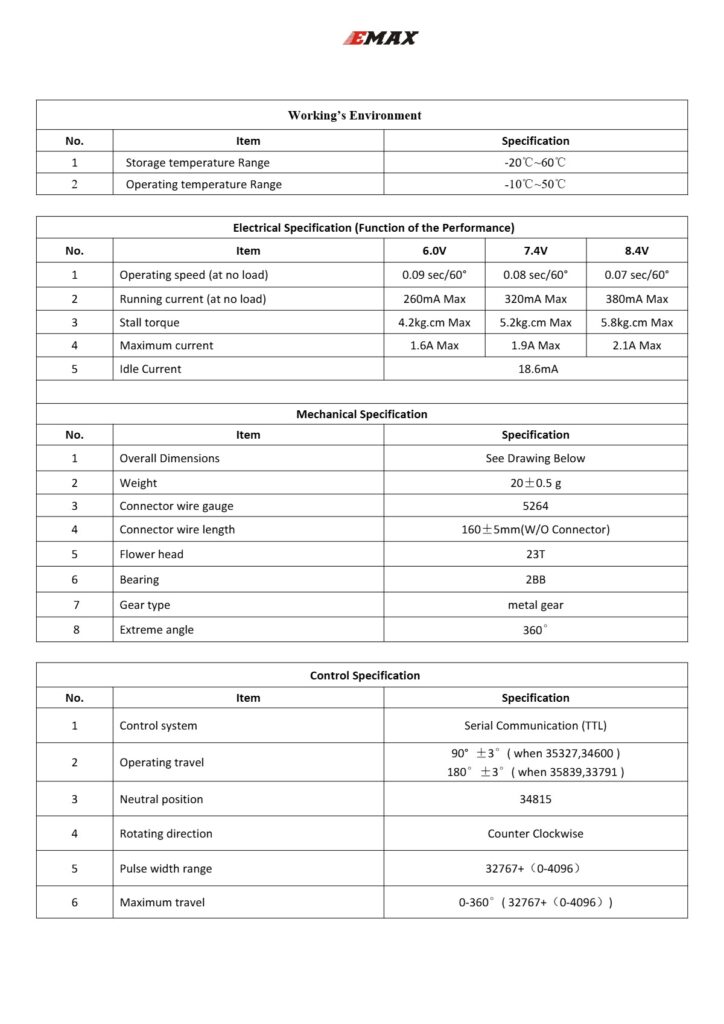

Specifications

• Model: EMAX ES9256HV Digital Serial Servo Metal Gear
• Control System: Serial Communication (TTL)
• Operating Voltage: 6.0V – 8.4V

Performance (6.0V / 7.4V / 8.4V):

• Operating Speed (No Load): 0.09 sec/60° / 0.08 sec/60° / 0.07 sec/60°
• Running Current (No Load): 260mA Max / 320mA Max / 380mA Max
• Stall Torque: 4.2kg·cm Max / 5.2kg·cm Max / 5.8kg·cm Max
• Maximum Current: 1.6A Max / 1.9A Max / 2.1A Max
• Idle Current: 18.6mA

Mechanical Specifications:

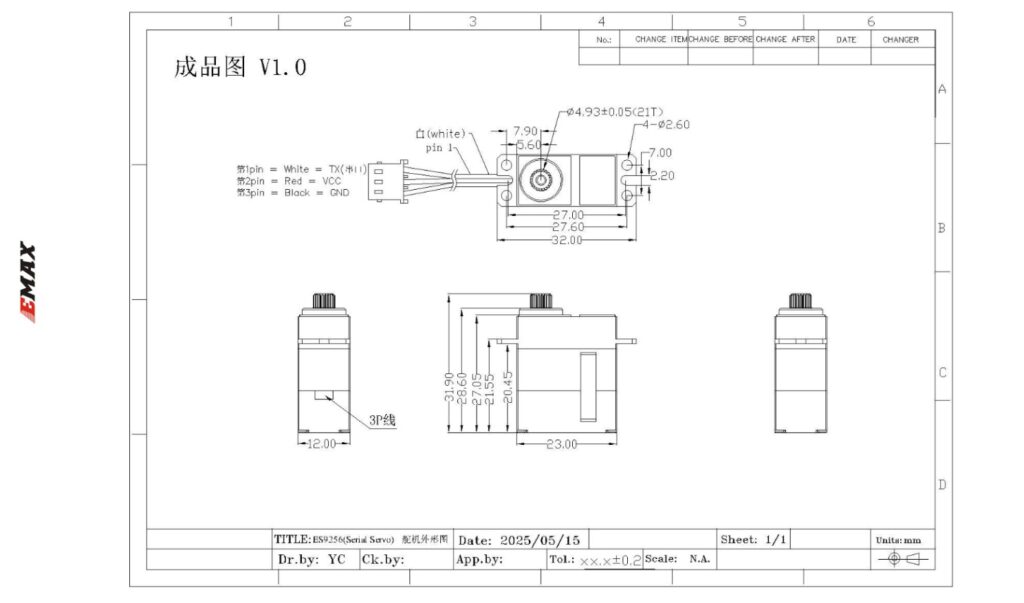

• Dimensions: 32.0 × 12.0 × 31.9mm (approx.)
• Weight: 20 ±0.5g
• Connector Wire Gauge: 5264
• Connector Wire Length: 160 ±5mm (without connector)
• Output Spline: 23T
• Bearing Type: 2BB (Dual Ball Bearings)
• Gear Type: Metal Gear
• Extreme Angle: 360°

Control Specifications:

• Operating Travel: 90° ±3° / 180° ±3°
• Neutral Position: 34815
• Rotating Direction: Counter Clockwise
• Pulse Width Range: 32767 + (0–4096)
• Maximum Travel: 0–360° (32767 + (0–4096))

Working Environment:

• Operating Temperature Range: -10°C to 50°C
• Storage Temperature Range: -20°C to 60°C

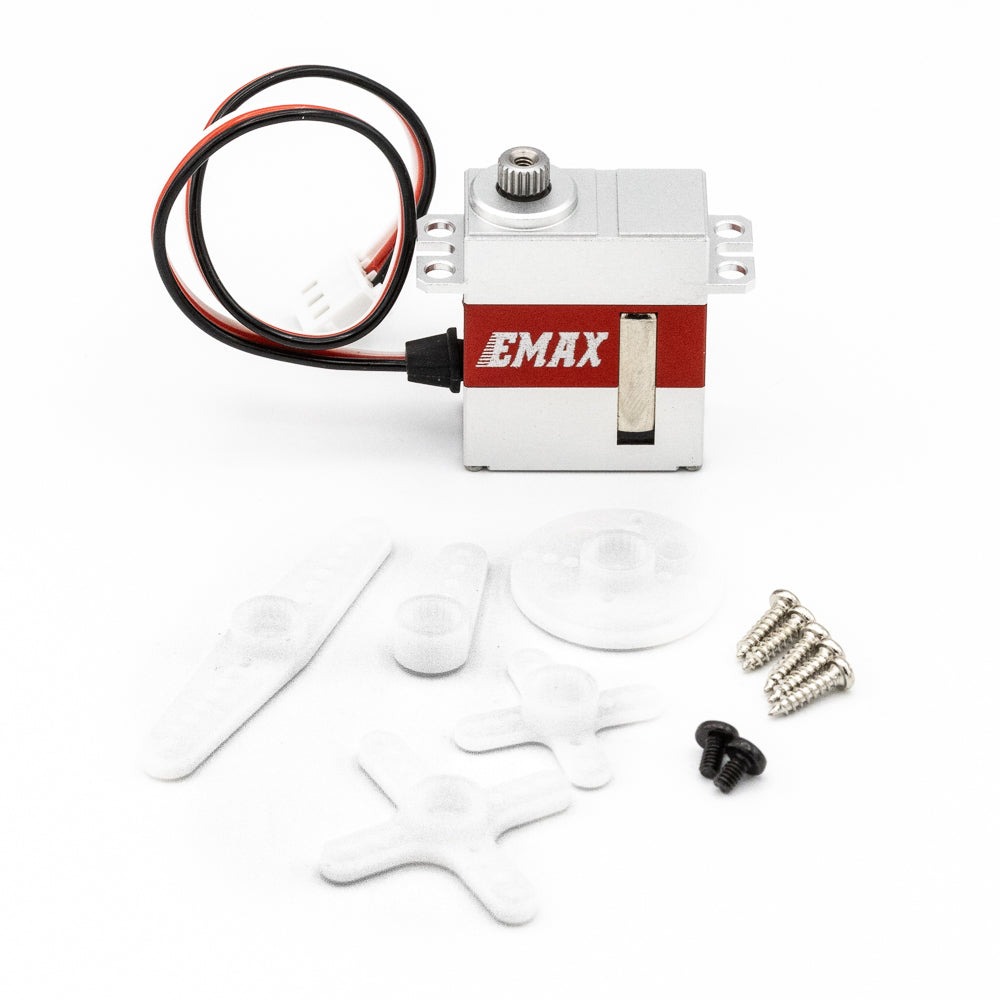

Package Includes

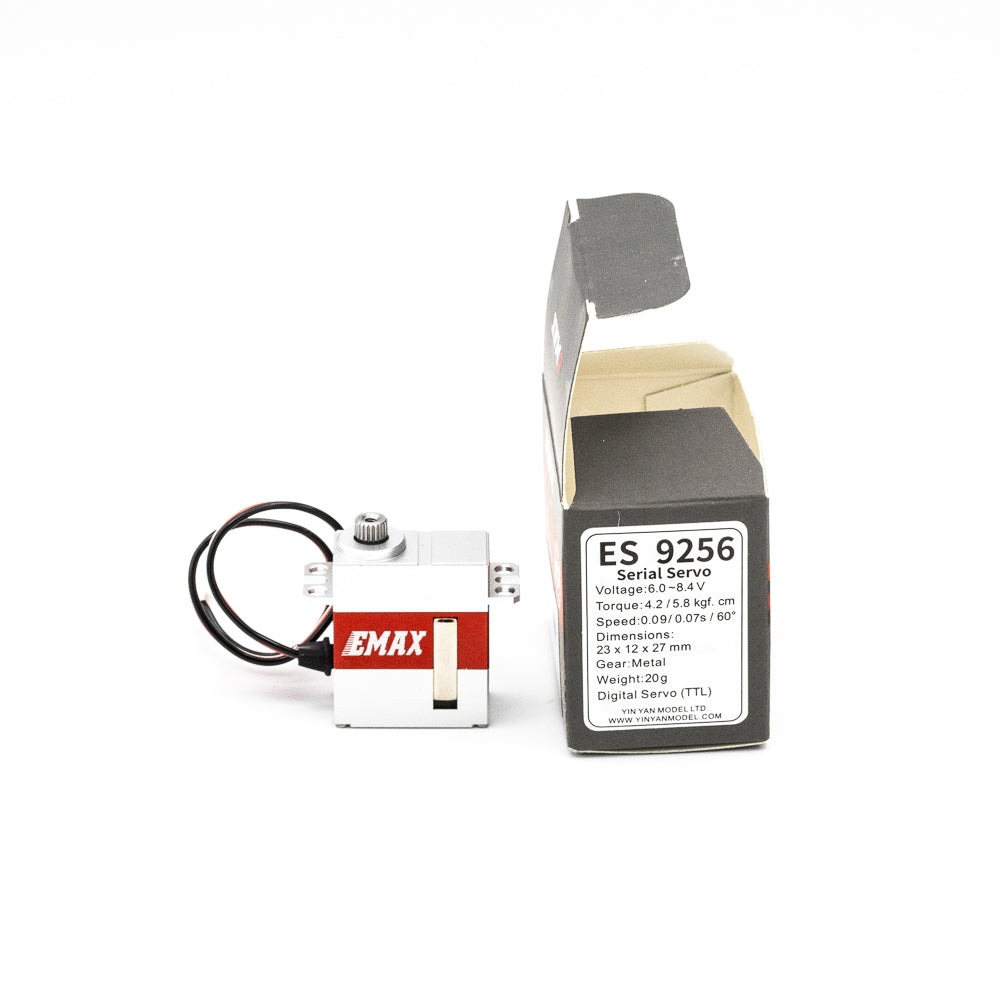

• 1 x EMAX ES9256HV Digital Serial Servo Metal Gear
