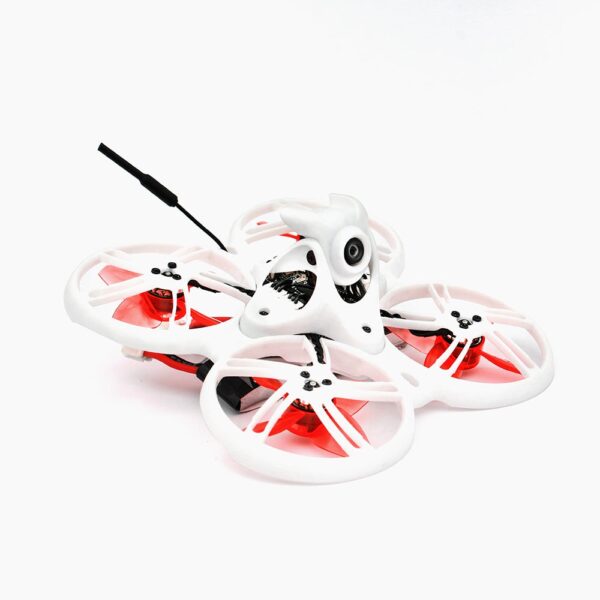

EMAX TinyHawk III Plus Analog Ready To Fly Racing Drone Package

Description

What is the TinyHawk 3 Plus Analog RTF Drone Kit?

The EMAX TinyHawk 3 Plus RTF Drone Kit is the ultimate starter package for anyone wanting to begin flying FPV racing drones! The full package contains everything you need to start flying an FPV drone including the transmitter and FPV goggles. The EMAX TinyHawk 3 Plus is a Micro Quadcopter equipped with a modern STM32F411 processor, FPV Runcam camera and brushless motors. The RTF kit includes all the chargers you need for your goggles and drone.

What has changed in the PLUS version?

• ExpressLRS Integration: The Tinyhawk 3 Plus series drones and RTF E8 transmitters now feature ExpressLRS control technology, a significant upgrade from the previous FrSky system. ExpressLRS offers remarkable improvements in range, signal reliability, and latency, ensuring you have precise control over your drone, even in challenging environments. With the Tinyhawk 3 Plus, customers can fly confidently knowing that commands will be executed with the utmost precision.
• Incredible Durability: The Tinyhawk 3 Plus boasts a rigid body frame, prioritizing durability like never before.
• Improved VTx: with Increased transmission power, the Tinyhawk III Plus video punches through intereference and obstacles with ease.

Tinyhawk III Plus Specifications:

• Size class: 76mm
• Dimensions: LxWxH=105x105x45mm
• Weight (without battery): 32.5 grams
• Motors: TH0802 II 15000kv
• Propellers: Avia Tinyhawk
• Flight Controller / ESC: STM32F411, 6A BLHeli_S, 1-2S
• Receiver: Integrated ELRS (2.4G)
• Camera: RunCam Nano
• Video Transmitter: 32Bit 40Ch 0/25mW/100mW/400mW
• Battery: 1S HV 650mAh

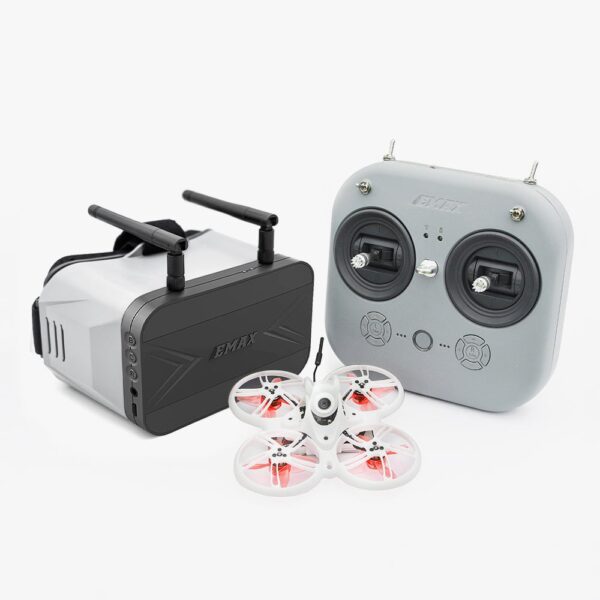

Tinyhawk 3 Plus Analog RTF Package Includes:

• 1x Tinyhawk 3 Plus Analog BNF

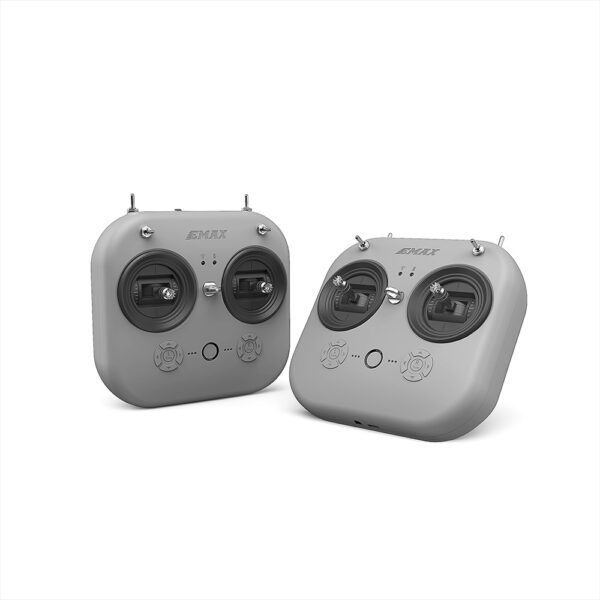

• 1x EMAX E8 Transmitter (ELRS-2.4G)

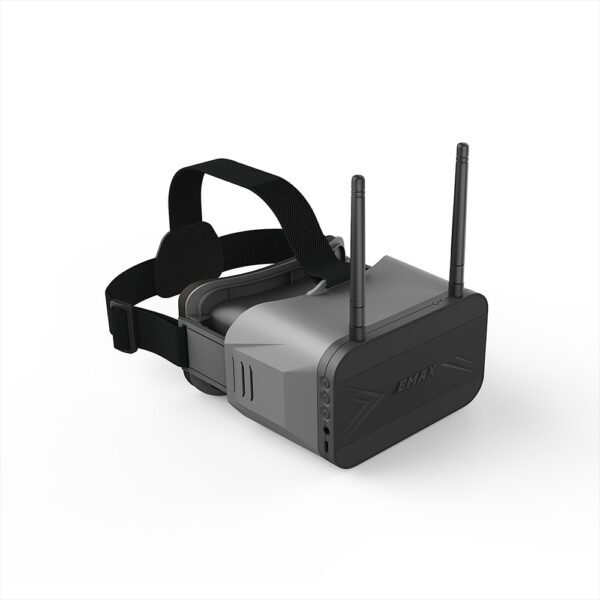

• 1x EMAX Transporter 2 Analog Goggles
• 1x EMAX 1S HV 650mAh Battery
• 1x Hardware Kit
• 1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)
• 1x USB Battery Charger
• 1x Monitor to Transmitter Mounting Kit

Parts and Upgrades:

• Propellers TBA
• Frame TBA
• Motors TBA
• AIO TBA

Batteries:

• Official EMAX 450mAh 1S Battery – A lighter EMAX battery is a high-quality battery designed with performance in mind
• Official EMAX 650mAh 1S Battery – The Standard EMAX battery is a high-quality battery designed with flight time and power in mind
• GNB Battery 3.8V 100C 720mAh 1S – The ultimate in flight time, this is the maximum pack size for the Tinyhawk 3 Plus

Instruction Manuals:

• EMAX TinyHawk III Plus RTF Instructions TBA
• EMAX Transporter 2 FPV Goggles TBA
• EMAX E8 Radio Transmitter TBA

Please note: Reviews Prior to 1st October 2023 are for the TinyHawk 3 (non-plus) RTF Kit

Please see here for the TinyHawk III Plus HD Version TBA
