EMAX TinyHawk III Plus Freestyle Analog BNF ExpressLRS

Description

This is Bind-and-Fly ExpressLRS version

For the full kit (including Goggles, Remote, Chargers) see here: EMAX TinyHawk III Plus Freestyle Analog FPV Drone RTF Kit

What has changed in the III PLUS Analog version?

• INCREDIBLE DURABILITY – Crafted from an upgraded aerospace-grade 3k woven carbon fiber blend, durability reaches new heights. This advanced blend ensures the Tinyhawk III Plus Freestyle can confidently endure high-impact situations while maintaining its lightweight agility. The frame proudly displays an eye-catching designer pattern, setting it apart with its unique charm.
• IMPROVED VTX – With increased transmission power, the Tinyhawk III Plus Freestyle punches through interference and obstacles with ease. You’ll experience a more robust signal, allowing you to fly with confidence even in challenging environments. Our engineers have fine-tuned the analog system to optimize signal strength while maintaining stability, so you can focus on your flight without worrying about signal dropouts.

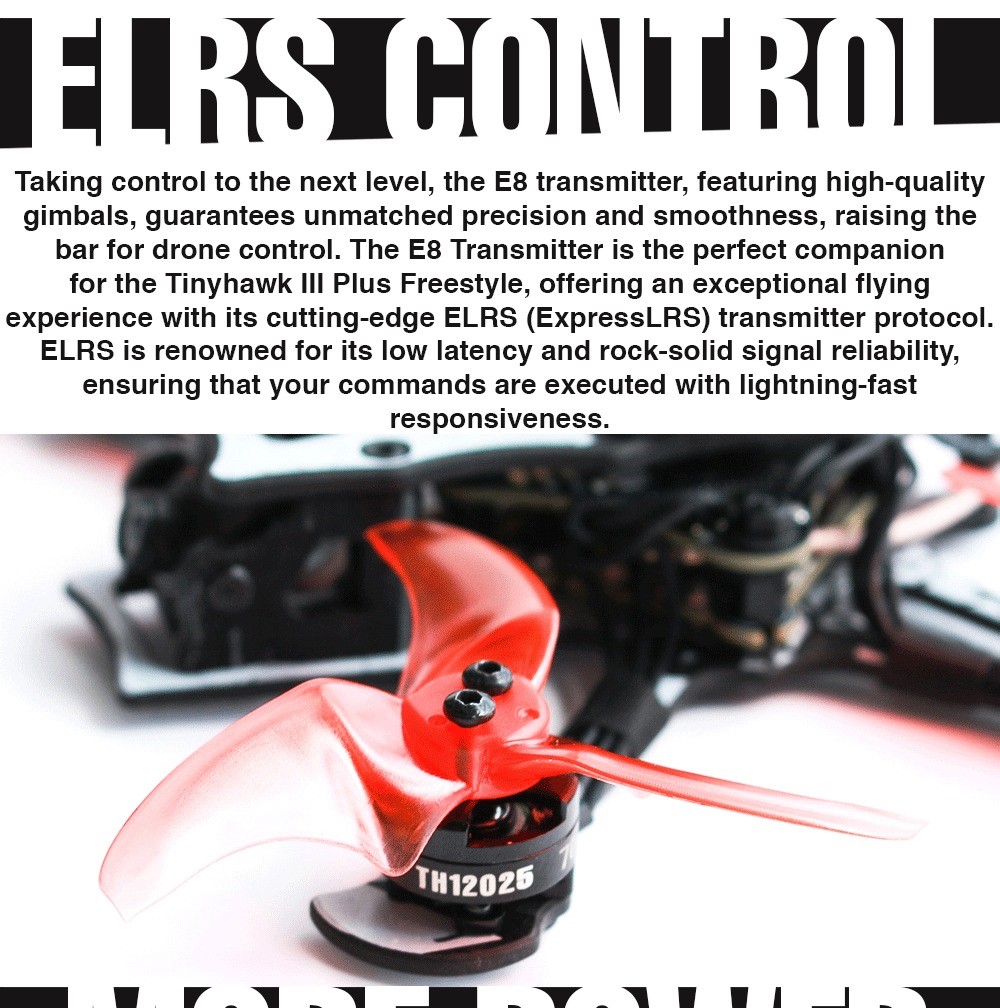

• ELRS CONTROL – Tinyhawk III Plus Freestyle, offering an exceptional flying experience with its cutting-edge ELRS (ExpressLRS) transmitter protocol. ELRS is renowned for its low latency and rock-solid signal reliability, ensuring that your commands are executed with lightning-fast responsiveness.
• MORE POWER Engineered for precision and extended airtime, the Tinyhawk III Plus Freestyle features high-performance 12025 7000KV motors, meticulously calibrated to optimize RPM and ensure maximum efficiency. Coupled with the AVAN Rush 2.5-inch propellers, it delivers exceptional grip and thrust, offering a versatile and exhilarating flying experience.

Tinyhawk 3 Plus Freestyle Analog

• Wheelbase: 110mm
• Dimensions: LxWxH=100x104x22 mm
• Weight: 65.5g
• Motor: 12025 7000KV
• Propellers: AVAN Rush 2.5
• Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)
• Camera: RunCam Nano
• VTX: 32Bit 40Ch 0/25mW/100mW/400mW
• Battery: 1S HV 650mAh (1s or 2x for 2S)

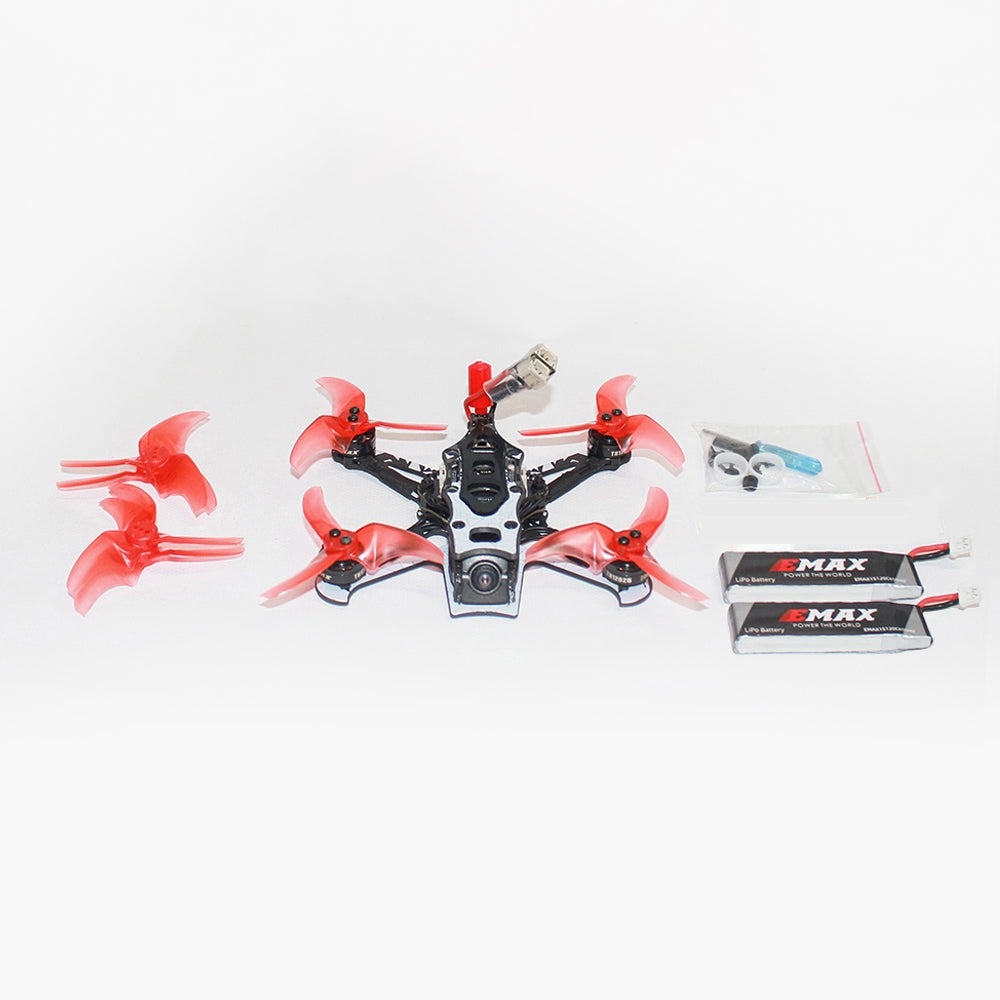

Tinyhawk 3 Plus Freestyle Analog BNF Includes:

• 1x Tinyhawk 3 Plus Freestyle Analog BNF
• 2x EMAX 1S HV 650mAh Battery
• 1x Hardware Kit
• 1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)

Parts and Upgrades:

• Emax Avan Rush 2.5″ Propellers (2 Colours) – These propellers are the stock propellers and are a great lightweight choice.
• Frame TBA
• Motors TBA
• AIO TBA

Batteries (Uses a Pair):

• Official EMAX 450mAh 1S Battery – A lighter EMAX battery is a high-quality battery designed with performance in mind

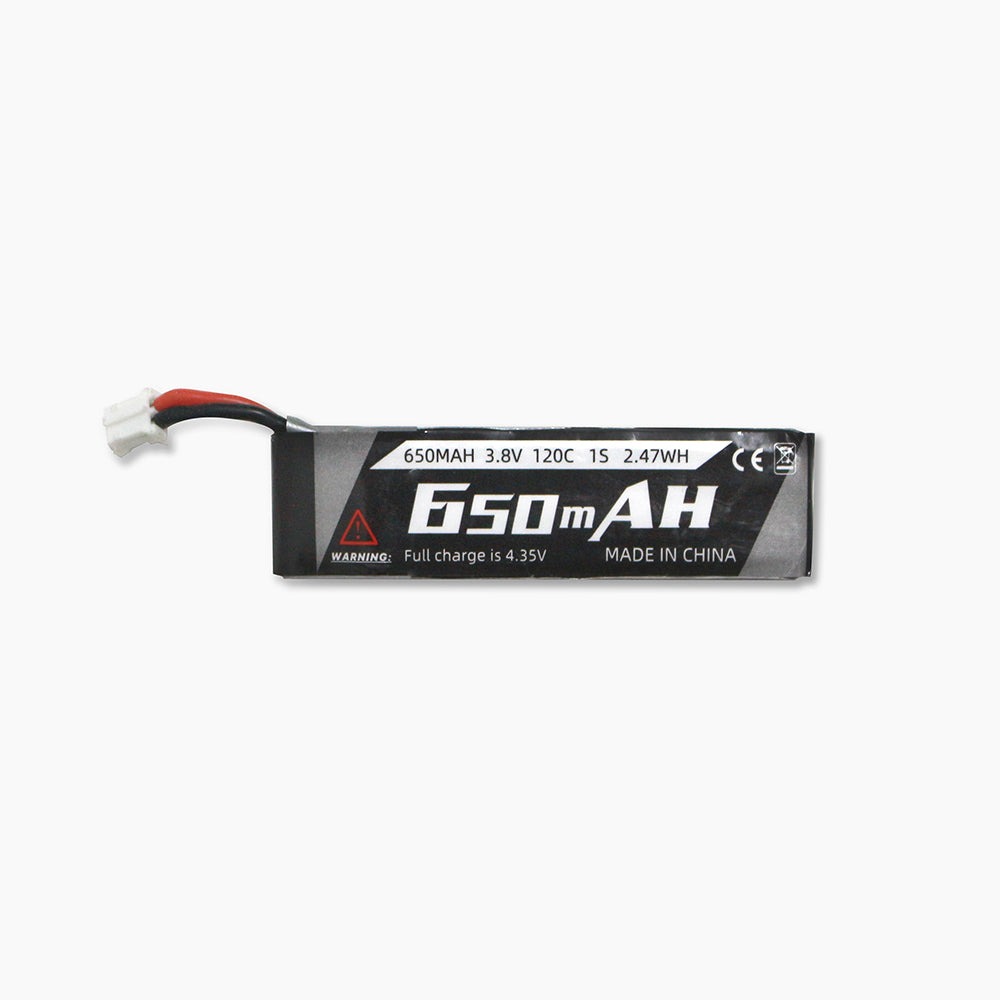

• Official EMAX 650mAh 1S Battery – The Standard EMAX battery is a high-quality battery designed with flight time and power in mind
• GNB Battery 3.8V 100C 720mAh 1S – The ultimate in flight time, this is the maximum pack size for the Tinyhawk 3 Plus

Instruction Manuals:

• EMAX TinyHawk III Plus Freestyle Instructions TBA
