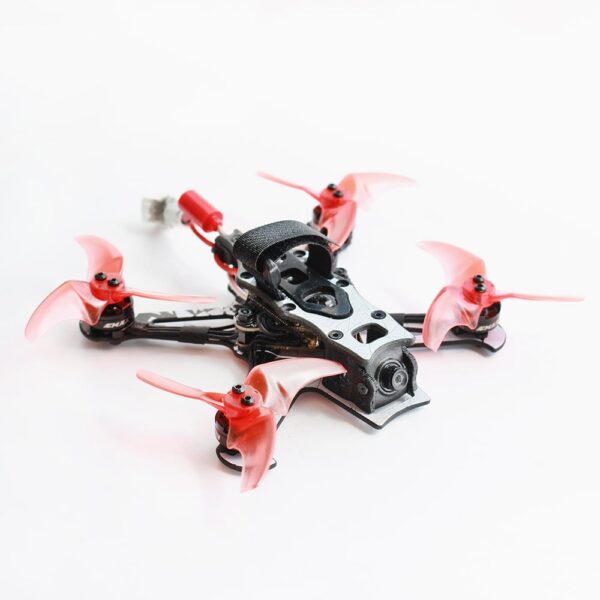

EMAX TinyHawk III Plus Freestyle HDZero BNF ExpressLRS

Description

This is Bind-and-Fly ExpressLRS version

For the full kit (including Goggles, Remote, Chargers) see here: EMAX TinyHawk III Plus Freestyle HDZero FPV Drone RTF Kit

What has changed in the III PLUS HDZero version?

• INCREDIBLE DURABILITY – Crafted from an upgraded aerospace-grade 3k woven carbon fiber blend, durability reaches new heights. This advanced blend ensures the Tinyhawk III Plus Freestyle can confidently endure high-impact situations while maintaining its lightweight agility. The frame proudly displays an eye-catching designer pattern, setting it apart with its unique charm.

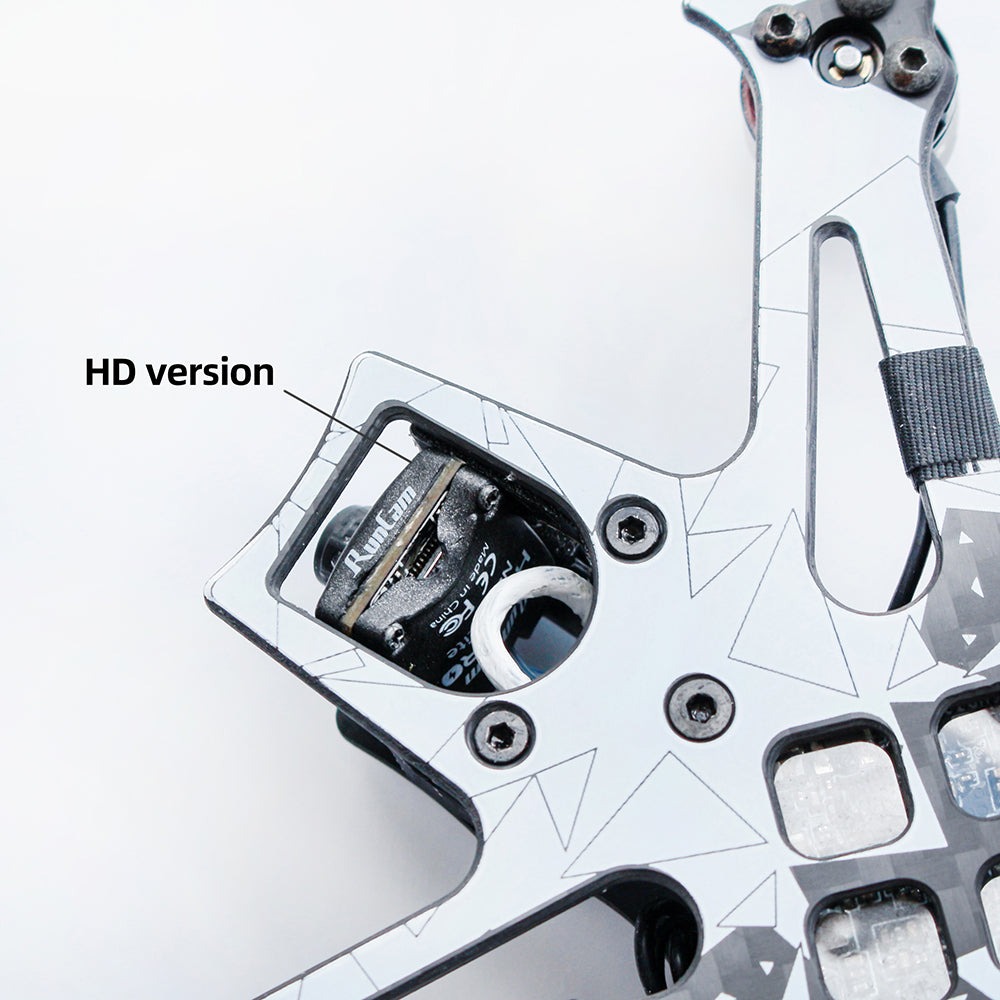

• HD FPV – The Tinyhawk III Plus Freestyle HD version features the groundbreaking HD Zero video transmission system, setting a new standard for clarity and precision. This system ensures that every detail of your flight is captured in stunning high-definition quality. Say goodbye to low quality feeds and immerse yourself in the crystal-clear visuals that HD Zero delivers.
• ELRS CONTROL – Tinyhawk III Plus Freestyle, offering an exceptional flying experience with its cutting-edge ELRS (ExpressLRS) transmitter protocol. ELRS is renowned for its low latency and rock-solid signal reliability, ensuring that your commands are executed with lightning-fast responsiveness.
• MORE POWER Engineered for precision and extended airtime, the Tinyhawk III Plus Freestyle features high-performance 12025 7000KV motors, meticulously calibrated to optimize RPM and ensure maximum efficiency. Coupled with the AVAN Rush 2.5-inch propellers, it delivers exceptional grip and thrust, offering a versatile and exhilarating flying experience.

Tinyhawk 3 Plus Freestyle HDZero

• Wheelbase: 110mm
• Dimensions: LxWxH=100x104x22 mm
• Weight: 65.5g
• Motor: 12025 7000KV
• Propellers: AVAN Rush 2.5
• Flight Controller: STM32F411, 6A BLHeli_S, 1-2S Integrated ELRS (2.4G)
• Camera: RunCam HDZero Nano Lite
• VTX: HDZero Whoop Lite 0/25mW/200mW
• Battery: 1S HV 650mAh

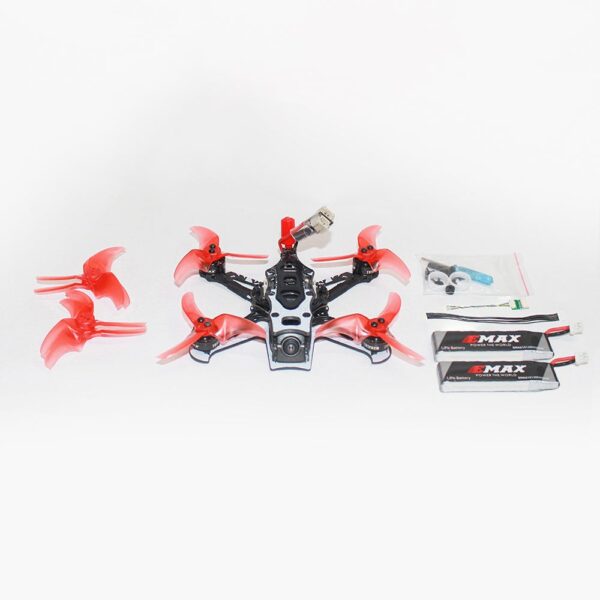

Tinyhawk 3 Plus Freestyle HDZero BNF Includes:

• 1x Tinyhawk 3 Plus Freestyle HDZero BNF
• 2x EMAX 1S HV 650mAh Battery
• 1x Hardware Kit
• 1x Avan Rush 2.5” Propeller Set (2X CW, 2X CCW)
• 1x HDZero Firmware Update Cable Kit

Parts and Upgrades:

• Emax Avan Rush 2.5″ Propellers (2 Colours) – These propellers are the stock propellers and are a great lightweight choice.
• Frame TBA
• Motors TBA
• AIO TBA

Batteries (Remember it uses a Pair):

• Official EMAX 450mAh 1S Battery – A lighter EMAX battery is a high-quality battery designed with performance in mind
• Official EMAX 650mAh 1S Battery – The Standard EMAX battery is a high-quality battery designed with flight time and power in mind
• GNB Battery 3.8V 100C 720mAh 1S – The ultimate in flight time, this is the maximum pack size for the Tinyhawk 3 Plus

Instruction Manuals:

• EMAX TinyHawk III Plus Freestyle HDZero RTF Instructions TBA

Please note: Reviews prior to 1st October 2023 are for the V2 version.
