Flywoo Circular RHCP SMA Antenna (2 Lengths)
by Flywoo
Boost your drone’s performance with the Flywoo Circular RHCP SMA Antenna, the lightest, most efficient antenna for any quad.
$17.99 – $18.99
SKU: 2483
Categories: Antennas, FPV Equipment
Description

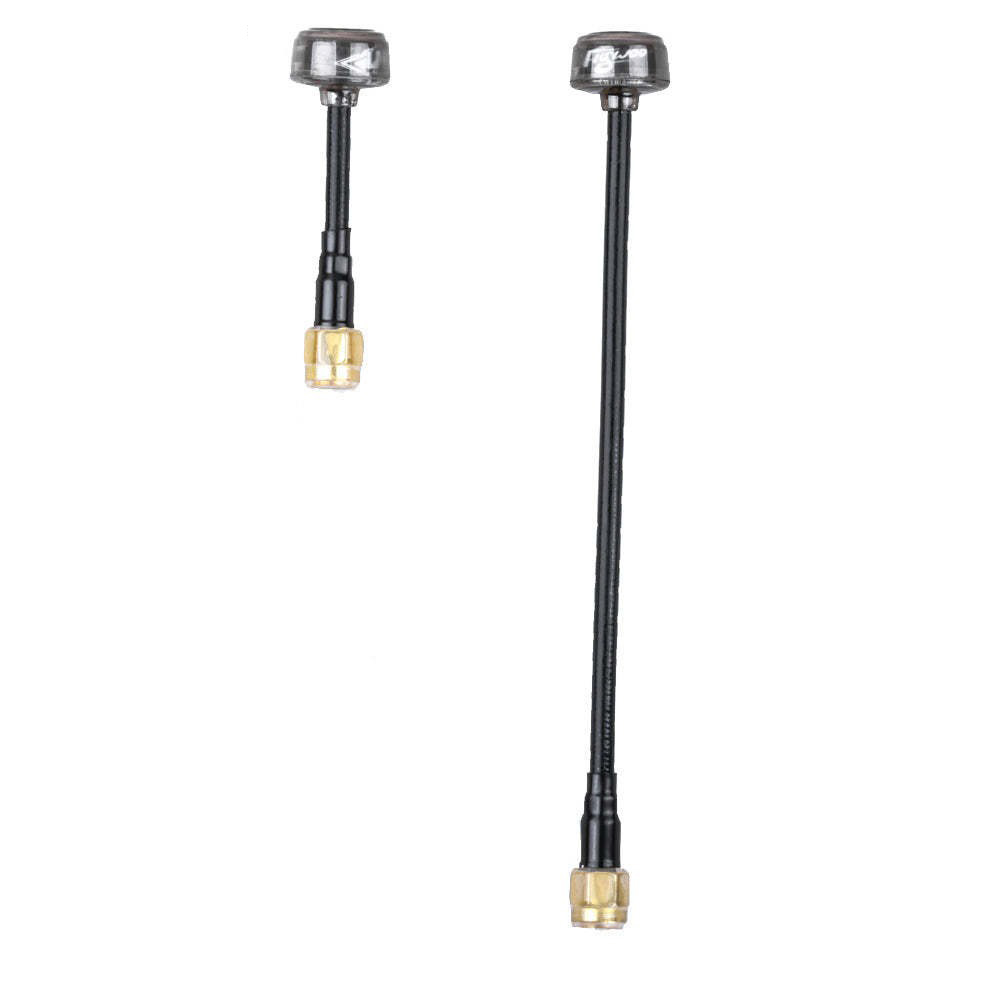

The Flywoo Circular RHCP SMA Antenna is the smallest and lightest circular polarized antenna available. It is perfect for lightweight racing builds, freestyle quads, or long-range drones. Available in 60mm & 125mm.
Features
- Flywoo Circular antenna housing is made out of injected molded polycarbonate ,to avoid buying fragile stock antennas again and again…
- circularly polarized and has excellent multipath rejection capability . Effectively suppress screen flicker caused by multi-path interference. ( Multipath interference is the most common reason for bad video quality, in the form of random color change, static, scrambled image and drop-outs. It happens when the signal is reflected from object and gets distorted with phase delay, and it interferes with the main signal. )
- Have an amazing max gain of 2.2dBic , Significantly Improved Range with a Higher Gain
- Works great as both a transmitting or receiving antenna
- Virtually Perfect Axial Ratio
- Extended Wire Length
Specifications
- Gain: 2.2dBi
- Axial ratio: 1.0 Around
- Band Width: 5.6Ghz – 6.2GHz
- Axial Ratio: Around 1.0
- Polarization: LHCP or RHCP

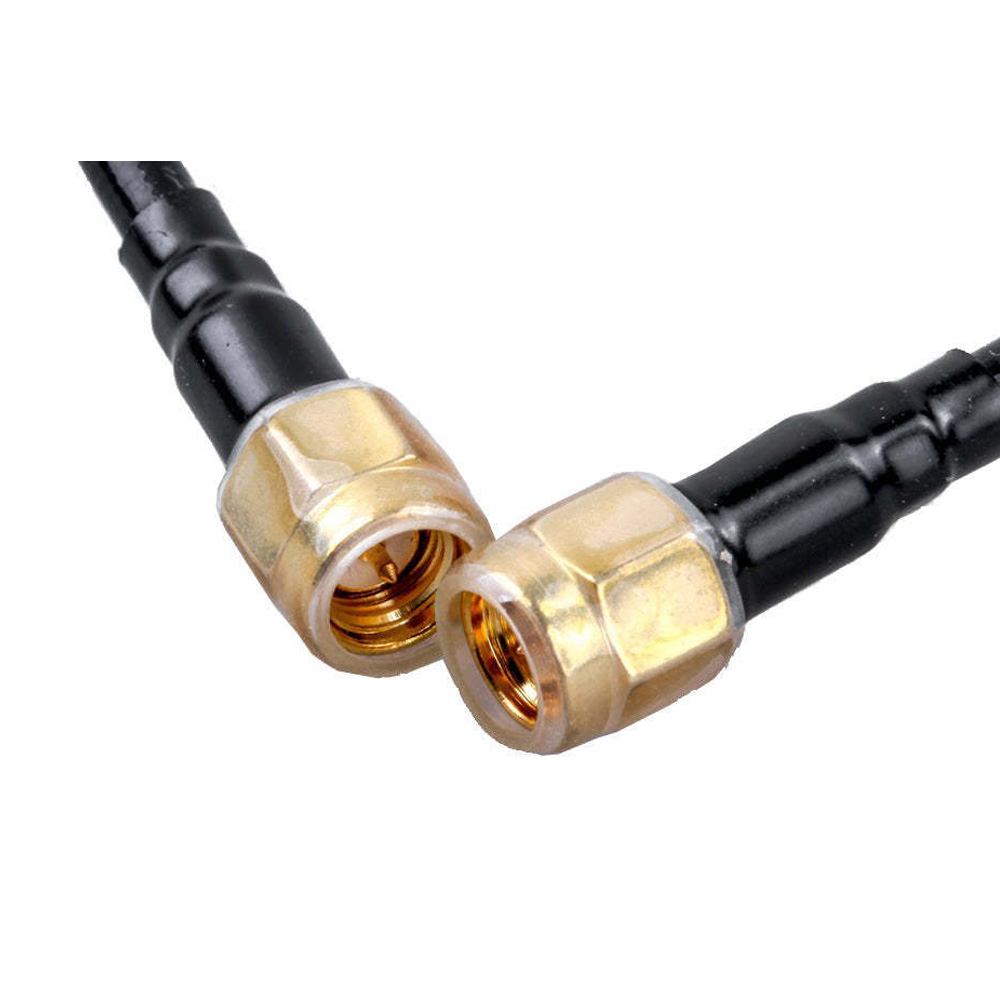

- Connector: SMA
Package Includes
- 1 x Flywoo Circular RHCP SMA
Additional information
Brand | |
---|---|

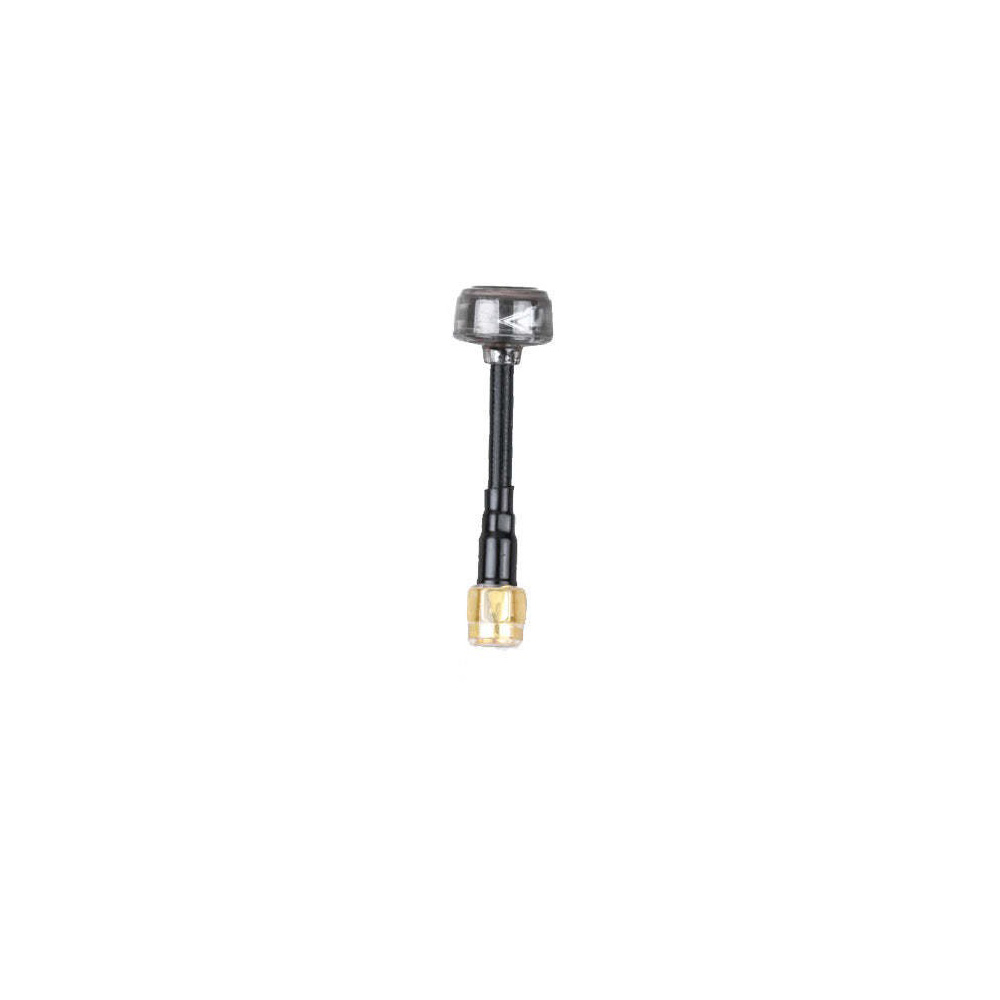

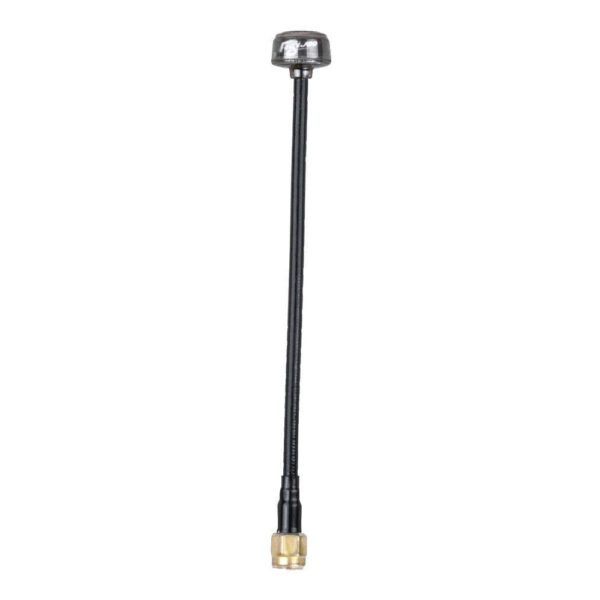

Length | 60mm, 125mm |
