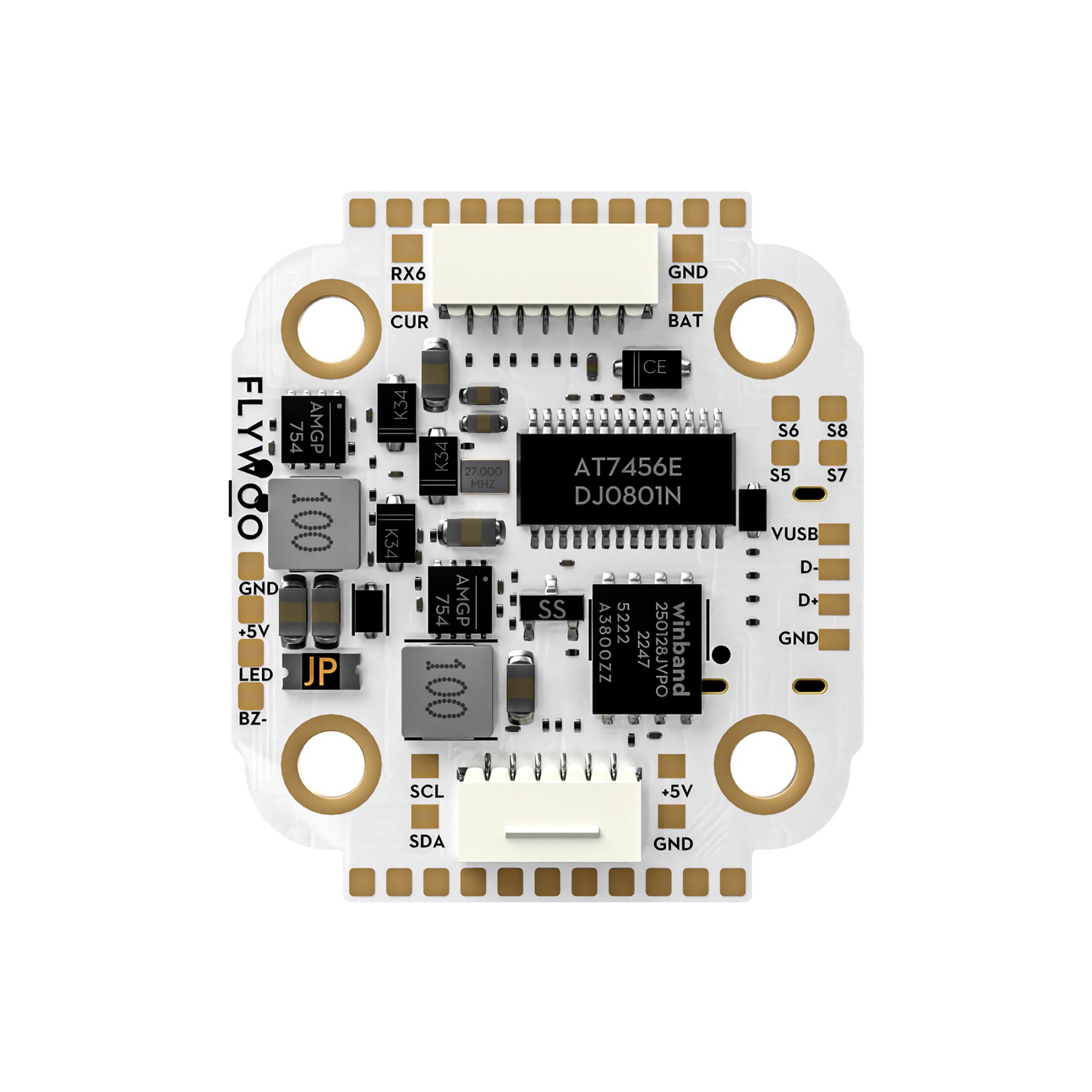

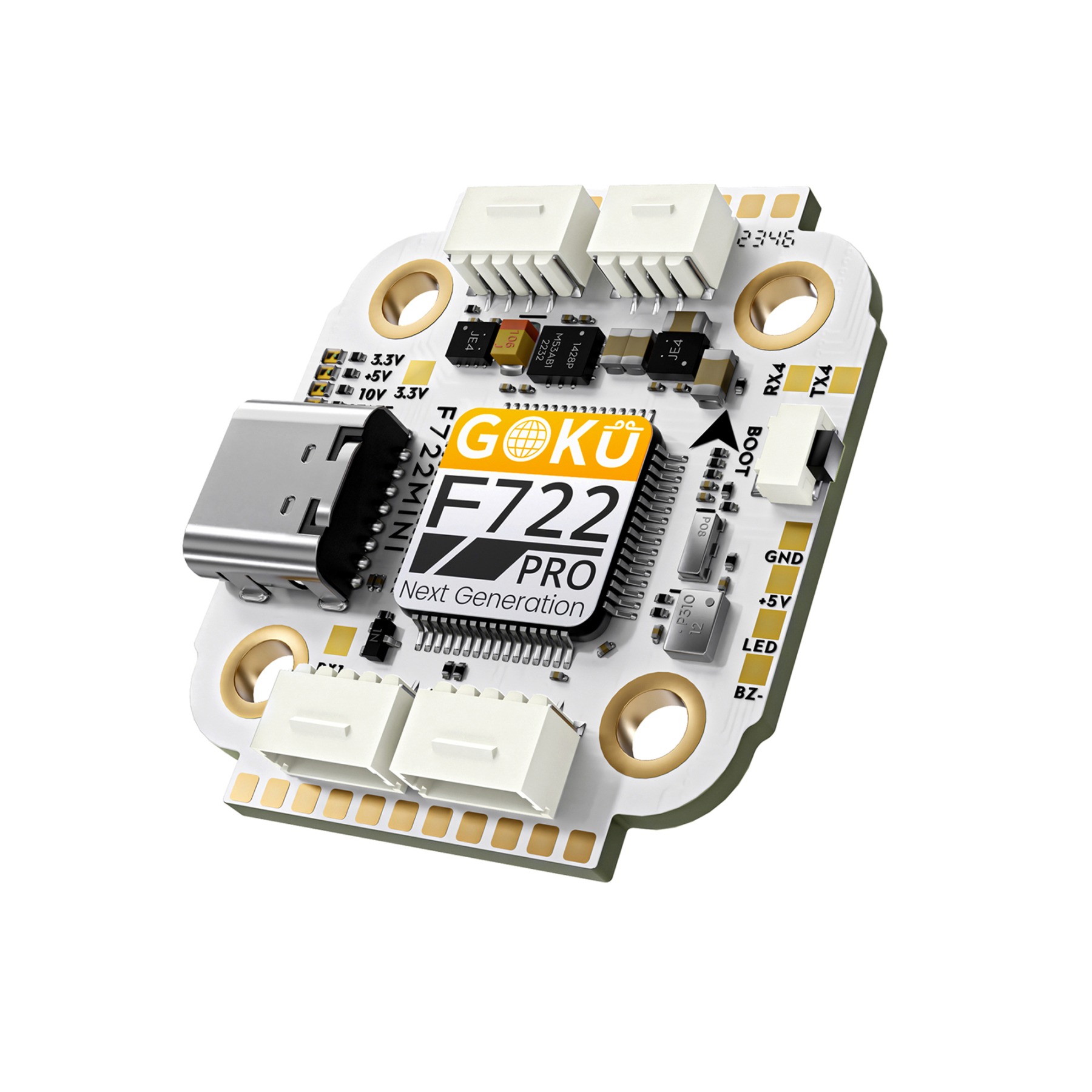

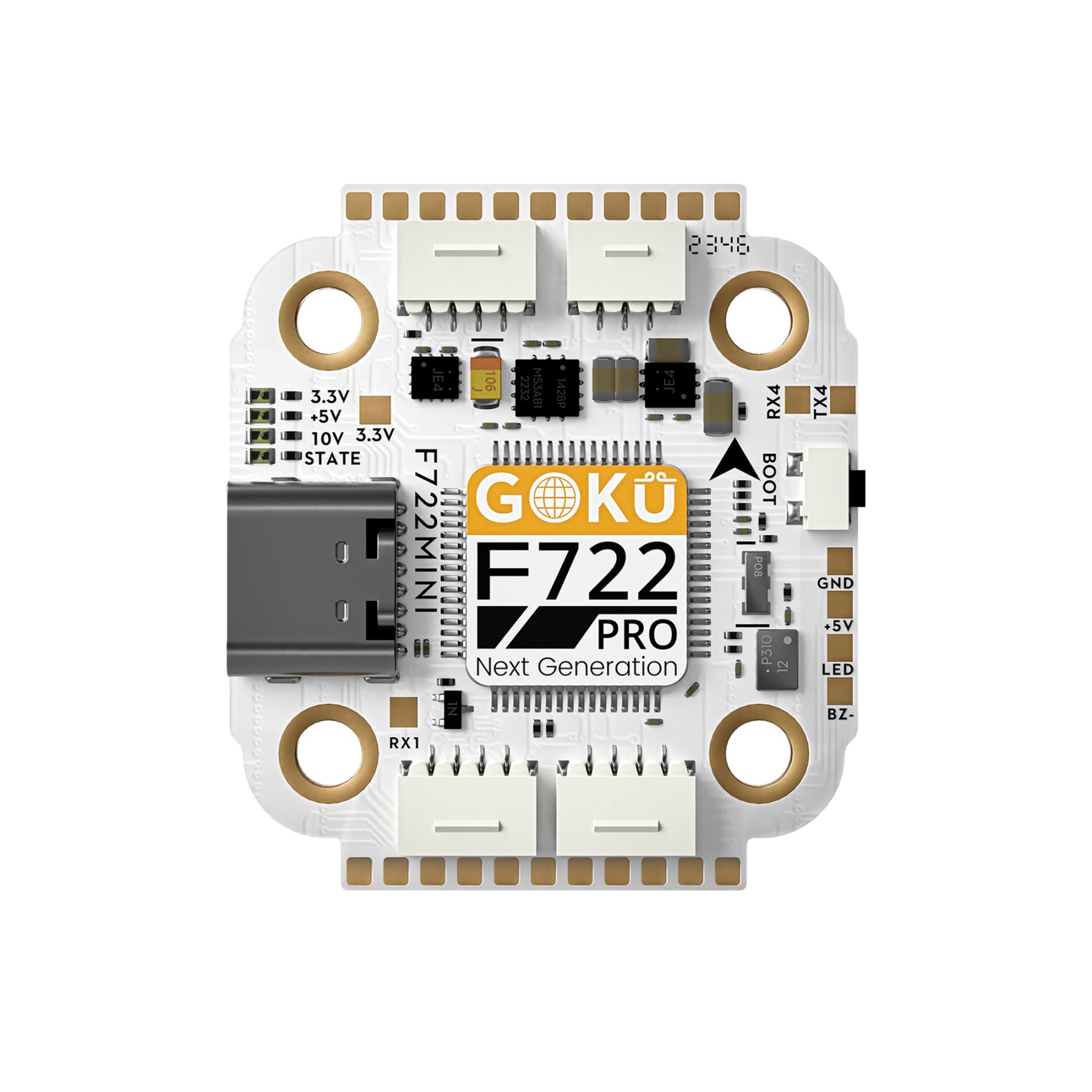

Flywoo GOKU F722 PRO MINI V2 20X20 Flight Controller (ICM42688)

• High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
• Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
• Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
• Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
• Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
• Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
• Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.

Specifications:

• GOKU F722 PRO Mini V2 Flight Controller

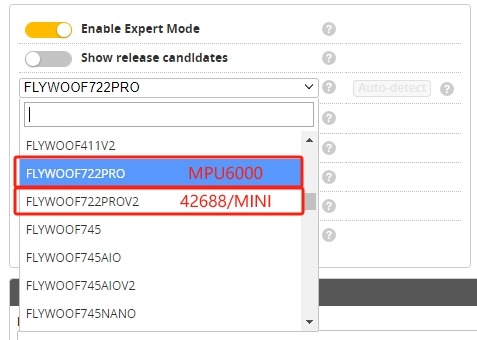

• BF Flight Controller Firmware: FLYWOO F722PROV2
• INAV Firmware: FLYWOO F722PRO
• MCU: STM32F722
• Gyroscope: ICM42688
• OSD: AT7456E
• Barometer: DP310
• Black Box: 16MB
• UARTS: 1/2/3/4/5/6
• Input Voltage: 7.4V-26V/2-6S LiPo
• BEC: 10V2A/5V2A
• Flight Controller Size: 32mm x 29mm x 20mm
• Mounting Holes: M2 20x20mm
• Weight: 9.9g

Package Includes:

• 1 x FC&ESC Connection Cable
• 1 x Buzzer Connection Cable
• 1 x GPS Connection Cable
• 1 x DJI O3 Connection Cable
• 1 x Receiver Connection Cable
• 5 x M3 Shock-Absorbing Ball
• 5 x M2 Shock-Absorbing Ball
• 1 x Camera Connection Cable
