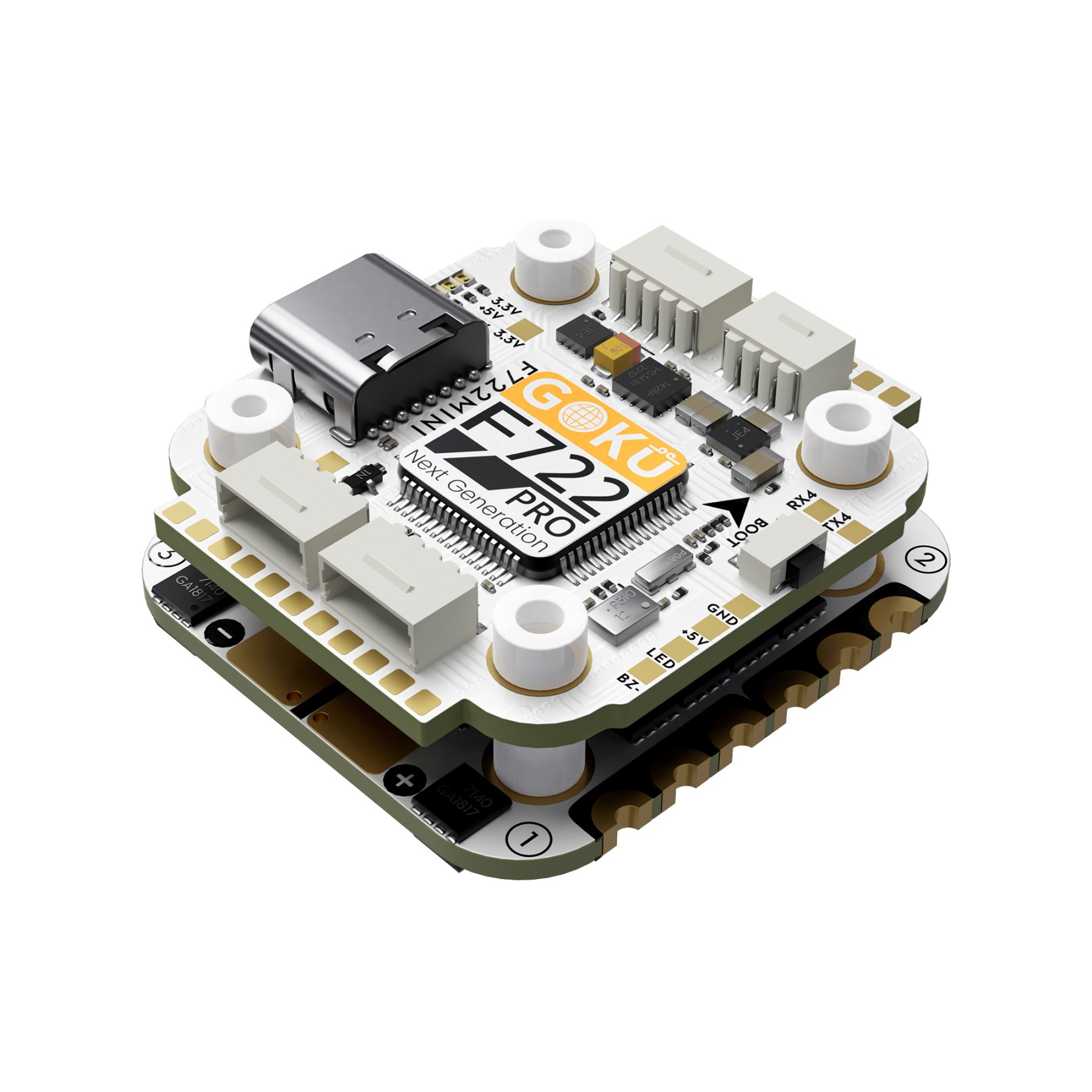

Flywoo GOKU F722 Pro Mini V2 45A 128K Stack 20×20 (AM32)
by Flywoo
Experience enhanced control and seamless installation with Flywoo’s high-performance stack, designed for precision, flexibility, and easy integration.
$159.99
Hurry! Only 3 left in stock
Ships from our Tauranga warehouse
SKU: 1214
Categories: 20mm x 20mm, Electronics, FC / ESC Stacks
Description
The Flywoo GOKU F722 Pro Mini V2 45A 32Bit 128K Stack (20×20) (AM32) brings unmatched performance and user-friendly design to drone building. Featuring a high-speed STM32 F722 processor, dual 4-in-1 ESC compatibility, plug-and-play DJI O3 Air Unit support, and a 16MB black box for flight data, it’s crafted for efficiency, precision, and ease. With modular snap-lock sockets and solder pads, setup and maintenance are streamlined, empowering any pilot’s creative freedom.
Features:
-
High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
-
Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
-
Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
-
Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
-
Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
-
Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
-
Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
Specifications:

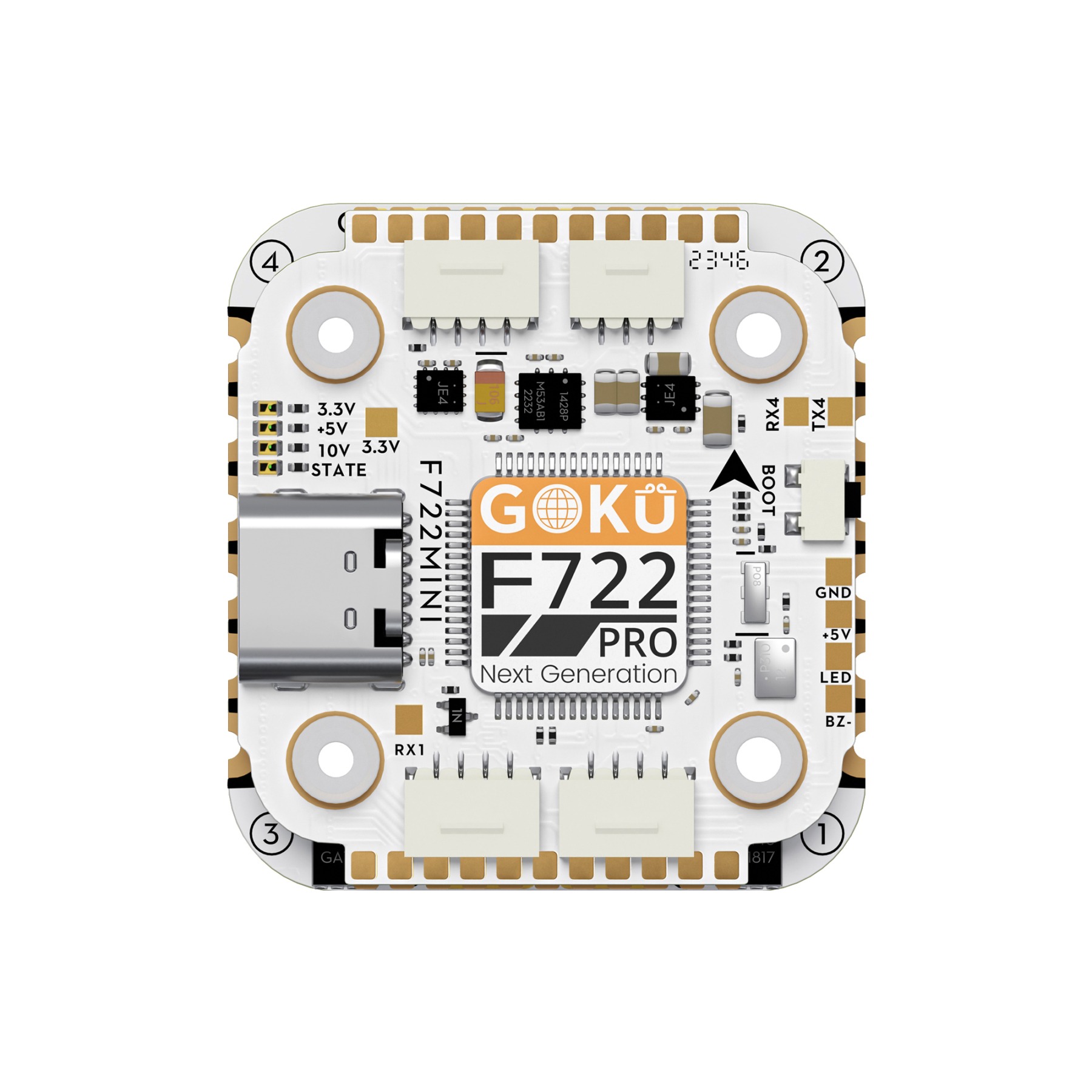

GOKU F722 PRO Mini V2 Flight Controller
- BF Flight Controller Firmware: FLYWOO F722PROV2
- INAV Firmware: FLYWOO F722PRO
- MCU: STM32F722
- Gyroscope: ICM42688
- OSD: AT7456E
- Barometer: DP310
- Black Box: 16MB
- UARTS: 1/2/3/4/5/6
- Input Voltage: 7.4V-26V/2-6S LiPo
- BEC: 10V2A/5V2A
- Flight Controller Size: 32mm x 29mm x 20mm
- Mounting Holes: M2 20x20mm
- Weight: 9.9g
GOKU G45M 32bit 4in1 ESC
- Support AM32
- Support Dshot300, Dshot600,Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 2-6S Lipo
- Continuous Current: 45A
- Firmware: GOKU_F4A32_PRO
Package Includes:
- 1 x FC&ESC Connection Cable
- 1 x Buzzer Connection Cable
- 1 x GPS Connection Cable
- 1 x DJI O3 Connection Cable
- 1 x Receiver Connection Cable
- 5 x M3 Shock-Absorbing Ball
- 5 x M2 Shock-Absorbing Ball
- 1 x Camera Connection Cable
