Description

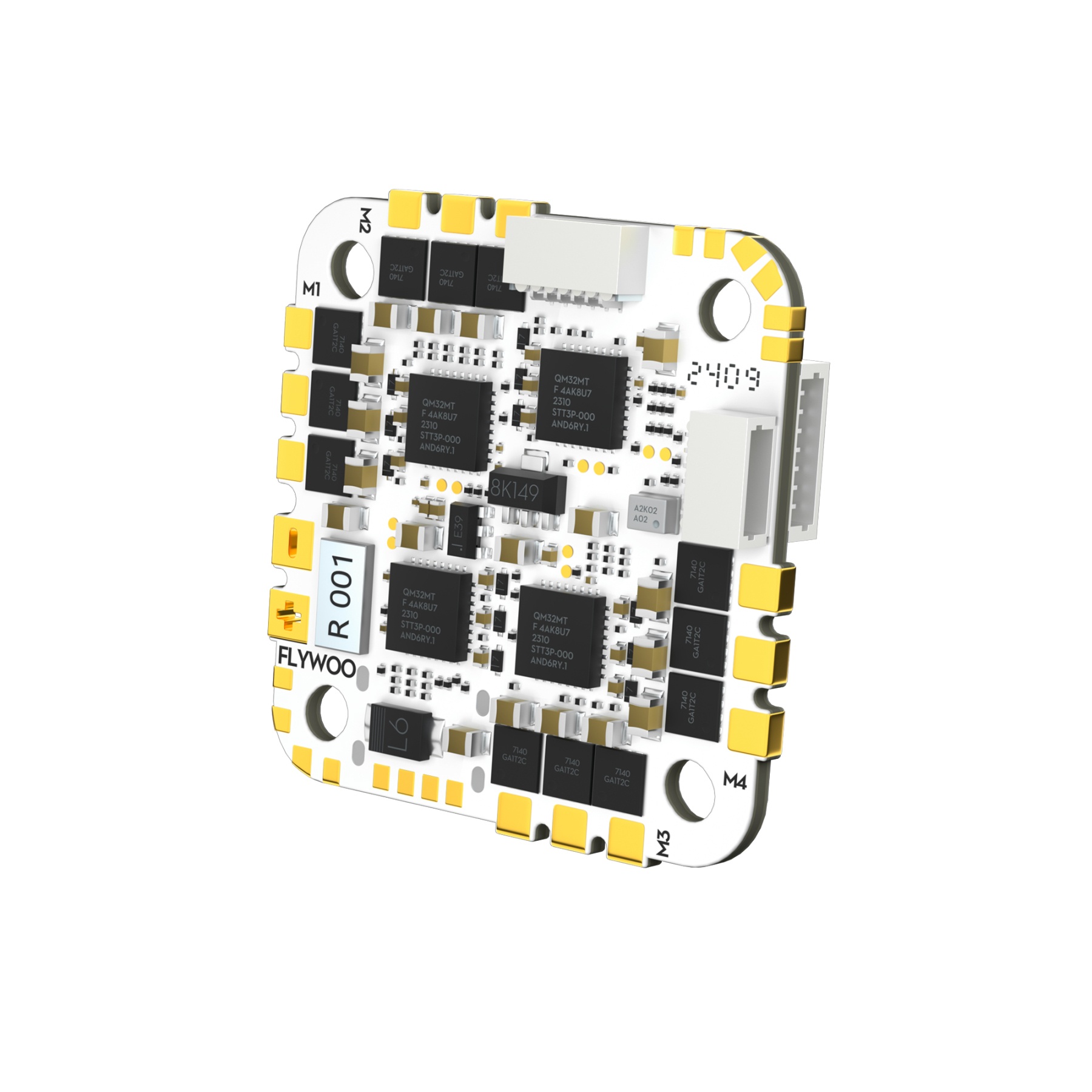

The Flywoo GOKU GN745 45A AIO 32bit (ICM42688P) V3 delivers exceptional all-in-one flight control performance with a powerful STM32F745 processor, integrated 45A ESC, and seamless compatibility across Betaflight, INAV, and Ardupilot platforms for versatile builds. Engineered with plug-and-play connectivity, Type-C interface, enhanced protection, and advanced features like blackbox logging and multiple UARTs, it ensures reliable power, cleaner wiring, and effortless integration for demanding FPV pilots and creators alike today worldwide.

Features

• Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
• Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
• Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
• Compatibility: Supports BF, INAV, and Ardupilot platforms.
• New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
• Better Protection: Larger motor pad area with improved overcurrent protection.

Specifications

• MCU: STM32F745, 32-bit, 216MHz, 1MB Flash
• Gyro: ICM42688P
• Firmware: BF / INAV / Ardupilot compatible
• ESC Firmware: AM32_F4A_4IN1_F421
• Input Voltage: 2–6S LiPo
• Continuous Current: 45A
• ESC Protocols: PWM, Oneshot125/42, Multishot, DShot150/300/600/1200
• UARTs: 7 hardware UART ports
• Blackbox: 16MB onboard storage
• Power Output: 5V 2A / 3.3V 0.5A
• Mounting: 25.5mm / 26.5mm standard holes
• Dimensions: 33.5 × 33.5mm
• Weight: 9.4g
• Receiver Support: SBUS, iBus, Spektrum, Crossfire (no PPM/PWM)
• Interface: USB Type-C

Package Includes

• 1 x Flywoo GOKU GN745 45A AIO 32bit (ICM42688P ) V3
