Description

The Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTx delivers unmatched long range video transmission with selectable power levels up to 2.5W, ensuring crystal clear signal stability for demanding FPV pilots in any environment. Engineered with wide 9-36V input, smart pit mode access, compact 20 by 20 mounting, and efficient 5V output, it balances power, durability, and lightweight performance for serious freestyle and racing builds with consistent heat control reliability.

Specifications

• Model: Reaper Extreme V3 2.5W VTx
• Frequency: 4.9G–6G
• Channels: 80CH
• Power Output: 25mW / 200mW / 500mW / 1.5W / 2.5W
• Input Voltage: 9–36V
• Output Voltage: 5V
• Current Consumption: 1.2A @ 9V
• Mounting Hole: 20×20mm (M2, 2.8mm depth)
• Dimensions: 36 × 27.5 × 8mm
• Weight: 13g
• Pit Mode: Double-click activation
• Package Includes: 1× VTx, 1× silicon cable

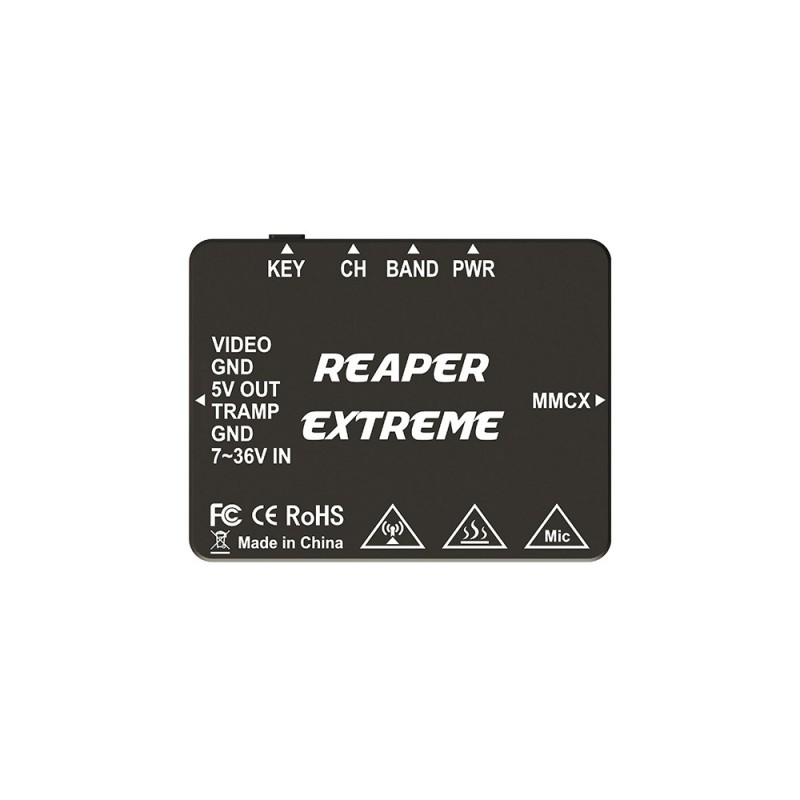

Adjust the power level and frequency: If the Tramp pin cable on VTx is connected with FC, then the button doesn’t work.

PIT On/Off:

Double-click the “KEY” button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

Package Includes

• 1 x Foxeer 4.9G~6G Reaper Extreme V3 2.5W 80CH VTx
