Description

Notes:

• Must Pair with Good Antennas to Avoid Self-Oscillation to Kill VTx
• All Forbidden Frequency and Power Are Locked by Default
• Adjust the power level and frequency: If the Tramp pin cable on VTx is connected with FC, then the button doesn’t work.

Specifications:

• Name Reaper Extreme
• Input Voltage 9~36V
• Output Voltage 5V
• Channels 40CH
• Power 25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly
• Pit Double click to enter
• Weight 13g

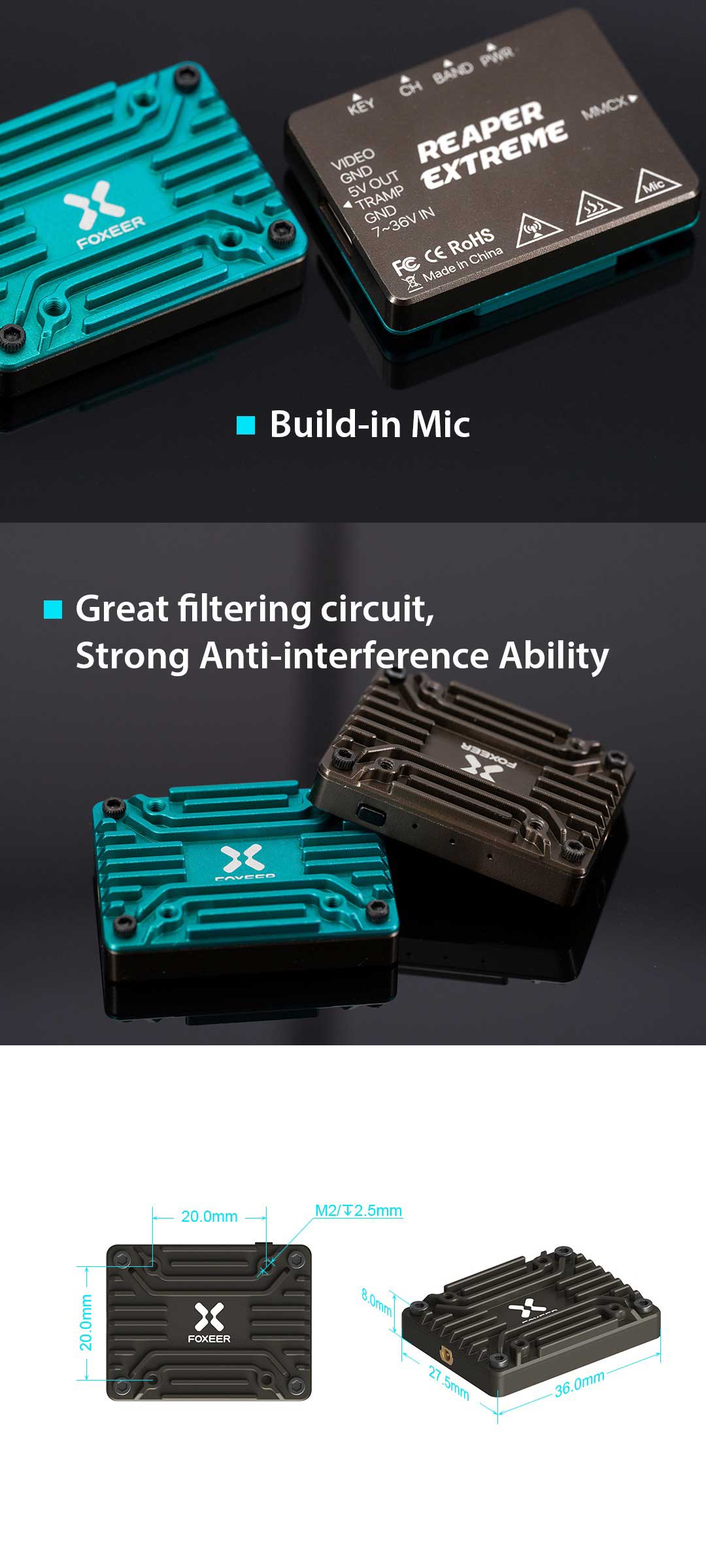

• Mounting Hole 20*20mm M2 2.8mm depth
• Size 36*27.5*8mm
• Consumption 1.2A/9V
